Cable Leader - OS2 LC to SC Fiber Optic Patch Cable Single Mode 9/125 Duplex for SFP Transceivers, Patch Panels, Media Converters - Yellow
Reviews coming soon
About this product
Need a OS2 optical fiber cable from a LC port to a SC port? This Cable Leader OS2 LC to SC fiber optic patch cable, also sold as a LC to SC single mode fiber optic cable, fiber optic network cable or patch cord, uses Corning 9/125 OS2 glass in a 2.0 mm LSZH/OFNR riser-rated zipcord with a duplex LC/UPC connector on one end and a duplex SC/UPC connector with 31.8 mm boots on the other with a 19.5 mm short-boot LC, insertion loss 0.30 dB or less and return loss 55 dB or better. OS2 single mode optical fiber in the G657A1 bend-insensitive grade carries 1000BASE-LX and 10GBASE-LR links up to 10 km under IEEE 802.3 and works with existing G652D plant. Works with 10GBASE-LR and 1000BASE-LX single mode optics and equipment from Cisco, Ubiquiti UniFi, MikroTik, TP-Link, Netgear, TRENDnet, StarTech, Dell and HPE Aruba. Each cable is sample-tested during production, and Cable Leader handles replacement requests directly. Best for: 10G LR links between LC and SC gear, patch panels, media converters. Not for: SR or SX multimode optics on aqua OM3 or OM4 cable, green APC ports, or Toslink audio.
Cable Length
49.21'Features
OS2 9/125 Corning Single Mode Fiber
Corning OS2 9/125 glass carries 1000BASE-LX and 10GBASE-LR links up to 10 km under IEEE 802.3. The G657A1 bend-insensitive grade tolerates tight routing without the loss spikes of standard G652D fiber.

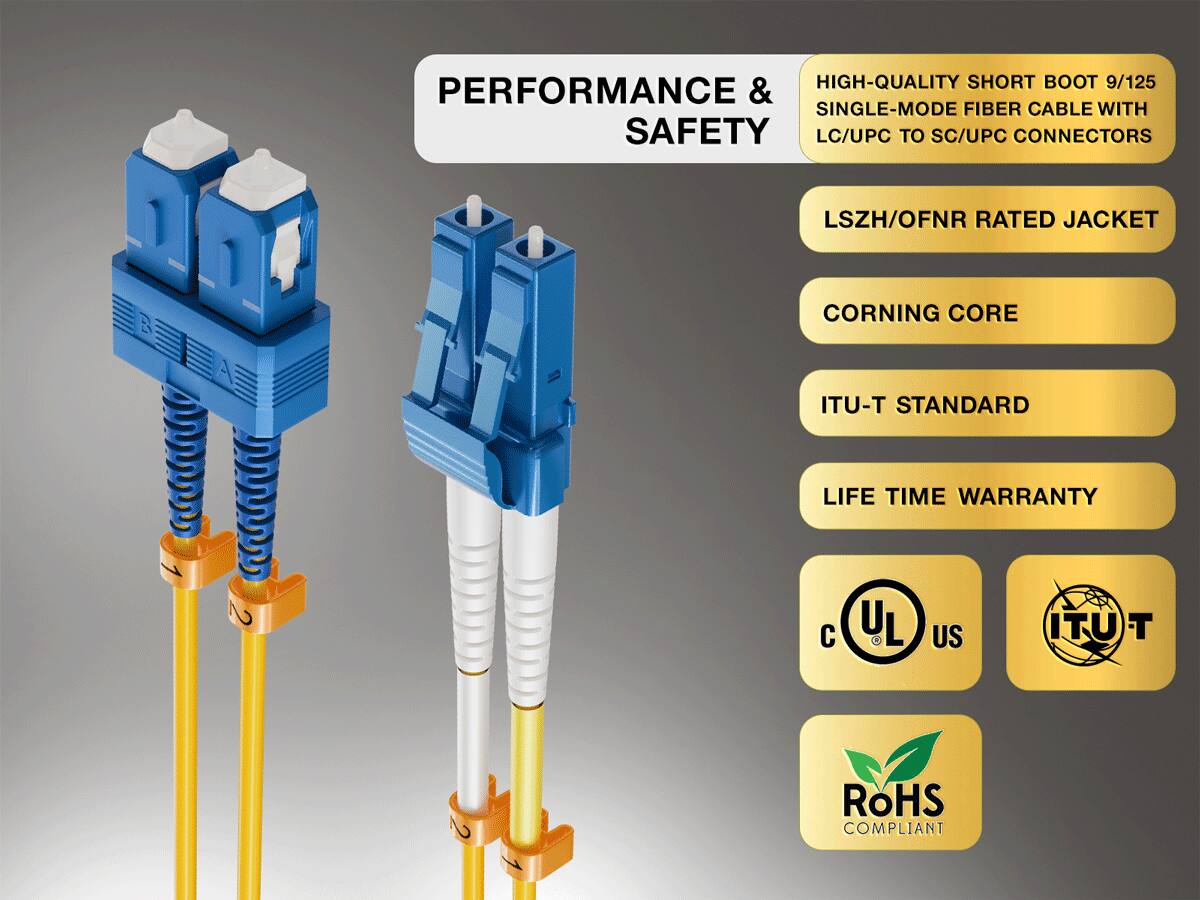

LC/UPC to SC/UPC Duplex Connectors, LC to SC

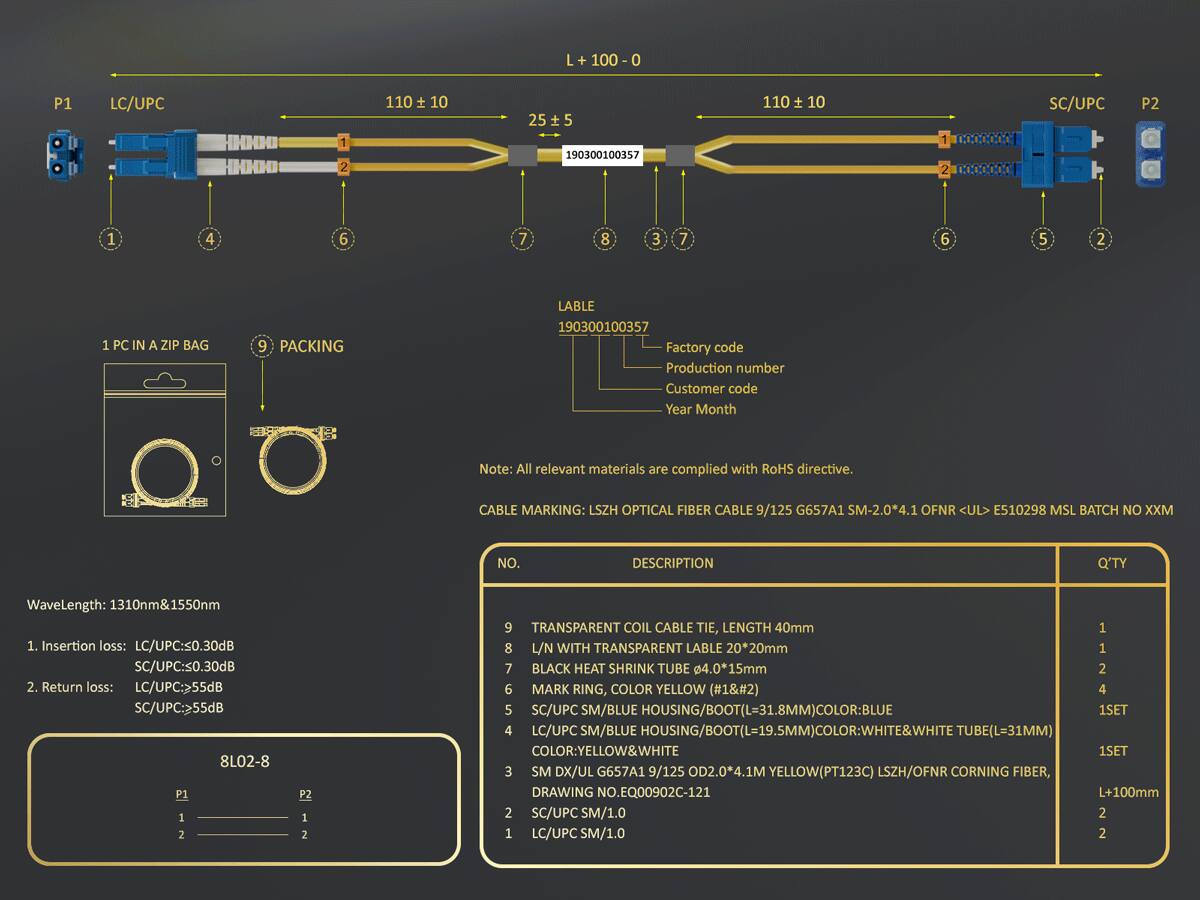

This cable has a duplex LC/UPC connector on one end and a duplex SC/UPC connector with 31.8 mm boots on the other with a 19.5 mm short-boot LC, so one jumper links LC SFP or SFP+ ports on one side and SC patch panels, media converters or legacy GBIC ports on the other. Insertion loss is 0.30 dB or less and return loss 55 dB or better per connector at 1310 nm and 1550 nm.
Not for Multimode or APC Ports: Quick Check
LC SFP or SFP+ transceiver on one end (Cisco, Ubiquiti, MikroTik, TP-Link, Netgear, Dell, HPE Aruba) - Yes. SC duplex patch panel, coupler or media converter (TP-Link, TRENDnet, StarTech) on the other end - Yes. SR or SX multimode optics on aqua OM3 or OM4 cable - No. Green APC ports - No. Toslink optical audio - No.
LSZH/OFNR Riser-Rated 2.0 mm Zipcord Jacket
The 2.0 mm duplex zipcord jacket is LSZH/OFNR riser-rated for vertical runs between floors and standard indoor use, with aramid yarn strength members and a tight buffer around each fiber. Numbered boots and color bands at both ends make polarity easy to trace in a dense rack.
Sample-Tested Production, Cable Leader Direct Support
All Cable Leader fiber optic cables are sample-tested during production for insertion loss and return loss, then packed one per zip bag with the connectors capped. If your cable arrives defective or stops working in normal use, Cable Leader handles replacement requests directly, no manufacturer redirects.
Specifications
- Cable Length49.21 feetConnector Type (End 1)LC/UPCGender (End 1)MaleConnector Type (End 2)SC/UPCGender (End 2)MaleMaximum Data Transfer Rate10000 megabits per second
