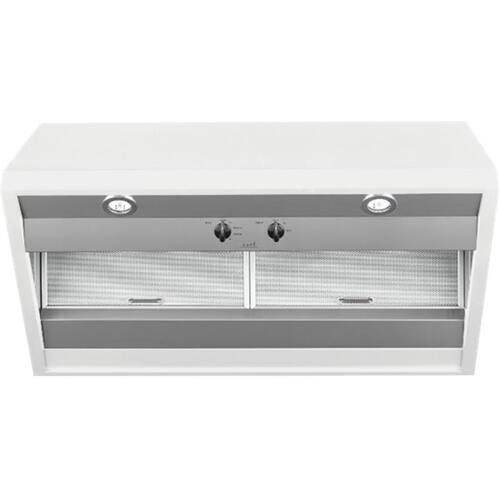

Café - 36 inches - Externally Vented - Wall Range Hood - Matte White
- Key Specs
- Color Finish: White
- Product Height: 18 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 36 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Café
- Model Number: CVW93614MWM
- Product Name: 36" Externally Vented Range Hood
- Color: Matte White
- Color Finish: White
- Dimensions
- Product Height: 18 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 36 inches
- Product Width: 36 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 60 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Round Duct Diameter: 7 inches
- Features
- Exhaust Vent Location: Top
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Wall
- Number of Fan Speeds: 4
- Control Type: Dial
- Integrated Light(s): true
- Bulb Type Required: Halogen
- Bulb(s) Included: true
- Performance
- Maximum Operating Sound Level: 7.5 sones (The perceived intensity of the operating sound produced by the product at its highest setting. The higher the sone rating, the louder the noise level.)
- Minimum Operating Sound Level: 0.4 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)
- Filter Info
- Filter Material: Other
- Dishwasher-Safe Filter: true
- Electrical Specification
- Amperage: 3.9 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 084691842804
Vent smoke and other fumes quickly and effectively with this 36-inch Cafe commercial hood. The two fan speeds let you set the power appropriate for the task, and the halogen lights illuminate items on the stove clearly for effortless viewing of your meals as they cook. This Cafe commercial hood is matte white, providing a crisp, clean look.
How to Measure for a New Appliance
A little measuring now can help you avoid delivery headaches later.
Watch the video ›
- 590 cfm exhaust capacity: Quickly pull smoke and cooking odors out of the air.
- 4 fan-speed settings: Allow you to adjust ventilation to meet your needs.
- Dual halogen lights: Illuminate the cooktop below with bright or subtle lighting for better visibility while cooking.
- Mesh grease filters: Capture grease, steam and odors.
- Matte white finish: Offers a stylish look.
- Designed to fit standard 7" round ductwork: For ease of installation.
Whats Included
- Café 36" Externally Vented Range Hood
Product Manuals
A: Hi, Thanks for asking! We appreciate your interest and we'd like to help. We recommend looking at the Product Datasheet for the complete dimensions of this Externally Vented Range Hood. You can find them here: https://files.bbystatic.com/1p7Z7b2KIpiILEchV90%2BZQ%3D%3D/508794FA-A43B-4183-8AD9-3BD6695DA0B6.pdf Hope this helps! -Sylvia@Cafe
Q: What is the DB for each setting?
A: Hello Jae - Thank you for the excellent question. We are happy to share more about this amazing vent hood. When rating our hoods, we do not use dBAs but sones instead. The sones at the highest setting are 7.5 and at regular working speed it is 0.4. We hope this helps. Please let us know if you have any more questions. - John@GEA
A: Hi Lindyjpeterson - We offer an optional matte white chimney kit that can be added to this model. It will accommodate a ten foot ceiling. The part number for this is UXCH4NWM. - Trey@Cafe
