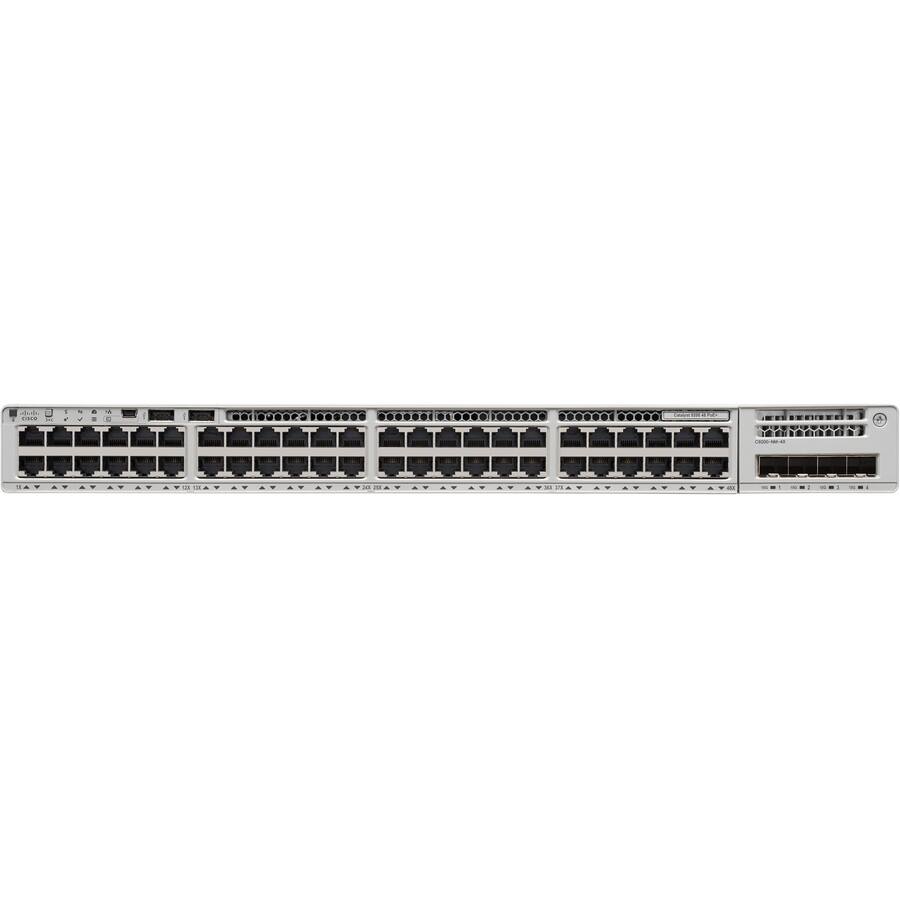

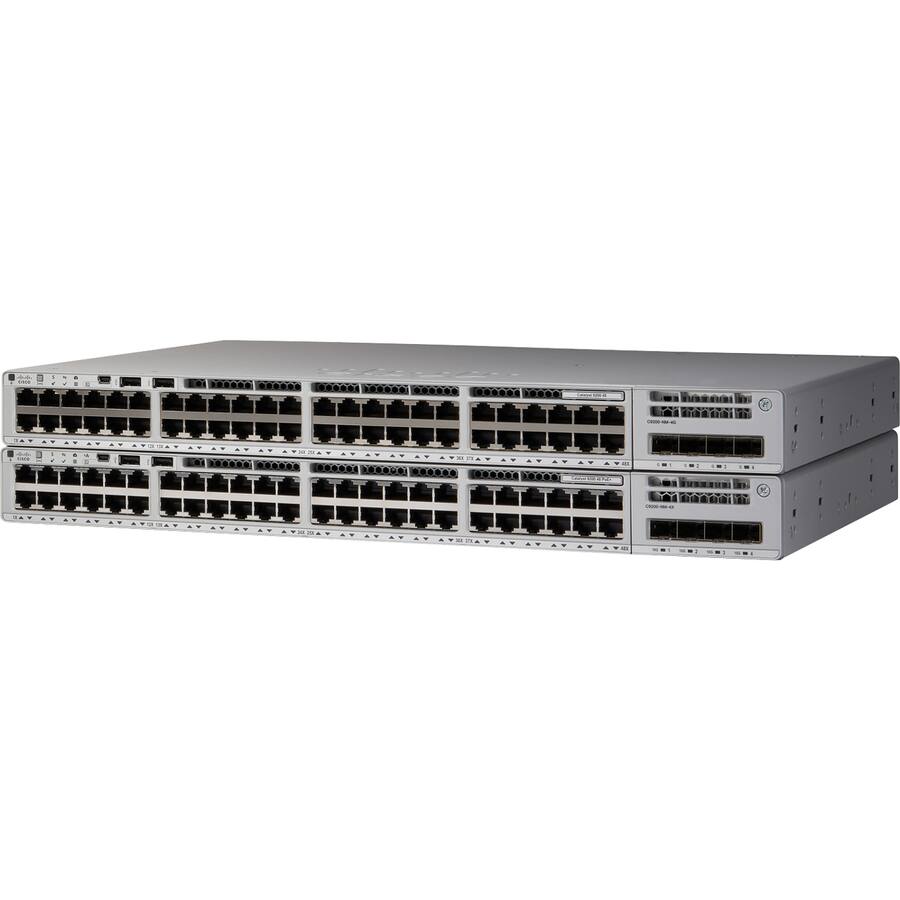

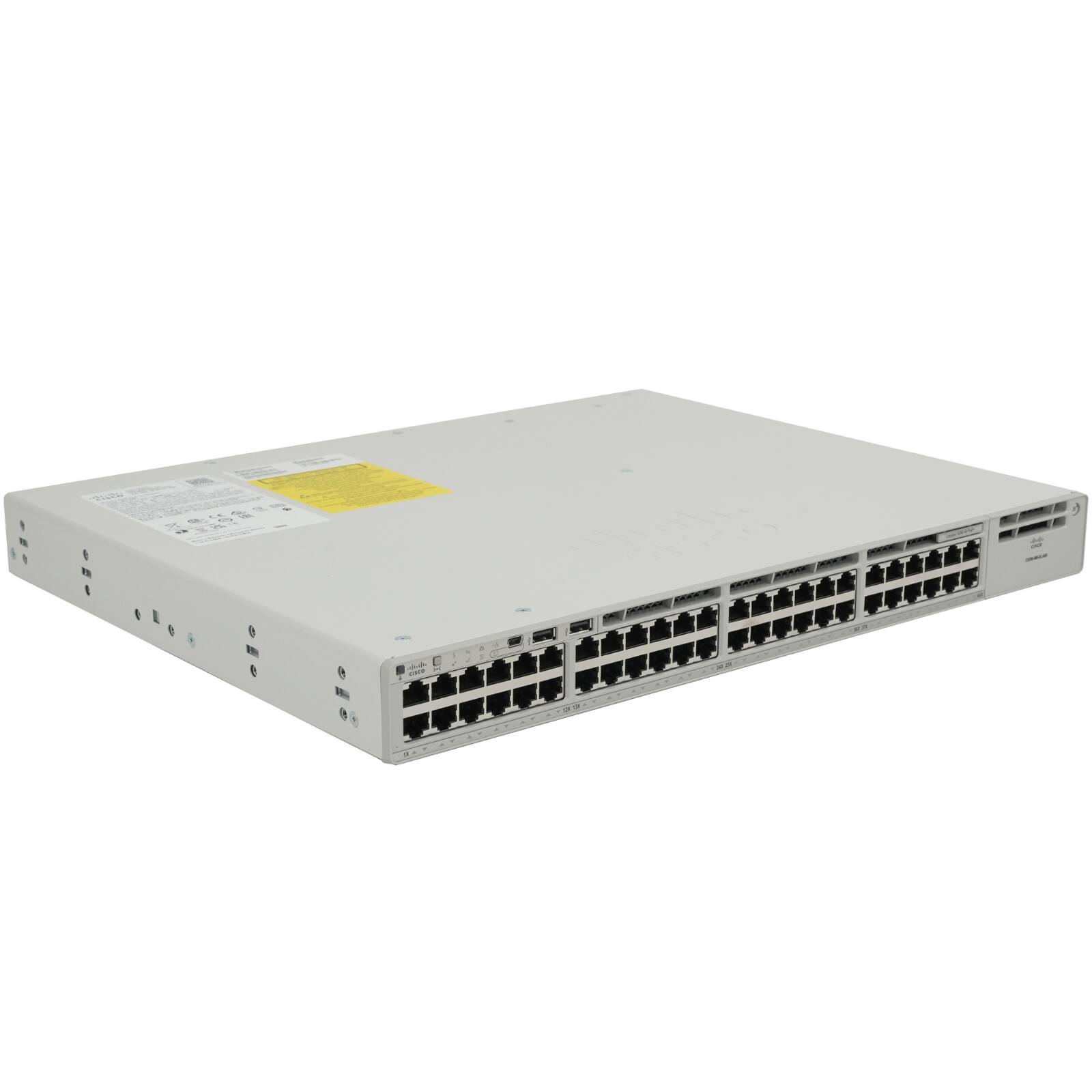

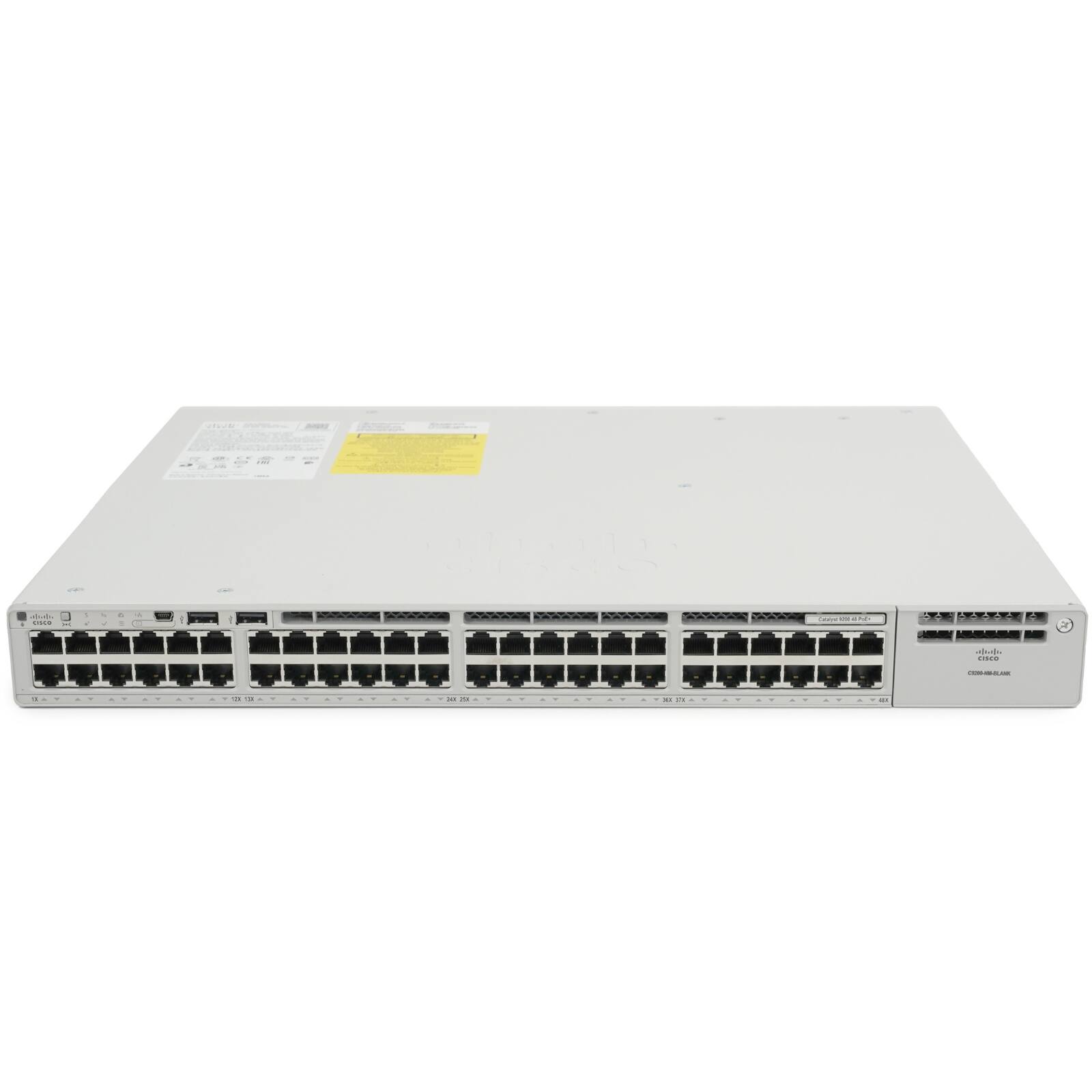

Cisco Consumer Products - Cisco Catalyst C9200-48P Ethernet Switch - 48 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T - 3 Layer - Gray
More Buying Options from Marketplace sellers
Specifications
- Number of PoE (Power over Ethernet) Ports48Form FactorRack mountable (mount kit included)Maximum Data Speed10000 megabits per secondSwitch Management TypeFully managedNumber of LAN Ports48
- Key Specs
- Number of PoE (Power over Ethernet) Ports: 48 (Allow connection of a single cable that provides both data connection and electrical power (Power over Ethernet).)

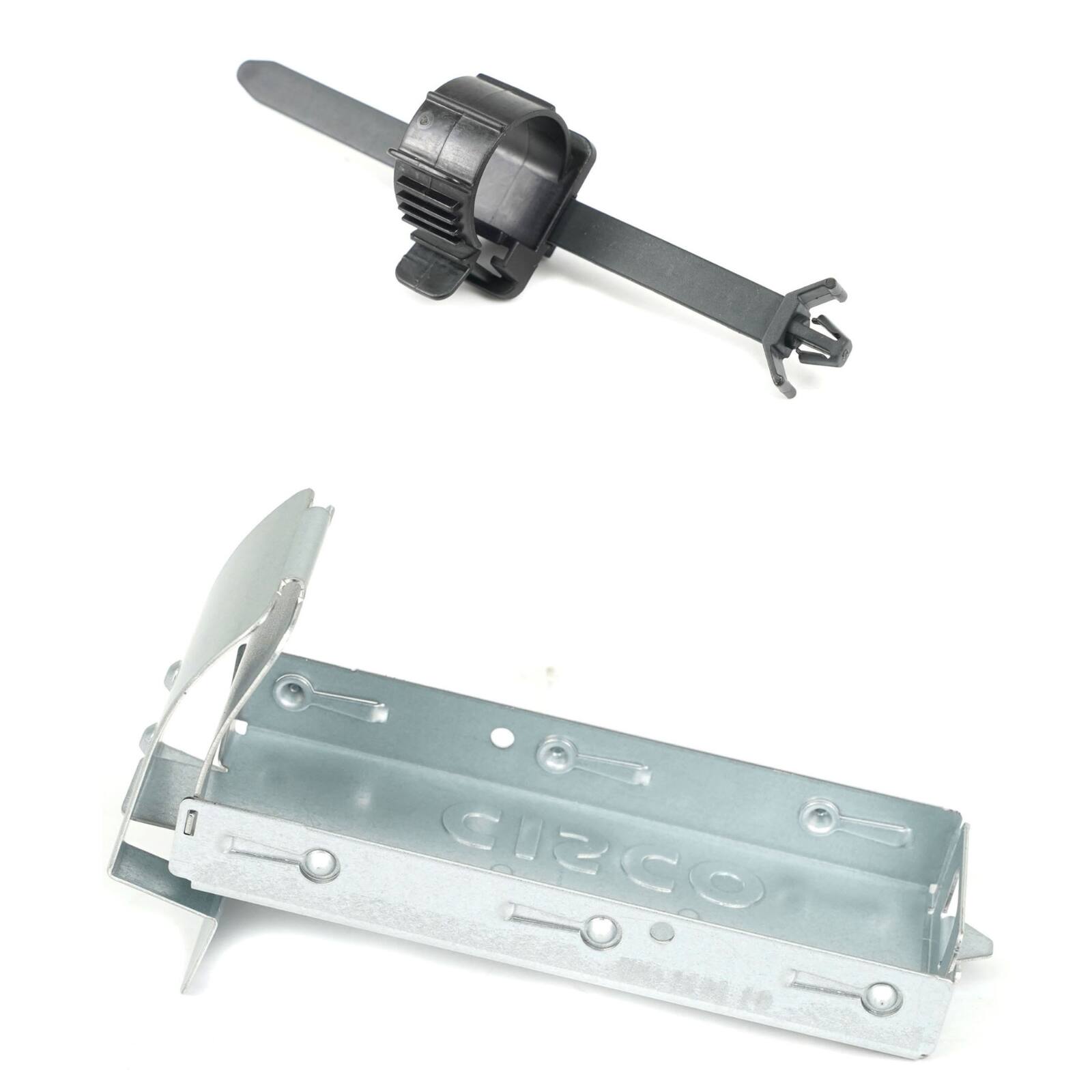

- Form Factor: Rack mountable (mount kit included)
- Maximum Data Speed: 10000 megabits per second
- Switch Management Type: Fully managed (Unmanaged switches don't require user configuration and are typically used for basic connectivity. Managed switches have more features and can be configured by the user for custom network use.)
- Number of LAN Ports: 48 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- General
- Brand: Cisco Consumer Products
- Model Number: C9200-48P-E
- Product Name: Cisco Catalyst C9200-48P Ethernet Switch - 48 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T - 3 Layer
- Color: Gray
- Network
- Quality Of Service (QoS) Traffic Prioritization: true (Allows a user to manage a device's network performance by configuring the types of traffic that receive top priority for transmission. High priority functions and applications receive maximum network performance, while low priority traffic receives minimum performance.)
- Routing Protocol: OSPF, EIGRP, ISIS, RIP, Static Routing (The protocol used for communicating and distributing information in a computer network.)
- Uplinking Capability: true (Devices with an uplink port are capable of connecting to other networking devices, such as switches and hubs, to expand the network. For example, two switches may be connected together in a larger network using a daisy-chain setup.)
- Ethernet Standard: 10/100/1000/10000 (Each standard is a variation of the IEEE 802.3 set of computer networking technologies known as Ethernet. New versions evolved to include higher bandwidth, different physical media, and other new and improved features. Standards are often denoted by speeds (in Megabits per second). For example, a 10/100/1000 Ethernet port transmits at 10 Mbps, 100 Mbps, and 1000 Mbps (1 Gbps).)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Features
- Auto Detecting: true
- Auto Speed Sensing: true
- Ports
- Auto Sending Ports: true (Automatically send incoming signals to the correct destination.)
- Speed
- Gigabit Ethernet Speed: true (Supports the gigabit Ethernet networking standard, which has a data rate of at least one gigabit per second, or 1,000 Mbps.)
- Compatibility
- System Requirements: Cisco IOS XE (included); Cisco Smart Account required for licensing; compatible with Cisco Catalyst Center and Cisco Identity Services Engine (ISE) (The software that a product must have for it to be able to integrate with another product.)
- Additional Dimensions
- Height (Rack Units): 1U
- Dimensions
- Product Height: 1.7 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 13.8 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 17.5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 18.0 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: Lifetime
- Warranty - Labor: Lifetime
- Other
- UPC: 889728168250
Cisco Catalyst C9200-48P Ethernet Switch - 48 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T - 3 Layer Supported - Modular - 1000 W Power Consumption - 740 W PoE Budget - Twisted Pair - PoE Ports - Gray - Rack-mountable - Lifetime Limited Warranty
- Extend Intent-Based Networking Everywhere: Cisco Catalyst 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree,
- Catalyst 9200 Series switches offer simplicity without co...: As foundational building blocks for the Cisco Digital Network Architecture, Catalyst 9200 Series switches help customers simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation and human expertise that no other vendor can deliver regardless of where you are in the intent-based networking journey. Catalyst 9200 Series switches provide security features that protect the integrity of the
- Layer 3 Routing & IOS XE Security: Runs Cisco IOS XE with Network Essentials, supporting Layer 3 routing protocols including OSPF, EIGRP, ISIS, RIP, and Static routing. AES-128 MACsec encryption, Trustworthy Systems hardware security, and policy-based segmentation protect the access layer. Fully compatible with Cisco Catalyst Center and Cisco Identity Services Engine (ISE) for SD-Access deployments.

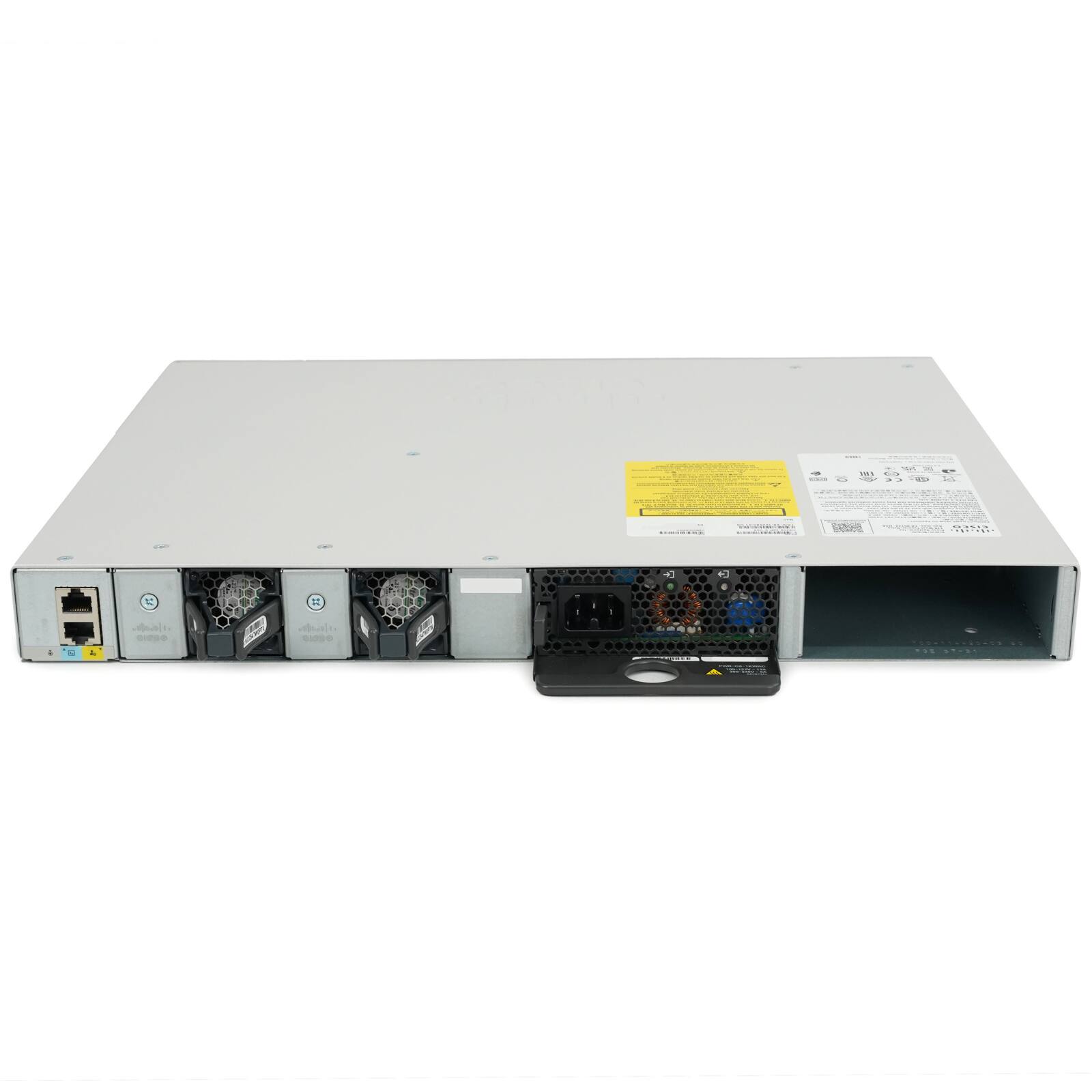

- 176 Gbps Switching with FRU Redundancy: Delivers 176 Gbps switching capacity and 130.95 Mpps forwarding rate in a 1RU rack-mountable chassis, handling high-density enterprise workloads without bottlenecks. Field-replaceable power supplies and fan modules provide dual redundancy, ensuring maximum uptime for mission-critical access layer deployments.

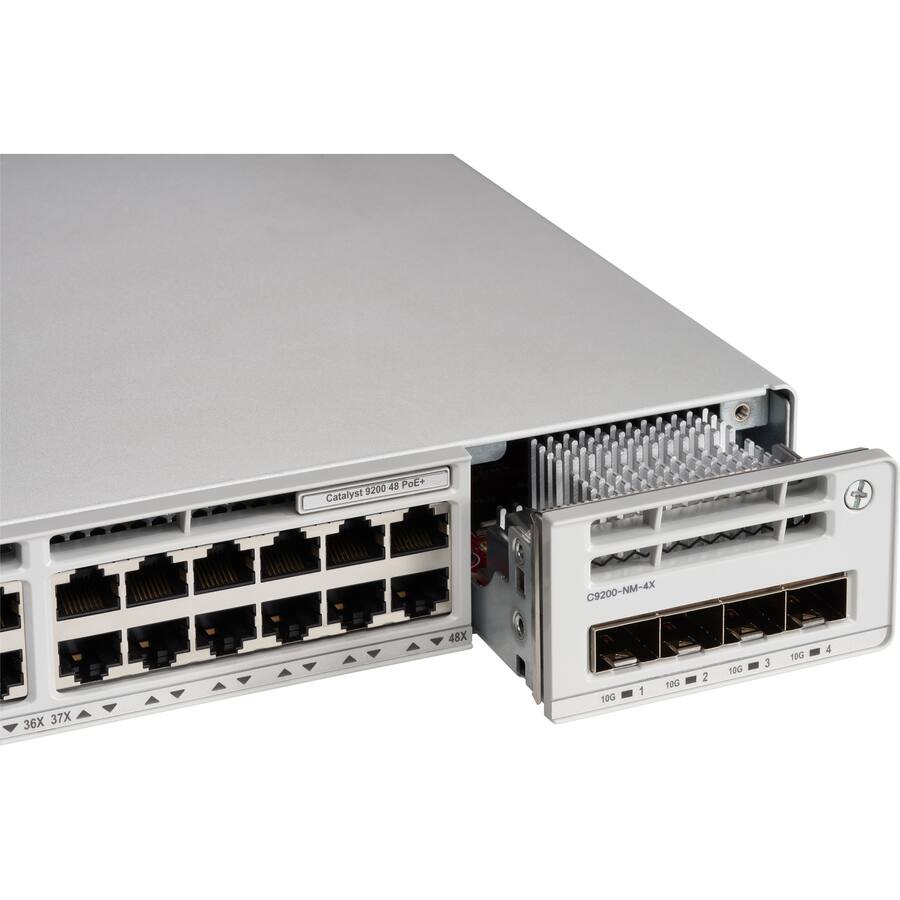

- Uplink Module Sold Separately - Zero-Touch Deploy: IMPORTANT: Uplink network module is NOT included. Common options are C9200-NM-4G (4x1G) or C9200-NM-4X (4x10G), sold separately. Cisco Plug and Play enables automated zero-touch provisioning for fast branch rollouts. Compatible with Cisco Catalyst Center for on-premises management, policy automation, and SD-Access fabric support.
Whats Included
- Cisco Catalyst C9200-48P Ethernet Switch - 48 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T - 3 Layer Supported - Modular - 1000 W Power
Disclaimers
- Uplink network module NOT included — must be purchased separately (e.g., C9200-NM-4G or C9200-NM-4X). Stacking cables also sold separately.
