Cisco Consumer Products - Cisco Catalyst IE-3200-8T2S Rugged Switch - 8 Ports - Manageable - 3 Layer Supported - Modular - 2 SFP Slots - Twisted - Unknown
Related Item
Specifications
- Number of PoE (Power over Ethernet) Ports0Form FactorDIN rail mount (mount not included)Maximum Data Speed1000 megabits per secondSwitch Management TypeFully managedNumber of LAN Ports8
- Key Specs
- Number of PoE (Power over Ethernet) Ports: 0 (Allow connection of a single cable that provides both data connection and electrical power (Power over Ethernet).)
- Form Factor: DIN rail mount (mount not included)
- Maximum Data Speed: 1000 megabits per second
- Switch Management Type: Fully managed (Unmanaged switches don't require user configuration and are typically used for basic connectivity. Managed switches have more features and can be configured by the user for custom network use.)
- Number of LAN Ports: 8 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- General
- Brand: Cisco Consumer Products
- Model Number: IE-3200-8T2S-E
- Product Name: Cisco Catalyst IE-3200-8T2S Rugged Switch - 8 Ports - Manageable - 3 Layer Supported - Modular - 2 SFP Slots - Twisted
- Color: Unknown
- Network
- Quality Of Service (QoS) Traffic Prioritization: true (Allows a user to manage a device's network performance by configuring the types of traffic that receive top priority for transmission. High priority functions and applications receive maximum network performance, while low priority traffic receives minimum performance.)
- Routing Protocol: IEEE 802.1D, 802.1q, 802.1s MSTP, 802.1w RSTP, PVST+, REP, PROFINET MRP, LACP, PAgP (The protocol used for communicating and distributing information in a computer network.)
- Uplinking Capability: true (Devices with an uplink port are capable of connecting to other networking devices, such as switches and hubs, to expand the network. For example, two switches may be connected together in a larger network using a daisy-chain setup.)
- Ethernet Standard: 10/100/1000 (Each standard is a variation of the IEEE 802.3 set of computer networking technologies known as Ethernet. New versions evolved to include higher bandwidth, different physical media, and other new and improved features. Standards are often denoted by speeds (in Megabits per second). For example, a 10/100/1000 Ethernet port transmits at 10 Mbps, 100 Mbps, and 1000 Mbps (1 Gbps).)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Features
- Auto Detecting: true
- Auto Speed Sensing: true
- Ports
- Auto Sending Ports: true (Automatically send incoming signals to the correct destination.)
- Speed
- Gigabit Ethernet Speed: true (Supports the gigabit Ethernet networking standard, which has a data rate of at least one gigabit per second, or 1,000 Mbps.)
- Compatibility
- System Requirements: Cisco IOS XE (included). Compatible with Cisco Catalyst Center, Industrial Network Director, and standard SNMP/NETCONF management platforms. (The software that a product must have for it to be able to integrate with another product.)
- Dimensions
- Product Height: 6 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 5.3 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 3.6 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 4.95 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: None
- Other
- UPC: 889728140164
The Cisco Catalyst IE3200 Rugged Series delivers high-speed Gigabit Ethernet connectivity in a compact form factor and is designed for a wide range of industrial applications where hardened products are required. The platform is built to withstand harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. The IE3200 platform is also ideal for extended enterprise deployments in outdoor spaces, warehouses, and distribution centers. These switches run Cisco IOS® XE, a next-generation operating system with built-in security and trust, featuring secure boot, image signing, and a Cisco® Trust anchor module. Cisco IOS XE also provides API-driven configuration with open APIs and data models. The Cisco Catalyst IE3200 Rugged Series can be managed with powerful management tools such as Cisco DNA Center and Industrial Network Director, and can be easily set up with a completely redesigned, user-friendly, modern GUI tool called WebUI. The IE3200 Series provides an option for up to eight ports of Power over Ethernet Plus (PoE+), with a product SKU that is ideal for connecting PoE-powered end devices such as IP cameras, phones, wireless access points, sensors, and more.
- Cisco Catalyst IE-3200-8T2S Rugged Switch - 8 Ports: The Cisco Catalyst IE3200 Rugged Series delivers high-speed Gigabit Ethernet connectivity in a compact form factor and is designed for a wide range of industrial applications where hardened products are required. The platform is built to withstand harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. The IE3200 platform is also ideal for extended enterprise deployments in outdoor spaces

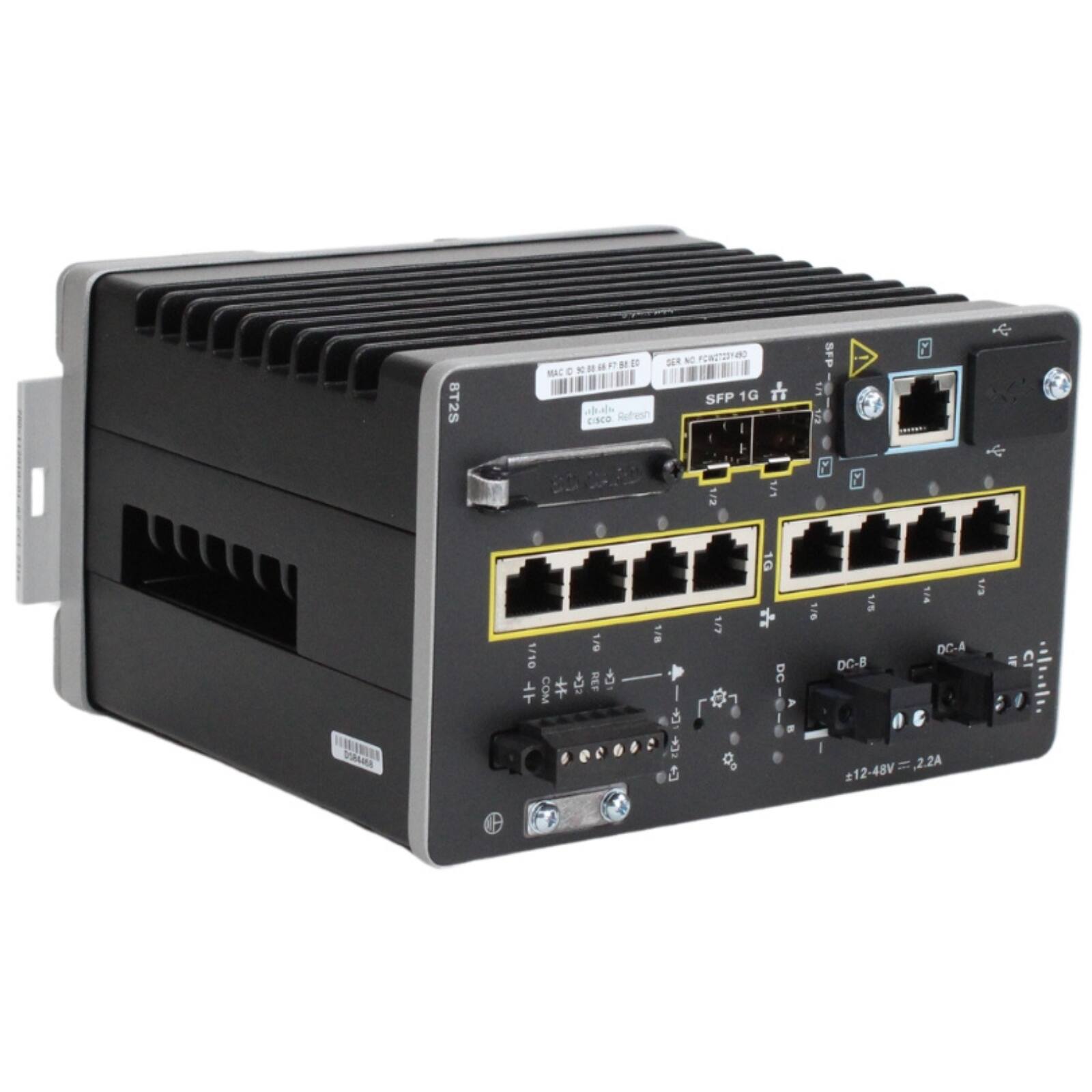

- Full Gigabit Ethernet — 8 Copper + 2 SFP Uplinks: 10 total Gigabit Ethernet ports: 8 x 10/100/1000BASE-T RJ45 copper downlinks plus 2 x 100/1000BASE-X SFP fiber uplink slots. Delivers line-rate forwarding for all ports and all packet sizes with 8K unicast MAC address table, 256 VLANs, 128 STP instances, and 8 QoS queues. Supports jumbo frames up to 8,996 bytes and EtherChannel link aggregation (LACP/PAgP) for added bandwidth and redundancy.
- Cisco IOS XE with Network Essentials License: Ships with a perpetual Network Essentials license running Cisco IOS XE — featuring secure boot, image signing, and Cisco Trust Anchor module. Supports CIP EtherNet/IP, PROFINET, IEEE 1588v2 PTP precision timing, REP and PROFINET MRP redundant ring protocols, and inter-VLAN and static Layer 3 routing. Manageable via Cisco Catalyst Center, Industrial Network Director, WebUI, SNMP, NETCONF, and RESTCONF open APIs.
- Enterprise Security and QoS for OT Networks: Comprehensive security suite includes IEEE 802.1x port authentication, MACsec-128 encryption, DHCP snooping, dynamic ARP inspection, IP source guard, TACACS+, RADIUS, and Access Control Lists (PACL/RACL/VACL). Quality of Service features include ingress policing, egress queuing and shaping, and auto QoS to prioritize industrial control traffic over best-effort data on converged OT/IT networks.

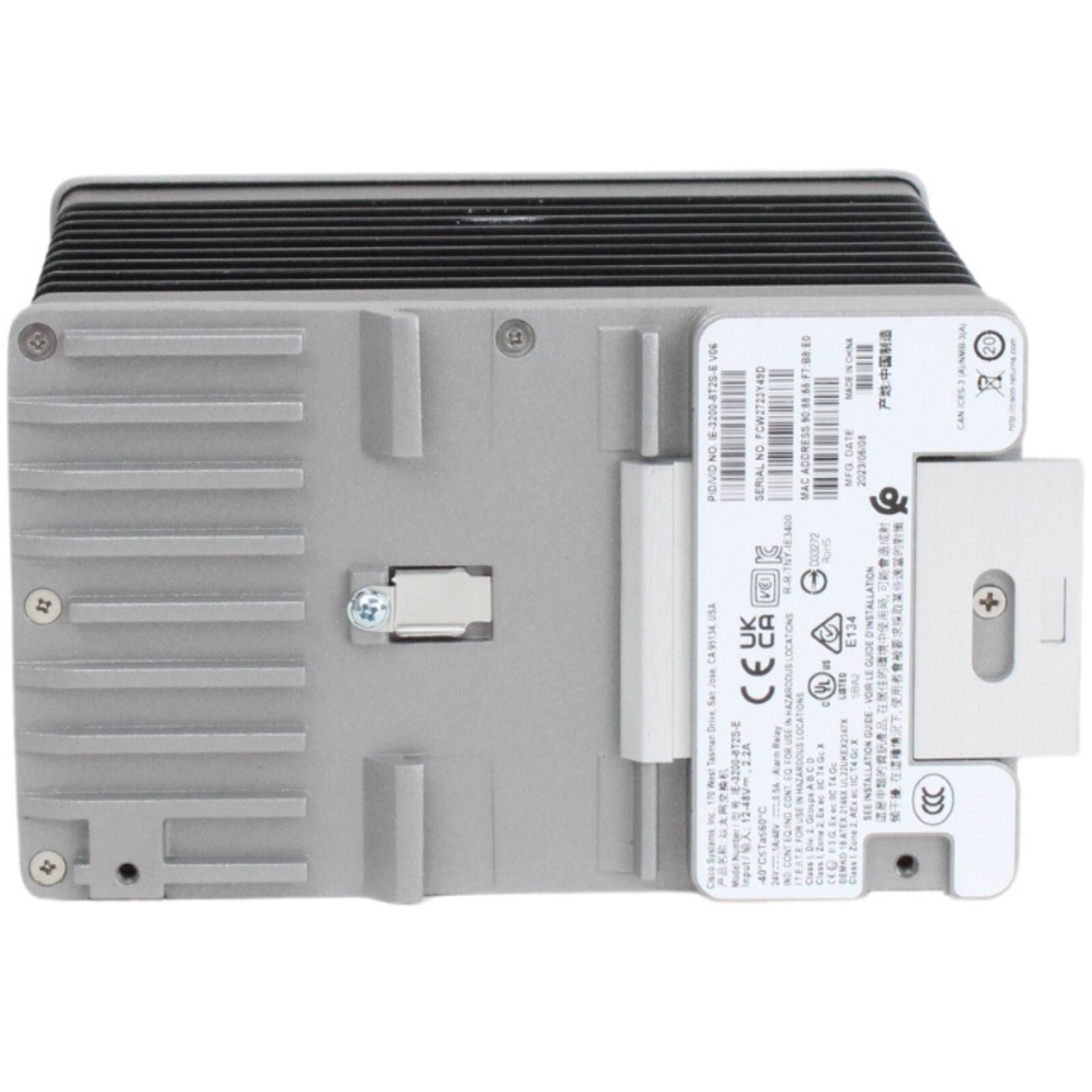

- DIN Rail Mount, Dual DC Power, Alarm I/O: Compact chassis (6 x 3.6 x 5.3 in, 3.8 lbs) mounts on standard DIN rail for panel integration. Accepts redundant dual DC input voltage from 9.6 to 60VDC with 23W max consumption. Built-in alarm I/O (2 inputs, 1 output) monitors and signals external equipment. Console access via RJ-45 RS-232 and USB Mini Type-B. Supports optional USB 2.0 storage for image loading and configuration.
Whats Included
- Cisco Catalyst IE-3200-8T2S Rugged Switch - 8 Ports - Manageable - 3 Layer Supported - Modular - 2 SFP Slots - Twisted Pair, Optical Fiber - DIN Rail
