Coolgear - 16-Port USB to Serial Adapter - For RS-232/422/485 COM Ports, DIP Switch Configurable, LEDs - DIN & Rack Mount Ready - Black
Coolgear - 16-Port USB to Serial Adapter - For RS-232/422/485 COM Ports, DIP Switch Configurable, LEDs - DIN & Rack Mount Ready - Black
About This Item
- Key Specs
- Connector Type (End 1): USB-B
- Connector Type (End 2): D-Sub (DB-9)
- General
- Brand: Coolgear
- Model Number: USB-16COMi-RM
- Product Name: 16-Port USB to Serial Adapter - For RS-232/422/485 COM Ports, DIP Switch Configurable, LEDs - DIN & Rack Mount Ready
- Color: Black
- Connectivity
- Cable Type: USB
- Product Type: Adapter
- Connector Type (End 1): USB-B
- Connector Type (End 2): D-Sub (DB-9)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 729440690991

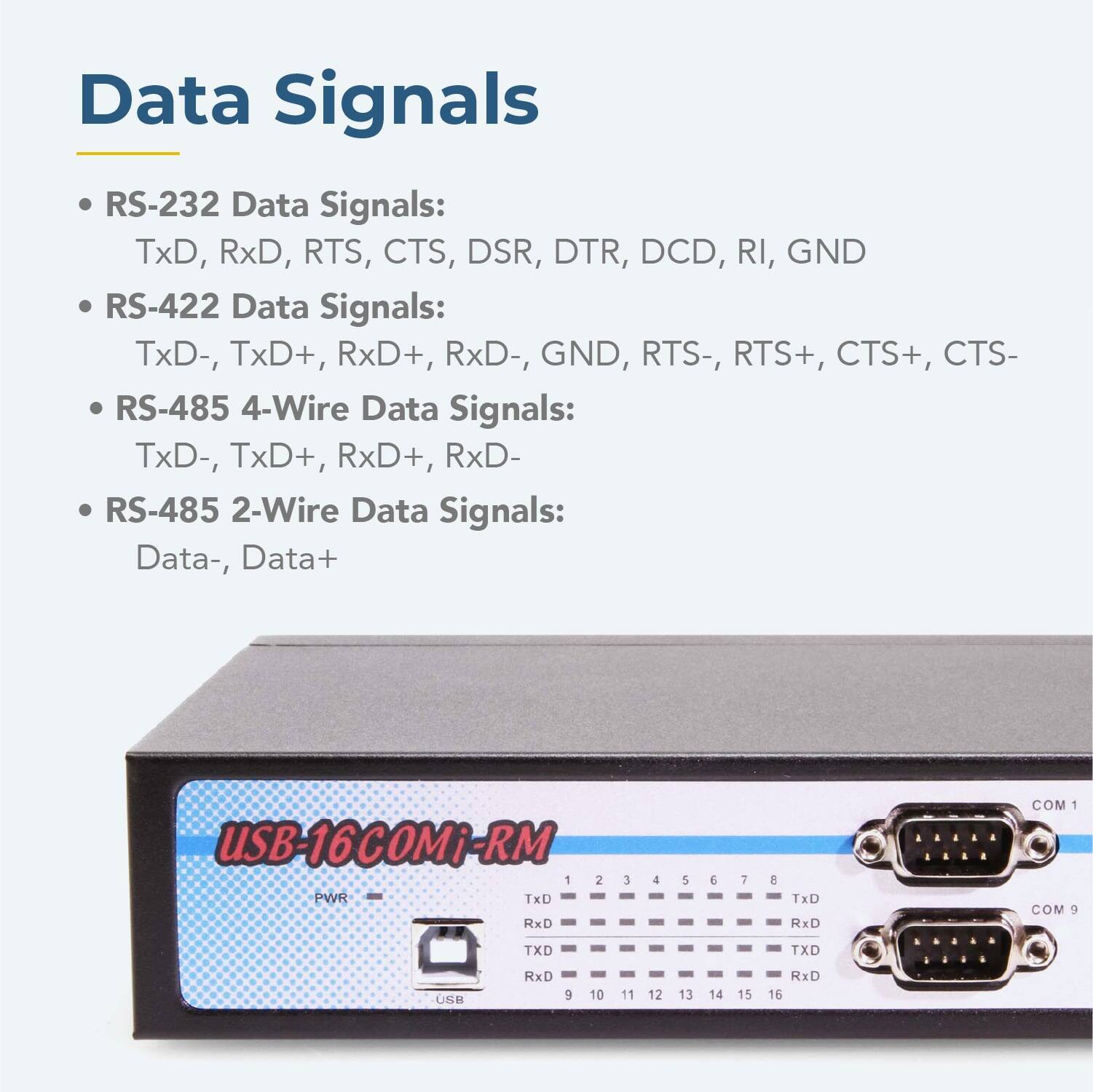

The USB-16COMi-RM is a rugged 16-port USB to RS-232/422/485 adapter built for demanding industrial environments. Housed in a durable SECC metal chassis, it includes both DIN-rail and 19-inch rack-mount hardware for flexible installation. With plug-and-play setup, each port installs as a standard COM port with no IRQ or resource conflicts to worry about. The adapter supports high-speed data transfers up to 1Mbps for RS-232 and 10Mbps for RS-422/485, and offers 15kV surge protection for each port. Easily switch between RS-232, RS-422, or RS-485 modes using onboard DIP switches. Ideal for managing multiple serial devices in industrial, retail, or remote-access applications.
- Connect up to sixteen serial devices: Add sixteen RS-232 ports to your setup using just a single USB Type-A connection. Ideal for linking legacy equipment like CNC machines, barcode scanners, or POS systems.

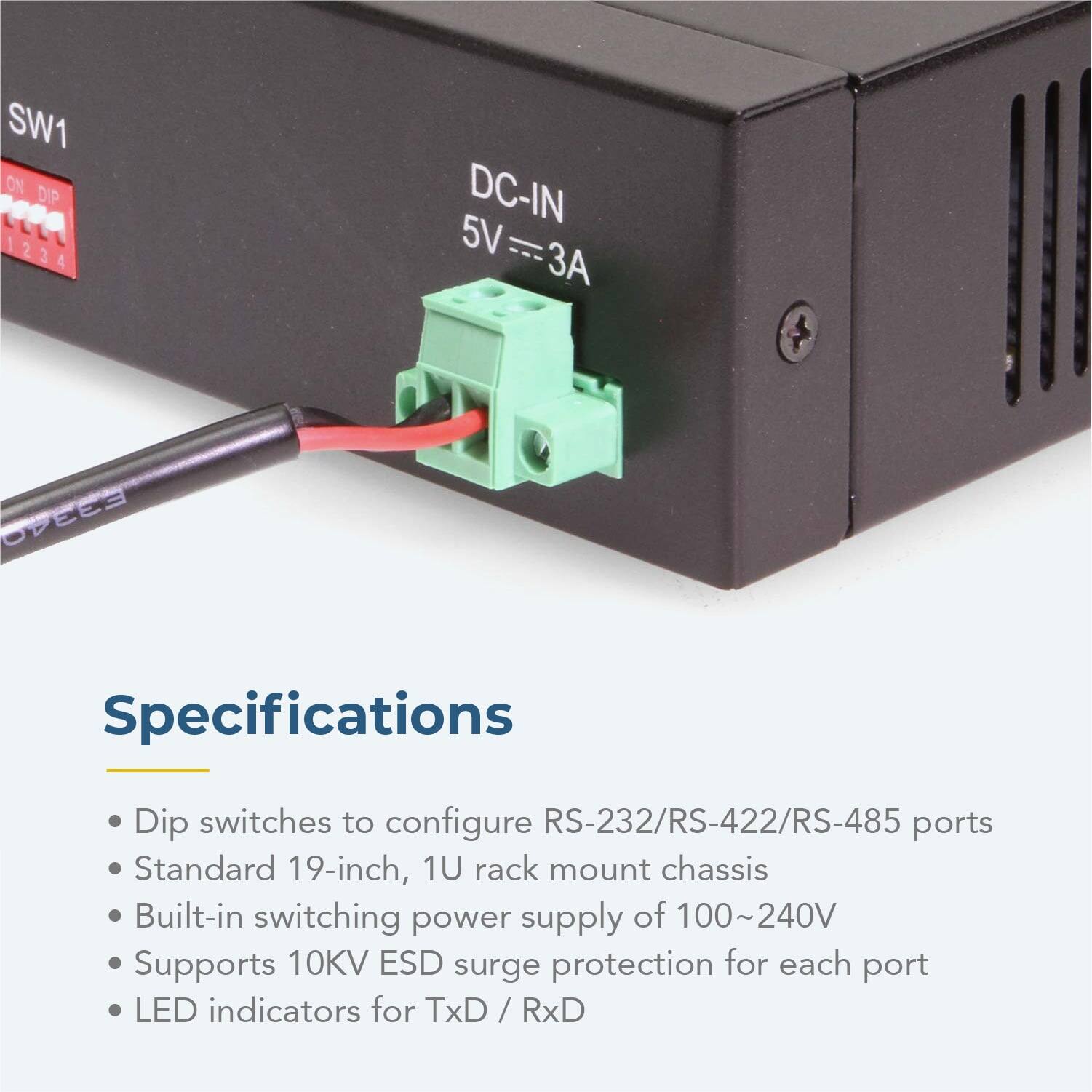

- Integrated power supply: Features a built-in switching power supply of 100V~240V and includes power cord for easy setup.
- Status LEDs keep you informed: Easily monitor your connection with Power, TX, and RX LEDs that show activity and status at a glance.

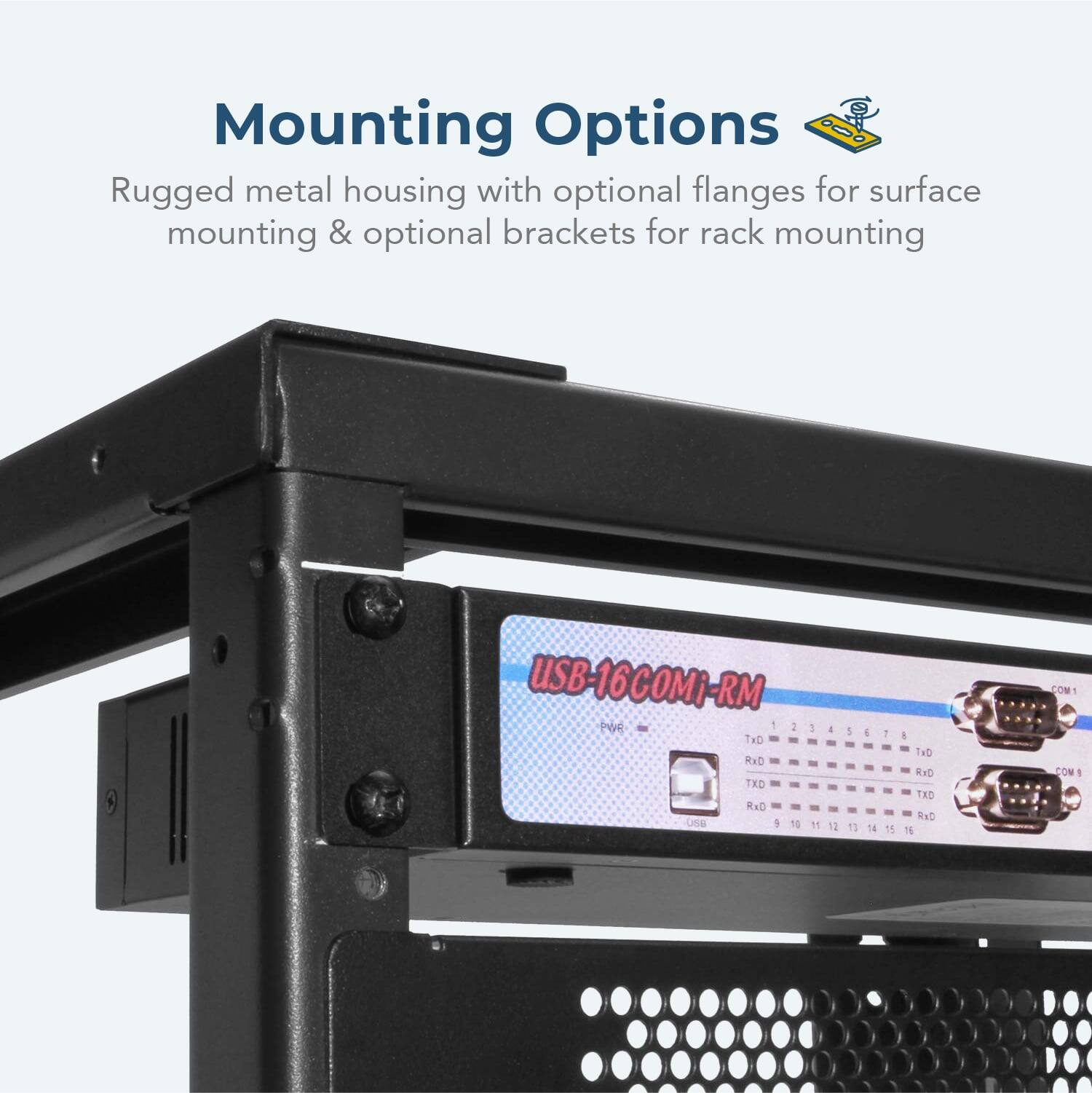

- Flexible mounting options: Rugged metal enclosure is ready for secure installation on a desktop, wall, DIN rail, or rack with included hardware for easy integration into your setup.
- Broad OS compatibility: Works seamlessly with Windows 7 through Windows 11, macOS, and Linux.
- Connect up to sixteen serial devices: Add sixteen RS-232 ports to your setup using just a single USB Type-A connection. Ideal for linking legacy equipment like CNC machines, barcode scanners, or POS systems.
- Integrated power supply: Features a built-in switching power supply of 100V~240V and includes power cord for easy setup.
- Status LEDs keep you informed: Easily monitor your connection with Power, TX, and RX LEDs that show activity and status at a glance.
- Flexible mounting options: Rugged metal enclosure is ready for secure installation on a desktop, wall, DIN rail, or rack with included hardware for easy integration into your setup.
- Broad OS compatibility: Works seamlessly with Windows 7 through Windows 11, macOS, and Linux.

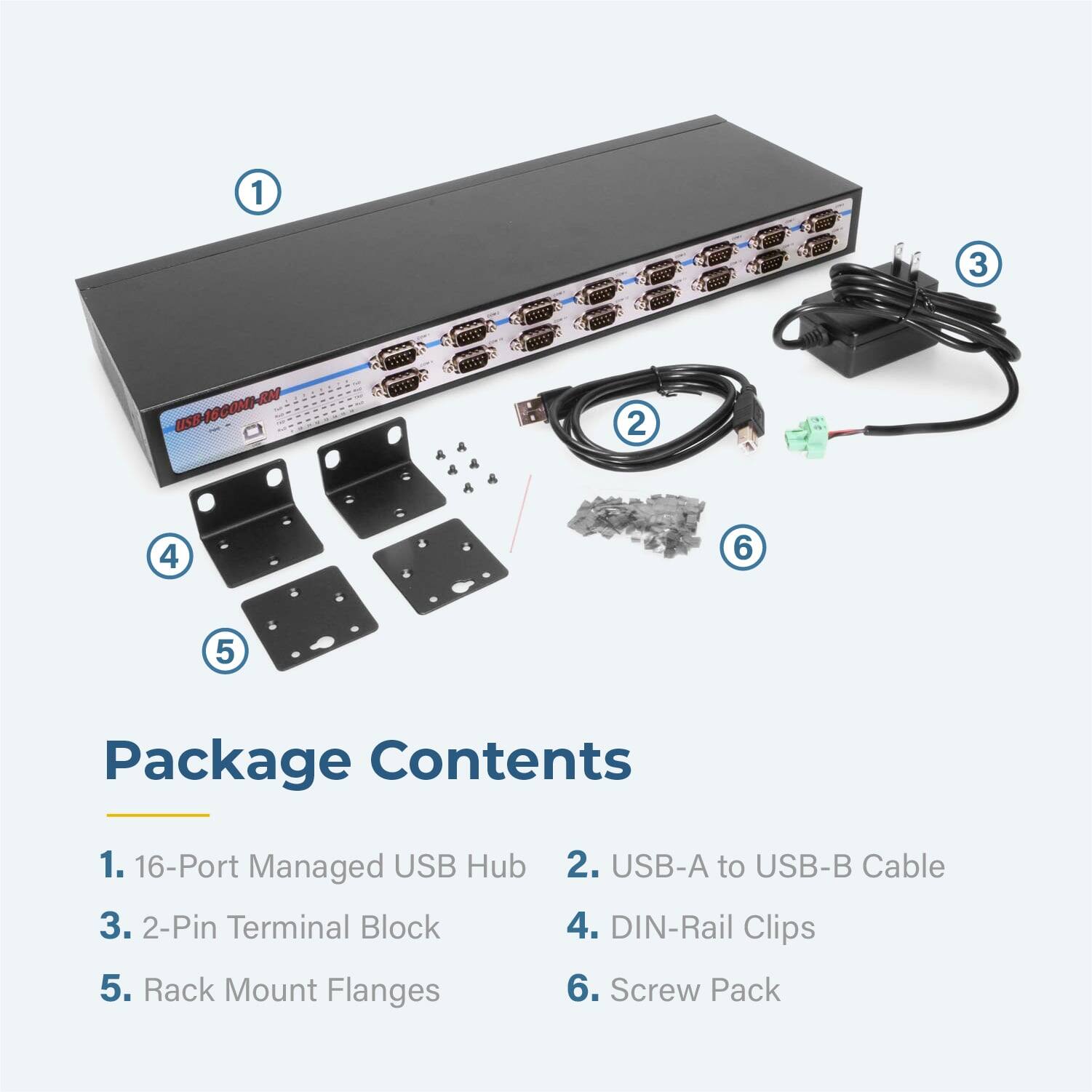

Whats Included
- 16 Port USB to Serial Adapter, Power Cable, USB-A to USB-B Cable, Mounting Hardware
- 16 Port USB to Serial Adapter, Power Cable, USB-A to USB-B Cable, Mounting Hardware
Product Manuals
