Coolgear - 4-Port USB 3.2 Gen 1 Hub - 5Gbps - Surge Protection - Surface & DIN Rail Mountable - Includes Power Adapter - Black
Coolgear - 4-Port USB 3.2 Gen 1 Hub - 5Gbps - Surge Protection - Surface & DIN Rail Mountable - Includes Power Adapter - Black
Related Item
Specifications
- Number of USB Port(s)4
- Key Specs
- Number of USB Port(s): 4
- General
- Brand: Coolgear
- Model Number: CG-U3MINI4PH
- Product Name: 4-Port USB 3.2 Gen 1 Hub - 5Gbps - Surge Protection - Surface & DIN Rail Mountable - Includes Power Adapter
- Color: Black
- Features
- Hub Type: USB hubs (The type of connection, such as Ethernet or USB, used to connect peripheral devices to the hub for shared access.)
- Ports
- Number of USB Port(s): 4
- Port Type(s): USB (USB 2.0 connects external drives, gaming controllers, smartphones, MP3 players and other accessories.USB 3.0 transfers data faster than USB 2.0, but only when used with USB 3.0 devices.USB Type-C provides fast speeds and versatile power, featuring connectors with identical ends that plug in upside down or right side up. Adapters allow for video as well as backward compatibility.Thunderbolt provides ultra-high bandwidth for fast data transfer between devices featuring a Thunderbolt or MiniDisplayPort connection.HDMI allows you to connect a projector or display HD media on your HDTV or monitor.Media card slots allow you to transfer photos from your digital camera or camcorder.)
- Dimensions
- Product Height: 2.86 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 1.85 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 1.16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 0.32 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Other
- UPC: 045079158399
The CG-U3MINI4PH is a compact, industrial-grade 4-Port USB 3.2 Gen 1 hub engineered for applications that demand reliable power delivery and fast data performance in challenging environments. Built with a durable metal chassis and integrated surface-mounting flanges, this hub supports transfer rates up to 5Gbps while remaining fully backward-compatible. Each port operates on its own protected circuit using the robust GL3510 controller, providing 15kV ESD and surge protection along with fast-charging that complies with USB-IF Battery Charging Specification 1.2. With flexible power options (including a 5V/4A power input and automatic switching between self-powered and bus-powered modes) the CG-U3MINI4PH ensures consistent performance whether used in industrial systems, lab environments, or commercial POS setups. Its ability to charge devices even without upstream VBUS, combined with broad OS compatibility across Windows, macOS, and Linux, makes this hub a dependable and versatile solution for expanding and powering your USB infrastructure.
- Expand your connections: Instantly upgrade your workspace with four USB ports - this hub delivers up to 5Gbps data transfer and features 4 USB-A ports for maximum versatility - great for SSDs and large file transfers.
- Smart port layout: Features 4 downstream USB 3.2 Gen 1 Type-A ports for device connections and 1 upstream USB Type-B port to your host.

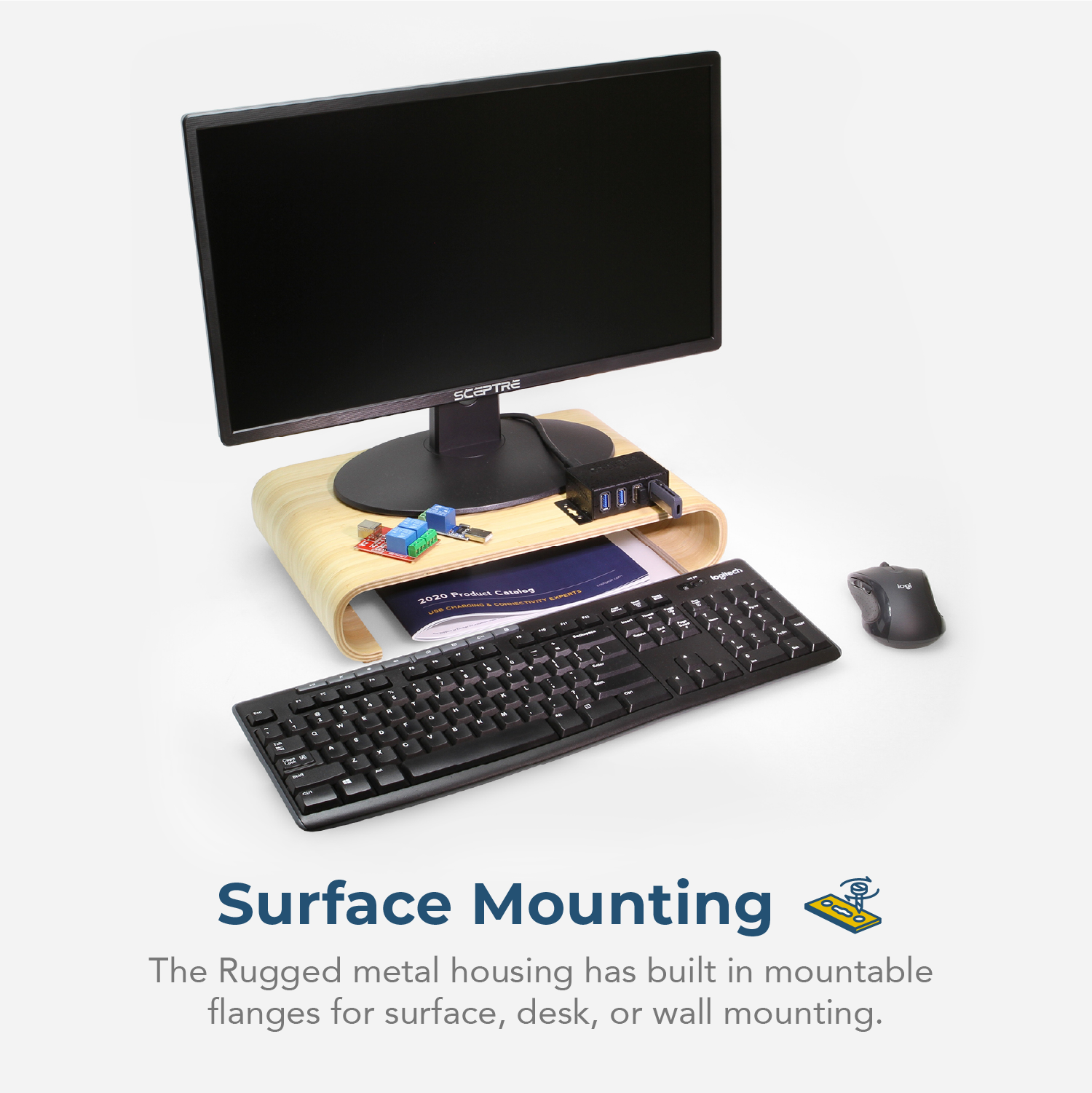

- Flexible mounting options: Rugged metal enclosure is ready for secure installation on a desktop, wall, or DIN rail with included hardware for easy integration into your setup.

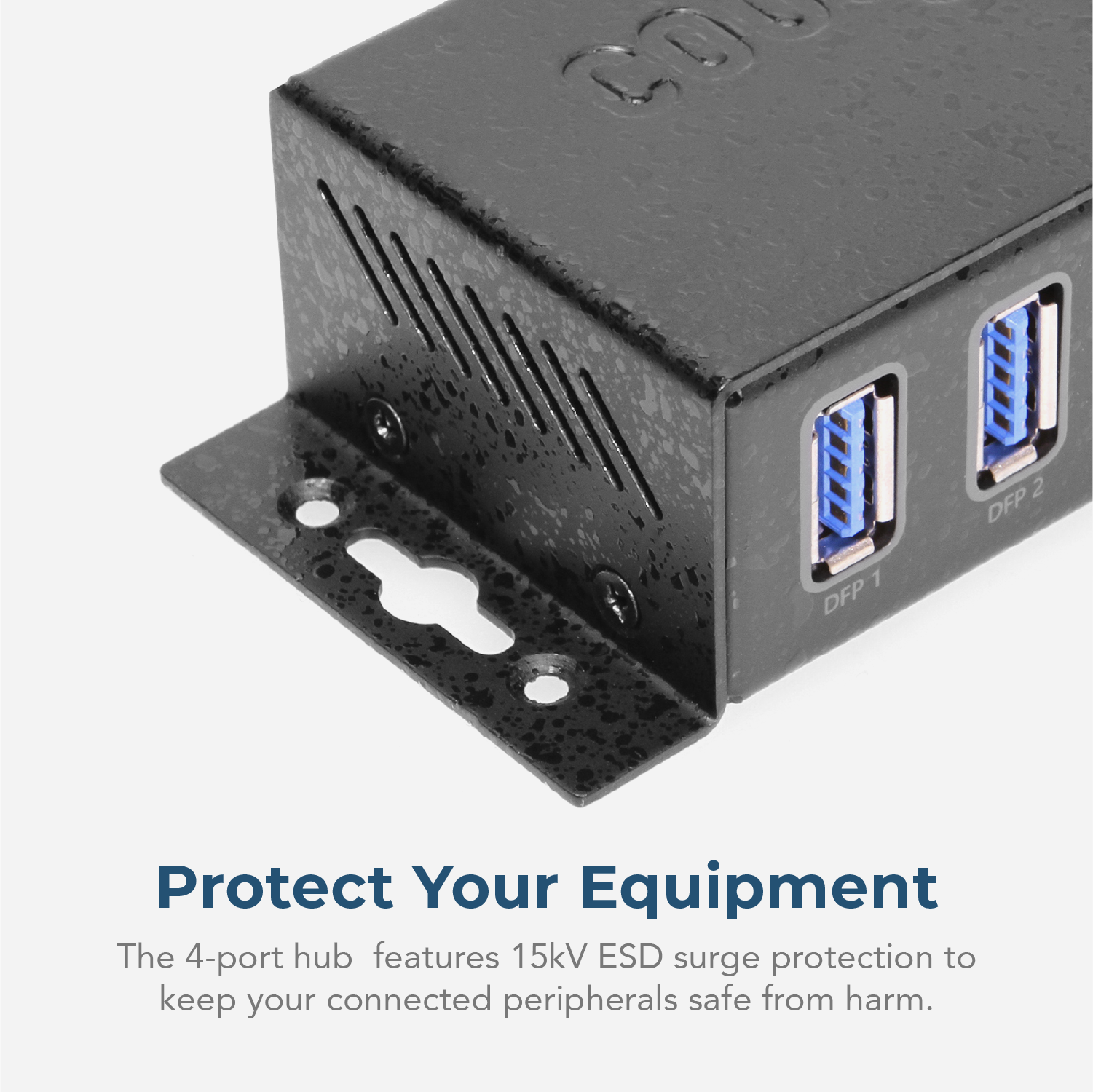

- Power and device protection: Accepts 5V DC input via barrel jack and includes 15kV ESD protection to keep your devices safe and uninterrupted.
- Broad OS compatibility: Works seamlessly with Windows 7 through Windows 11, macOS, and Linux.
