Coolgear - 7-Port USB Hub - USB Type-C - Wide Power Input - Screw Lock Compatible - DIN Rail Ready - 5Gbps - Surge Protection - Black
Related Item
Specifications
- Number of USB Port(s)7
- Key Specs
- Number of USB Port(s): 7
- General
- Brand: Coolgear
- Model Number: CG-7U3CML
- Product Name: 7-Port USB Hub - USB Type-C - Wide Power Input - Screw Lock Compatible - DIN Rail Ready - 5Gbps - Surge Protection
- Color: Black
- Features
- Hub Type: USB hubs (The type of connection, such as Ethernet or USB, used to connect peripheral devices to the hub for shared access.)
- Ports
- Number of USB Port(s): 7
- Port Type(s): USB (USB 2.0 connects external drives, gaming controllers, smartphones, MP3 players and other accessories.USB 3.0 transfers data faster than USB 2.0, but only when used with USB 3.0 devices.USB Type-C provides fast speeds and versatile power, featuring connectors with identical ends that plug in upside down or right side up. Adapters allow for video as well as backward compatibility.Thunderbolt provides ultra-high bandwidth for fast data transfer between devices featuring a Thunderbolt or MiniDisplayPort connection.HDMI allows you to connect a projector or display HD media on your HDTV or monitor.Media card slots allow you to transfer photos from your digital camera or camcorder.)

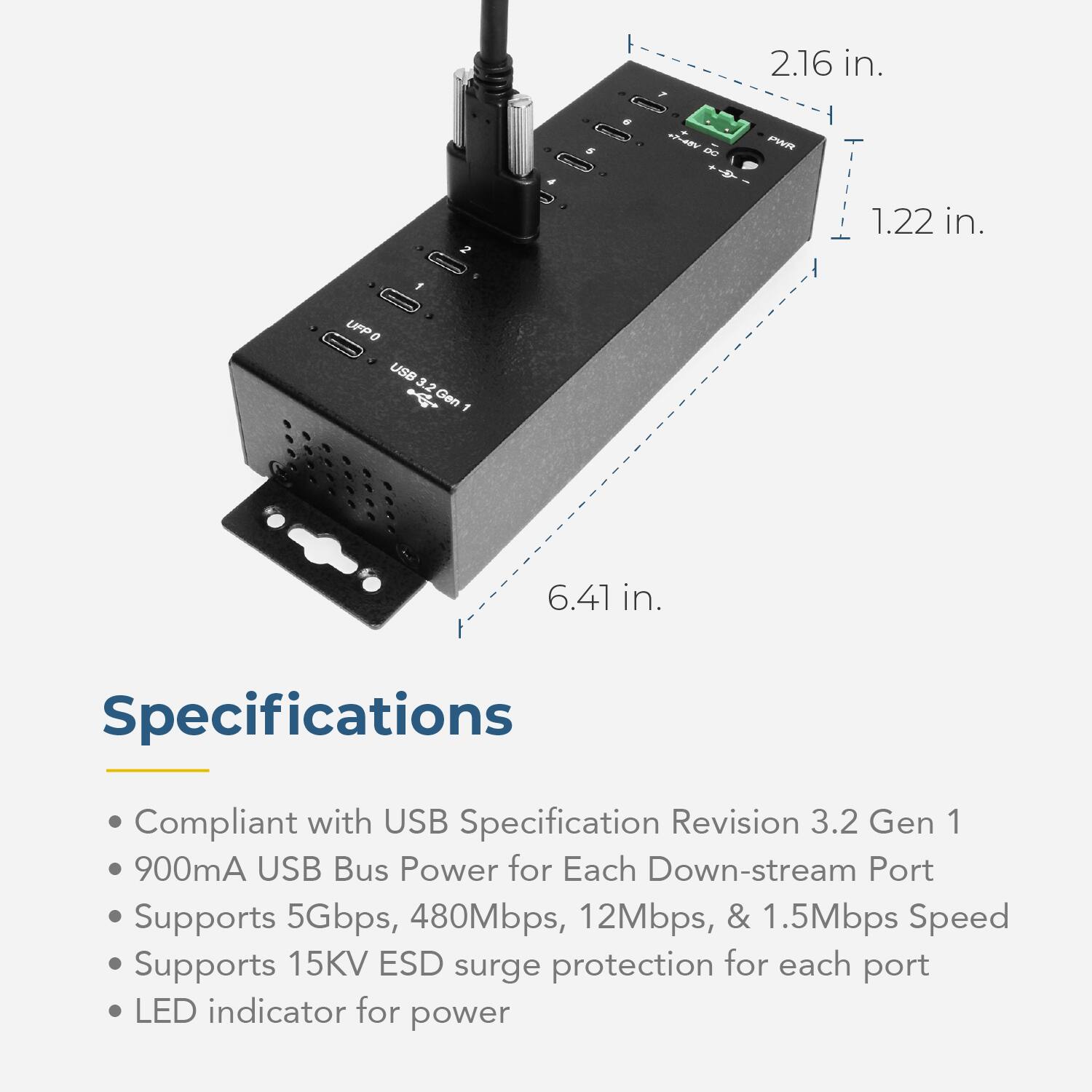

- Dimensions
- Product Height: 1.25 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 6.5 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 2.25 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 0.66 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 045079162495

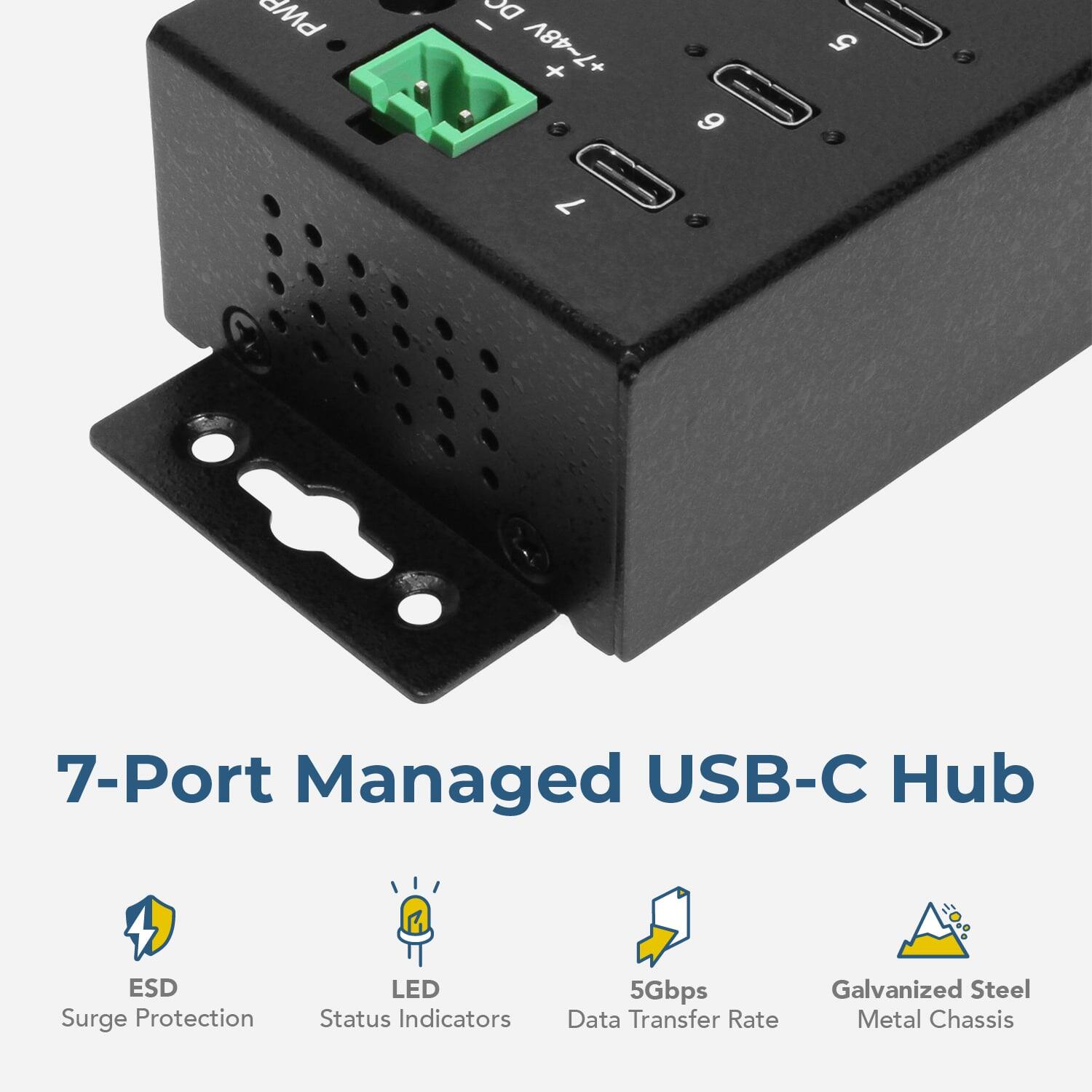

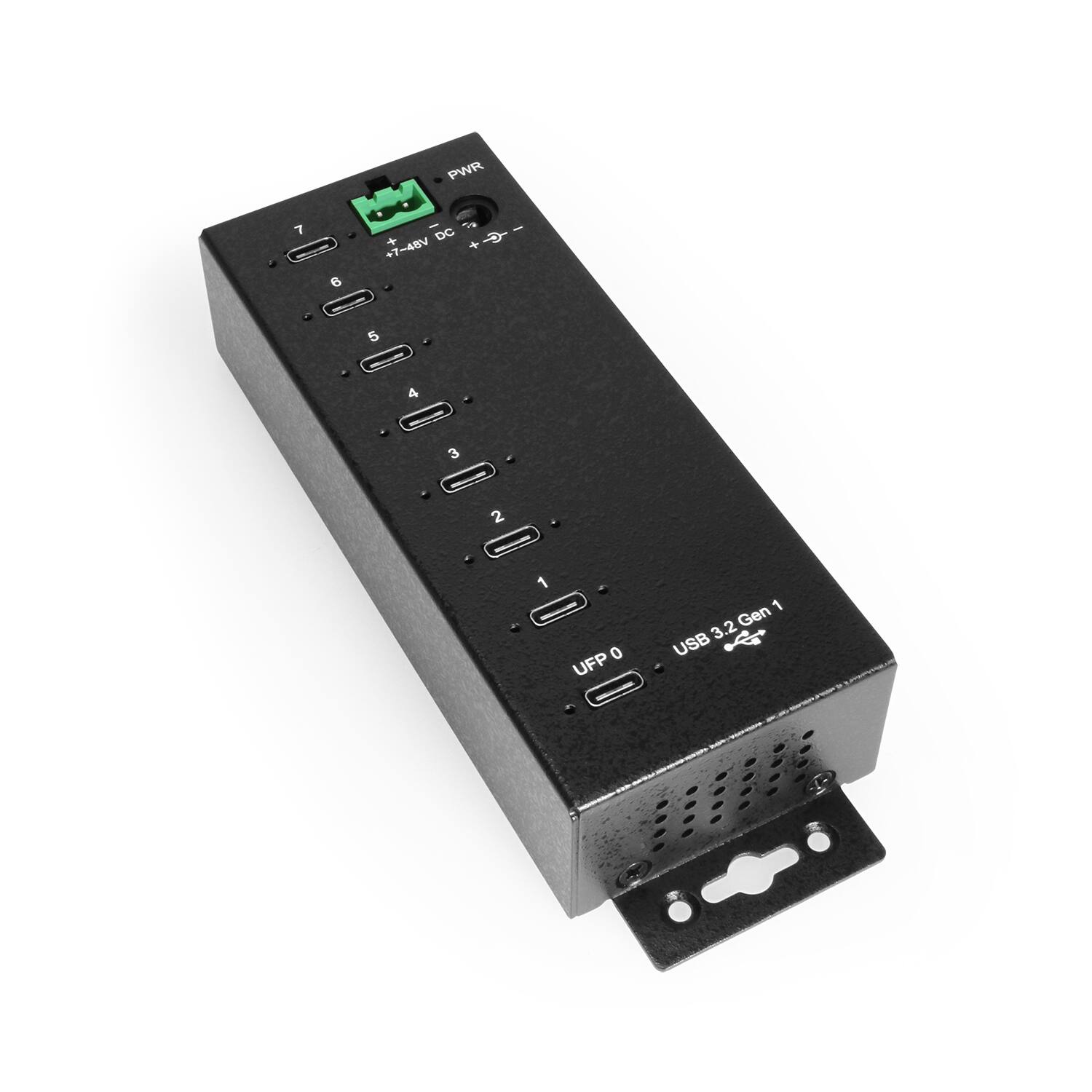

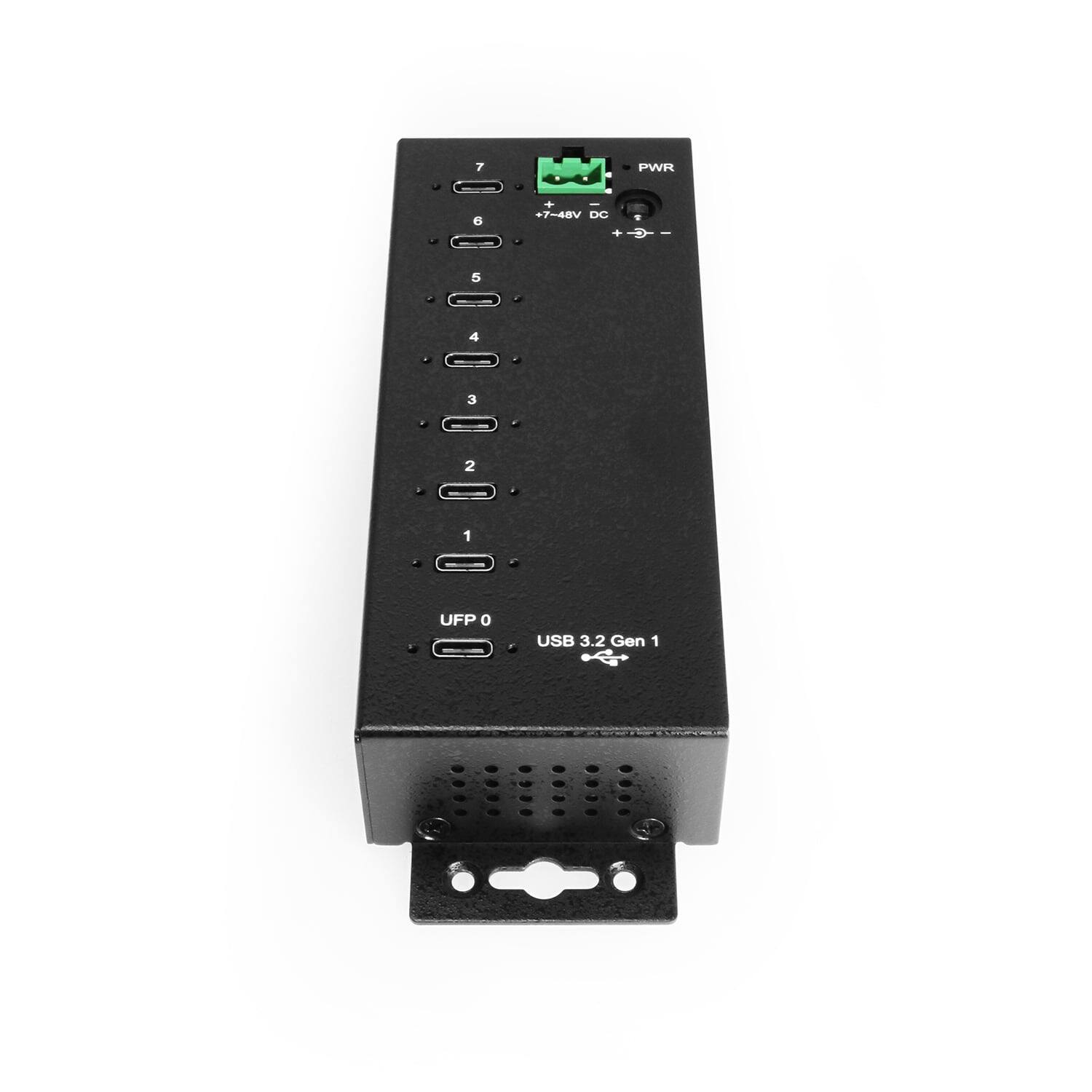

The CG-7U3CML is a rugged 7-port USB-C hub built to deliver 5Gbps data speeds and secure, industrial-grade performance. Each port features 15kV ESD protection and supports 900mA of USB bus power, housed in a durable steel chassis with screw-lock USB-C connectors to ensure stable connections. Built-in Multi Transaction Translators (Multi-TT) allow for efficient bandwidth management when using mixed-speed devices. With support for both terminal block and DC barrel power input (7–48V DC), it adapts to a wide range of installation scenarios including workstations, labs, and factory setups. This hub also supports fast charging through CDP and DCP modes and includes wall and DIN rail mounting options for maximum versatility.
- Expand your connections: Instantly add 7 USB 3.2 Gen 1 Type-C ports to your setup - ideal for rugged industrial installations where dependable, high-capacity USB connectivity is a must.

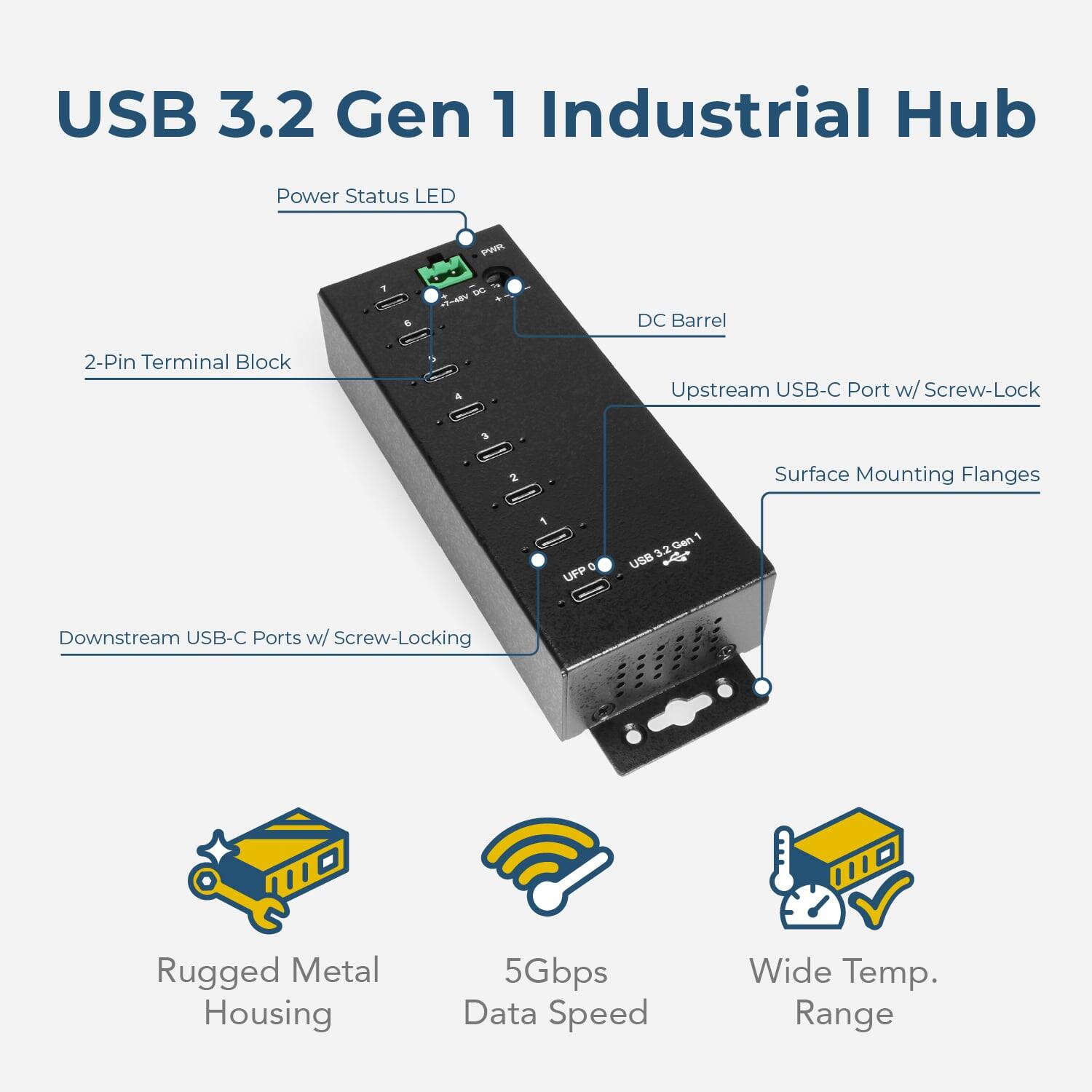

- Smart port layout: Features 7 downstream USB 3.2 Gen 1 Type-C ports for device connections and 1 upstream USB Type-C port to the host. All ports support dual screw locks for security to minimize disconnections.

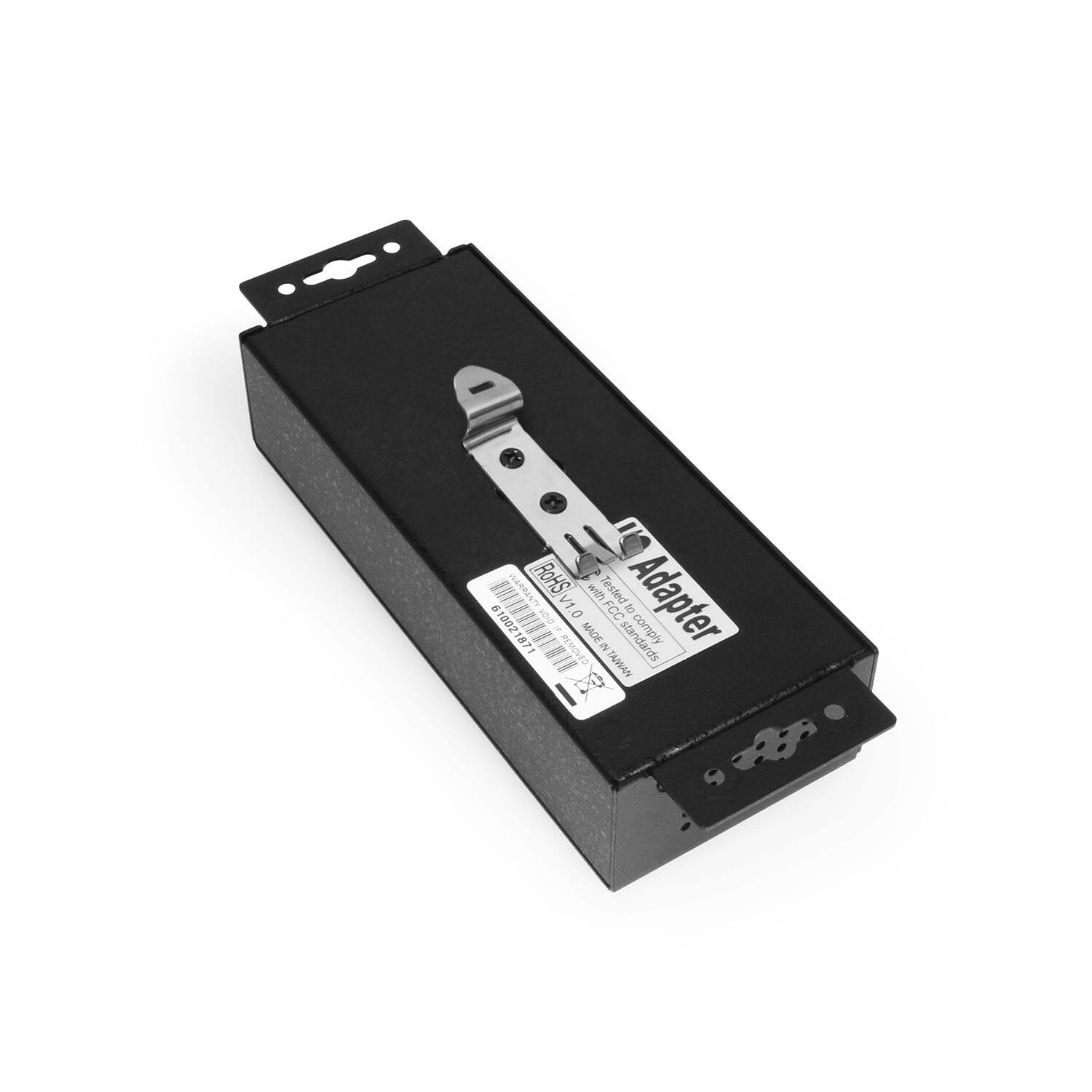

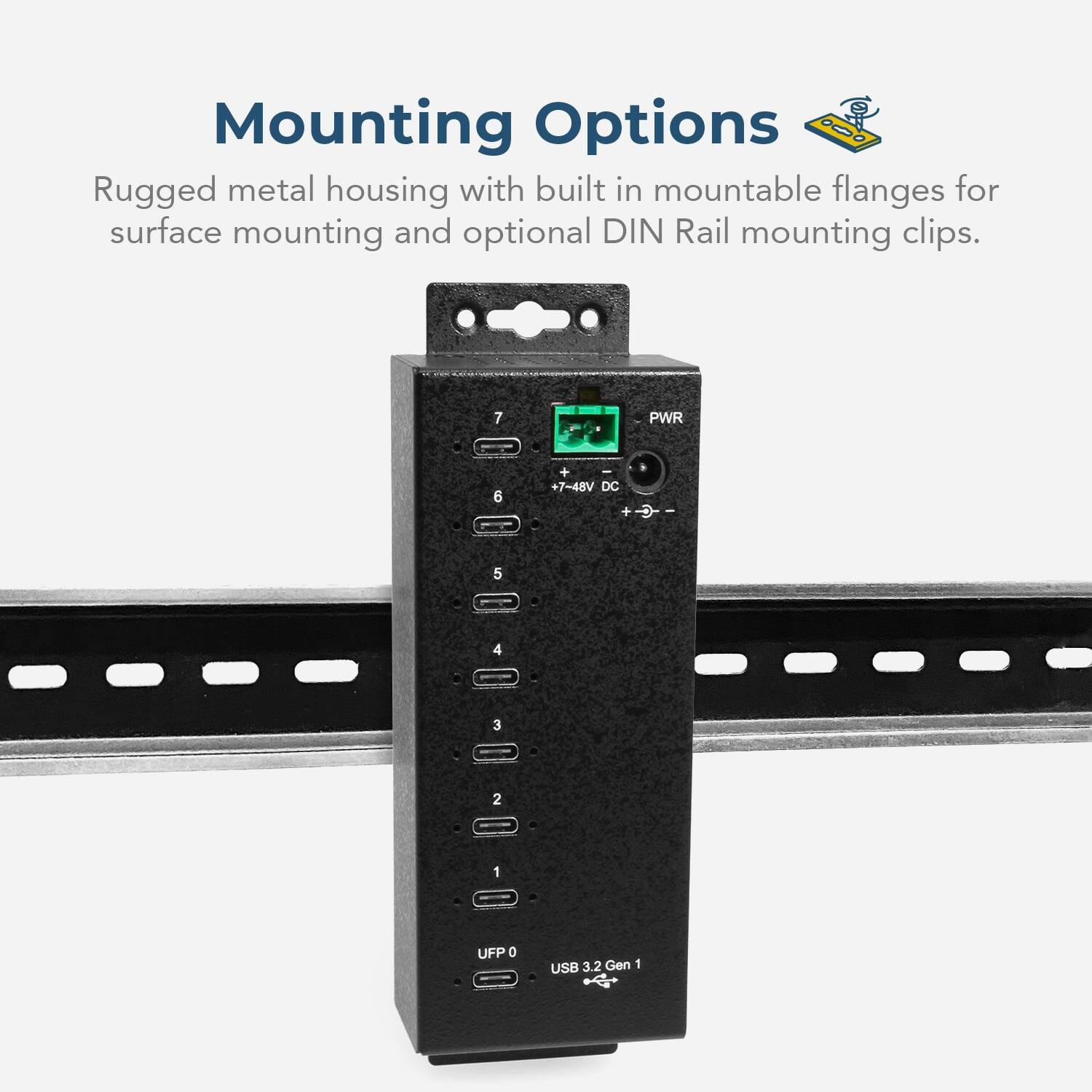

- Flexible mounting options: Rugged metal enclosure is ready for secure installation on a desktop, wall, or DIN rail with included hardware for easy integration into your setup.
- Power and device protection: Accepts wide range 7–48V DC input via 2-pin terminal block or DC barrel, and includes 15kV ESD protection to keep your devices safe and uninterrupted.
- Broad OS compatibility: Works seamlessly with Windows 7 through Windows 11, macOS, and Linux.
Whats Included

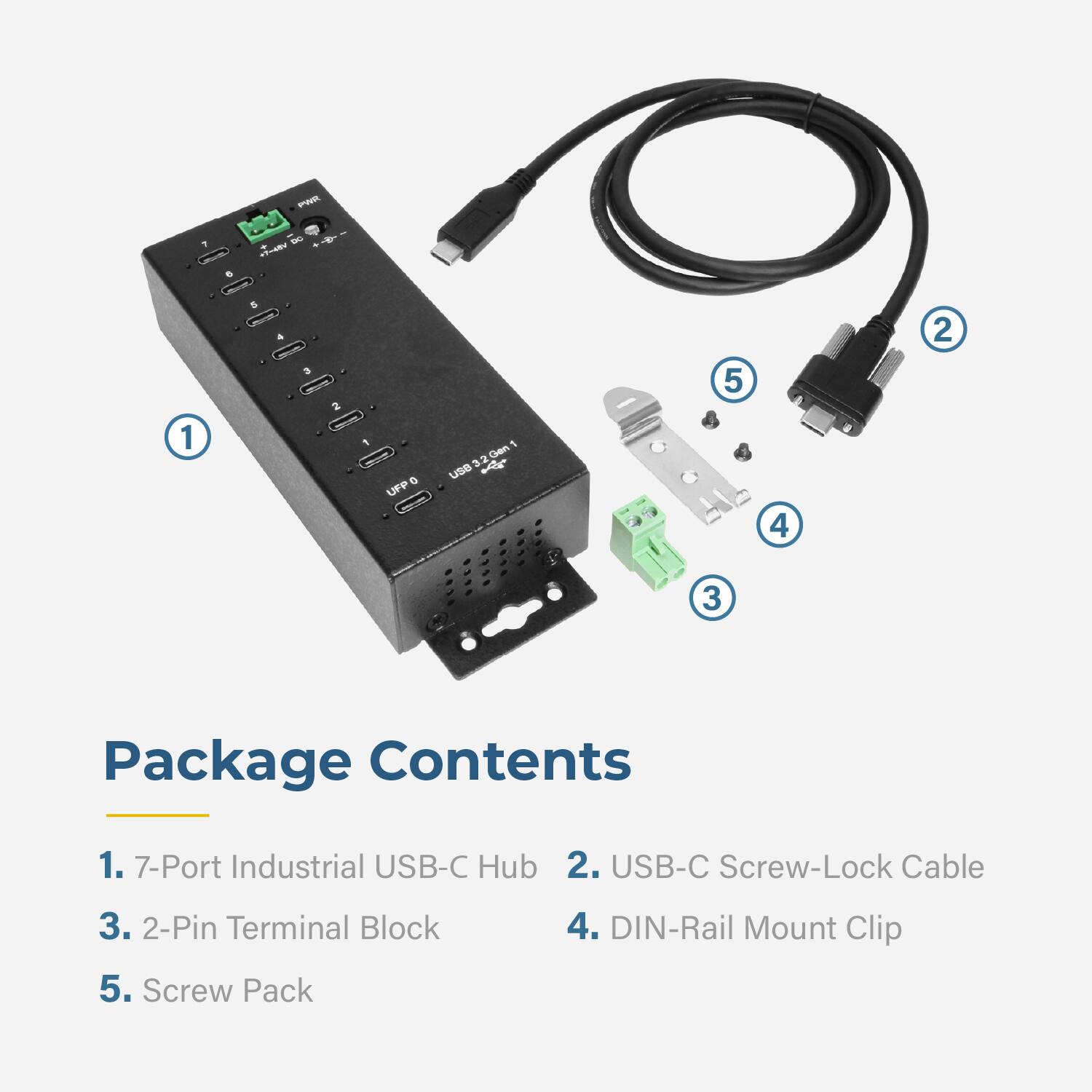

- 7-Port Hub, 3ft USB Type-C to Dual Screw Lock Type-C Cable, 2-Pin Terminal Block, Mounting Kit, Screws
Compare similar products
The CG-7U3CML is a rugged 7-port USB-C hub built to deliver 5Gbps data speeds and secure, industrial-grade performance. Each port features 15kV ESD protection and supports 900mA of USB bus power, housed in a durable steel chassis with screw-lock USB-C connectors to ensure stable connections. Built-in Multi Transaction Translators (Multi-TT) allow for efficient bandwidth management when using mixed-speed devices. With support for both terminal block and DC barrel power input (7–48V DC), it adapts to a wide range of installation scenarios including workstations, labs, and factory setups. This hub also supports fast charging through CDP and DCP modes and includes wall and DIN rail mounting options for maximum versatility.
