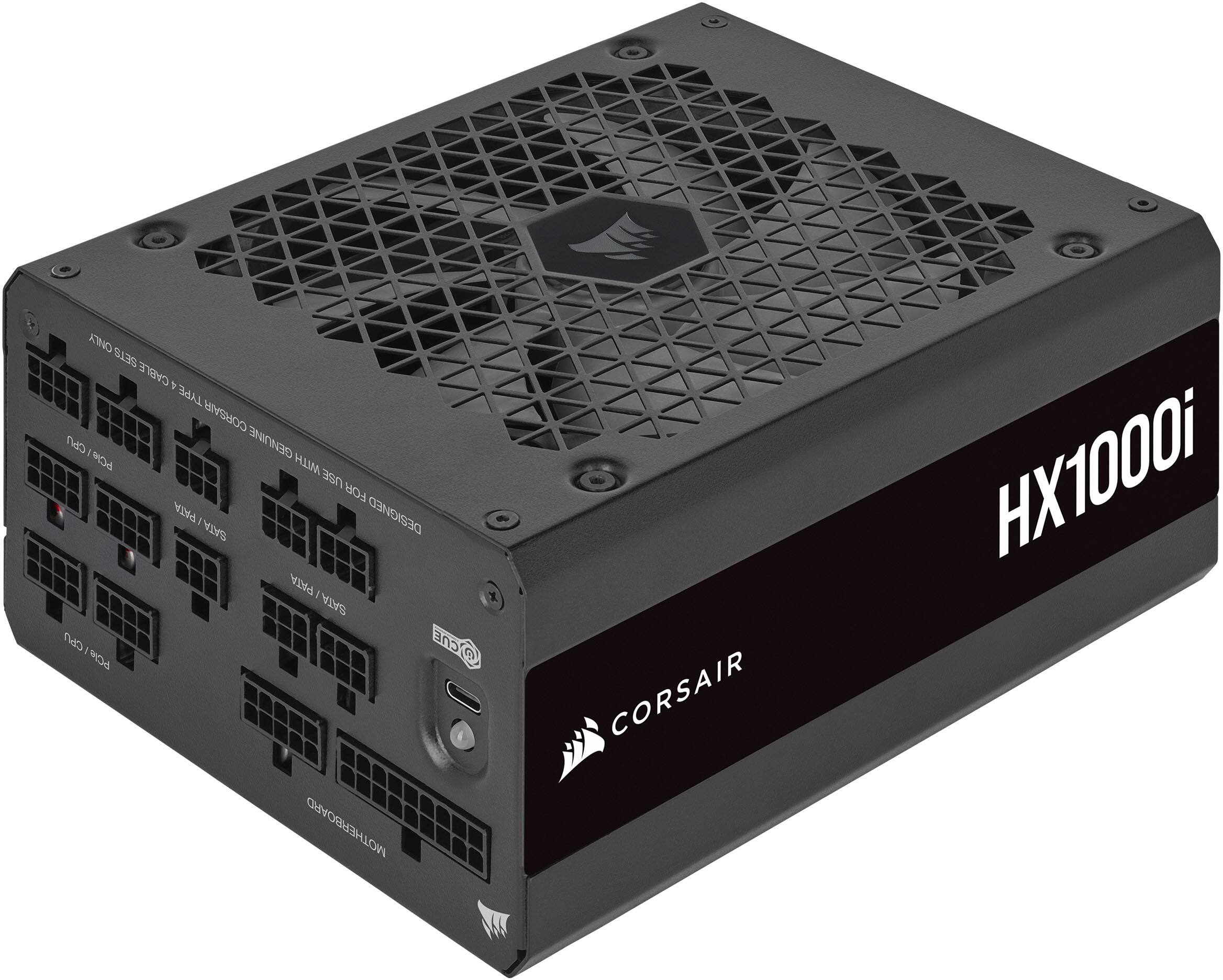

CORSAIR - HXi Series HX1000i 80 PLUS Platinum Fully Modular Ultra-Low Noise ATX Power Supply - Black
- Key Specs
- Wattage: 1000 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: 80 PLUS Platinum, 80 PLUS Platinum (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- ATX Connector: 1x 24-pin ATX (24-pin) Connector. 2x ATX 12V/EPS12V (4+4-pin) Connectors (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- PCIe Connector: 4x PCIe (6+2-pin, dual) (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 8 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 8x SATA (Straight) Connectors (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- EPS12V Connector: 2 (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 5.0
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Product Length: 150.11 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- General
- Brand: CORSAIR
- Model Number: CP-9020214-NA
- Product Name: HXi Series HX1000i 80 PLUS Platinum Fully Modular Ultra-Low Noise ATX Power Supply
- Color: Black
- Power
- Wattage: 1000 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: 80 PLUS Platinum, 80 PLUS Platinum (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- Specification Compliance: 2.52
- Overload Protection: true (Features intended to protect the product from damage and overheating caused by overload.)
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Cord Length: 5 feet
- Connectivity
- ATX Connector: 1x 24-pin ATX (24-pin) Connector. 2x ATX 12V/EPS12V (4+4-pin) Connectors (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- Floppy Connector: FALSE (The configuration of the connector as it connects a computer power supply unit to a floppy disk drive.)
- PCIe Connector: 4x PCIe (6+2-pin, dual) (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 8 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 8x SATA (Straight) Connectors (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- EPS12V Connector: 2 (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 5.0
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Dimensions
- Product Height: 86.11 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 180.09 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 150.11 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 70.4 ounces (The out of box weight of the item.)
- Cooling
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Cooling Fan Type: 140mm Fluid Dynamic Bearing Fan
- Number of Fans Included: 1
- Features
- Lighting Type: None
- Warranty
- Warranty - Parts: 10 years
- Warranty - Labor: 10 years
- Other
- UPC: 840006615521
CORSAIR HXi Series Fully Modular Ultra-Low Noise Power Supplies deliver exceptional 80 PLUS Platinum efficient power and low-noise fluid dynamic bearing fan performance. With three EPS12V connectors, HXi PSUs have every connection needed to power today’s most demanding PC upgrades. Powerful CORSAIR iCUE software enables custom fan curves, monitoring and adjusting power settings, and more thanks to a fully digital platform. Japanese 105°C-rated electrolytic capacitors deliver long life and reliability, backed by a ten-year warranty. Wake your computer faster and consume less power with Modern Standby sleep mode. Zero RPM mode ensures near-silent operation at low and medium loads. The HXi Series puts platinum power at your command.
- Fully Modular Cabling: Connect only the cables your system needs, making clean and tidy builds easy.
- Triple EPS12V Connectors: For full compatibility with modern motherboards.
- 140mm Fluid Dynamic Bearing (FDB) Fan: Delivers extremely quiet and long-lasting fan performance.
- Powerful CORSAIR iCUE Software: Create custom fan curves, monitor power settings, and toggle between single to multi-rail overcurrent protection (OCP) on-the-fly.
- Zero RPM Fan Mode: At low and medium loads the cooling fan switches off entirely for near-silent operation.
- 80 PLUS Platinum Certified: Up to 92% efficiency for exceptional low power consumption, less noise, and cooler temperatures.
- 100% Japanese 105°C Electrolytic Capacitors: Premium internal components ensure unwavering power delivery and long-term reliability.
- Modern Standby Compatible: Extremely fast wake-from-sleep times and better low-load efficiency.
- Fully Digital Platform: Resonant LLC topology and DC-to-DC conversion provides clean, consistent power and minimizes coil whine and noise for quiet operation.
- Ten-Year Warranty: Your guarantee of reliable operation that will last across several system builds.
- Fully Modular Cabling: Connect only the cables your system needs, making clean and tidy builds easy.
- Triple EPS12V Connectors: For full compatibility with modern motherboards.
- 140mm Fluid Dynamic Bearing (FDB) Fan: Delivers extremely quiet and long-lasting fan performance.
- Powerful CORSAIR iCUE Software: Create custom fan curves, monitor power settings, and toggle between single to multi-rail overcurrent protection (OCP) on-the-fly.
- Zero RPM Fan Mode: At low and medium loads the cooling fan switches off entirely for near-silent operation.
- 80 PLUS Platinum Certified: Up to 92% efficiency for exceptional low power consumption, less noise, and cooler temperatures.
- 100% Japanese 105°C Electrolytic Capacitors: Premium internal components ensure unwavering power delivery and long-term reliability.
- Modern Standby Compatible: Extremely fast wake-from-sleep times and better low-load efficiency.
- Fully Digital Platform: Resonant LLC topology and DC-to-DC conversion provides clean, consistent power and minimizes coil whine and noise for quiet operation.
- Ten-Year Warranty: Your guarantee of reliable operation that will last across several system builds.
Whats Included
- HXi Series ATX Power Supply
- Power cord
- DC Cables
- Mounting screws
- Cable ties
- HXi Series ATX Power Supply
- Power cord
- DC Cables
- Mounting screws
- Cable ties
Q: Does this include 12VHPWR connectors required for modern GPUs like RTX 4090?
A: Hi, The HX1000i is compatible with the power adapter provided with the RTX 4090. Otherwise, our 600W 12VHPWR PSU Power Cable is available via our website: (corsair.com/12VHPWR). I would also suggest checking the PSU wattage requirement for your RTX 4090 model, as they vary in wattage between them. If you have any additional questions, we'd be happy to assist: help.corsair.com -Albert
Q: Does this include any 4 pin cables to connect case fans
A: Hi, The HX1000i includes the following cables: o x1 ATX Cable 24-pin (20+4) o x4 EPS/ATX12V 8-pin (4+4) o x4 PCIe 8-pin (6+2) w/ 2 connectors per cable (6 total connectors) o x2 SATA w/ 4 connectors per cable (8 total connectors) o x2 PATA w/ 4 connectors per cable (8 total connectors) o x1 USB-C to USB 2.0 Header (for iCUE) If you have any additional questions, please feel free to reach out to support via our website and we'll happily assist you. -Albert
Q: Does this come with PCIe cables to connect to the adaptor for a 4080?
A: Yes, I have a 4080 and it comes with enough PCIe cables to connect to it.
Q: Would this fit in a 5000D Corsair mid tower case?
A: yes its the same size as a 750 w
