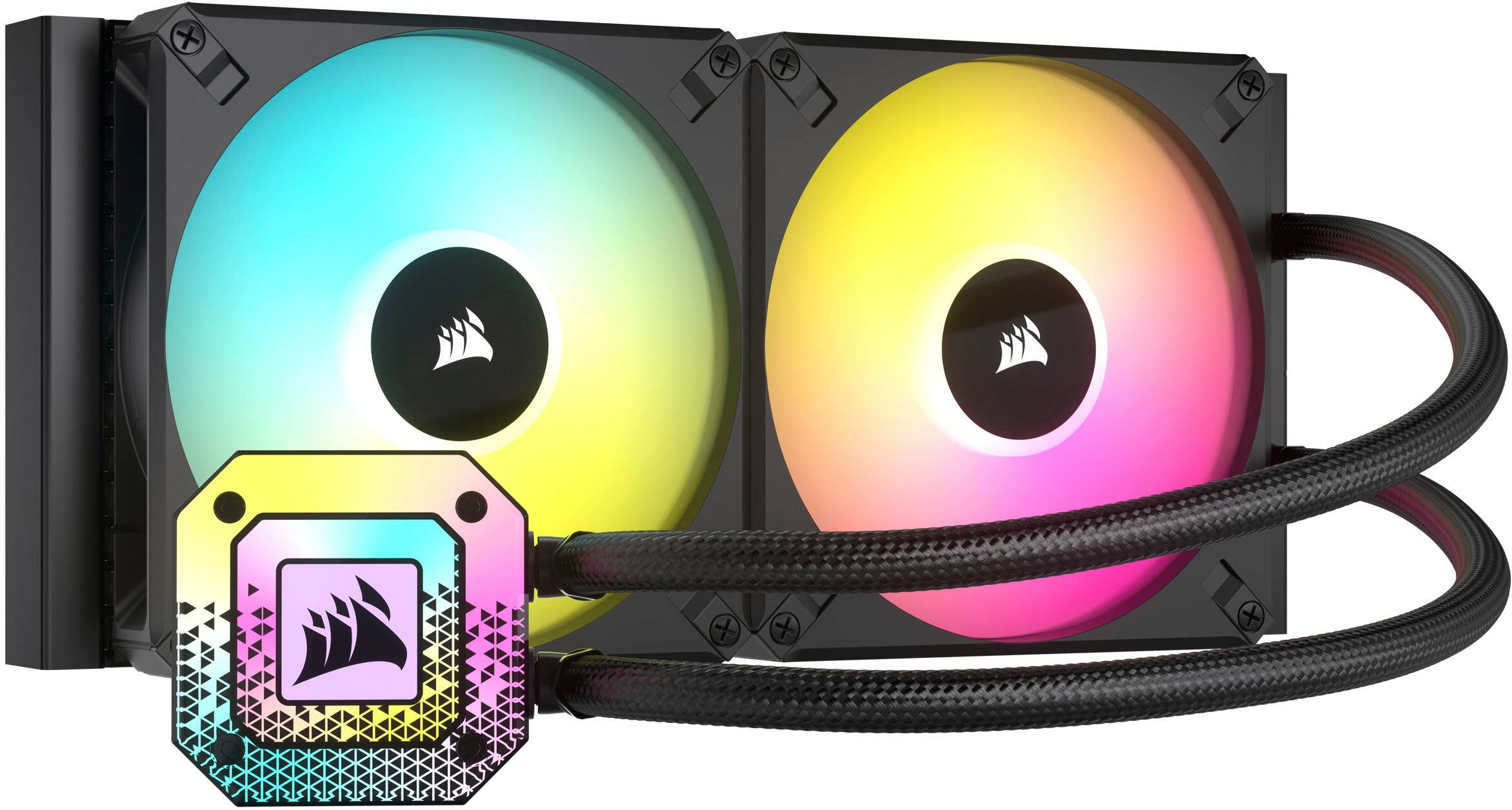

CORSAIR - iCUE H115i ELITE CAPELLIX XT 140mm Fans + 280mm Radiator Liquid Cooling System with ultra-bright CAPELLIX RGB LEDs - Black
- Key Specs
- Airflow Volume: 89 cubic feet per minute
- Cooling System: Liquid (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Fan Size: 140 millimeters
- Fan Speed: 1700 revolutions per minute
- Noise Level: 17.9 decibels adjusted
- Number of Fans Included: 2
- Lighting Type: RGB
- Product Height: 26.924 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 120 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Processor Socket: Socket AM4 (PGA 1331), Socket AM5 (LGA 1718), Socket H3 (LGA 1150), Socket H4 (LGA 1151), Socket H2 (LGA 1155), Socket H (LGA 1156), Socket LGA 1200, Socket LGA 1700, Socket R (LGA 2011), Socket LGA 2011-v3, Socket R4 (LGA 2066), Socket sTRX4/Socket SP3r3 (LGA 4094) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Radiator Size: 280 millimeters (The overall size of the radiator based on the number of fans held within multiplied by the individual fan size.)
- General
- Brand: CORSAIR
- Model Number: CW-9060069-WW
- Product Name: iCUE H115i ELITE CAPELLIX XT 140mm Fans + 280mm Radiator Liquid Cooling System with ultra-bright CAPELLIX RGB LEDs
- Color: Black
- Cooling
- Airflow Volume: 89 cubic feet per minute
- Cooling Fan Type: CPU
- Cooling System: Liquid (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Fan Size: 140 millimeters
- Fan Speed: 1700 revolutions per minute
- Noise Level: 17.9 decibels adjusted
- Number of Fans Included: 2
- Heatsink Material: Copper
- Bearing Type: Fluid Dynamic Bearing (FDB)
- Fan/Cooling System Connector: SATA Power + 4-pin PWM fan connector (The configuration of the connector as it connects a computer component to a fan or cooling system.)
- Features
- Lighting Type: RGB
- Customizable Lighting: true
- Power
- Power Consumption: 0.3 watts
- 12-Volt Rated: true
- Dimensions
- Product Height: 26.924 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 120 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 322.072 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 95.36 ounces (The out of box weight of the item.)
- Compatibility
- Processor Socket: Socket AM4 (PGA 1331), Socket AM5 (LGA 1718), Socket H3 (LGA 1150), Socket H4 (LGA 1151), Socket H2 (LGA 1155), Socket H (LGA 1156), Socket LGA 1200, Socket LGA 1700, Socket R (LGA 2011), Socket LGA 2011-v3, Socket R4 (LGA 2066), Socket sTRX4/Socket SP3r3 (LGA 4094) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Radiator Size: 280 millimeters (The overall size of the radiator based on the number of fans held within multiplied by the individual fan size.)
- Warranty
- Warranty - Parts: 5 years
- Warranty - Labor: 5 Years
- Other
- UPC: 840006683483
The CORSAIR iCUE H115i ELITE CAPELLIX XT Liquid CPU Cooler provides powerful, high-performance cooling for your Intel® or AMD® processor. With 2x CORSAIR AF RGB ELITE fans, a high-surface-area 280mm radiator, and a quiet, stylish pump head topped with 33 ultra-bright CAPELLIX LEDs, the H115i ELITE CAPELLIX XT is the all-in-one CPU cooler to keep your processor performing at its best. AF RGB ELITE fans produce incredible low-noise airflow with PWM-controlled speeds up to 1,700 RPM as quietly as 36 dBa, plus support for Zero RPM mode to eliminate fan noise entirely at low loads. CORSAIR AirGuide technology utilizes anti-vortex vanes to direct airflow for concentrated cooling, while eight RGB LEDs per fan illuminate your system in brilliant lighting effects. Orchestrate the light show and adjust speeds on up to six fans with the included CORSAIR iCUE COMMANDER CORE fan and lighting controller. Powerful CORSAIR iCUE software unites your setup, unlocking RGB lighting control and synchronization with all iCUE-compatible devices, and enables you to monitor system temps from a single intuitive interface. The H115i ELITE CAPELLIX XT is easy to install thanks to the extended 400mm tubing length, premium pre-applied CORSAIR XTM70 thermal paste, and modular tool-free bracket mounts. Install the cooler onto compatible Intel® and AMD® motherboard sockets including LGA 1700, 1200, 115X, and 2066, plus AMD Socket AM5 and AM4.
- High-Performance All-in-One Liquid CPU Cooling: Cool the latest CPUs from Intel® or AMD®, complete with a 280mm radiator, 2x 140mm fans, copper cold plate, and an efficient pump head lined with stunning CAPELLIX LEDs.
- Powerful AF RGB ELITE Fans: CORSAIR AF140 RGB ELITE PWM fans deliver massive low-noise airflow with AirGuide technology for extreme CPU cooling performance.
- Quiet CPU Cooling with Zero RPM Mode Support: Dictate your exact fan speeds up to 1,700 RPM with PWM control as quietly as 36 dBa, plus support for 0 RPM PWM signals that allow fans to stop entirely at low temperatures, eliminating fan noise completely.
- Included iCUE COMMANDER CORE Controller: An included iCUE COMMANDER CORE RGB lighting and fan speed controller gives you precise speed and lighting control over up to six CORSAIR RGB fans.
- Ultra-Bright CAPELLIX LEDs: Light up your system with 33 ultra-bright CAPELLIX LEDs in the pump head and 16 fan RGB LEDs, for mesmerizing, customizable lighting effects.
- Pre-Applied CORSAIR XTM70 Thermal Paste: Premium pre-applied thermal paste ensures quality thermal transfer and efficiency for years to come.
- Unite Your Setup: Powerful CORSAIR iCUE software enables you to adjust fan and pump speeds, control and synchronize your cooler’s RGB lighting with all iCUE-compatible devices, and monitor CPU and coolant temperatures, all from a single intuitive interface.
- Extended Tubing and Easy Installation: Extended tubing length of 400mm and modular, tool-free mounting brackets make for easy installation on the latest Intel® and AMD® motherboard sockets, including LGA 1700, 1200, 115X, and 2066, plus AMD Socket AM4.
- Compatible with the CORSAIR ELITE LCD Upgrade Kit: Add an ELITE LCD Upgrade Kit (sold separately) to personalize your cooler and entire system with a vibrant LCD display.
- Five-Year Warranty: Award-winning service and a five-year warranty mean you can enjoy your cooler worry-free.
- High-Performance All-in-One Liquid CPU Cooling: Cool the latest CPUs from Intel® or AMD®, complete with a 280mm radiator, 2x 140mm fans, copper cold plate, and an efficient pump head lined with stunning CAPELLIX LEDs.
- Powerful AF RGB ELITE Fans: CORSAIR AF140 RGB ELITE PWM fans deliver massive low-noise airflow with AirGuide technology for extreme CPU cooling performance.
- Quiet CPU Cooling with Zero RPM Mode Support: Dictate your exact fan speeds up to 1,700 RPM with PWM control as quietly as 36 dBa, plus support for 0 RPM PWM signals that allow fans to stop entirely at low temperatures, eliminating fan noise completely.
- Included iCUE COMMANDER CORE Controller: An included iCUE COMMANDER CORE RGB lighting and fan speed controller gives you precise speed and lighting control over up to six CORSAIR RGB fans.
- Ultra-Bright CAPELLIX LEDs: Light up your system with 33 ultra-bright CAPELLIX LEDs in the pump head and 16 fan RGB LEDs, for mesmerizing, customizable lighting effects.
- Pre-Applied CORSAIR XTM70 Thermal Paste: Premium pre-applied thermal paste ensures quality thermal transfer and efficiency for years to come.
- Unite Your Setup: Powerful CORSAIR iCUE software enables you to adjust fan and pump speeds, control and synchronize your cooler’s RGB lighting with all iCUE-compatible devices, and monitor CPU and coolant temperatures, all from a single intuitive interface.
- Extended Tubing and Easy Installation: Extended tubing length of 400mm and modular, tool-free mounting brackets make for easy installation on the latest Intel® and AMD® motherboard sockets, including LGA 1700, 1200, 115X, and 2066, plus AMD Socket AM4.
- Compatible with the CORSAIR ELITE LCD Upgrade Kit: Add an ELITE LCD Upgrade Kit (sold separately) to personalize your cooler and entire system with a vibrant LCD display.
- Five-Year Warranty: Award-winning service and a five-year warranty mean you can enjoy your cooler worry-free.
Whats Included
- CORSAIR iCUE H115i ELITE CAPELLIX XT Liquid CPU Cooler
- CORSAIR Commander CORE
- Mounting kit for all modern CPU sockets
- Two AF RGB ELITE Series PWM 140mm fans
- Fan and radiator mounting screws
- XTM70 Thermal Paste (pre-applied)
- Alternative Pump Caps (x2)
- Cap Removal Tool
- Owner's manual
- CORSAIR iCUE H115i ELITE CAPELLIX XT Liquid CPU Cooler
- CORSAIR Commander CORE
- Mounting kit for all modern CPU sockets
- Two AF RGB ELITE Series PWM 140mm fans
- Fan and radiator mounting screws
- XTM70 Thermal Paste (pre-applied)
- Alternative Pump Caps (x2)
- Cap Removal Tool
- Owner's manual
Product Manuals
Q: Does this cooler come with a warranty?
A: Yes, this cooler comes with a 5-year warranty for both parts and labor.
Q: What is the maximum fan speed of this CPU cooler?
A: The maximum fan speed for this cooler is 1700 revolutions per minute.
Q: Is this liquid CPU cooler compatible with AMD motherboards?
A: Yes, this cooler is compatible with AMD Socket AM5 and AM4 motherboard sockets.
Q: What type of bearings are used in the fans of this cooling system?
A: The cooling system uses Fluid Dynamic Bearing (FDB).
Q: Does this CPU cooler offer customizable lighting?
A: Yes, the cooler features customizable RGB lighting.
Q: How many fans are included with the CORSAIR iCUE H115i ELITE CAPELLIX XT Liquid CPU Cooler?
A: The CORSAIR iCUE H115i ELITE CAPELLIX XT Liquid CPU Cooler comes with 2 fans.
Q: What is the radiator size of this liquid CPU cooler?
A: The radiator size is 280 millimeters.
A: There is nothing special about the stock thermal paste and it will offer zero benefits by sticking with it. I recommend Arctic Mx-4. GREAT paste for the price and easy to use. You can only improve by ditching the stock thermal paste application for a better product.
