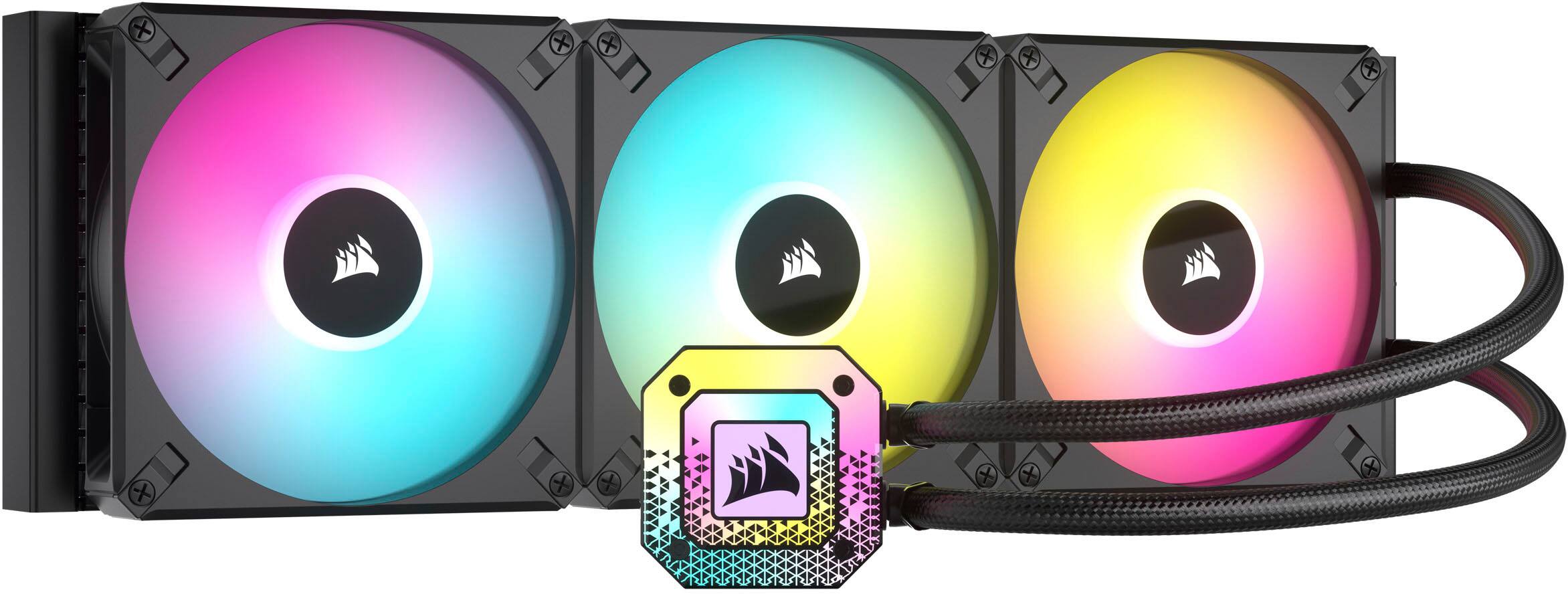

CORSAIR - iCUE H170i ELITE CAPELLIX XT AIO Liquid CPU Cooler 420mm Radiator Triple 140mm RGB PWM Fans - Black
- Key Specs
- Airflow Volume: 89 cubic feet per minute
- Cooling System: Liquid (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Fan Size: 140 millimeters
- Fan Speed: 1700 revolutions per minute
- Noise Level: 36.5 decibels adjusted
- Number of Fans Included: 3
- Lighting Type: RGB
- Product Height: 26.924 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 5.51 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Processor Socket: Socket AM4 (PGA 1331), Socket AM5 (LGA 1718), Socket H3 (LGA 1150) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Radiator Size: 420 millimeters (The overall size of the radiator based on the number of fans held within multiplied by the individual fan size.)
- General
- Brand: CORSAIR
- Model Number: CW-9060071-WW
- Product Name: iCUE H170i ELITE CAPELLIX XT AIO Liquid CPU Cooler 420mm Radiator Triple 140mm RGB PWM Fans
- Color: Black
- Cooling
- Airflow Volume: 89 cubic feet per minute
- Cooling Fan Type: CPU
- Cooling System: Liquid (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Fan Size: 140 millimeters
- Fan Speed: 1700 revolutions per minute
- Noise Level: 36.5 decibels adjusted
- Number of Fans Included: 3
- Bearing Type: Fluid Dynamic Bearing (FDB)
- Fan/Cooling System Connector: SATA Power + 4-pin PWM fan connector (The configuration of the connector as it connects a computer component to a fan or cooling system.)
- Features
- Lighting Type: RGB
- Customizable Lighting: true
- Power
- Power Consumption: 0.3 watts
- 12-Volt Rated: true
- Dimensions
- Product Height: 26.924 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 5.51 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 18 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 80 ounces (The out of box weight of the item.)
- Compatibility
- Processor Socket: Socket AM4 (PGA 1331), Socket AM5 (LGA 1718), Socket H3 (LGA 1150) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Radiator Size: 420 millimeters (The overall size of the radiator based on the number of fans held within multiplied by the individual fan size.)
- Warranty
- Warranty - Parts: 5 years
- Warranty - Labor: 5 Years
- Other
- UPC: 840006683506
The CORSAIR iCUE H170i ELITE CAPELLIX XT Liquid CPU Cooler provides powerful, high-performance cooling and brilliant looks for your Intel or AMD processor. CORSAIR AF RGB ELITE PWM fans produce incredible low-noise airflow with speeds up to 1,700 RPM, using AirGuide technology for concentrated cooling to disperse heat along a 420mm radiator. Ultra-bright CAPELLIX LEDs illuminate your system in cool color, orchestrated by an included CORSAIR iCUE COMMANDER CORE controller on up to six fans. Powerful CORSAIR iCUE software unlocks RGB lighting control, fan speed adjustments, and system temp monitoring. Easy to install and widely compatible with Intel and AMD motherboard sockets including LGA 1700, 1200, 115X, and 2066, plus AMD Socket AM5 and AM4, the H170i ELITE CAPELLIX XT puts CPU cooling in a whole new light.
- High-Performance All-in-One Liquid CPU Cooling: Cool the latest CPUs from Intel or AMD, complete with a 420mm radiator, 3x 140mm fans, copper cold plate, and an efficient pump head lined with stunning CAPELLIX LEDs
- Powerful AF RGB ELITE Fans: CORSAIR AF140 RGB ELITE PWM fans deliver massive low-noise airflow with AirGuide technology for extreme CPU cooling performance
- Quiet CPU Cooling with Zero RPM Mode Support: Dictate your exact fan speeds up to 1,700 RPM with PWM control as quietly as 36 dBa, plus support for 0 RPM PWM signals that allow fans to stop entirely at low temperatures, eliminating fan noise completely
- Included iCUE COMMANDER CORE Controller: Included iCUE COMMANDER CORE RGB lighting and fan speed controller gives you precise speed and lighting control over up to six CORSAIR RGB fans
- Ultra-Bright CAPELLIX LEDs: Light up your system with 33 ultra-bright CAPELLIX LEDs in the pump head and 24 fan RGB LEDs, for mesmerizing, customizable lighting effects
- Pre-Applied CORSAIR XTM70 Thermal Paste: Premium pre-applied thermal paste ensures quality thermal transfer and efficiency for years to come
- Unite Your Setup: Powerful CORSAIR iCUE software enables you to adjust fan and pump speeds, control and synchronize your cooler’s RGB lighting with all iCUE-compatible devices, and monitor CPU and coolant temperatures, all from a single intuitive interface
- Extended Tubing and Easy Installation: Extended tubing length of 450mm and modular, tool-free mounting brackets make for easy installation on the latest Intel and AMD motherboard sockets, including LGA 1700, 1200, 115X, and 2066, plus AMD Socket AM4
- Compatible with the CORSAIR ELITE LCD Upgrade Kit: Add an ELITE LCD Upgrade Kit (sold separately) to personalize your cooler and entire system with a vibrant LCD display
- Five-Year Warranty: Award-winning service and a five-year warranty mean you can enjoy your cooler worry-free
Whats Included
- CORSAIR iCUE H170i ELITE CAPELLIX XT Liquid CPU Cooler
- CORSAIR Commander CORE
- Mounting kit for all modern CPU sockets
- Three AF RGB ELITE Series PWM 140mm fans
- Fan and radiator mounting screws
- XTM70 Thermal Paste (pre-applied)
- Alternative Pump Caps (x2)
- Cap Removal Tool
Product Manuals
Q: What is the noise level of the cooler at maximum speed?
A: The noise level of the cooler at maximum speed is 36.5 decibels.
Q: Can the cooler be used with both Intel and AMD processors?
A: The CORSAIR iCUE H170i ELITE CAPELLIX XT Liquid CPU Cooler is compatible with both Intel and AMD processors.
Q: How many fans are included with the cooler?
A: The cooler includes three fans.
Q: Is the cooler compatible with the latest LGA 1700 socket?
A: The H170i ELITE CAPELLIX XT is compatible with a wide range of Intel and AMD motherboard sockets, including LGA 1700.
Q: What is the maximum fan speed?
A: The maximum fan speed is 1,700 revolutions per minute.
Q: Does the cooler come with software for controlling the RGB lighting and fan speeds?
A: Powerful CORSAIR iCUE software unlocks RGB lighting control, fan speed adjustments, and system temp monitoring.
