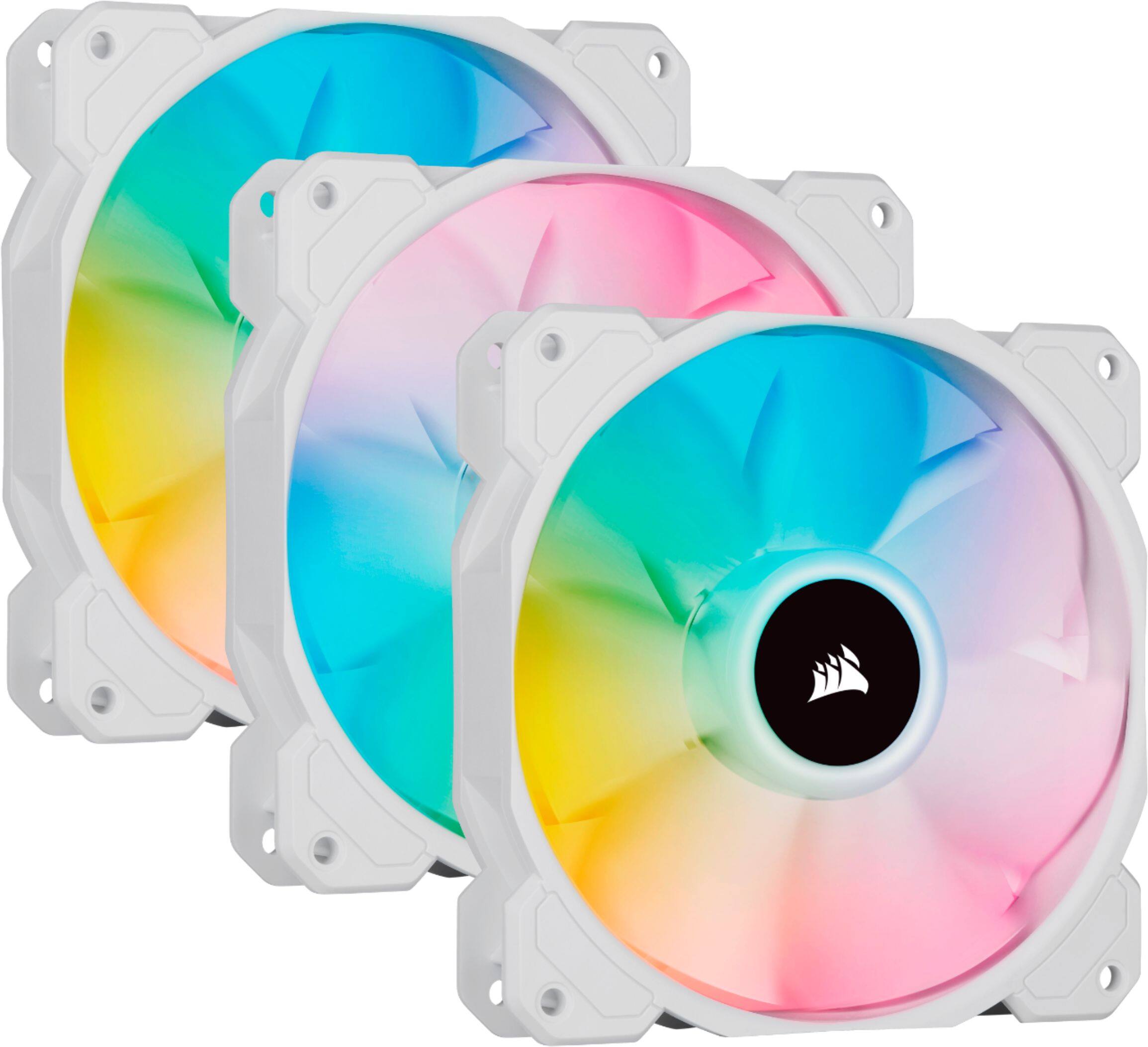

CORSAIR - iCUE SP120 RGB ELITE Performance 120mm PWM Triple Fan Kit with iCUE Lighting Node CORE - White
- Key Specs
- Airflow Volume: 50.2 cubic feet per minute
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Fan Size: 120 millimeters
- Fan Speed: 1500 revolutions per minute
- Noise Level: 26 decibels adjusted
- Number of Fans Included: 3
- Lighting Type: RGB
- Product Height: 4.72 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 4.72 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- General
- Brand: CORSAIR
- Model Number: CO-9050137-WW
- Product Name: iCUE SP120 RGB ELITE Performance 120mm PWM Triple Fan Kit with iCUE Lighting Node CORE
- Color: White
- Cooling
- Airflow Volume: 50.2 cubic feet per minute
- Cooling Fan Type: Case
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Fan Size: 120 millimeters
- Fan Speed: 1500 revolutions per minute
- Noise Level: 26 decibels adjusted
- Number of Fans Included: 3
- Bearing Type: Hydraulic bearing
- Fan/Cooling System Connector: 4-pin PWM fan connector (The configuration of the connector as it connects a computer component to a fan or cooling system.)
- Features
- Lighting Type: RGB
- Customizable Lighting: true
- Power
- Power Consumption: 0.3 watts
- 12-Volt Rated: true
- Dimensions
- Product Height: 4.72 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 4.72 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 0.98 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 12.96 ounces (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Other
- UPC: 840006637776
The CORSAIR iCUE SP120 RGB ELITE Performance Triple Fan Kit boasts eight bright, individually addressable RGB LEDs on each fan, alongside CORSAIR AirGuide technology with anti-vortex vanes for concentrated cooling. The included iCUE Lighting Node CORE RGB Lighting Controller easily connects your lighting with simple USB 2.0 and SATA connections, minimizing cable clutter. Customize vivid lighting effects and synchronize it with your other iCUE-compatible devices using powerful CORSAIR iCUE software. A translucent low-noise 120mm fan blade, able to spin as quietly as 18 dBA, is PWM controllable between 550 and 1,500 RPM, pushing up to 47.7 CFM of air while enhancing your lighting effects.
- CORSAIR AirGuide Technology: Utilizes anti-vortex vanes to direct airflow and concentrate cooling, improving cooling whether used as intake, exhaust, or mounted to a liquid cooling radiator or heatsink.
- Eight Individually Addressable RGB LEDs: Create mesmerizing RGB lighting with eight LEDs along each fan hub.
- iCUE Lighting Node CORE Included: Control RGB lighting for up to six CORSAIR RGB fans via CORSAIR iCUE software with this compact RGB Lighting Controller, cutting down cable clutter with simple USB 2.0 and SATA connections.
- Your Setup at Your Command: Create vivid lighting effects with powerful CORSAIR iCUE software, bringing your system to life with dynamic RGB lighting synchronized across all your iCUE compatible products.
- Low-Noise, High-Performance: A translucent 120mm fan blade spins as quietly as 18 dBA, providing high airflow while letting your RGB lighting shine through.
- Keep Your System Cool: Powerful PWM-controlled fan speeds up to 1,500 RPM, pushing up to 47.7 CFM of air with 1.46mm-H2O of static pressure.
- CORSAIR AirGuide Technology: Utilizes anti-vortex vanes to direct airflow and concentrate cooling, improving cooling whether used as intake, exhaust, or mounted to a liquid cooling radiator or heatsink.
- Eight Individually Addressable RGB LEDs: Create mesmerizing RGB lighting with eight LEDs along each fan hub.
- iCUE Lighting Node CORE Included: Control RGB lighting for up to six CORSAIR RGB fans via CORSAIR iCUE software with this compact RGB Lighting Controller, cutting down cable clutter with simple USB 2.0 and SATA connections.
- Your Setup at Your Command: Create vivid lighting effects with powerful CORSAIR iCUE software, bringing your system to life with dynamic RGB lighting synchronized across all your iCUE compatible products.
- Low-Noise, High-Performance: A translucent 120mm fan blade spins as quietly as 18 dBA, providing high airflow while letting your RGB lighting shine through.
- Keep Your System Cool: Powerful PWM-controlled fan speeds up to 1,500 RPM, pushing up to 47.7 CFM of air with 1.46mm-H2O of static pressure.
Whats Included
- 3x CORSAIR SP120 RGB ELITE fans
- 12x mounting screws
- 1x CORSAIR Lighting Node CORE
- 3x CORSAIR SP120 RGB ELITE fans
- 12x mounting screws
- 1x CORSAIR Lighting Node CORE
A: Hi Rickybobby, Each SP RGB ELITE fan is equipped with a 4-pin PWM (for fan power and control) and 4-pin RGB (for RGB lighting power and control) connector. The Lighting Node CORE connects to a USB 2.0 header on your motherboard, and a SATA power connector from your PSU. If you require any additional assistance with setup, please refer to this video: (https://youtu.be/EbKDfFrAXl0). Feel free to contact us with any additional questions, we'd be happy to help: support.corsair.com -Albert
A: Colors can be modified and brightened with iCUe. This fan doesn't have a lit outer ring like the LL120 so it does appear more muted. These fans look nice but I wanted the outer ring to light up so I replaced them with the LL120s
Q: Does this work with the NZXT - Kraken 240?
A: Hello, You can put any fans on any cooler for the most part, you'd just have to control with the appropriate controller. -Art
Q: Would these work with B365M DS3H WIFI motherboard?
A: Hi Sophia, The fans would come with a Lighting Node Core, so the motherboard used would be mostly irrelevant unless it was a very, very old motherboard/platform. This shouldn't be an issue with yours. -Art
A: These fans will work with most any case as long as the case fan spaces are the same size as the fans ie 120 mm or140mm. The important question is will your motherboard and power supply support the fans. The major differences between the elite and pro fans are the rpms (the elite have a higher rpm range), the power connections (elite is 4 pin and pro 3 pin) and the elite fans (which I have installed) support PWM control and the pro do not (according to the specs provided by the Corsair website).
Q: do these fans include the screws to mount them in a case like the corsair 5000x that I have
A: Yes they come with short and long screws
Q: Is the fan header a 3 pin or 4 pin please let me know
A: Fan is 4 pin PWM. There is also the rgb cable and header that needs to be plugged into either a commander xt or lighting node core for the rgb to work.
