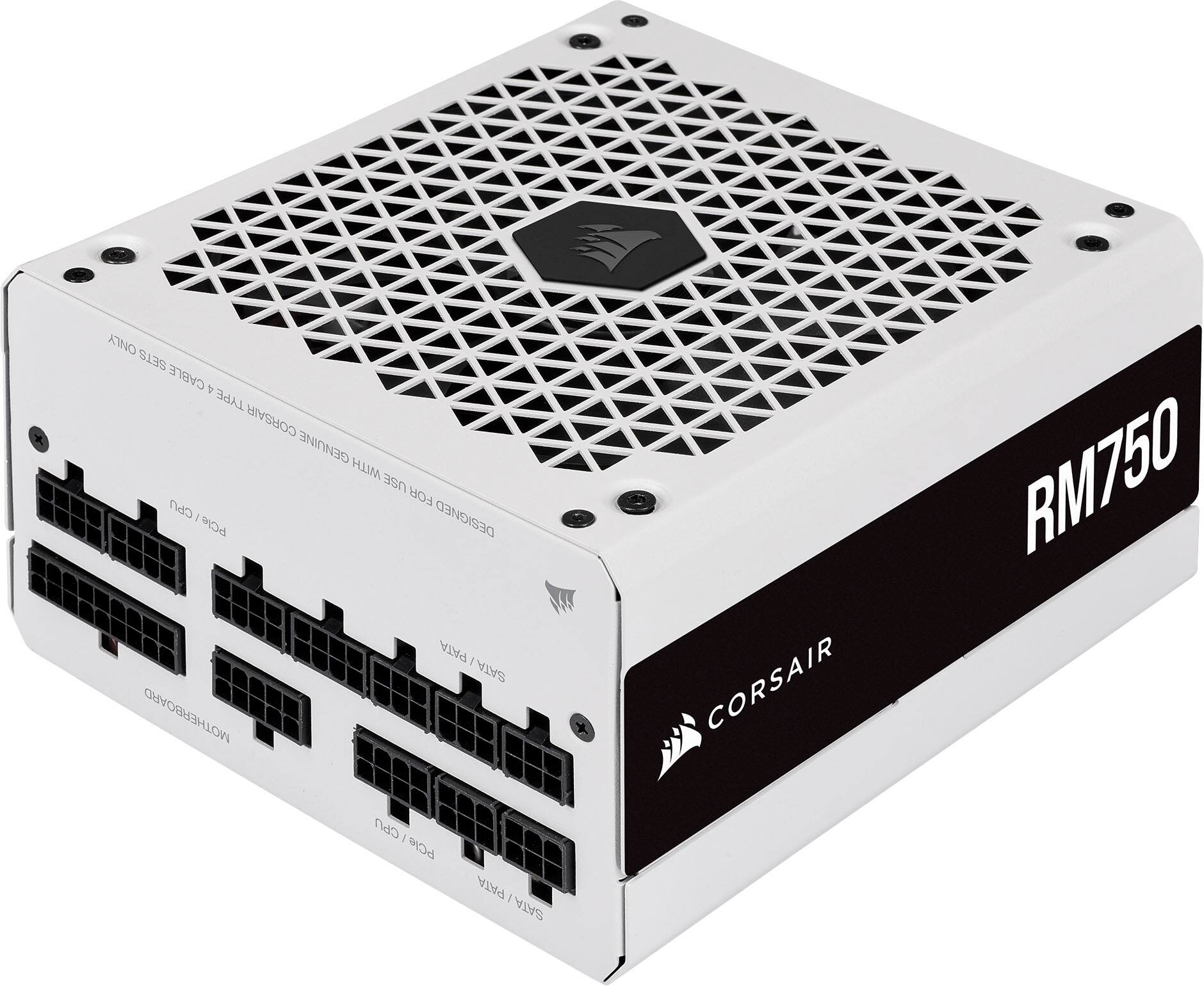

CORSAIR - RM Series RM750 750W ATX 80 PLUS GOLD Certified Fully Modular Power Supply - White
- Key Specs
- Wattage: 750 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: 80 PLUS Gold (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- ATX Connector: 1x 24-pin ATX (24-pin) Connector. 2x ATX 12V/EPS12V (4+4-pin) Connectors (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- PCIe Connector: 4x PCIe (6+2-pin) (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 2 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 10x SATA (Straight) Connectors (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- EPS12V Connector: 2 (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 4.0
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Product Length: 150.11 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- General
- Brand: CORSAIR
- Model Number: CP-9020231-NA
- Product Name: RM Series RM750 750W ATX 80 PLUS GOLD Certified Fully Modular Power Supply
- Color: White
- Power
- Wattage: 750 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: 80 PLUS Gold (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- Specification Compliance: ATX12V v2.4, EPS12V v2.92
- Overload Protection: true (Features intended to protect the product from damage and overheating caused by overload.)
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Cord Length: 5 feet
- Connectivity
- ATX Connector: 1x 24-pin ATX (24-pin) Connector. 2x ATX 12V/EPS12V (4+4-pin) Connectors (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- Floppy Connector: FALSE (The configuration of the connector as it connects a computer power supply unit to a floppy disk drive.)
- PCIe Connector: 4x PCIe (6+2-pin) (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 2 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 10x SATA (Straight) Connectors (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- EPS12V Connector: 2 (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 4.0
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Dimensions
- Product Height: 86.11 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 160.02 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 150.11 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 55.36 ounces (The out of box weight of the item.)
- Cooling
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Cooling Fan Type: 140mm Rifle Bearing fan
- Number of Fans Included: 1
- Features
- Lighting Type: None
- Warranty
- Warranty - Parts: 10 years
- Warranty - Labor: 10 years
- Other
- UPC: 840006628750
CORSAIR RM Series Fully Modular Ultra-Low Noise Power Supplies deliver consistent 80 PLUS Gold efficient power to your PC. With triple EPS12V cables and four PCIe 8-pin power connectors, RM PSUs have all the connections needed to power today’s most demanding PC upgrades. Industrial-grade, 105°C-rated capacitors deliver superb electrical performance and reliability, backed by a ten-year warranty. Wake your computer faster and consume less power with support for the Modern Standby sleep mode. Zero RPM fan mode ensures virtually silent operation at low and medium loads. Fully modular cables make PC builds and upgrades easy, as you connect only the cables your system requires. RM PSUs are quiet, efficient, and dependable to power your high-performance PC for years to come.
- Fully Modular Cables: Only connect the cables your system needs, making clean and tidy builds easier.
- Triple EPS12V Connectors: For full compatibility with modern graphics cards and motherboards.
- Tuned for Low-Noise Operation: A 140mm rifle bearing fan with a specially calculated fan curve ensures that fan noise is kept to a minimum, even at full load.
- Zero RPM Fan Mode: At low and medium loads the cooling fan switches off entirely for near-silent operation.
- 105°C-Rated Capacitors: Industrial-grade capacitors deliver solid electrical performance and reliability.
- Brilliant White Housing: Accentuate modern-looking white PC builds with a PSU that matches your theme.
- 80 PLUS Gold Certified: Up to 90% efficiency for lower power consumption, less noise, and cooler temperatures.
- Modern Standby Compatible: Extremely fast wake-from-sleep times and better low-load efficiency.
- Resonant LLC Topology with DC-to-DC Conversion: Provides clean, consistent power, reduces coil whine for quieter operation, and enables use of more energy efficient sleep states.
- Ten-Year Warranty: Your guarantee of reliable operation that will last across several system builds.
Whats Included
- 1x RM750 ATX Power Supply
- 1x 24-pin ATX (24-pin) Connector
- 3x ATX 12V/EPS12V (4+4-pin) Connector
- 4x PCIe (6+2) Connectors
- 14x SATA (Straight) Connectors
- 4x PATA Connectors
Q: Will this run my master 3080 12 gb that require the 3x8 PCIe?
A: Hi Trist012, You'll receive 6x PCIe connections in the box and will be able to connect your GPU. If you need assistance with your installation, please feel free to reach out to our support team: support.corsair.com -Brian
Q: Can this psu fit in the lian li o11 dynamic mini?
A: It can't, you'd need an SFX or SFX-L PSU as Lian Li lists on the product page of the case. -Art
Q: will this support my motherboard that has a 24 pin connector? if so will the cable come with it?
A: Yes and Yes
Q: Does this power supply come with cables/wires, or do I need to buy those separately?
A: Comes with standard cables for each modular socket.
Q: Industrial caps! Same or better than Jap caps? Also 59 oz for weight?
A: Hi, This PSU's industrial-grade capacitors deliver solid electrical performance and reliability. Considering this PSU is backed by a 10-year warranty, we have absolute confidence in every component within. This PSU's weight is 55.36 ounces. If you have any additional questions, please feel free to contact us: help.corsair.com -Albert
