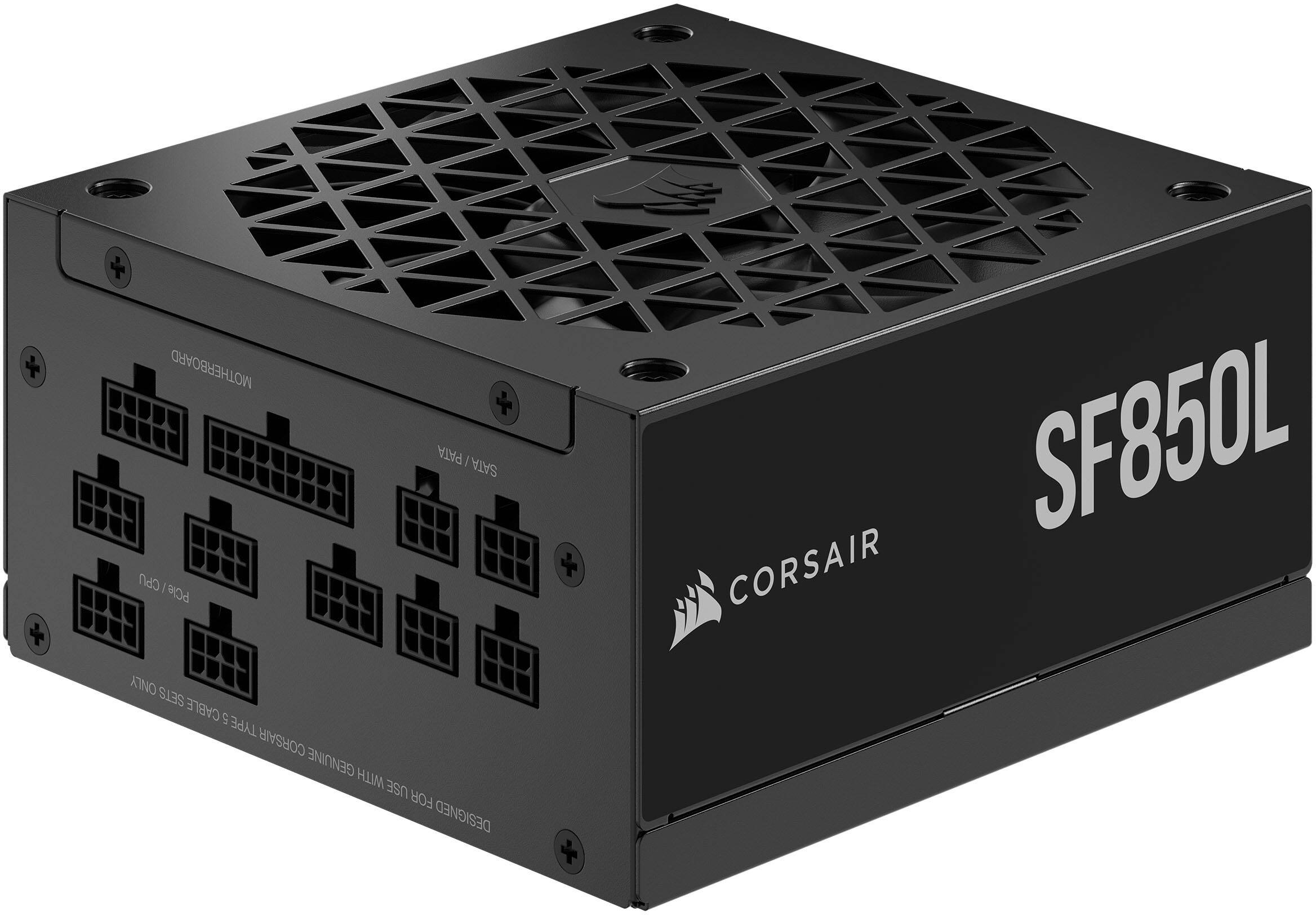

CORSAIR - SF-L Series SF850L 80 Plus Gold Fully Modular ATX Power Supply - Black
Model: CP-9020245-NA
SKU: 6546864
This item is no longer available in new condition. See similar items below
- Key Specs
- Wattage: 850 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: Cybenetics Platinum, 80 PLUS Gold (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- ATX Connector: 1x 24-pin ATX (24-pin) Connector. 2x ATX 12V/EPS12V (4+4-pin) Connectors (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- PCIe Connector: 2x PCIe (6+2-pin) (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 4 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 4x SATA (Straight) Connectors, 4x SATA (Right) Connectors (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- EPS12V Connector: 2 (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 5.0
- Form Factor: SFX-L (The size, arrangement, and physical configuration of the product.)
- Product Length: 130 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- General
- Brand: CORSAIR
- Model Number: CP-9020245-NA
- Product Name: SF-L Series SF850L 80 Plus Gold Fully Modular ATX Power Supply
- Color: Black
- Power
- Wattage: 850 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: Cybenetics Platinum, 80 PLUS Gold (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- Overload Protection: true (Features intended to protect the product from damage and overheating caused by overload.)
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Connectivity
- ATX Connector: 1x 24-pin ATX (24-pin) Connector. 2x ATX 12V/EPS12V (4+4-pin) Connectors (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- Floppy Connector: FALSE (The configuration of the connector as it connects a computer power supply unit to a floppy disk drive.)
- PCIe Connector: 2x PCIe (6+2-pin) (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 4 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 4x SATA (Straight) Connectors, 4x SATA (Right) Connectors (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- EPS12V Connector: 2 (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 5.0
- Form Factor: SFX-L (The size, arrangement, and physical configuration of the product.)
- Dimensions
- Product Height: 63.5 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 125 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 130 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 39.52 ounces (The out of box weight of the item.)
- Cooling
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Cooling Fan Type: Rifle Bearing Fan
- Number of Fans Included: 1
- Features
- Lighting Type: None
- Warranty
- Warranty - Parts: 7 years
- Warranty - Labor: 7 years
- Other
- UPC: 840006646266
CORSAIR SF-L Series Fully Modular SFX Power Supplies with ATX 3.0 and PCIe 5.0 compliance provide the continuous high wattages demanded by the latest PC hardware, all in a space-saving SFX-L form-factor. Micro-fit PSU connectors and fully modular, flexible cables enable a tidy and compact build, even for exceedingly powerful systems. A 120mm rifle bearing PWM fan deploys Zero RPM mode at lower loads for exceptionally quiet performance. Japanese 105°C-rated electrolytic capacitors deliver long life and reliability, backed by a seven-year warranty. Wake your computer faster and consume less power with Modern Standby sleep mode. For high-wattage, 80 PLUS Gold power in a compact profile, the SF-L Series is your small form X-factor.
- Compact SFX-L Form-Factor PSU: Delivers 850 of continuous power, ideal for power-dense small-form-factor PCs.
- Fully Modular, Micro-Fit PSU Connectors: With flexible cabling, taking up less space for tidy cable management and compatibility in small cases.
- Intel ATX 3.0 Certified: Compliant with the ATX 3.0 power standard, supporting the PCIe Gen 5 platform and resisting transient power spikes.
- 120mm Rifle Bearing PWM Fan: Delivers quiet, powerful cooling, with Zero RPM fan mode for near-silent operation at lower loads.
- 80 PLUS Gold-Certified: Operates at up to 90% efficiency, and Cybenetics-certified for lower power consumption, less noise, and cooler temperatures.
- 100% Japanese 105°C-Rated Electrolytic Capacitors:: Ensure unwavering power and reliability.
- Modern Standby Support:: Unlocks extremely fast wake-from-sleep times and better low-load efficiency.
- 40°C Maximum Operating Temperature:: For reliable power even under high-stress conditions.
- Resonant LLC Topology:: Provides clean, consistent power and enables use of more energy-efficient sleep states.
- Seven-Year Warranty:: For complete peace of mind.
Whats Included
- CORSAIR SF-L Series SF850L 80 Plus Gold Fully Modular ATX Power Supply
- 1x 24-pin ATX (24-pin) Connector
- 2x ATX 12V/EPS12V (4+4-pin) Connectors
- 2x PCIe 8-pin (6+2) Connectors
- 1x PCIe 8-pin (6+2)*2 Pigtail Connector
- 1x PCIe 16-pin (12+4) Connector
- 1x SATA (Straight) Connector
- 1x SATA (Right) Connector
- 1x PATA Connector
- AC Power cord
Q: Can this fit in a Lian li o11 mini case
A: Hello, If that case can fit an SFX-L form factor PSU, then it will fit! -Art
Q: Hello, when is this product going to be back in stock?
A: Hello, Please contact the store directly for assistance! -Art
Q: Will this fit a NR200 Mini ITX Desktop Case?
A: Hello, Please confirm your case fits a PSU with the following dimensions: 125x130x63.5mm. -Art
Q: does it come with any cables i'm changing from non modular and i need more power.
A: Hello, Of course! -Art
