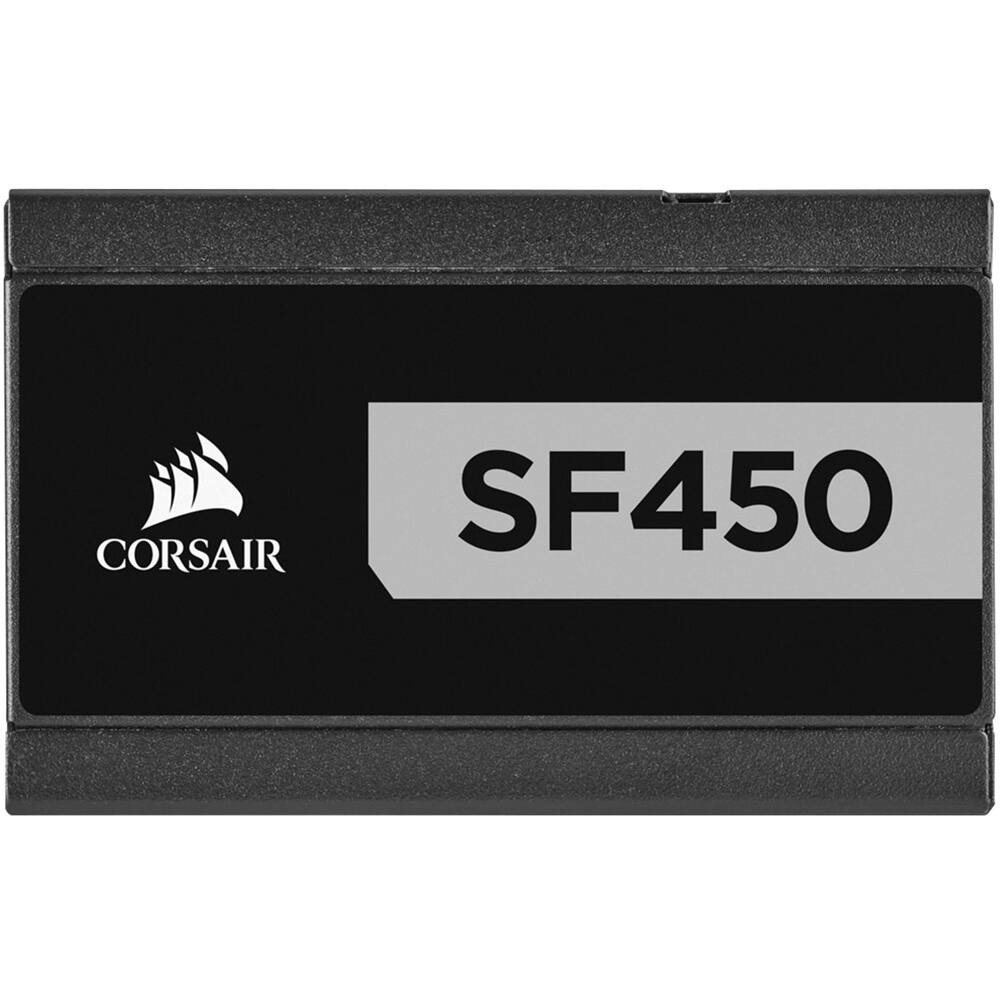

CORSAIR - SF Series 450W ATX12V 2.4/EPS12V 2.92 /SFX12V 80 Plus Platinum Modular Power Supply - Black
Model: CP-9020181-NA
SKU: 6351836
This item is no longer available in new condition. See similar items below
- Key Specs
- Wattage: 450 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: 80 PLUS Platinum (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- ATX Connector: 1 (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- PCIe Connector: 2 (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 3 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 4 (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- Product Length: 99.06 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- General
- Brand: CORSAIR
- Model Number: CP-9020181-NA
- Product Name: SF Series 450W ATX12V 2.4/EPS12V 2.92 /SFX12V 80 Plus Platinum Modular Power Supply
- Color: Black
- Power
- Wattage: 450 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: 80 PLUS Platinum (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- Specification Compliance: ATX12V 2.4/ EPS12V 2.92 / SFX12V
- Connectivity
- ATX Connector: 1 (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- PCIe Connector: 2 (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 3 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 4 (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- Dimensions
- Product Height: 63.5 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 124.46 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 99.06 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 30.3 ounces (The out of box weight of the item.)
- Cooling
- Cooling Fan Type: Other
- Other
- UPC: 843591063913
Enjoy low-noise performance with this CORSAIR Platinum fully modular SFX power supply. The 92mm cooling fan remains quiet under heavy loads, and the zero RPM fan mode provides near-silent operation during low to medium loads. This CORSAIR Platinum fully modular SFX power supply has 105-degree-Celsius-rated capacitors for increased reliability, and the included SFX-to-ATX bracket offers versatile installation options.
- 450W power supply: Delivers the power needed to run your PC.
- AC 100-240V input: With input 47-63Hz frequency for wide-ranging use.
- ATX12V 2.4, EPS12V 2.92 and SFX12V compliance: Meets industry standards.
- 92mm rifle bearing cooling fan: Dissipates heat to help the power supply remain working at optimal temperature levels.
- Zero RPM Fan Mode: Allows for the fan to remain off at low to medium loads for virtually silent operation.
- 80 PLUS Platinum Certification: Delivers 92% energy efficiency at real world load conditions.
- Modular cable management: Allows you to use only the cables you need.
Whats Included
- CORSAIR SF Series 450W ATX12V 2.4/EPS12V 2.92 /SFX12V 80 Plus Platinum Modular Power Supply
Product Manuals
A: Hi Sean, This PSU provides standard ATX connections. You would want to contact Dell if your system does not utilize standard ATX connection in your system. -Brian
