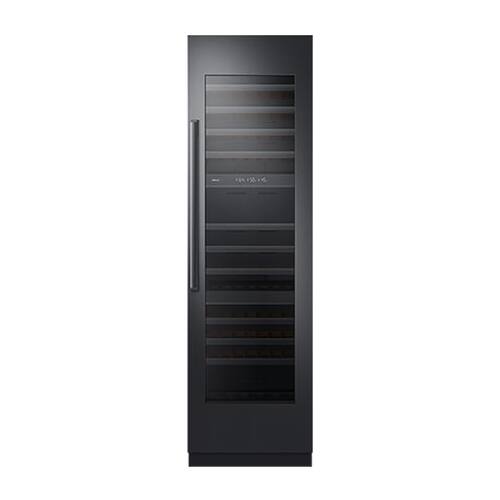

Dacor - 100-Bottle Panel Ready Built-In Triple Zone Wine Cellar with Precise Cooling and Push-to-Open Door - Custom Panel Ready
- Dacor - 24" Front Panel Kit for Select Integrated Wine Cellars - Silver Stainless Steel$1,099.00
Related Item
Specifications
- Color FinishCustomProduct Height83 3/8 inchesProduct Width23 3/4 inchesForm FactorBuilt-inMaximum Temperature65 degrees fahrenheitMinimum Temperature40 degrees fahrenheit
- Key Specs
- Color Finish: Custom
- Product Height: 83 3/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Form Factor: Built-in (The size, arrangement, and physical configuration of the product.)
- Maximum Temperature: 65 degrees fahrenheit
- Minimum Temperature: 40 degrees fahrenheit
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: Dacor
- Model Number: DRW24980LAP
- Product Name: 100-Bottle Panel Ready Built-In Triple Zone Wine Cellar with Precise Cooling and Push-to-Open Door
- Color: Custom Panel Ready
- Color Finish: Custom
- Dimensions
- Product Height: 83 3/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 25 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 416 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 84 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 24 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 25 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Number of 750 mL Bottles Accommodated: 100
- Features
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Material: Wood, Steel, Glass
- Digital Display: true
- Humidity Control: true (Allows you to adjust the humidity levels and maintain the optimal climate for your stored items to ensure their longevity.)
- Vibration-Free Operation: true (This feature helps ensure that stored items remain still and stable, which may aid in preserving their quality.)
- Interior Light(s): true
- UV-Filtered Glass Door: true (Tinted glass filters out ultraviolet (UV) light to prevent stored beverages from prematurely aging.)
- See-Through Door: true
- Design
- Form Factor: Built-in (The size, arrangement, and physical configuration of the product.)
- Custom Door Kit Compatible: true (Door kits give your appliance a built-in appearance and allow it to integrate with existing cabinetry and décor.)
- Reversible Door Hinge: false
- Panel Ready: true (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Storage
- Number Of Shelves: 11
- Shelf Type: Fixed
- Shelf Material: Wood
- Performance
- Cooling Unit Type: Compressor (There are two kinds of cooling systems, compressor and thermoelectric. Both systems effectively regulate temperature. Compressor systems can maintain cool temperatures regardless of outside heat sources, and front ventilation allows them to have more flexibility for placement. Thermoelectric systems are more susceptible to environmental factors and need plenty of ventilation clearance, but they have a quieter operating sound level and are generally vibration free.)
- Number of Temperature Zones: 3 (Single-zone coolers maintain one temperature throughout the entire unit, while coolers with multiple zones can be set to maintain different temperatures in separate compartments. The more zones available, the greater variety of wines you can store in their optimal climates.)
- Temperature Control Type: Electronic
- Maximum Temperature: 65 degrees fahrenheit
- Minimum Temperature: 40 degrees fahrenheit
- Electrical
- Amperage: 3 amperes (Strength of electrical current.)
- Voltage: 115 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Consortium for Energy Efficiency (CEE) Rating: CEE Not Qualified
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 year
- Other
- Wine Cooler Style: Full-size (Wine coolers come in a range of sizes to accommodate a variety of storage needs. Compact coolers are great for beginning wine connoisseurs or those looking to save space, while larger sizes are better suited for housing more diverse collections and often come with multiple temperature zones.)
- UPC: 887276307916
Dacor’s fully integrated, full sized wine column easily holds up to 100 bottles of wine in three independently cooled zones, perfectly stored behind a triple layer of glass filled with argon gas to protect your wine collection from UV and IR rays. With a sleek design, the wine cellar comes panel-ready for graphite, stainless steel, or custom panels, with the option for a handle-free, push-to-open door.* The column has four humidity sensors (one each per zone and one outside) to perfectly control the humidity level between 50%-80%, while Dacor’s own Precise Cooling Technology keeps temperature fluctuations within ±0.3°F. Receive notifications and real-time status of your collection through the IQ Connect WIFI system and SmartThings app. *Panels are purchased separately.
- 100 Bottles Capacity: Efficient use of space allows storing up to 100 bottles of standard 750 mL wine bottles.
- Precise Cooling Technology: Our Digital Inverter Technology maintains consistent performance with minimal temperature fluctuation, while minimizing harmful vibration with 6 variable speeds, including ultra-low speed.
- Optimal Humidity: Prevents cork from drying out with dedicated humidity sensor for each zone in addition to external sensor to sense the ambient humidity and optimizes humidity level at 50% ~ 80%.
- Triple Temperature Zones: Store any type of wine with three separate temperature controlled compartments with dedicated evaporater for each zone with + 0.3 ºF temperature fluctuation.
- Superior Insulation Technology: Vacuum insulated panels combine with Triplex glass makes it the best in class wine preservation system.
- Triplex Glass: Protect wine from harmful ultraviolet and infrared rays in addition to heat with low-E, UV/IR coated triple pane glass with double argon gas sealed chambers.
- Anti Vibration Mount: Protect wine from vibration through rubber mounted 6-speed compressor that prevents transfering vibration from the compressor to the rest of the unit
- Steelcool Interior With 3D Lighting: Seamlessly integrated LED lighting in a fully wrapped, all-stainless steel interior. Wine optimized LED is used to avoid UV radiation from contaminating the wine colleciton.
- Glideracks: Prevent vibration through luxurious oak wood constructed Glideracks that lock in and slide out with ease using its smooth ball-bearing rails.Wooden dowels help keep moisture away from labels versus wire racks that can potentially cuase label damage.
- Clean Air Filter: Keep the wine cellar fresh and prevent contamination with dedicated clean air charcoal filter located in each zone.
- Push To Open Door: Gently opens with a simple push while also allowing handle free design.
- Presenter Shelf: Show off and highlight your wine collection under softly lit LED lighting.
- Energy Efficient And Environmentally Friendly: Dacor uses R600a Refrigerant, which is up to 40% more efficient than traditional R134a. R600a is less harmful to the environment and will be the new EPA mandated standard starting in 2020.
- True Centerpiece Of The Kitchen: Every line, every detail designed intentionally to inspire creativity
- Panel-Ready Design: Integrates beautifully into any kitchen design. Columns come panel-ready for custom wood paneling, or choose from silver or graphite stainless steel finishes. Your kitchen will be ready for your performance. Panels are purchased spearately.
- Fully Integrated Flush Install: Dacor Columns can be installed flush in a 25" cabinet depth, for a fully integrated look.
- Smartthings Integration: Seamlessly integrate into the SmartThings connected platform, providing an exceptional foundation for an ever growing ecosystem of smart connectivity. Monitor and control wine cellar all from the comfort of your smartphone.
- 100 Bottles Capacity: Efficient use of space allows storing up to 100 bottles of standard 750 mL wine bottles.
- Precise Cooling Technology: Our Digital Inverter Technology maintains consistent performance with minimal temperature fluctuation, while minimizing harmful vibration with 6 variable speeds, including ultra-low speed.
- Optimal Humidity: Prevents cork from drying out with dedicated humidity sensor for each zone in addition to external sensor to sense the ambient humidity and optimizes humidity level at 50% ~ 80%.
- Triple Temperature Zones: Store any type of wine with three separate temperature controlled compartments with dedicated evaporater for each zone with + 0.3 ºF temperature fluctuation.
- Superior Insulation Technology: Vacuum insulated panels combine with Triplex glass makes it the best in class wine preservation system.
- Triplex Glass: Protect wine from harmful ultraviolet and infrared rays in addition to heat with low-E, UV/IR coated triple pane glass with double argon gas sealed chambers.
- Anti Vibration Mount: Protect wine from vibration through rubber mounted 6-speed compressor that prevents transfering vibration from the compressor to the rest of the unit
- Steelcool Interior With 3D Lighting: Seamlessly integrated LED lighting in a fully wrapped, all-stainless steel interior. Wine optimized LED is used to avoid UV radiation from contaminating the wine colleciton.
- Glideracks: Prevent vibration through luxurious oak wood constructed Glideracks that lock in and slide out with ease using its smooth ball-bearing rails.Wooden dowels help keep moisture away from labels versus wire racks that can potentially cuase label damage.
- Clean Air Filter: Keep the wine cellar fresh and prevent contamination with dedicated clean air charcoal filter located in each zone.
- Push To Open Door: Gently opens with a simple push while also allowing handle free design.
- Presenter Shelf: Show off and highlight your wine collection under softly lit LED lighting.
- Energy Efficient And Environmentally Friendly: Dacor uses R600a Refrigerant, which is up to 40% more efficient than traditional R134a. R600a is less harmful to the environment and will be the new EPA mandated standard starting in 2020.
- True Centerpiece Of The Kitchen: Every line, every detail designed intentionally to inspire creativity
- Panel-Ready Design: Integrates beautifully into any kitchen design. Columns come panel-ready for custom wood paneling, or choose from silver or graphite stainless steel finishes. Your kitchen will be ready for your performance. Panels are purchased spearately.
- Fully Integrated Flush Install: Dacor Columns can be installed flush in a 25" cabinet depth, for a fully integrated look.
- Smartthings Integration: Seamlessly integrate into the SmartThings connected platform, providing an exceptional foundation for an ever growing ecosystem of smart connectivity. Monitor and control wine cellar all from the comfort of your smartphone.
Whats Included
- Wine Cellar
- Shelves
- Manual
- Panels are purchased separately
- Wine Cellar
- Shelves
- Manual
- Panels are purchased separately
Q: What material are the shelves made of?
A: The shelves of this wine cellar are made of luxurious oak wood. The oak wood construction of the shelves prevents vibration and ensures smooth gliding. Wooden dowels on the shelves help keep moisture away from labels, preventing potential damage.
Q: How many bottles can this wine cellar hold?
A: This wine cellar can hold up to 100 standard 750 mL wine bottles. It efficiently utilizes space and provides ample storage for your wine collection.
Q: How does it maintain optimal humidity levels?
A: The wine cellar maintains optimal humidity levels through a dedicated humidity sensor for each zone and an external sensor that senses ambient humidity. It optimizes the humidity level between 50% and 80%.
Q: Does it have any features to minimize vibration?
A: Yes, this wine cellar has several features to minimize vibration. It uses Digital Inverter Technology with 6 variable speeds, including ultra-low speed, to maintain consistent performance and minimize harmful vibration. Additionally, it has rubber-mounted 6-speed compressors that prevent transferring vibration from the compressor to the rest of the unit.
Q: What type of door does it have?
A: The Dacor 100-Bottle Panel Ready Built-In Triple Zone Wine Cellar has a push-to-open door. This door opens with a simple push, allowing for a handle-free design.
Q: How many temperature zones does it have?
A: The product has three temperature zones. Each zone has a dedicated evaporator for precise temperature control with a fluctuation of only ±0.3 degrees Fahrenheit.
Q: What is the humidity range inside?
A: The humidity range inside the wine cellar can be controlled between 50% and 80%. The wine cellar has four humidity sensors, one for each zone and one outside, to perfectly control the humidity level. The column has four humidity sensors (one each per zone and one outside) to perfectly control the humidity level between 50%-80%, while Dacor’s own Precise Cooling Technology keeps temperature fluctuations within ±0.3°F.
Q: Does it have any lighting inside?
A: Yes, the wine cellar has interior lighting. The lighting is LED and integrated into the stainless steel interior. The LED lighting is optimized to avoid UV radiation that could damage the wine collection.
