Dacor - 13.7 Cu. Ft. Built-In Column Refrigerator with SteelCool Interior - Custom Panel Ready
Standardized Width
24"Hinge Setting
Fixed right$39.99 delivery to
Need-haul away?
- We’ll haul away your old item and make sure it’s properly and safely recycled.
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
Related Item
Specifications
- Color FinishCustomProduct Height83 3/8 inchesProduct Width23 3/4 inchesHeight To Top Of Door Hinge83 3/8 inchesDepth Without Handle25 inchesTotal Capacity13.7 cubic feet
- Key Specs
- Color Finish: Custom
- Product Height: 83 3/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Height To Top Of Door Hinge: 83 3/8 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Depth Without Handle: 25 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Total Capacity: 13.7 cubic feet
- Refrigerator Style: No Freezer
- Lighting Type: LED
- Ice Maker: No
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: SmartThings (Compatible with or able to be connected to other smart devices or applications.)
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- General
- Brand: Dacor
- Model Number: DRR24980RAP
- Product Name: 13.7 Cu. Ft. Built-In Column Refrigerator with SteelCool Interior
- Color: Custom Panel Ready
- Color Finish: Custom
- Side Panel Color: Silver
- Dimensions
- Product Height: 83 3/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 25 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Height To Top Of Door Hinge: 83 3/8 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Standardized Width: 24 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Counter Depth: true (The product case installs flush with the depth of standard kitchen counters to provide a built-in appearance.)
- Depth Without Handle: 25 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Door 90 Degrees Open: 62 7/8 inches (Measurement from the back of the product to its front, with the door open at a 90-degree angle.)
- Product Weight: 377 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 84 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 24 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 25 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Total Capacity: 13.7 cubic feet
- Refrigerator Capacity: 13.7 cubic feet (Total amount of space within the refrigerator compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Convertible Temperature Zone Capacity: 2 cubic feet (Total amount of space within the convertible temperature compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Performance
- Minimum Operating Temperature: 38 degrees fahrenheit (The lowest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures less than the minimum can result in ineffective operation.)
- Maximum Operating Temperature: 110 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
- Features
- Configuration: Column (The size, arrangement, and physical configuration of the product.)
- Panel Ready: true (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Refrigerator Style: No Freezer
- Panel(s) Included: false
- Convertible Temperature Zone: true (Refrigerators with this feature include a separate compartment with independent temperature controls from the main product. These compartments offer a flexible space that allows you to change the temperature based on your additional storage needs. Whether it’s a place to chill beverages for an evening with friends, keep snacks cool, or even provide extra freezer space.)
- Convertible Temperature Zone Location: Middle
- Convertible Temperature Zone Range: 29 - 37'F
- Garage Ready: true (Garage Ready appliances have been tested by the manufacturer to operate within a wider range of external temperatures than the average home environment, such as a garage which can fall below freezing or heat above 100 degrees Fahrenheit. Please refer to the manufacturer's documentation for detailed external operating temperature requirements.)
- Dual Evaporation: true (A cooling system that works to create a stable climate for the refrigerator and freezer separately. This ensures that each compartment is able to maintain a separate humidity and temperature level ideal for the respective stored items. Freezers tend to require lower humidity while refrigerators require higher humidity to keep foods fresher for longer.)
- Door-Open Alarm: true
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Temperature Control Type: Electronic
- Display Type: LED
- Defrost Type: None (Ice build-up can reduce the appliance’s cooling capacity, making it work harder and consume more energy. Defrosting is necessary to maintain its efficiency and each type has its own advantages depending on user needs and preferences. Manual defrost appliances require unplugging to melt ice naturally, but offer more space, lower energy consumption, and lower cost without the internal heating element. Frost-free appliances regulate temperature to prevent ice build-up automatically. Automatic defrost systems use a timer to circulate heat and prevent ice accumulation, while adaptive defrost systems use sensors to determine the optimal times for heat circulation.)
- Reversible Door Hinge: false
- Hinge Setting: Fixed right
- Lighting Type: LED
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Ice & Water
- Ice Maker: No
- Ice and Water Dispenser: Water only
- Ice and Water Dispenser Location: Internal
- Dispensed Water Type: Cold Water
- Dispenser Features: Auto shut-off, Filtration replacement light
- Storage
- Number of External Doors/Drawers: 1
- Number of Refrigerator Shelves: 4
- Refrigerator Shelf Style: Adjustable
- Quick Access Door: false (A door-within-door that provides convenient access to your favorite food and drink items without opening the main door.)
- Humidity-Controlled Crisper: true
- Deli Meat Drawer: true (Designated storage for deli and other meats helps keep these items accessible and may reduce the risk of cross-contamination.)
- Refrigerator Shelf Material: Tempered glass, spill proof shelves with metal trim
- Freezer Info
- Freezer Compartment: false
- Filter Info
- Water Filtration: true
- Water Filter Model Number: RAC00WFAAAA (The water filter model(s) recommended for use with the product.)
- Air Filter: true (A filter that works to remove odors and contaminants from the air within the appliance.)
- Air Filter Model Number: RAC00DFAAAA (The air filter model(s) recommended for use with the product.)
- Electrical Specification
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 115 volts (Amount of power needed to support an electrical current.)
- Estimated Annual Electricity Use: 260 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 36 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Consortium for Energy Efficiency (CEE) Rating: Not Available
- Chemical Disclosures: Free of PFAS, PFOA, lead, and cadmium. Libre de PFAS, PFOA, plomo, y cadmio (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 2 year; 6 year Sealed Systems Warranty; 12 year Sealed Systems Warranty (part only); 15 year Compressor Warranty (compressor only)
- Warranty - Labor: 2 year; 6 year Sealed Systems Warranty
- Compatibility
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: SmartThings (Compatible with or able to be connected to other smart devices or applications.)
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Other
- UPC: 887276202143
Like the perfect host, Dacor true flush Columns bring people together and spark conversation. Inside, expansive LED lighting illuminates stainless steel walls and glass accents. Intuitive features like iQ Remote View with dual cameras, Push-To-Open Door Assist, and the waist-high hidden touch control panel simplify shopping and kitchen tasks. There’s refreshment on tap with an interior filtered water dispenser. PreciseCooling technology, along with dedicated compressors and evaporators in each column, maintain food freshness and preserve flavor.
- Steelcool Interior With 3D Lighting: Seamlessly integrated LED lighting in a fully wrapped, all-stainless steel interior. Food is no longer just stored, it's presented.
- Hidden Touch Control Panel: Touch to reveal a display that regulates temperature to preserve freshness.
- Push To Open Door: Gently opens with a simple push.
- IQ Remote View: Remotely control the temperature, the lighting, and monitor your food with a Wi-Fi enabled camera through iQ Connect.
- Internal Water Dispenser: Serves fresh, filtered water and easily fill cups or pitchers.

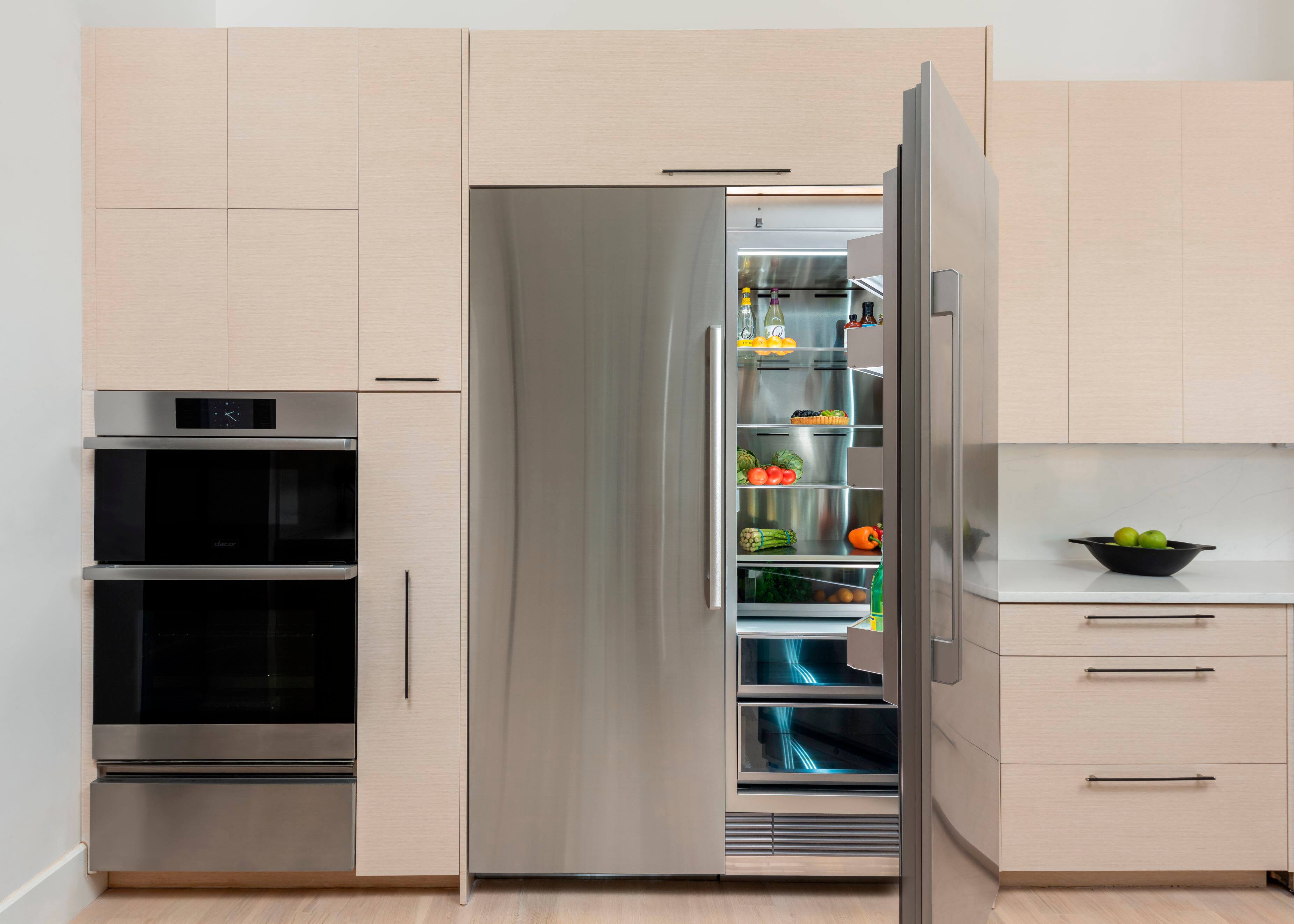

- Designed For Seamless Integration: Dacor Columns can be installed flush in a 25inch cabinet depth, for a fully integrated look.
- Precise Cooling Technology: Our Digital Inverter Technology maintains consistent performance with minimal temperature fluctuation. Our Digital Compressor offers superior performance compared to a standard A/C compressor.
- Luxury Material Selection: Dacor exclusive Graphite and Silver Stainless Steel finish combined with all stainless steel interior & glass and metal door bins, Dacor's Columns are a beautiful addition to your kitchen.
- Panels Sold Separately: Seamlessly integrate into your kitchen design using custom cabinetry panels or purchase a set of Graphite (RAC24AMRHMS/DA) or Silver Stainless Steel (RAC24AMRHSR/DA).
Whats Included
- Column
- Manual
- **Panels Sold Separately
Documents
- Energy_Guide_PDF
Q: Does this refrigerator have a humidity-controlled crisper?
A: Yes, this refrigerator has a humidity-controlled crisper. The product specifications mention "Humidity-Controlled Crisper: true".
Q: What type of lighting is used in the interior of this refrigerator?
A: The interior of the Dacor 13.7 Cu. Ft. Built-In Column Refrigerator features seamlessly integrated LED lighting. The LED lights are wrapped within a fully wrapped, all-stainless steel interior.
Q: What is the product class of this refrigerator?
A: The product class of the Dacor 13.7 Cu. Ft. Built-In Column Refrigerator with SteelCool Interior is "PREMIUM MAJOR APPL".
Q: Is this refrigerator panel ready?
A: Yes, this refrigerator is panel ready. The product description states "Panels Sold Separately: Seamlessly integrate into your kitchen design using custom cabinetry panels or purchase a set of Graphite (RAC24AMRHMS/DA) or Silver Stainless Steel (RAC24AMRHSR/DA)".
Q: What is the depth with the door open 90 degrees?
A: The depth of the product with the door open 90 degrees is 62 7/8 inches. Depth With Door 90 Degrees Open: 62 7/8 inches
Q: What is the side panel color of this refrigerator?
A: The side panel color of this refrigerator is Silver. The context mentions that "Luxury Material Selection: Dacor exclusive Graphite and Silver Stainless Steel finish combined with all stainless steel interior & glass and metal door bins". It also mentions that "Panels Sold Separately: Seamlessly integrate into your kitchen design using custom cabinetry panels or purchase a set of Graphite (RAC24AMRHMS/DA) or Silver Stainless Steel (RAC24AMRHSR/DA)".
Q: What is the location of the ice maker?
A: The ice maker is located inside the refrigerator compartment of the Dacor 13.7 Cu. Ft. Built-In Column Refrigerator with SteelCool Interior.
Q: What is the manufacturer's warranty for parts and labor?
A: The manufacturer provides a one-year warranty for parts and labor within the first year of purchase. In years three to six, the warranty covers factory-specified parts and repair labor costs for defects in the sealed refrigeration system. In years seven to twelve, the warranty covers factory-specified parts for specific components to correct defects in the sealed refrigeration system.
