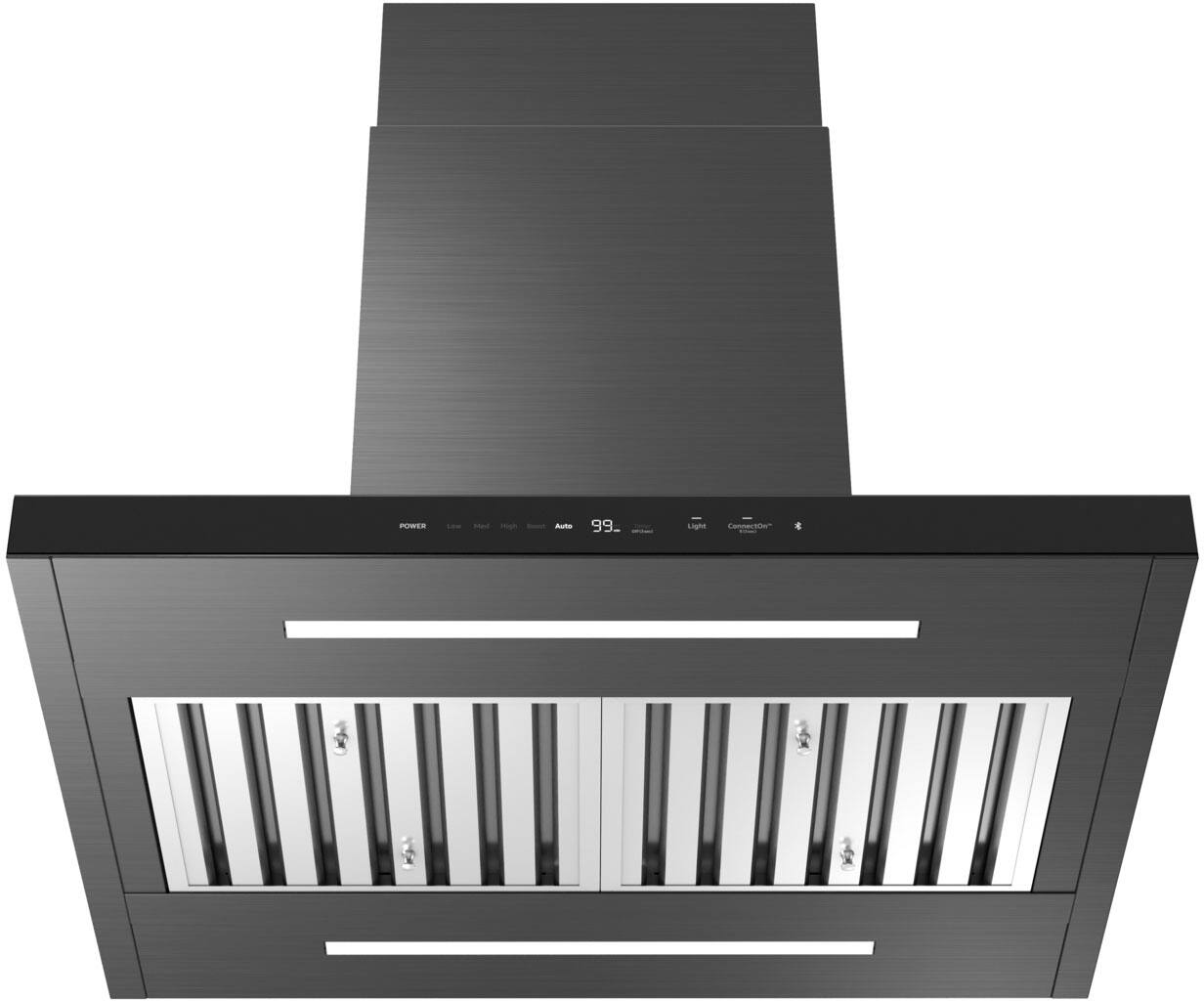

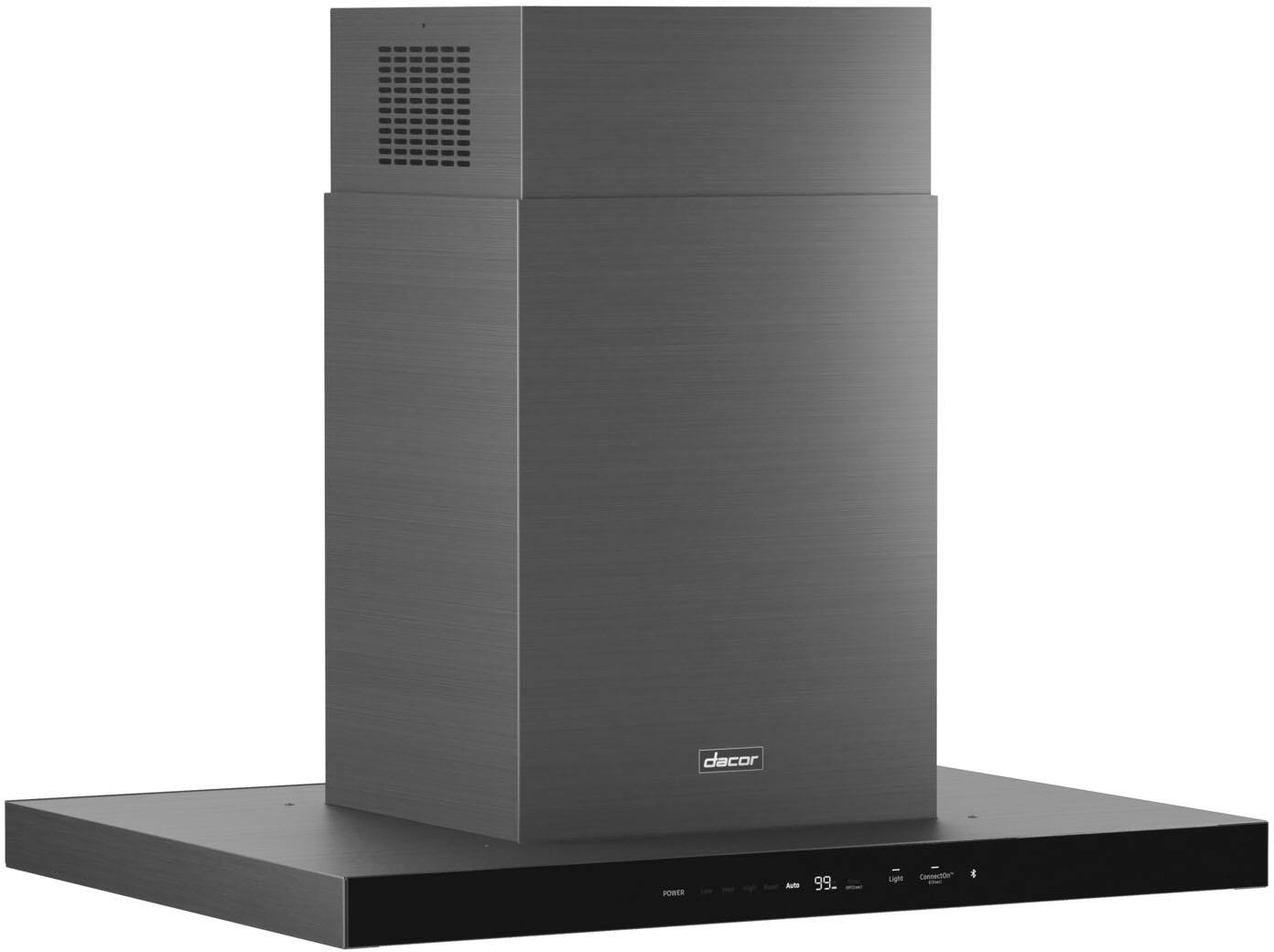

Dacor - 36 inches - Externally Vented - Island Range Hood - Graphite Steel
Color
Graphite SteelDelivery to
Need-haul away?
- We’ll haul away your old item and make sure it’s properly and safely recycled.
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
Related Item
Specifications
- Color FinishGraphite steelProduct Height2 3/8 inchesProduct Width36 inchesProduct Depth27 1/8 inchesVent TypeDuctedVent StyleExternal
- Key Specs
- Color Finish: Graphite steel
- Product Height: 2 3/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 36 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 27 1/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Works With: SmartThings (Compatible with or able to be connected to other smart devices or applications.)
- General
- Brand: Dacor
- Model Number: DHD36U990IM
- Product Name: 36" Externally Vented Island Range Hood with AutoConnect
- Color: Graphite Steel
- Color Finish: Graphite steel
- Dimensions
- Product Height: 2 3/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 30 inches
- Maximum Installation Height Above Cooktop: 36 inches
- Product Width: 36 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 27 1/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 57 pounds (The out of box weight of the item.)
- Features
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Island
- Wireless Connectivity: Bluetooth (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Number of Fan Speeds: 4
- Temperature Sensor: true (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Touch pad
- Integrated Light(s): true
- Number of Lights: 1
- Bulb Type Required: LED
- Bulb(s) Included: true
- Performance
- Maximum Air Flow Capacity: 600 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Filter Info
- Filter Material: Stainless Steel Baffle Filter
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Number of Filters: 2
- Electrical Specification
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Compatibility
- Works With: SmartThings (Compatible with or able to be connected to other smart devices or applications.)
- Other
- UPC: 847364026235
Bring more beauty, more light, and more powerful function into your kitchen. Dacor’s ConnectOn auto-responsive technology turns on the ventilation in conjunction with the cooktop, automatically adjusting the speed as necessary, with powerful performance and minimal noise.
- Powerful Yet Quiet: Four-speed fan provides great performance while minimizing noise.
- Automatic Connect Hood: Activate and adjust the hood with Bluetooth and ConnectOn(tm) auto-responsive technology. Turns on the ventilation in conjunction with the cooktop, and ramps up the speed as necessary.
- Sustainable Illumination: Strip LED lighting provides energy efficiency and a bright cooking area.
- Removable Filter: Dishwasher-friendly baffles for easy cleanup.
- Internal Blower: 390 CFM (600 CFM convertible) blower removes smoke and cooking fumes from your kitchen to ensure a healthy home environment.
- Powerful Yet Quiet: Four-speed fan provides great performance while minimizing noise.
- Automatic Connect Hood: Activate and adjust the hood with Bluetooth and ConnectOn(tm) auto-responsive technology. Turns on the ventilation in conjunction with the cooktop, and ramps up the speed as necessary.
- Sustainable Illumination: Strip LED lighting provides energy efficiency and a bright cooking area.
- Removable Filter: Dishwasher-friendly baffles for easy cleanup.
- Internal Blower: 390 CFM (600 CFM convertible) blower removes smoke and cooking fumes from your kitchen to ensure a healthy home environment.
Q: How many fan speeds does this Dacor range hood have?
A: This Dacor range hood liner features four fan speeds for customized ventilation.
Q: What is the maximum airflow capacity of this range hood liner?
A: This range hood liner has a maximum airflow capacity of 1200 cubic feet per minute.
Q: Does this range hood liner have a heat sensor?
A: Yes, this range hood liner is equipped with auto-on heat sensors to automatically activate ventilation when needed.
Q: What type of filters does this range hood use?
A: This range hood uses stainless steel baffle filters.
Q: Does this range hood liner have a light?
A: Yes, the range hood liner has LED lighting to illuminate your cooking surface.
Q: Is the filter in this range hood liner dishwasher safe?
A: Yes, the baffle filters in this range hood liner are dishwasher safe for easy cleaning.
Q: Can this range hood be installed at a height of 34 inches above the cooktop?
A: Yes, this range hood can be installed at a height of 34 inches above the cooktop. The minimum installation height specified for this model is 30 inches, and the maximum installation height is 36 inches.
Q: What is the difference between the 390 CFM and 600 CFM blowers?
A: The 390 CFM blower is the default setting for the range hood, while the 600 CFM blower is a convertible setting that can be activated by pressing and holding the High and Boost buttons on the hood for 3 seconds. The 600 CFM blower provides more powerful ventilation for heavy-duty cooking.
