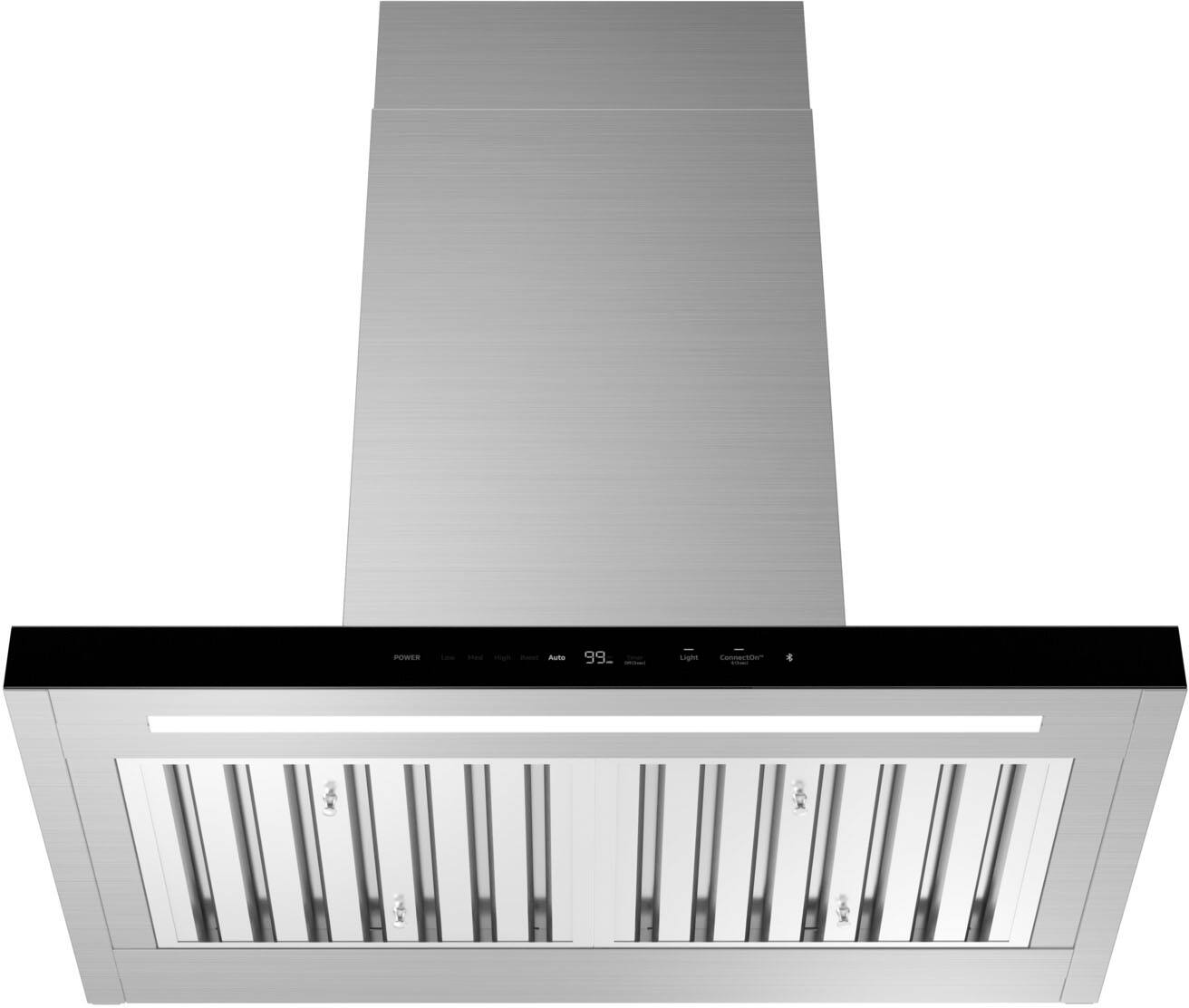

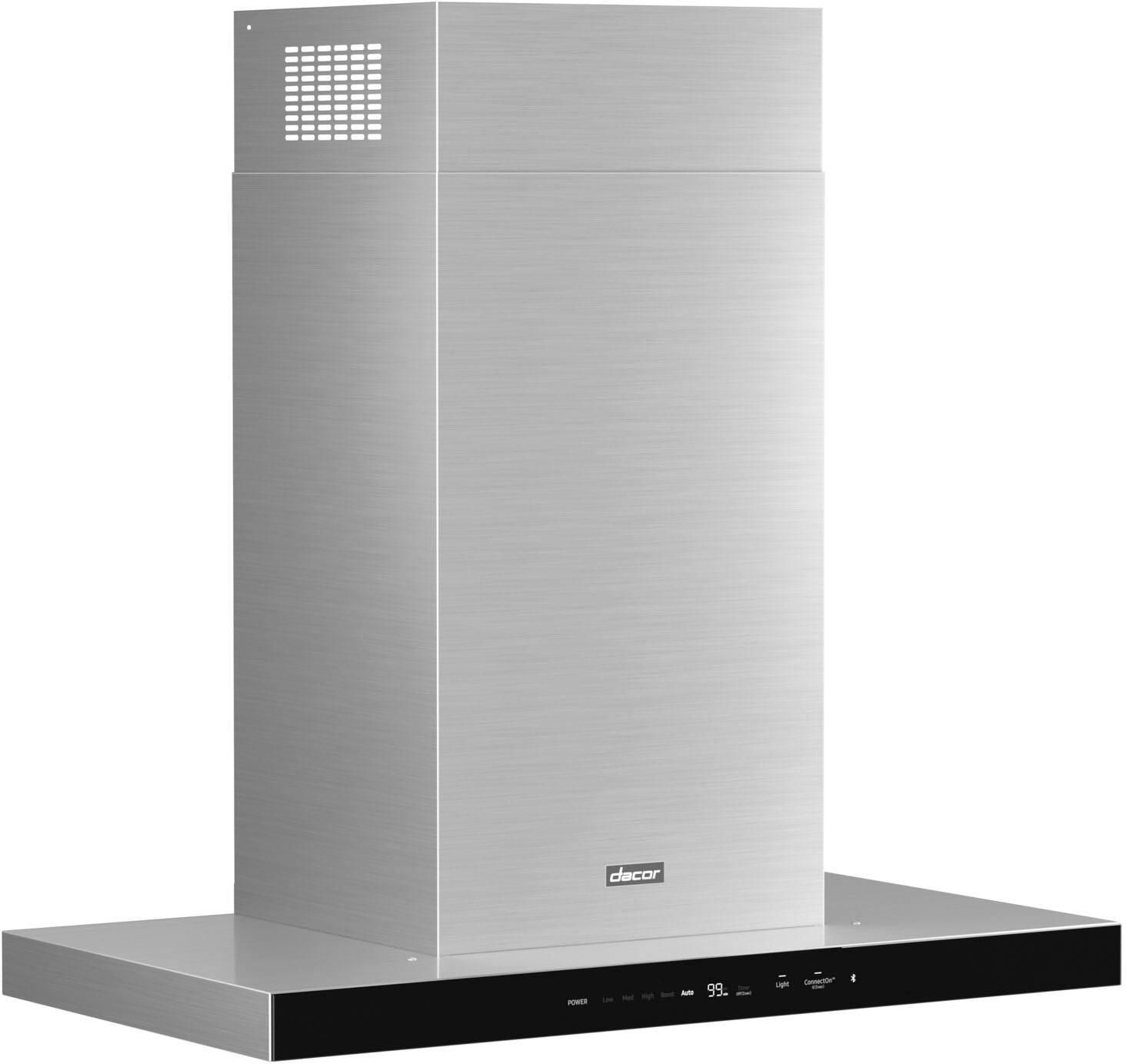

Dacor - 36 inches - Externally Vented - Wall Range Hood - Silver Stainless Steel
- Key Specs
- Color Finish: Stainless steel
- Product Height: 2 3/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 36 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19 11/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Works With: SmartThings (Compatible with or able to be connected to other smart devices or applications.)
- General
- Brand: Dacor
- Model Number: DHD36U990WS
- Product Name: 36" Externally Vented Chimney Range Hood with AutoConnect™
- Color: Silver Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 2 3/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 30 inches
- Maximum Installation Height Above Cooktop: 36 inches
- Product Width: 36 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19 11/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 57 pounds (The out of box weight of the item.)
- Features
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Wall
- Wireless Connectivity: Bluetooth (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Number of Fan Speeds: 4
- Temperature Sensor: true (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Touch pad
- Integrated Light(s): true
- Number of Lights: 1
- Bulb Type Required: LED
- Bulb(s) Included: true
- Performance
- Maximum Air Flow Capacity: 1200 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Filter Info
- Filter Material: Stainless Steel Baffle Filter
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Number of Filters: 2
- Electrical Specification
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Compatibility
- Works With: SmartThings (Compatible with or able to be connected to other smart devices or applications.)
- Other
- UPC: 847364026327
Bring more beauty, more light, and more powerful function into your kitchen. Dacor’s ConnectOn auto-responsive technology turns on the ventilation in conjunction with the cooktop, automatically adjusting the speed as necessary, with powerful performance and minimal noise.
- Powerful Yet Quiet: Four-speed fan provides great performance while minimizing noise.
- Automatic Connect Hood: Activate and adjust the hood with Bluetooth and ConnectOn(tm) auto-responsive technology. Turns on the ventilation in conjunction with the cooktop, and ramps up the speed as necessary.
- Sustainable Illumination: Strip LED lighting provides energy efficiency and a bright cooking area.
- Removable Filter: Dishwasher-friendly baffles for easy cleanup.
- Internal Blower: 1200 CFM (780 CFM convertible) blower removes smoke and cooking fumes from your kitchen to ensure a healthy home environment.
Q: What is the maximum installation height above the cooktop?
A: The maximum installation height above the cooktop for the 36" Externally Vented Chimney Range Hood with AutoConnect™ by Dacor is 36 inches.
Q: What type of filter does this range hood use?
A: This range hood uses Stainless Steel Baffle Filters. These filters are dishwasher-safe for easy cleaning.
Q: How many fan speeds does this range hood have?
A: This range hood has four fan speeds: Low, Medium, High, and Boost. The "Auto" button can be used to activate the auto heat-sensing feature, which will automatically adjust the fan speed based on the heat level of the cooktop.
Q: What is the weight of this range hood?
A: The weight of the 36" Externally Vented Chimney Range Hood with AutoConnect™ from Dacor is 57 pounds. This information is found in the product specifications section, under the "Product Weight" category.
Q: What kind of bulb does this range hood use?
A: The range hood uses LED bulbs. The product specifications state "Bulb Type Required: LED".
Q: What is the voltage requirement for this range hood?
A: The voltage requirement for this range hood is 120 volts.
Q: What type of mount does this range hood have?
A: The Dacor 36" Externally Vented Chimney Range Hood with AutoConnect™ has a wall mount type. The product specifications state that the "Range Hood Type" is "Wall".
Q: What is the manufacturer's warranty on this range hood?
A: The manufacturer provides a full warranty for two years from the date of purchase or closing date for new construction, whichever is longer. After the full warranty period, there is a limited warranty that covers defects in materials or workmanship reported during the applicable warranty periods.
