Dayton Audio - 230-watt-rms 2.0-channel Bridgeable Amplifier With Remote For Use With Bass Shakers - Black
Related Item
Specifications
- Continuous Watts x Channel @ Ohms230W @ 4ohmNumber of Channels2Network Connector(s)No network connectorsWireless ConnectivityNone
- Key Specs
- Continuous Watts x Channel @ Ohms: 230W @ 4ohm
- Number of Channels: 2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Network Connector(s): No network connectors
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- General
- Brand: Dayton Audio
- Model Number: BSA-200
- Product Name: Dayton Audio 230-watt-rms 2.0-channel Bridgeable Amplifier With Remote For Use With Bass Shakers
- Color: Black
- Audio
- Continuous Watts x Channel @ Ohms: 230W @ 4ohm
- Maximum Watts x Channel @ Ohms: 230W @ 4ohm (This is the maximum load the speaker, subwoofer or amp can drive.)
- Total Power Handling: 230 watts (How much amplifier (amplified) power (wattage) that can be handled before damaging the product.)
- Number of Channels: 2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Minimum Frequency Response: 50 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Total Harmonic Distortion: 0 percent (Measurement of the harmonic sound distortion. The lower the percentage, the cleaner the sound.)
- Maximum Frequency Response: 0.2 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Amplifier Type: Integrated amplifiers
- Signal-to-Noise Ratio (SNR): 91 decibels (The ratio of the desired signal's strength to the level of background noise. A ratio higher than 1:1, which equates to greater than 0 decibels, indicates more signal than noise.)
- Inputs
- Video Only Inputs: No video only inputs (The number and type of video signal only inputs the product has.)
- Network Connector(s): No network connectors
- Line-Level Inputs: false (Also referred to as low-level inputs. Enables the amplifier to receive a sound signal from another device via RCA cables.)
- Outputs
- Speaker Connection Type: No speaker connections
- Video Only Outputs: No video only outputs (The number and type of video signal only outputs the product has.)
- Features
- Bridgeable: true (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Connectivity
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Dimensions
- Product Height: 2.5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 9.5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 8.5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 4.95 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 5 year
- Warranty - Labor: 5 year
- Other
- UPC: 848791005497

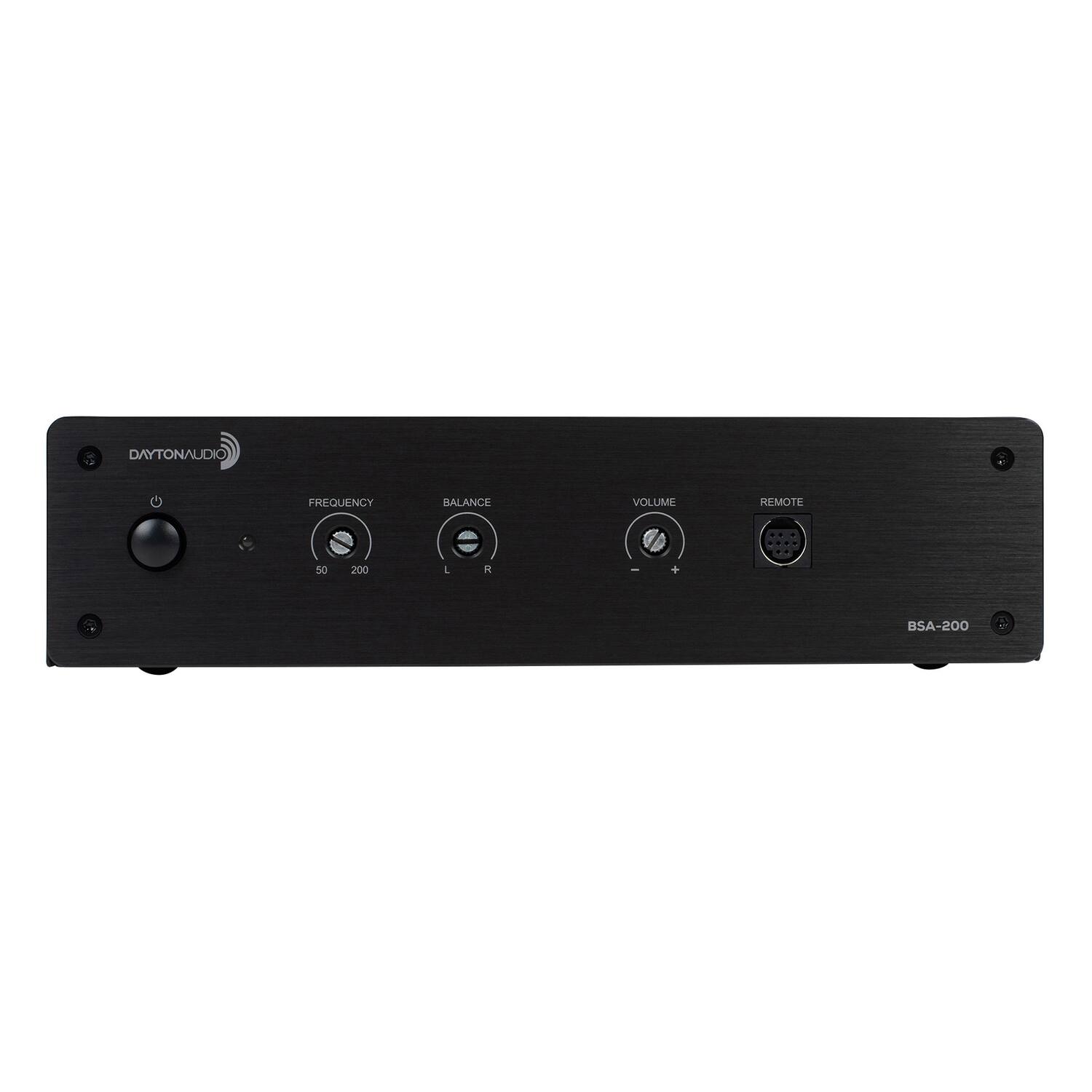

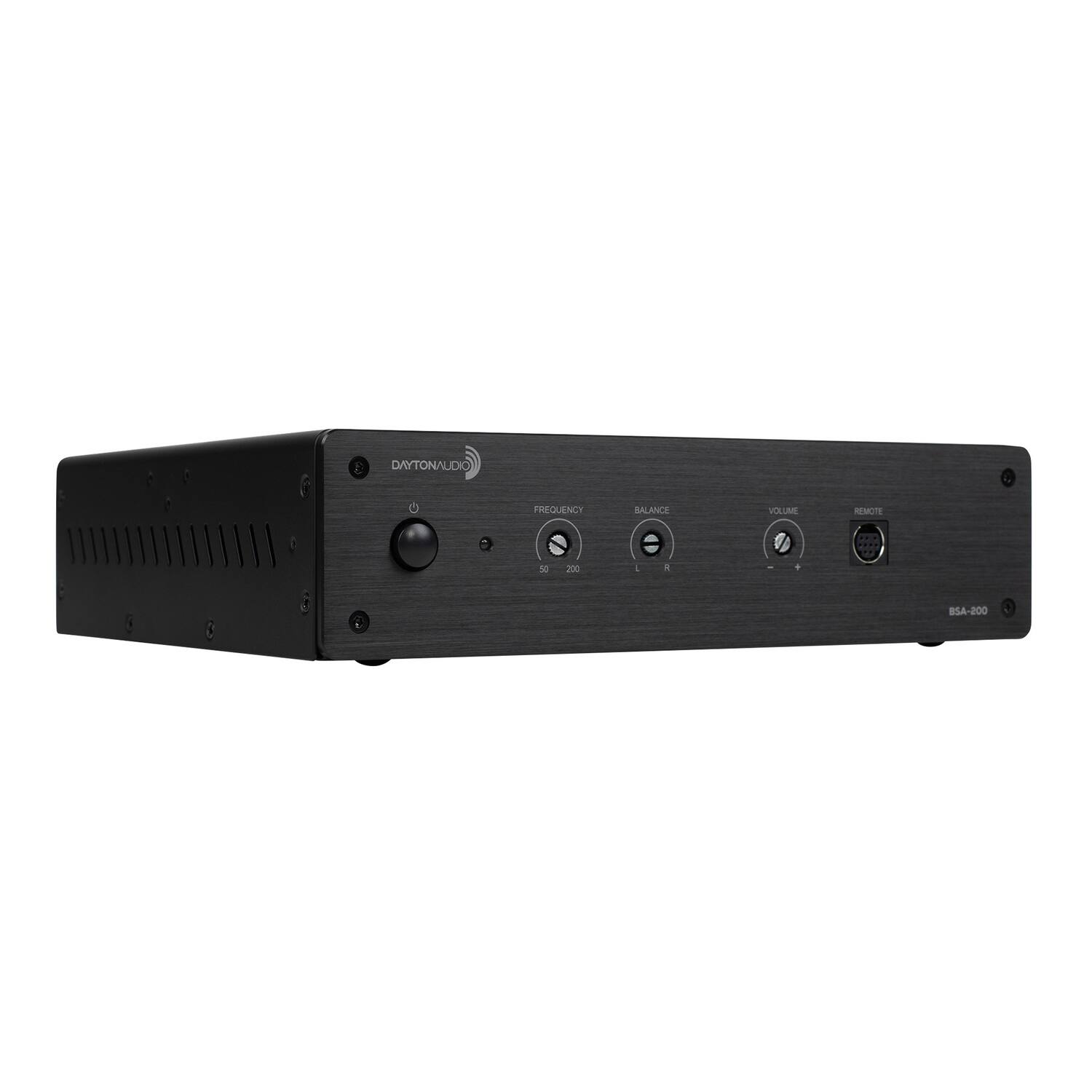

The Dayton Audio® BSA-200 high-power bass shaker amplifier is designed and built specifically to power tactile transducers but works equally as well as a dedicated subwoofer amplifier. It delivers 110 watts RMS per channel into 2 ohms in stereo mode, and in bridged mono mode - when both amplifier channels are combined into 1 - it delivers high-power monaural output of 230 watts RMS into a 4-ohm load. An ideal choice for adding a new dimension of exciting bass energy to your home theater or gaming setup, the BSA-200 seamlessly integrates with bass shakers, ButtKicker® transducers, and sound exciters to transform your audio environment into an immersive, tactile adventure that you not only hear, but also feel! Its compact design is ideal for tight spaces, whether under a couch or a gaming chair, and the included bracket makes installation a breeze. The balance and frequency knobs let you dial in the desired output and crossover (adjustable 50 Hz to 200 Hz), giving you total control over your setup. RCA in/out can be used to connect multiple BSA-200 amps, and the USB can be used to run audio from your main amp to the BSA-200 wirelessly with the Dayton Audio® Wave-Link WLS (sold separately). The included wired remote provides convenient volume adjustment and a power button. From explosions in movies to road rumble in gaming chairs, the BSA-200 produces a commanding, physical dimension to make bass frequencies to more immersive and captivating than ever before.
- Powerful Bass Amplifier: Delivers 230 watts RMS in bridged mono mode and 110 watts RMS per channel in stereo mode for deep, accurate bass

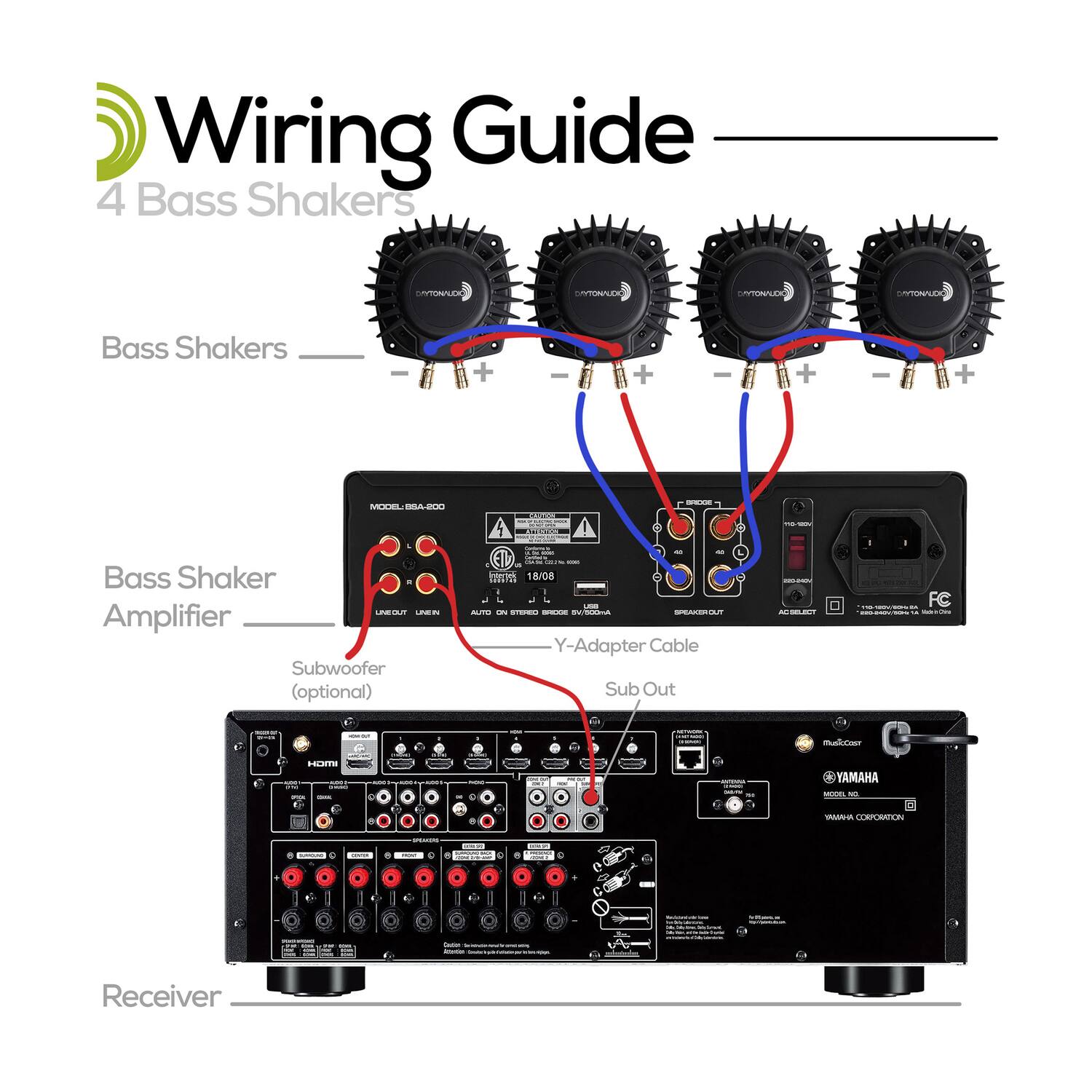

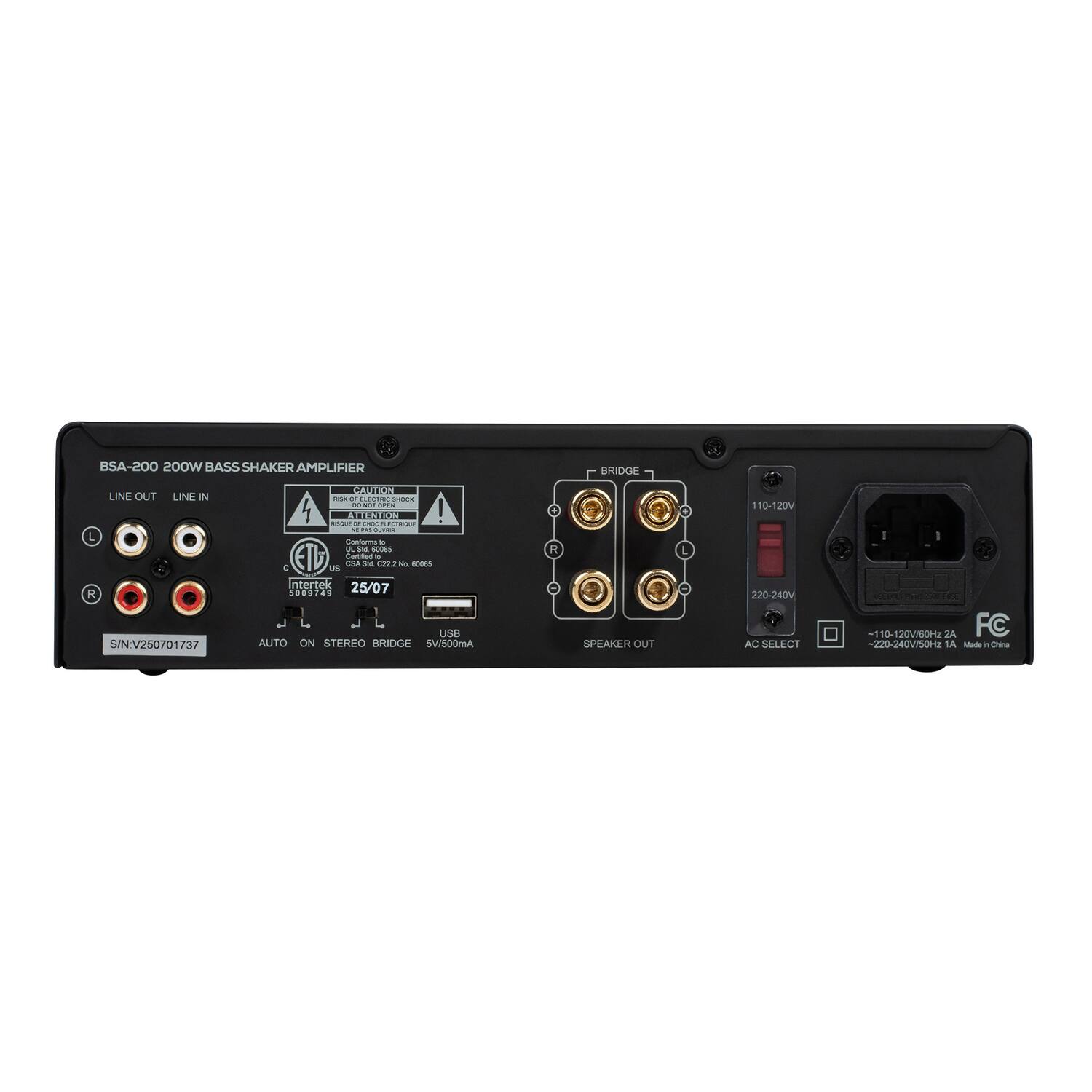

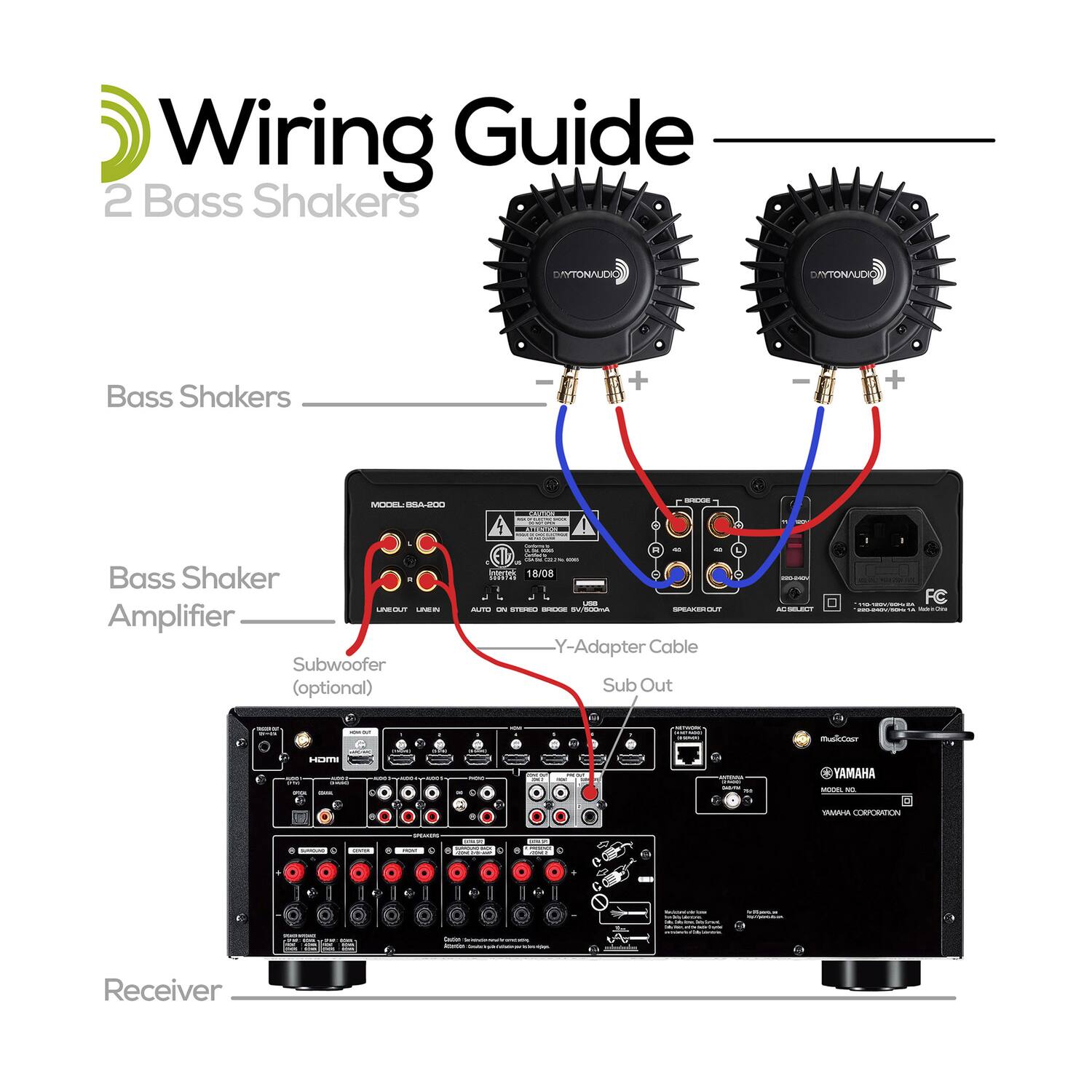

- Versatile Connectivity: Easily connects to sub out on audio receivers and supports daisy chaining multiple amplifiers with RCA line in/out
- Customizable Audio: Features adjustable 50-200 Hz low-pass crossover for seamless integration with your audio system
- Compact Installation: Small 2.5"H x 9.5"W x 8.5"D enclosure fits under furniture or in equipment racks with included vertical/horizontal mounting bracket
- Convenient Controls: Includes a wired remote with 12-ft cable for easy volume and power adjustments
- Powerful Bass Amplifier: Delivers 230 watts RMS in bridged mono mode and 110 watts RMS per channel in stereo mode for deep, accurate bass
- Versatile Connectivity: Easily connects to sub out on audio receivers and supports daisy chaining multiple amplifiers with RCA line in/out
- Customizable Audio: Features adjustable 50-200 Hz low-pass crossover for seamless integration with your audio system
- Compact Installation: Small 2.5"H x 9.5"W x 8.5"D enclosure fits under furniture or in equipment racks with included vertical/horizontal mounting bracket
- Convenient Controls: Includes a wired remote with 12-ft cable for easy volume and power adjustments
- Powerful Bass Amplifier: Delivers 230 watts RMS in bridged mono mode and 110 watts RMS per channel in stereo mode for deep, accurate bass
- Versatile Connectivity: Easily connects to sub out on audio receivers and supports daisy chaining multiple amplifiers with RCA line in/out
- Customizable Audio: Features adjustable 50-200 Hz low-pass crossover for seamless integration with your audio system
- Compact Installation: Small 2.5"H x 9.5"W x 8.5"D enclosure fits under furniture or in equipment racks with included vertical/horizontal mounting bracket
- Convenient Controls: Includes a wired remote with 12-ft cable for easy volume and power adjustments
Whats Included
- Amplifier, power cord, wired remote, bracket, manual
- Amplifier, power cord, wired remote, bracket, manual
- Amplifier, power cord, wired remote, bracket, manual
Product Manuals
