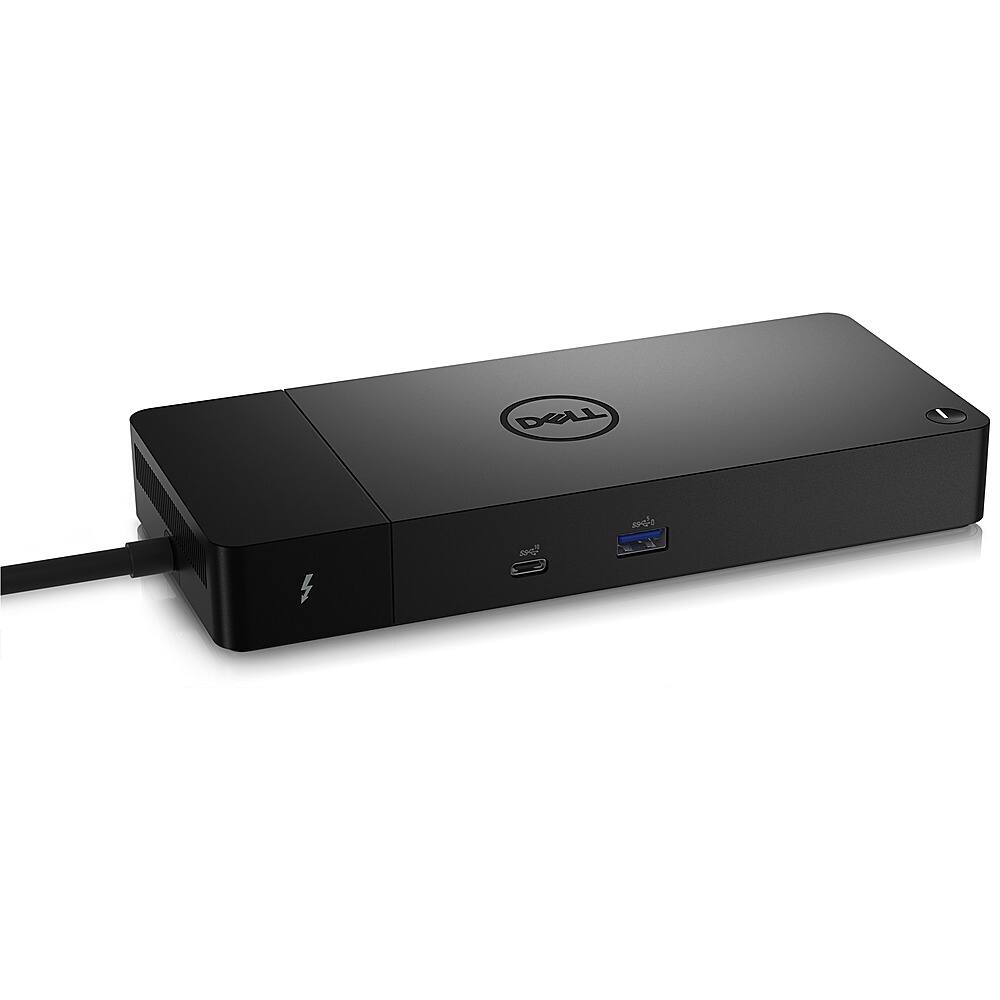

Dell - WD22TB4 Thunderbolt 4 Docking Station - Black
- Key Specs
- Maximum Number of Displays Supported: 2
- Maximum Supported Resolution: 4K (2160p)
- Number of DisplayPort Outputs (Total): 2
- Passthrough Power: false (Indicates whether the device allows power to passthrough, possibly with some loss, to another device, typically to charge that other device.)
- General
- Brand: Dell
- Model Number: DELL-WD22TB4
- Product Name: WD22TB4 Thunderbolt 4 Docking Station
- Color: Black
- Display
- Maximum Number of Displays Supported: 2
- Maximum Supported Resolution: 4K (2160p)

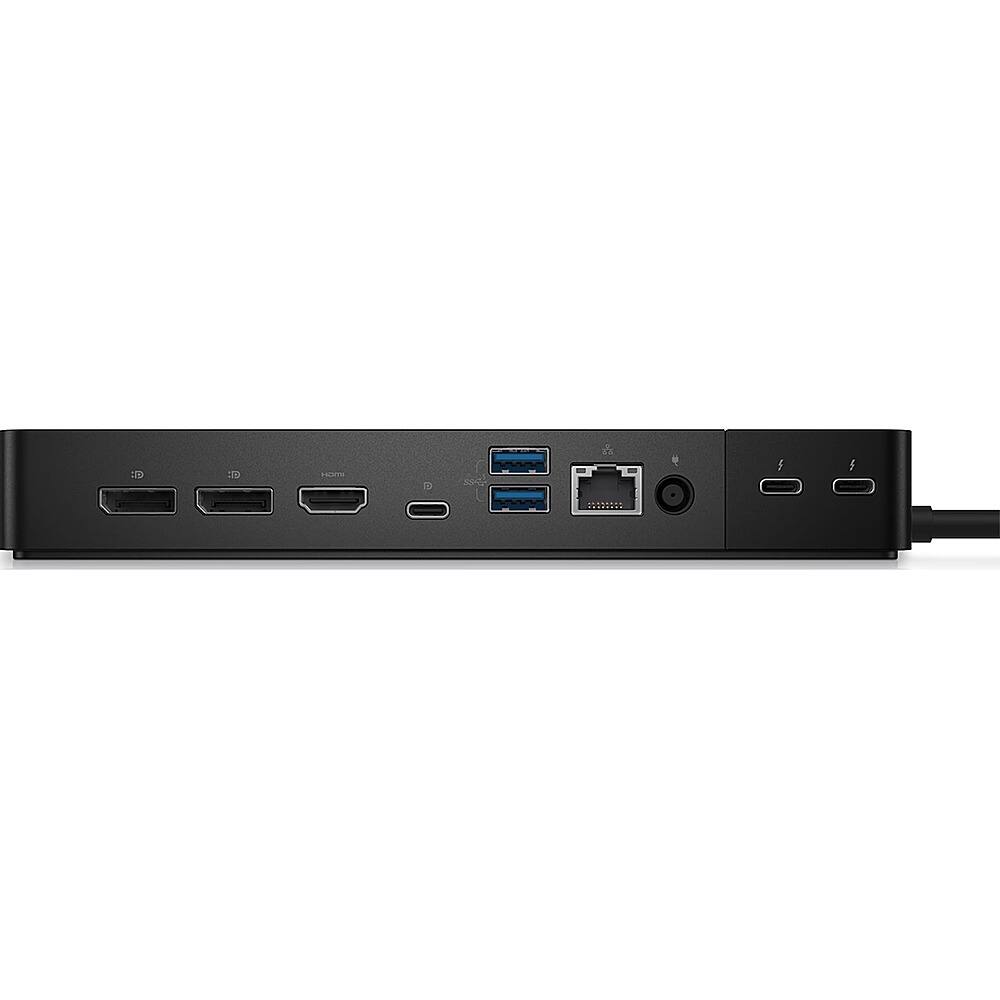

- Ports
- Display Connector(s): 1 x Thunderbolt 4 (The number and type of connectors used to connect to an external display.)
- Number of DisplayPort Outputs (Total): 2
- Number of HDMI Ports (Total): 1
- Number of VGA Ports: 0 (VGA (Video Graphics Adapter or Video Graphics Array) is a display standard that transmits via analog signals. This type of interface is typically used to connect a computer to a display device such as a monitor, projector, or TV.)
- USB Ports: 3 x USB-A 3.2, 4 x USB-C (The number and type of USB ports the product has.)
- Power
- Powered: true
- Power Supply Input: DC jack (7.4mm)
- Maximum Input Power: 180 watts (The maximum amount of power allowed to come into the device.)
- Passthrough Power: false (Indicates whether the device allows power to passthrough, possibly with some loss, to another device, typically to charge that other device.)
- Compatibility
- Brand Compatibility: Dell
- Model Compatibility: Not Available
- Features
- Cable Lock Slot: Kensington Security Slot (K-Slot)
- Dimensions
- Product Height: 1 1/10 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 3 1/2 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 8 1/10 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 15.87 ounces (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 3 year limited
- Warranty - Labor: 3 Year Limited
- Other
- UPC: 884116420064

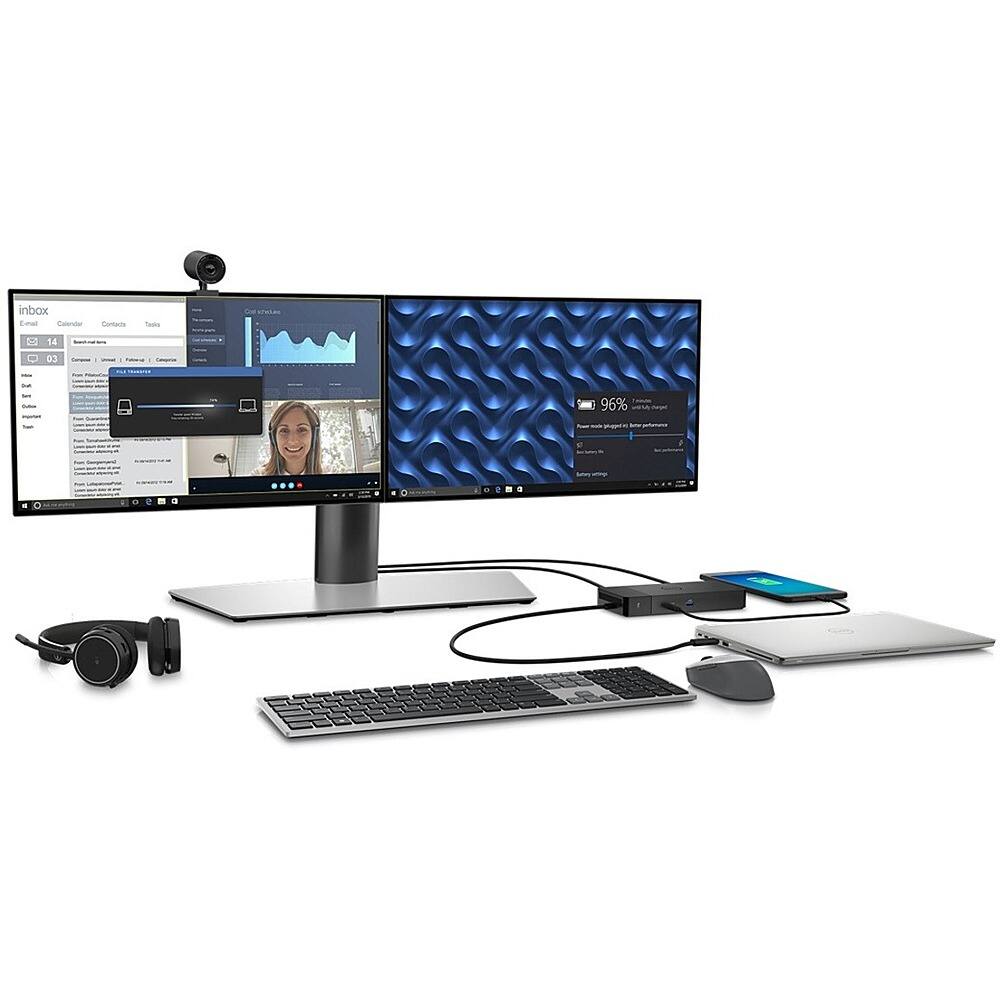

Connect displays and peripherals to your system with a single cable for ultimate productivity with the Dell WD22TB4 Thunderbolt Dock. This Thunderbolt 4 dock has ports to connect multiple 4K displays and Thunderbolt peripherals allowing you to not compromise with your work setup. Get the maximum from your peripherals with data transfer of 40 GB/s.
- Docking station: Docking station with a variety of ports and fast data transfer speeds that allow you to revolutionise your laptop and notebook experience
- Thunderbolt 4 host interface: The Thunderbolt 4 interface provides smooth data transfer and outstanding performance
- Wired connectivity technology: With the wired connectivity, no more worries about low signals and low latency
- Notebook device supported: Features full compatibility with notebook
- 180W maximum power supply wattage: 180W power supply unit (PSU) fulfills your system power requirements
- Color: Premium look and feel with black color
- Docking station: Docking station with a variety of ports and fast data transfer speeds that allow you to revolutionise your laptop and notebook experience
- Thunderbolt 4 host interface: The Thunderbolt 4 interface provides smooth data transfer and outstanding performance
- Wired connectivity technology: With the wired connectivity, no more worries about low signals and low latency
- Notebook device supported: Features full compatibility with notebook
- 180W maximum power supply wattage: 180W power supply unit (PSU) fulfills your system power requirements
- Color: Premium look and feel with black color
Whats Included
- WD22TB4 Thunderbolt 4 Docking Station
- User Documentation
- WD22TB4 Thunderbolt 4 Docking Station
- User Documentation
Q: What is the maximum resolution supported by this docking station?
A: The maximum resolution supported is 4K (2160p).
Q: What interface does this docking station use for data transfer?
A: This docking station uses a Thunderbolt 4 host interface for data transfer.
Q: What is the maximum power supply wattage of this docking station?
A: This Dell Thunderbolt Dock has a maximum power supply wattage of 180W.
Q: Does this docking station have a wired connectivity?
A: Yes, this docking station uses wired connectivity for data transfer.
Q: How many displays can I connect to this docking station?
A: The WD22TB4 Thunderbolt 4 Docking Station supports a maximum of two displays.
Q: Is this docking station compatible with a Dell XPS 15 7590 laptop?
A: Yes, this docking station is compatible with XPS 15 7590.
Q: Will this work with Macbook pro 14, or is it only for Dell products?
A: Dell has not tested this docking station with Apple computers, hence, the compatibility with MacBook Pro 14 is not assured.
Q: Is this docking station compatible with XPS 15 9520? And, will it charge the XPS 15?
A: Yes, this docking station is compatible with XPS 15 9520 and will charge the XPS 15 machines.
