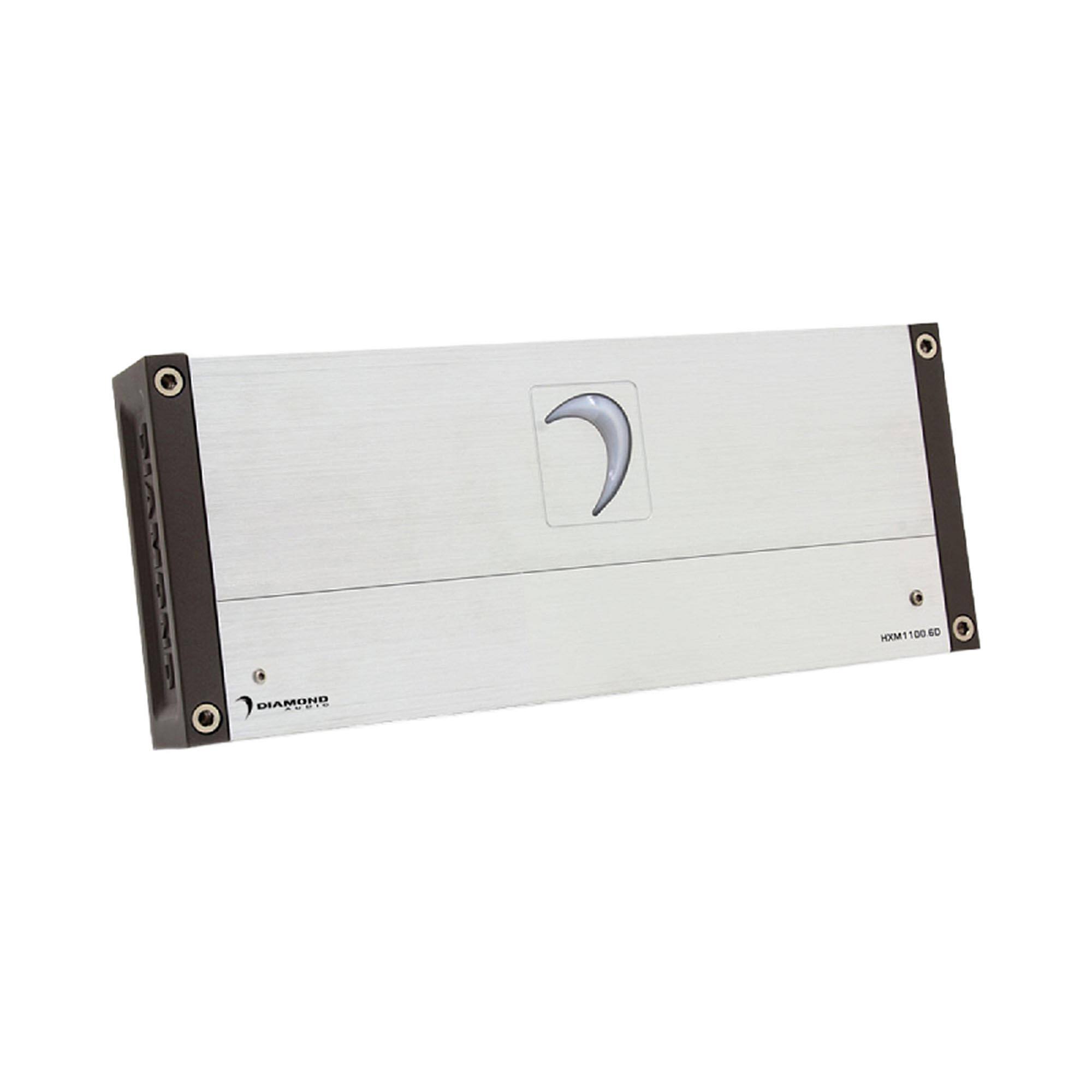

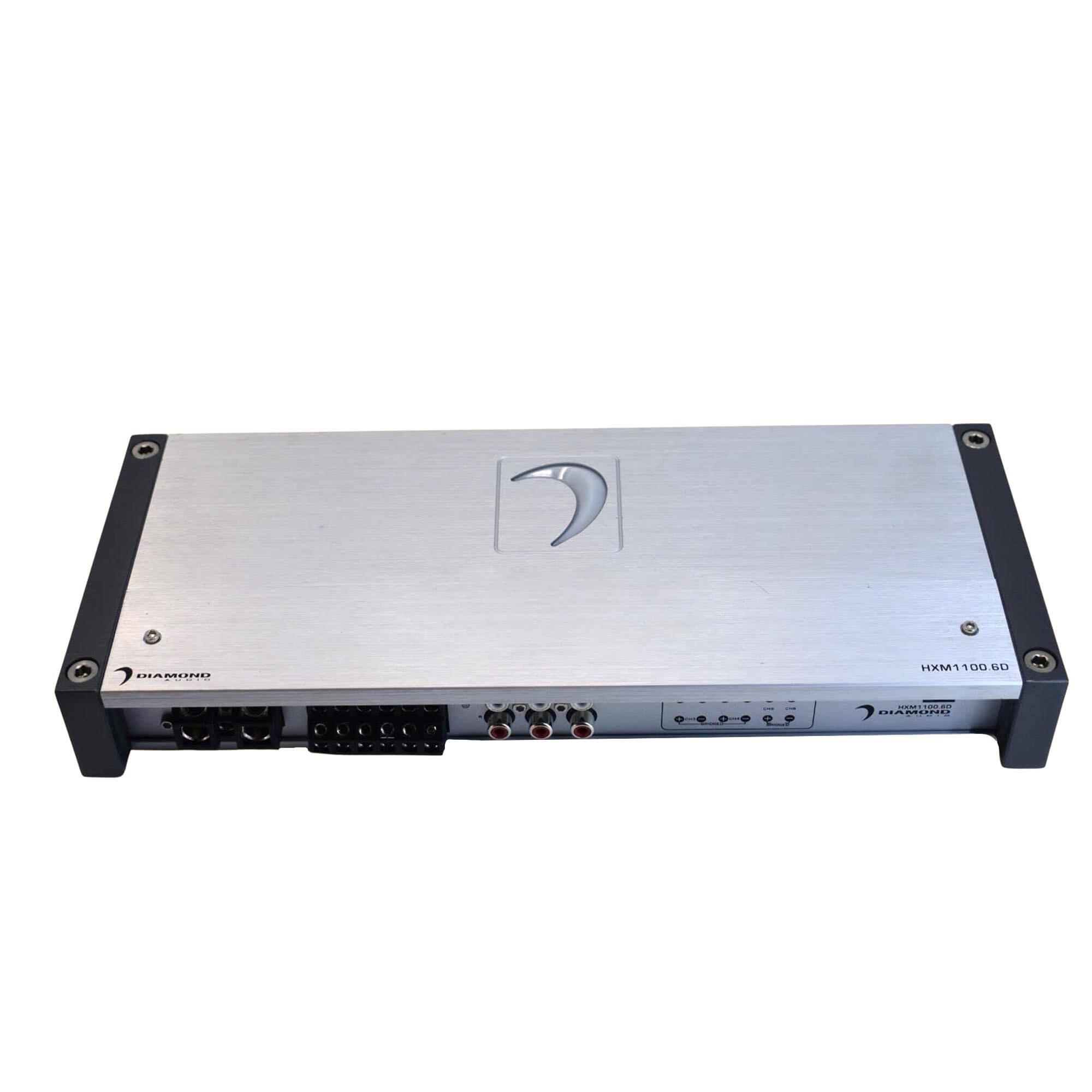

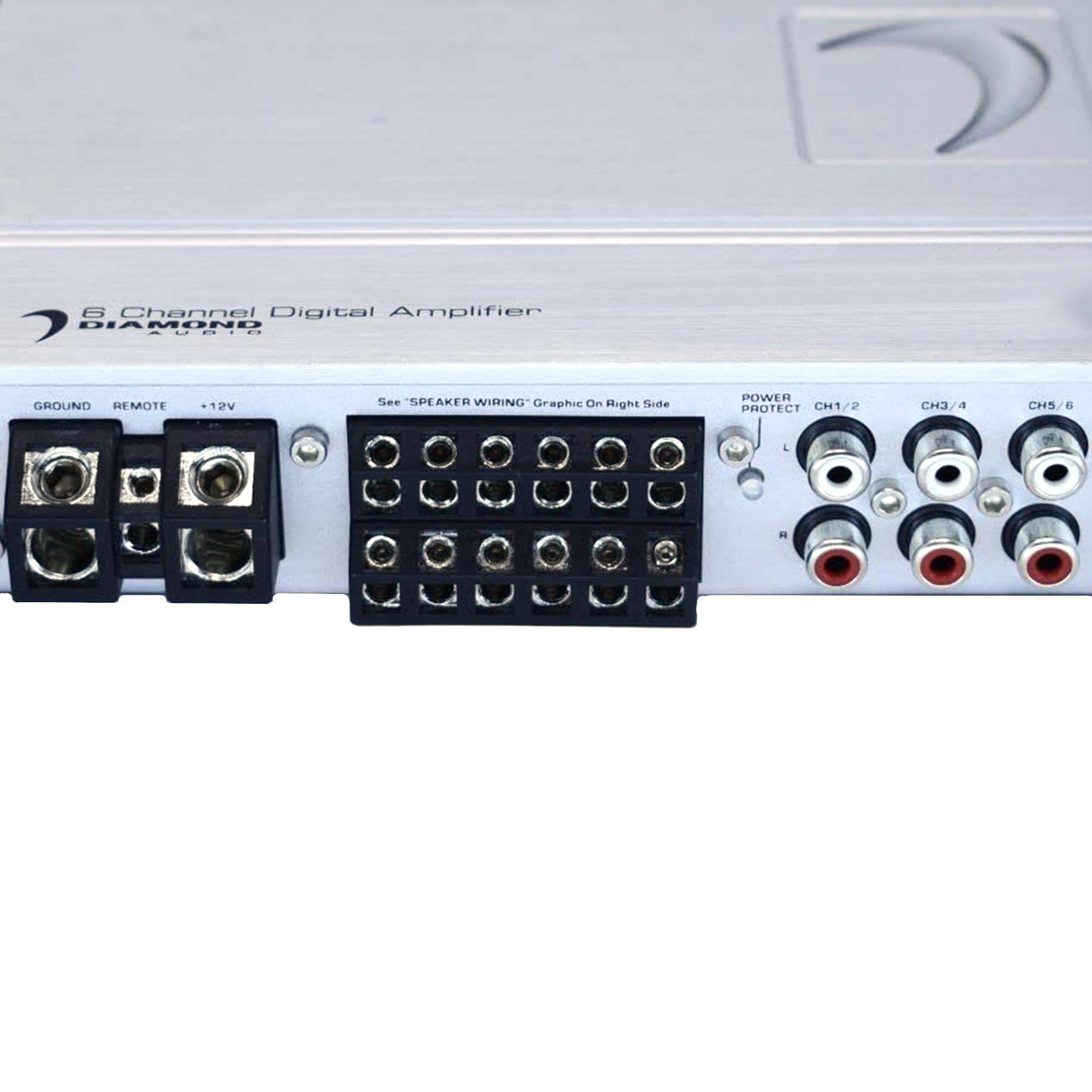

Diamond Audio - HXM1100.6D Hxm Series 6-Channel Full Range Class D Amplifier; 150W X 4 @ 2Ω / 300W X 2 @ 4Ω Rms - Black/Gray

The Alpine “R-Series” line of speakers, subwoofers and amplifiers have a heritage of sound quality you can hear from a block away, and the newly added R-Series amplifiers are no exception. Aside from their best-in-class performance, these amplifiers are tuned to emphasize the characteristics of the R-Series speakers and subwoofers, giving you that legendary R-Series experience. They have a 15% reduced footprint compared to the previous models and are easier to install. FEATURES Install Terminal Layout: One side Small footprint for easy installation Screw terminals (for speaker and power cables) General Class-D Amplification (Digital) Channel Design: Mono Channel Top panel controls Thermal Management Control Top Mounted LED Power/Status Indicator Speaker Level Input with remote turn on Crossover: Adjustable Low-pass (LPF) and Variable Subsonic filter Adjustable Gain Control Bass EQ Remote Bass Control (RUX-KNOB2) Ready SPECIFICATIONS Max Power Output Ratings Total Max Power: 2300W RMS Power Ratings Per Channel into 1 Ohms, 14.4V (≤1%THD+N): 1 x 1500W Per Channel into 2 Ohms, 14.4V (≤1%THD+N): 1 x 1200W Per Channel into 4 Ohms, 14.4V (≤1%THD+N): 1 x 700W Sound Tuning Crossover: Variable LPF: 50-400Hz (-24dB/oct) Crossover: Variable Subsonic: 8Hz-40Hz (-24dB/oct) General Power Requirements: 14.4 V.DC (9 - 16 V allowable) Input Sensitivity (RCA Input): Hi: 0.4V - 10V / Low: 0.1V - 4.0V High Level Input with automatic power on Cable size: Power Cable AWG 4, SPK Cable AWG 8 Frequency Response: 10Hz – 400Hz THD+N (@ 10W into 4 Ohms): 250 Weight: 5kg Dimensions Heat Sink (WxHxD) mm: 341 x 65 x 185

Demand maximum power from your car’s audio system with the Altitude Series 800W Monoblock Class D Amplifier from AudioControl. The A800.1 combines premium engineered audio components and advanced technology to deliver over-the-top power with a sleek and modern aesthetic. Equipped with ParaBASS low frequency contouring and new features including Spike Mode and Valet Mode, this amplifier guarantees outstanding performance for any vehicle.

The ARC Audio X2800.8 DSP is an 8-channel Class-D amplifier with an integrated 12-channel DSP, engineered for modern OEM integration and active system design. Built around an Analog Devices ADAU1462 32-bit processor and AKM Velvet Sound ADC/DAC architecture, it delivers low-noise signal conversion, precise tuning control, and flexible routing in a compact chassis. Eight bridgeable amplifier channels provide 50 W x 8 at 4 Ω or 85 W x 8 at 2 Ω, with the option to bridge for up to 170 W x 4 at 4 Ω. A 10 Hz–22 kHz frequency response and up to 8 V of RCA pre-out voltage give installers the bandwidth and headroom needed for high-performance speakers and external amplifiers. The onboard DSP offers 12 channels of processing, 4 assignable RCA outputs, and a full toolset for crossovers, EQ, delay, phase, summing, and mixer routing, all managed through ARC Audio’s DNA software. The X2800.8 DSP accepts up to eight balanced analog inputs (RCA or speaker-level) with 0.5–32 V sensitivity, plus a digital coaxial input supporting sample rates up to 96 kHz. Auto-sense turn-on, adjustable turn-on/turn-off timing, and a remote turn-on output simplify integration with factory and aftermarket electronics. iDatalink Maestro AR compatibility allows direct communication with select OEM source units while retaining factory features and enabling channel reassignment inside the DSP. A compact footprint, triple 30 A fuse bank, and fan-assisted cooling make the X2800.8 DSP suitable for under-seat, side-panel, or OEM-location installations where space and airflow are limited. With 8 channels of power, 12 channels of DSP control, and robust OEM integration options, it is designed for real-world multi-channel and active front-stage systems where tuning accuracy and reliability matter more than marketing hype.
