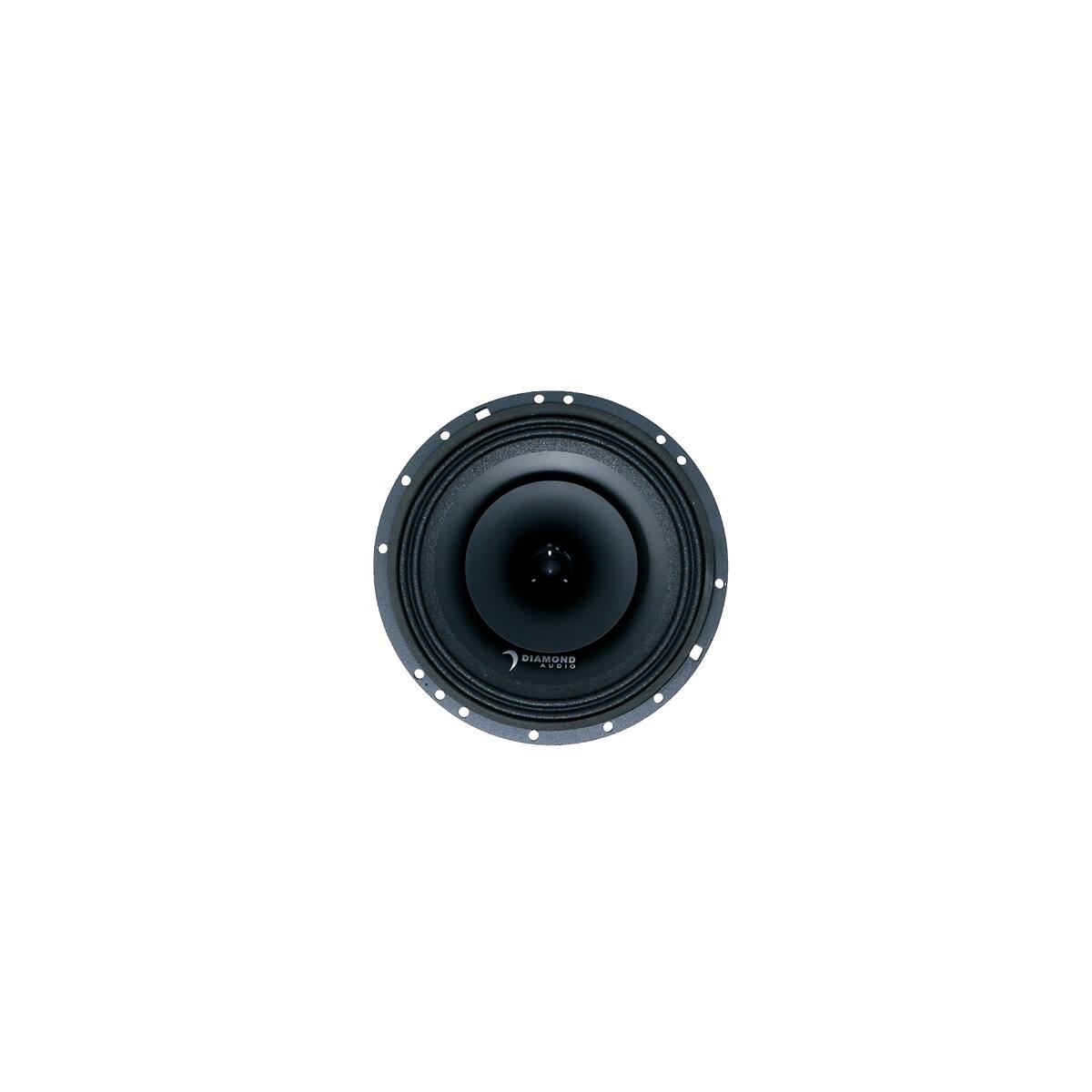

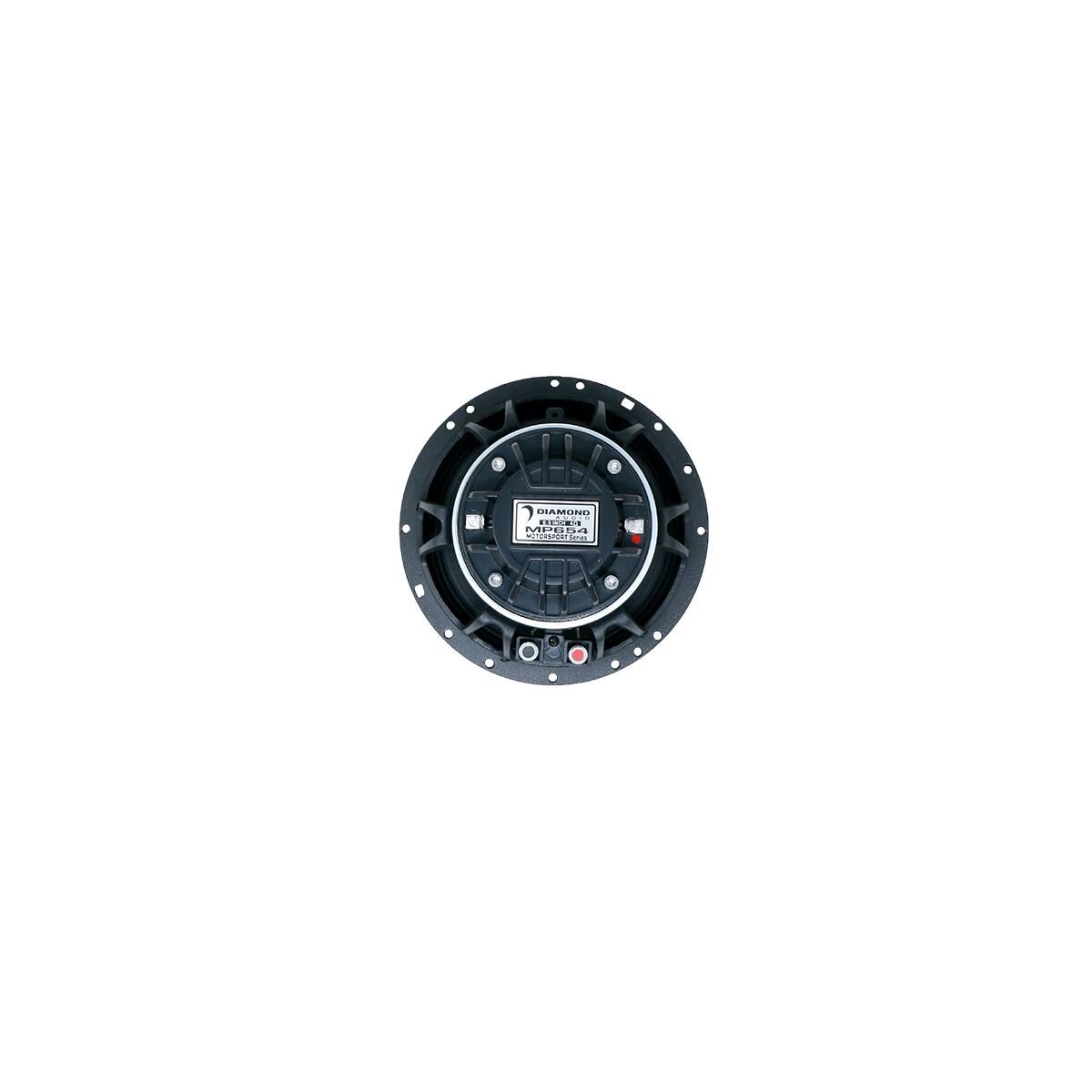

Diamond Audio - MP654 MP Series 6.5" 2-Way Full-Range Coaxial Speaker w/1" Horn Tweeter (4Ω) - Black

Model: MP654
SKU: 11123723
$439.99
or
$36.67/mo.
suggested payments with12-Month Financing
Show me how
Finance OptionsView your offers
Availability
Fulfillment Options

FREE shipping to

Sold & shipped by
Car Audio Closeout Inc
Specifications
  • RMS Power
    150 watts
    Peak Power Handling
    150 watts
    Speaker Size
    6-1/2"
  • Key Specs
    • RMS Power: 150 watts (The maximum amount of continuous power the device is able to handle.)
    • Peak Power Handling: 150 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
    • Speaker Size: 6-1/2"
  • General
    • Brand: Diamond Audio
    • Model Number: MP654
    • Product Name: Diamond Audio - MP654 MP Series 6.5" 2-Way Full-Range Coaxial Speaker w/1" Horn Tweeter (4Ω)
    • Color: Black
  • Audio
    • RMS Power: 150 watts (The maximum amount of continuous power the device is able to handle.)
    • Peak Power Handling: 150 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
  • Features
    • Marine: false
  • Design
    • Speaker Size: 6-1/2"
  • Dimensions
    • Product Height: 6.5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Product Width: 5.73 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Depth: 3.33 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
    • Product Weight: 0.01 pounds (The out of box weight of the item.)
  • Warranty
    • Warranty - Parts: 1 year
  • Other
    • UPC: 847169054396

MP654 - MP Series 6.5" 2-Way Full-Range Coaxial Speaker w/1" Horn Tweeter (4Ω) Discover the ultimate in audio performance with Diamond Audio’s MP Series speakers. Engineered for maximum efficiency and loudness, these speakers incorporate a horn style tweeter with a replaceable tweeter diaphragm, ensuring unparalleled sound clarity and power. Designed to meet the needs of discerning audio enthusiasts, the MP Series is your perfect audio companion for boats, Harley Davidson motorcycles, and recreational vehicles. The MP Series speakers are designed to be ultra-efficient, ensuring that you get the most out of your audio system with minimal power consumption. Experience high-decibel sound that delivers powerful, clear audio whether you’re on the water, the open road, or off the beaten path. Crafted with a high-end cast basket and superior design, the MP Series speakers are built to last. The horn style tweeter enhances sound projection and clarity, while the replaceable tweeter diaphragm ensures long-term performance and ease of maintenance. Diamond Audio is renowned for delivering superior sound quality, and the MP Series is no exception. Enjoy your favorite music with exceptional clarity, rich mid-range, and powerful bass, making every journey a sonic adventure. Whether you’re outfitting your boat, Harley Davidson, or recreational vehicle, Diamond Audio’s MP Series speakers are the ideal choice for high-quality, durable audio equipment. Built to withstand the rigors of various environments, these speakers deliver consistent, high-performance sound wherever your journey takes you. Upgrade your audio system with Diamond Audio MP Series speakers and experience the pinnacle of sound performance and reliability. Feel the difference that high-end engineering and precision craftsmanship can make – choose Diamond Audio for your next adventure! Disclaimer *** The speakers are water resistant and not waterproof. They can be damaged by large amounts of water. ***

  • Specifications: Power: 150W RMS/300W MAX SPL(dB) MidBass: 92.7 SPL(dB) Tweeter: 107 Re(Ω): 3.2 Qms: 10.73 Qes: 0.47 Qts: 0.45 Fs(Hz): 103.3 Vas(L): 6.6 Cms(mm/N): 0.24 Mms(g): 90.7 Sd(cm²): 138.9 BL(T*M): 6.5 Xmax(mm): 1.0 Hi-pass Filter: 12dB 2nd Order Crossover
  • DIMENSIONS: Diameter: 6.5" (165.5mm) Mounting Diameter: 5.73" (145.5mm) Mounting Depth: 3.33" (91.6mm) Total Depth: 3.88" (98.6mm) Magnet Diameter: 3.94" (100mm)
  • FEATURES: NEO Magnet Heavy Duty Steel Basket Mid Driver: 1.5" Single Layer High Temp 4Ω Voice Coil Tweeter: 1.0" 8 Ohm - Single Layer High Temp Voice Coil Frequency Response: 110Hz - 18Khz High Sensitivity 101dB 1W/1M 12dB 2nd Order Filter Crossover
  • Specifications: Power: 150W RMS/300W MAX SPL(dB) MidBass: 92.7 SPL(dB) Tweeter: 107 Re(Ω): 3.2 Qms: 10.73 Qes: 0.47 Qts: 0.45 Fs(Hz): 103.3 Vas(L): 6.6 Cms(mm/N): 0.24 Mms(g): 90.7 Sd(cm²): 138.9 BL(T*M): 6.5 Xmax(mm): 1.0 Hi-pass Filter: 12dB 2nd Order Crossover
  • DIMENSIONS: Diameter: 6.5" (165.5mm) Mounting Diameter: 5.73" (145.5mm) Mounting Depth: 3.33" (91.6mm) Total Depth: 3.88" (98.6mm) Magnet Diameter: 3.94" (100mm)
  • FEATURES: NEO Magnet Heavy Duty Steel Basket Mid Driver: 1.5" Single Layer High Temp 4Ω Voice Coil Tweeter: 1.0" 8 Ohm - Single Layer High Temp Voice Coil Frequency Response: 110Hz - 18Khz High Sensitivity 101dB 1W/1M 12dB 2nd Order Filter Crossover
Whats Included
  • Speaker
  • Speaker
