Diamond Audio - MS692NEO4 - 6"x9" 2-WAY CO-AXIAL NEO SPEAKERS (4Ω) - Black
Diamond Audio - MS692NEO4 - 6"x9" 2-WAY CO-AXIAL NEO SPEAKERS (4Ω) - Black
Related Item
Specifications
- RMS Power200 wattsPeak Power Handling400 wattsSpeaker Size6" x 9"
- Key Specs
- RMS Power: 200 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 400 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Speaker Size: 6" x 9"
- General
- Brand: Diamond Audio
- Model Number: MS692NEO4
- Product Name: Diamond Audio MS692NEO4 - 6"x9" 2-WAY CO-AXIAL NEO SPEAKERS (4Ω)
- Color: Black
- Audio
- RMS Power: 200 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 400 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Features
- Marine: false
- Design
- Speaker Size: 6" x 9"
- Dimensions
- Product Height: 9.9 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 8.58 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 3.74 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 0.01 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Other
- UPC: 847169071003
Step into the future of sound with Diamond Audio’s NEO Series Coaxial Drivers — the pinnacle of audio innovation. At Diamond Audio, we’re driven by a relentless passion for perfect sound. That’s why we’ve reimagined the legendary Coaxial horn driver with our latest NEO Series, combining the best features of our NEO midbass and midrange drivers with our exclusive waterproof horn technology. The result? Unparalleled sound quality, exceptional output, and effortless installation. Every element of these drivers is crafted to the highest standards, from the premium voice coils and advanced motor structures to the rock-solid basket design, flexible bi-amp capabilities, and waterproof components. These speakers don’t just play music — they transform your listening experience into something extraordinary. If you’ve heard our MS NEO drivers before, get ready for a whole new level of sonic brilliance. Don’t settle for ordinary sound. Choose Diamond Audio’s NEO Series Coaxial Drivers — because your music deserves the best.
- Specifications: SPEAKER SIZE - 6X9" SPEAKER TYPE - HORN LOADED CO AXIAL BI-AMPABLE YES OHMS (PER COIL) - 4 NUMBER OF VOICE COILS - DUAL FIELD SERVICABLE VOICE COIL - YES CONE MATERIAL - CARBON FIBER DIAPHRAGM MATERIAL - (PEN) POLYETHYLENE NAPHTHALATE BASKET MATERIAL - CAST ALUMINIUM
- Specifications: SPEAKER SIZE - 6X9" SPEAKER TYPE - HORN LOADED CO AXIAL BI-AMPABLE YES OHMS (PER COIL) - 4 NUMBER OF VOICE COILS - DUAL FIELD SERVICABLE VOICE COIL - YES CONE MATERIAL - CARBON FIBER DIAPHRAGM MATERIAL - (PEN) POLYETHYLENE NAPHTHALATE BASKET MATERIAL - CAST ALUMINIUM
- Specifications: QTS: 0.552 FS (HZ): 104 VAS (L): 9 CMS (MM/N): 0.148 MMS (G): 15.6 SD (M2): 206.84 BL (T*M): 7.418 XMAX (MM): 1.2 POWER HANDLING RMS: 200 POWER HANDLING MAX: 400 MOUNTING DEPTH: IN.(MM):3.74" (95MM) CUT OUT DIAMETER IN.(MM):8.58" (218MM) OVER ALL DIAMETER IN.(MM):9.19" (233.5MM) OVER ALL HEIGHT IN.(MM):4.08" (103.7MM
- Specifications: SPEAKER SIZE - 6X9" SPEAKER TYPE - HORN LOADED CO AXIAL BI-AMPABLE YES OHMS (PER COIL) - 4 NUMBER OF VOICE COILS - DUAL FIELD SERVICABLE VOICE COIL - YES CONE MATERIAL - CARBON FIBER DIAPHRAGM MATERIAL - (PEN) POLYETHYLENE NAPHTHALATE BASKET MATERIAL - CAST ALUMINIUM
- Specifications: SPEAKER SIZE - 6X9" SPEAKER TYPE - HORN LOADED CO AXIAL BI-AMPABLE YES OHMS (PER COIL) - 4 NUMBER OF VOICE COILS - DUAL FIELD SERVICABLE VOICE COIL - YES CONE MATERIAL - CARBON FIBER DIAPHRAGM MATERIAL - (PEN) POLYETHYLENE NAPHTHALATE BASKET MATERIAL - CAST ALUMINIUM
- Specifications: QTS: 0.552 FS (HZ): 104 VAS (L): 9 CMS (MM/N): 0.148 MMS (G): 15.6 SD (M2): 206.84 BL (T*M): 7.418 XMAX (MM): 1.2 POWER HANDLING RMS: 200 POWER HANDLING MAX: 400 MOUNTING DEPTH: IN.(MM):3.74" (95MM) CUT OUT DIAMETER IN.(MM):8.58" (218MM) OVER ALL DIAMETER IN.(MM):9.19" (233.5MM) OVER ALL HEIGHT IN.(MM):4.08" (103.7MM
Whats Included
- Speaker
- Speaker
Compare similar products
Step into the future of sound with Diamond Audio’s NEO Series Coaxial Drivers — the pinnacle of audio innovation. At Diamond Audio, we’re driven by a relentless passion for perfect sound. That’s why we’ve reimagined the legendary Coaxial horn driver with our latest NEO Series, combining the best features of our NEO midbass and midrange drivers with our exclusive waterproof horn technology. The result? Unparalleled sound quality, exceptional output, and effortless installation. Every element of these drivers is crafted to the highest standards, from the premium voice coils and advanced motor structures to the rock-solid basket design, flexible bi-amp capabilities, and waterproof components. These speakers don’t just play music — they transform your listening experience into something extraordinary. If you’ve heard our MS NEO drivers before, get ready for a whole new level of sonic brilliance. Don’t settle for ordinary sound. Choose Diamond Audio’s NEO Series Coaxial Drivers — because your music deserves the best.

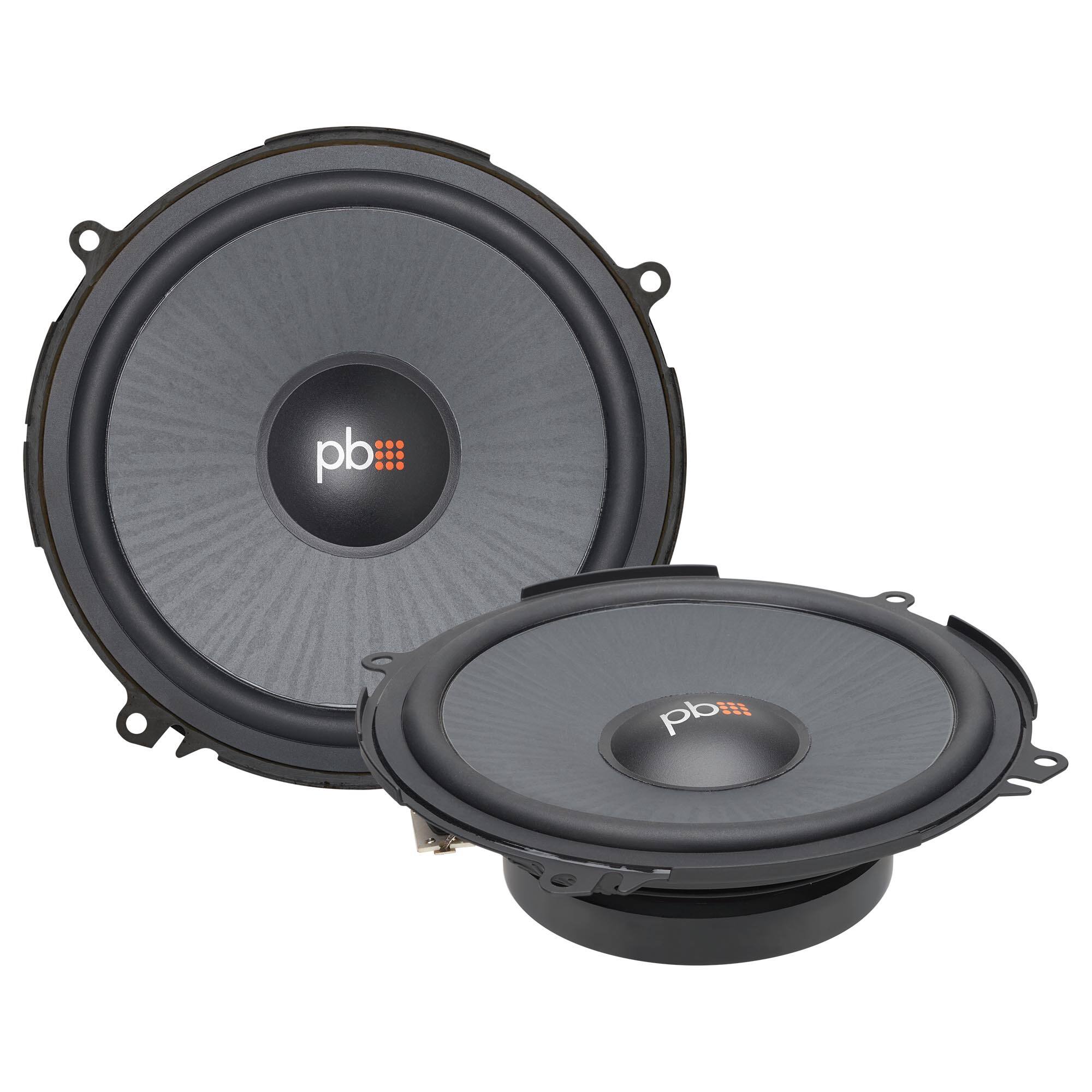

Completely redesigned and re-engineered to be a direct OE Direct Fit replacement for the Toyota JBL 3-Way System. No Holes to Drill, No Wires to Cut Plug and Play Design. Utilizing a 2-OHM voice coil the OE Series is engineered to work in modern vehicles where a lower OHM rating is required. This lower impedance will make more efficient use of your amplifier's power. To handle this power we include upgraded features like the custom tooled stamped baskets, our new Injected PP/Carbon Fiber Cones to produce the best in distortion free sound reproduction, Butyl Rubber Surrounds for high efficiency, increased bass response and long life, and larger motor structures to handle increased power. *NOT DESIGNED FOR USE WITH AFTERMARKET HEADUNITS AND AMPLIFIERS* Features 7" Woofer/Speaker System OEM Drop in Replacement Design for JBL 3-Way System Grey Injection Molded PP/Carbon Fiber Cone Butyl Rubber Surround 25 oz. Motor Structure Shallow Mounting Depth EFF Motor Structures (Efficient Flux Field) Steel Tooled Basket With Flat Black Finish 2-ohm System Impedance Specifications Cutout Diameter: 6 1/8 in Nominal Impedance: 2-ohm Material: Injection Molded PP cone with Carbon Fiber/ aluminum done tweeter Magnet Size: 25 oz Sensitivity (1W / 1M): 90 dB Mounting Depth: 2.36 in Size: 7 in Frequency Response: 55Hz - 5.5Khz Power Handling (RMS/Peak): 90 / 180 watts
Enhance your in-vehicle sound with this pair of KICKER CS-Series three-way speakers. Polypropylene woofer cones with ribbed UV-treated surrounds and Extended Voice Coil technology provide deep, rich bass while ensuring efficient performance. The mid-range drivers and PEI balanced dome tweeters of these KICKER CS-Series three-way speakers produce clear, dynamic higher-frequency audio details. Geek Squad Installation Recommended Visit your local Best Buy store for more information.
Upgrade your car's audio system with these KICKER KS Series coaxial speakers. The 6.5-inch woofer and the 0.79-inch silk-dome tweeter deliver a deep, well-balanced sound for an immersive listening experience, while the included grilles protect the drivers against damage. These KICKER KS Series coaxial speakers have a rubber and polypropylene construction for durability, and the thin-mount design allows easy installation. Geek Squad Installation Recommended Visit your local Best Buy store for more information.
| Pros for Diamond Audio - MS692NEO4 - 6"x9" 2-WAY CO-AXIAL NEO SPEAKERS (4Ω) - Black | |||
|---|---|---|---|
| There were no pros for this product— | There were no pros for this product— | Sound Quality, Ease of Installation, Bass, Price, Highs | Sound Quality, Installation, Power Handling |
| Cons for Diamond Audio - MS692NEO4 - 6"x9" 2-WAY CO-AXIAL NEO SPEAKERS (4Ω) - Black | |||
| There were no cons for this product— | There were no cons for this product— | Speaker Size | There were no cons for this product— |
