Eaton Tripp Lite Series Industrial Gigabit Fiber to Ethernet Media Converter, 10/100/1000 Mbps, RJ45/SFP, -40° to - Black
SKU: 12186678
Reviews coming soon
This item is no longer available in new condition. See similar items below
- Key Specs
- Adapter Type: Wired
- General
- Brand: Tripp Lite
- Product Name: Eaton Tripp Lite Series Industrial Gigabit Fiber to Ethernet Media Converter, 10/100/1000 Mbps, RJ45/SFP, -40° to
- Color: Black
- Dimensions
- Product Height: 0.6 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 3.8 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 1.8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 1.35 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Other
- UPC: 037332268587
Eaton Tripp Lite Series Industrial Gigabit Fiber to Ethernet Media Converter, 10/100/1000 Mbps, RJ45/SFP, -40° to 75°C, DC Power, TAA - 1 x Network (RJ-45) - Multi-mode, Single-mode - Gigabit Ethernet - 10/100/1000Base-T, 100/1000Base-X - 1 x Expansion Slots - SFP (mini-GBIC) - 1 x SFP Slots - DIN Rail Mountable - TAA Compliant
- Features | Customize a Network Extension over Fiber Optic...: This network media converter works with a variety of SFP transceivers to convert a copper Gigabit Ethernet signal to fiber optic and extend it to a second network device. The customizable SFP port supports both singlemode and multimode transceivers, allowing your network connection to reach hubs, switches and other devices located farther away than copper cabling's 100-meter limit. Auto-negotiation and automatic MDI/MDI-X configuration

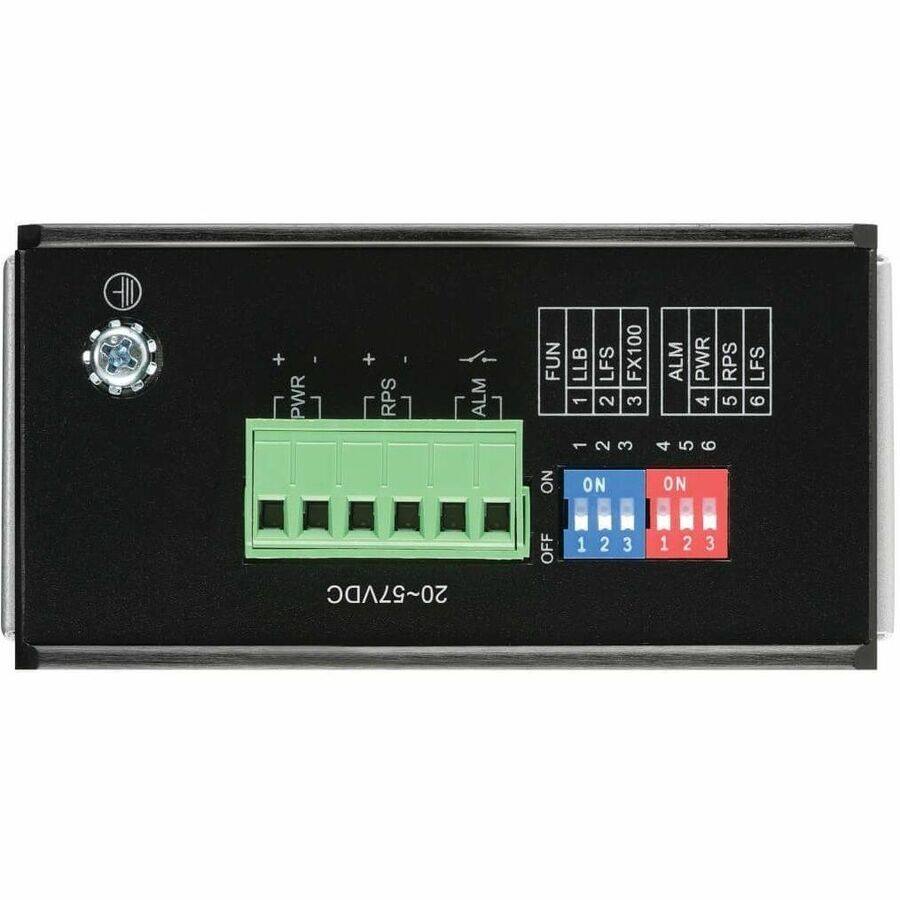

- Monitor Your Installation with Link Fault Signaling and L...: Determine the health of your network connection via the Link Fault Signaling (LFS) and Line Loop Back (LLB) functions. The LFS LED indicates when a copper or fiber cable has been severed or another cause of disruption in service has occurred. The LLB diagnostic test ensures copper and fiber cables have been correctly installed. Use the DIP switches to control each function or turn them on or off.

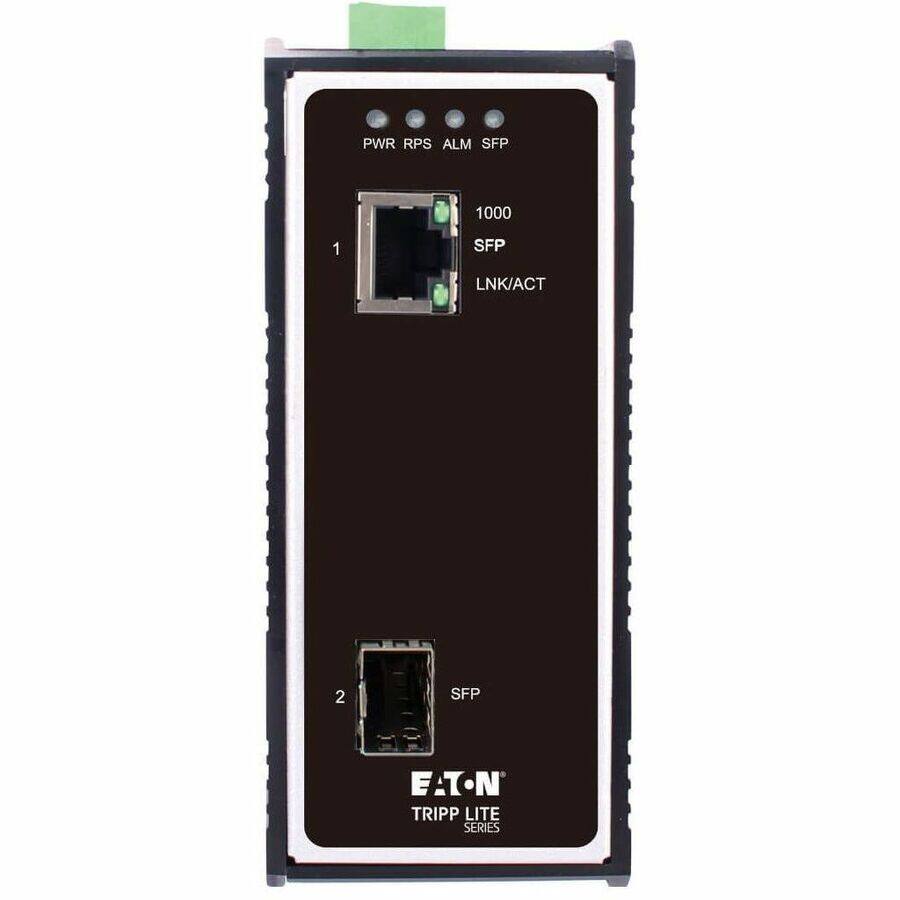

- LEDs Indicate Installation Performance and Diagnostic Fun...: Easy-to-read LEDs on the side of the unit indicate essential status information, including network speed and connection, LFS diagnostics and unit power. The included 20-57VDC terminal block provides primary and secondary power inputs.

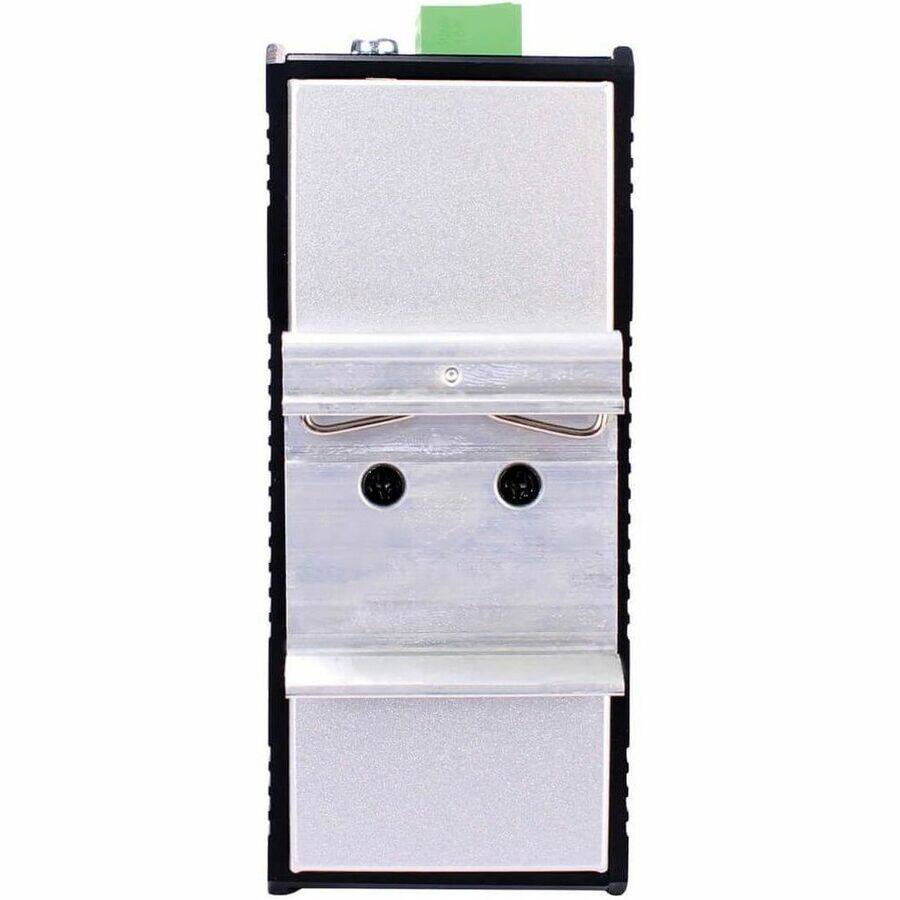

- Protective Metal Housing Built to Withstand a Variety of ...: The IP30 industrial-grade aluminum case is protected from entry by tools, wires and other solid objects greater than 2.5 millimeters in diameter. It can also operate in extreme temperatures ranging from -40 to 75 degrees Celsius (-40 to 167 degrees Fahrenheit). It is protected from electrostatic discharge (ESD), radio frequency interference (RFI) and power surges. Hardware is included for DIN mounting.
- TAA-Compliant for GSA Schedule Purchases: The N785-I01-SFP-D is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
