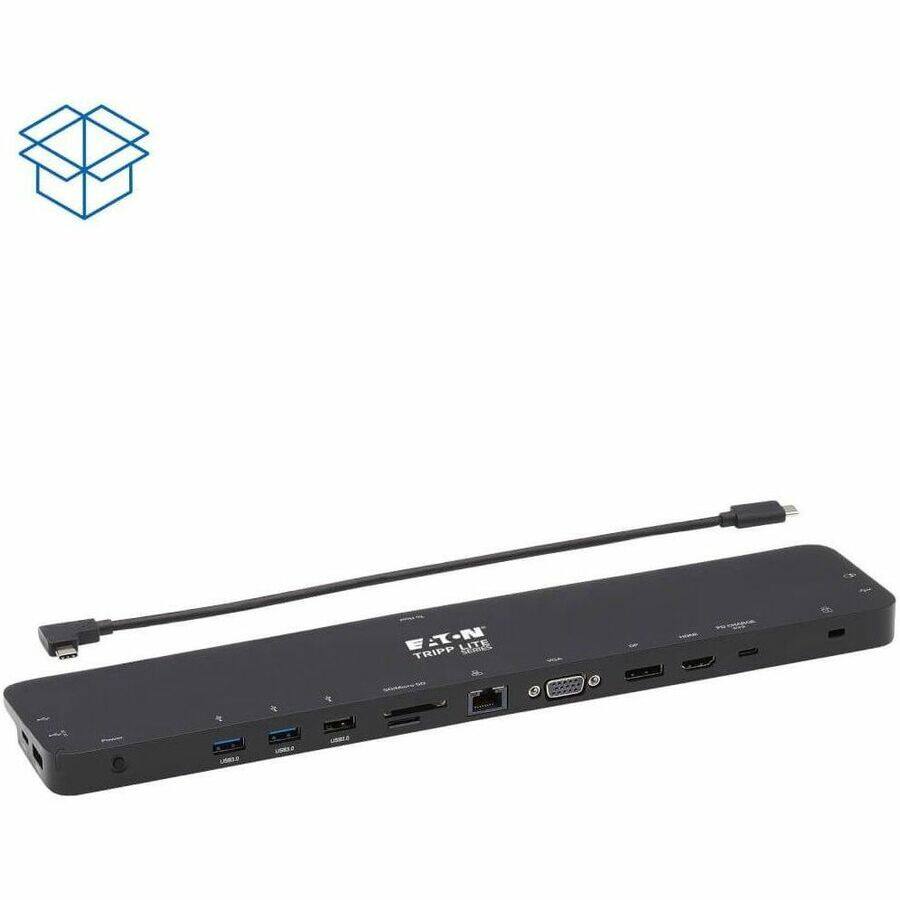

Eaton Tripp Lite Series USB-C Dock, Triple Display - 4K HDMI & DP, VGA, USB 3.x (5Gbps) and USB 2.0 Hub Ports, GbE, 100W
FREE shipping to
More Buying Options
About This Item
- Key Specs
- Maximum Number of Displays Supported: 3
- Number of DisplayPort Outputs (Total): 1
- General
- Brand: Tripp Lite
- Product Name: Eaton Tripp Lite Series USB-C Dock, Triple Display - 4K HDMI & DP, VGA, USB 3.x (5Gbps) and USB 2.0 Hub Ports, GbE, 100W
- Display
- Maximum Number of Displays Supported: 3
- Ports
- Display Connector(s): No external display connection (The number and type of connectors used to connect to an external display.)
- Number of DisplayPort Outputs (Total): 1
- Number of HDMI Ports (Total): 1
- Number of VGA Ports: 1 (VGA (Video Graphics Adapter or Video Graphics Array) is a display standard that transmits via analog signals. This type of interface is typically used to connect a computer to a display device such as a monitor, projector, or TV.)
- USB Ports: 1 x USB-C (The number and type of USB ports the product has.)
- Power
- Powered: true
- Compatibility
- Brand Compatibility: Apple
- Model Compatibility: Google Pixel Smartphone Google Chromebook Apple Notebooks: Macbook Macbook Pro |Universal

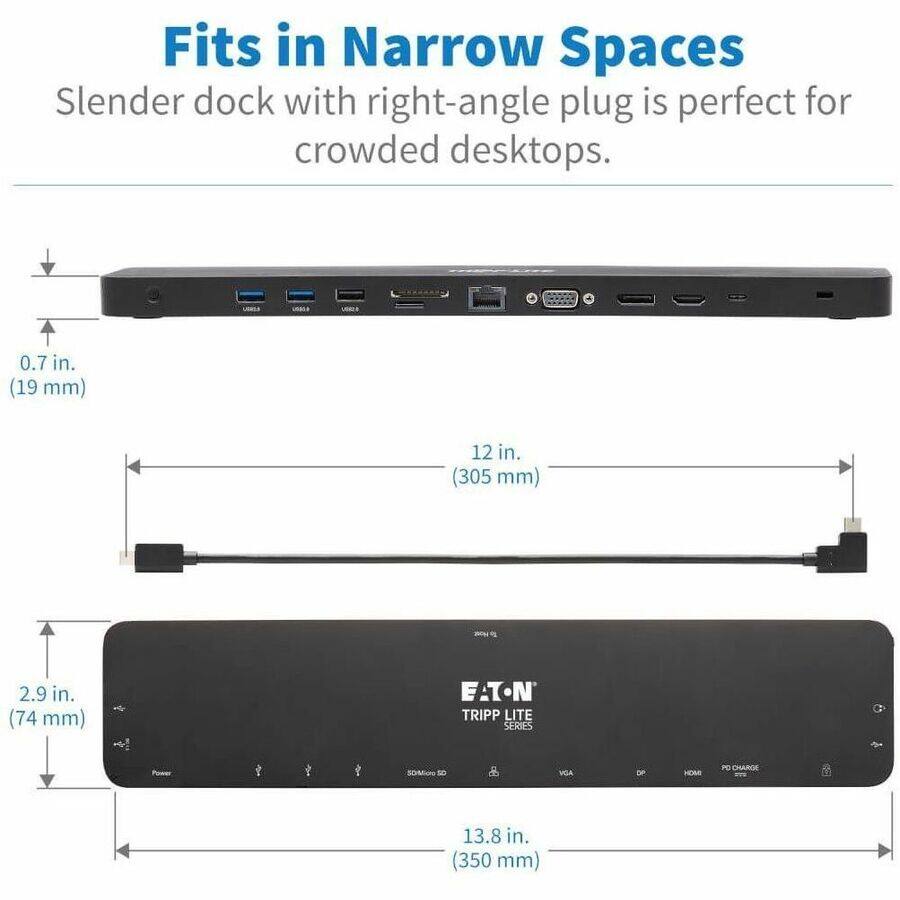

- Dimensions
- Product Height: 0.74 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 2.91 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 13.78 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 0.64 ounces (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 Year
- Other
- UPC: 037332250698
Eaton Tripp Lite Series USB-C Dock, Triple Display - 4K HDMI & DP, VGA, USB 3.x (5Gbps) and USB 2.0 Hub Ports, GbE, 100W PD Charging - Docking Station for Notebook/Tablet/Smartphone - 100 W - USB Type C - 6 x USB Ports - 2 x USB 2.0 - 2 x USB 3.0 - Network (RJ-45) - HDMI - VGA - DisplayPort - Thunderbolt - Wired

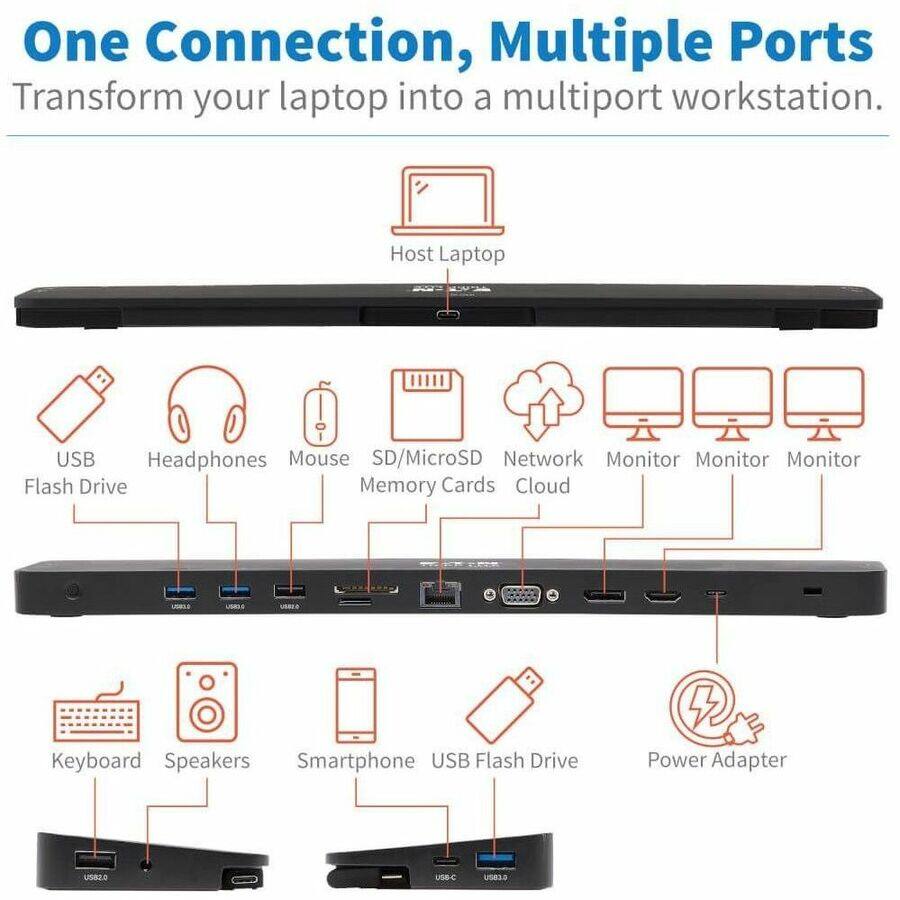

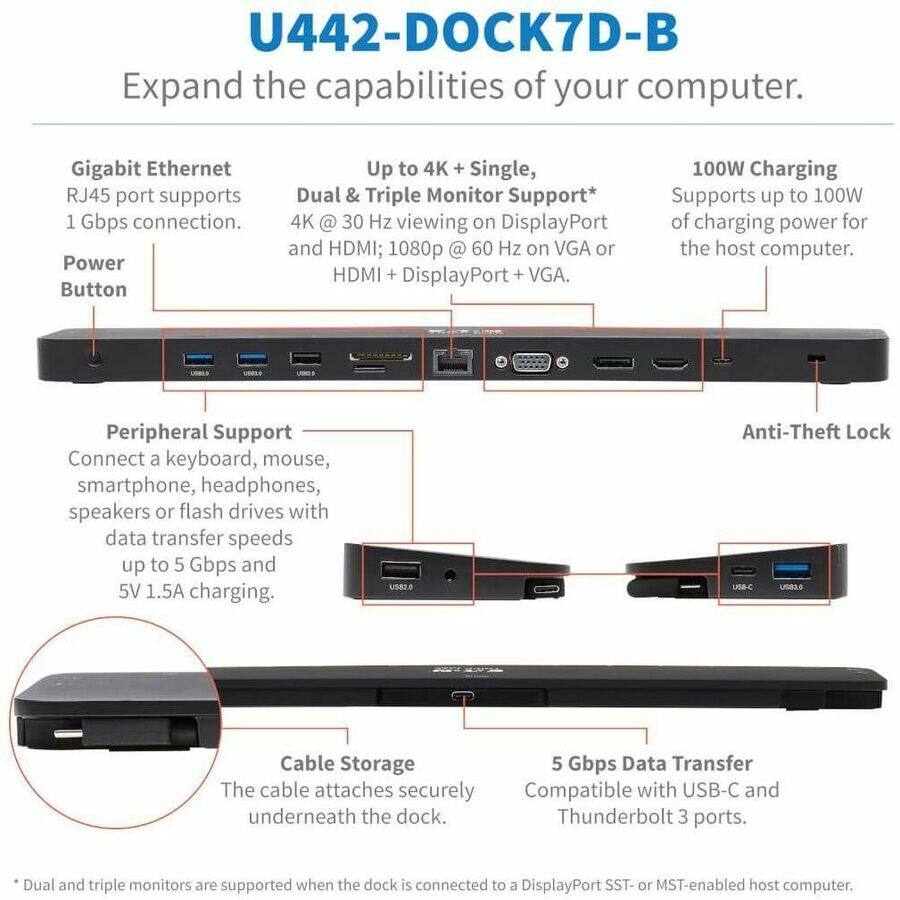

- USB-C Docking Station Turns Your Laptop's USB-C or Thunde...: This universal docking station with PD Charging expands the potential of your tablet, laptop, Chromebook, MacBook, smartphone or PC's USB-C or Thunderbolt 3 port. Connect the dock using the included USB-C cable, and add 14 ports to your device:.4K HDMI.4K DisplayPort.1080p VGA. RJ45 Gigabit Ethernet.(2) USB 2.0.(2) USB 3.0. USB 3.0 with BC 1.2. USB-C PD Charging. USB-C data.3.5 mm mini stereo and. SD and Micro SD card slots

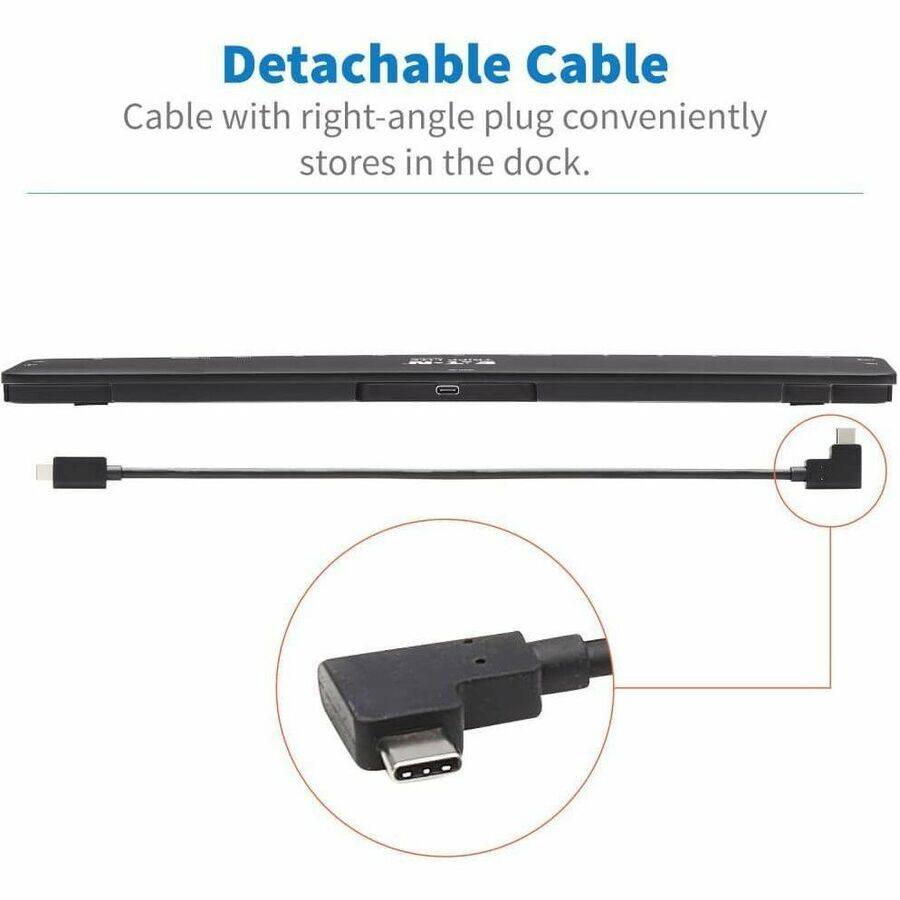

- Supports USB-C DisplayPort Alternate Mode for Transmittin...: By connecting the detachable USB-C cable to a source device that supports USB DisplayPort Alt Mode, you can output 4K video and digital audio to a compatible monitor, television or projector without installing special software drivers.
- Transmits Crystal-Clear 4K Video and Digital Audio to an ...: To send digital audio and Ultra High Definition video to a 4K-ready HDMI or DisplayPort television, projector or monitor, connect the corresponding port to the display using an HDMI or DP cable (such as Tripp Lite's P569-Series HDMI or P580-Series DP cables, sold separately). The DisplayPort and HDMI ports support UHD video resolutions up to 4096 x 2160 (4K x 2K) at 30 Hz with 4:4:4 chroma subsampling for top-level PC gaming or using

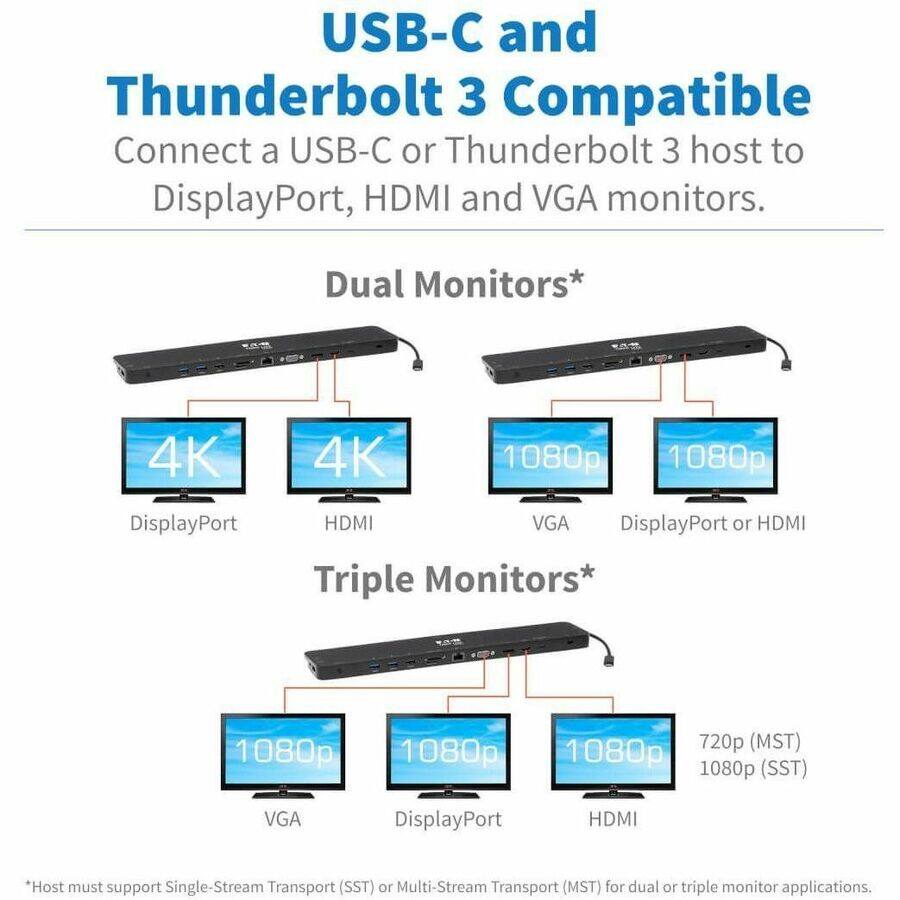

- Extends or Mirrors High-Definition Video Across All 3 Ext...: By connecting the detachable USB-C cable to a source that supports Single-Stream Transport (SST) or Multi-Stream Transport (MST), you may connect three monitors simultaneously. You can display the same image on all three monitors (SST), extend the desktop across them (MST), or combine them into one large monitor in video wall mode (MST). Maximum resolutions are 1920 x 1080 (@ 60 Hz) in SST mode and 1280 x 720 (@ 60 Hz) in MST mode.
- 3 USB 3.0 and 2 USB 2.0 Ports Connect Keyboards, Thumb Dr...: Three USB 3.0 ports accept flash drives, mice, keyboards, printers and other USB peripherals, transferring data back and forth at speeds up to 5 Gbps. One is also BC 1.2-compliant, delivering up to 1.5A of fast-charging power to mobile devices. Two other ports are USB 2.0.
- USB-C Docking Station Turns Your Laptop's USB-C or Thunde...: This universal docking station with PD Charging expands the potential of your tablet, laptop, Chromebook, MacBook, smartphone or PC's USB-C or Thunderbolt 3 port. Connect the dock using the included USB-C cable, and add 14 ports to your device:.4K HDMI.4K DisplayPort.1080p VGA. RJ45 Gigabit Ethernet.(2) USB 2.0.(2) USB 3.0. USB 3.0 with BC 1.2. USB-C PD Charging. USB-C data.3.5 mm mini stereo and. SD and Micro SD card slots
- Supports USB-C DisplayPort Alternate Mode for Transmittin...: By connecting the detachable USB-C cable to a source device that supports USB DisplayPort Alt Mode, you can output 4K video and digital audio to a compatible monitor, television or projector without installing special software drivers.
- Transmits Crystal-Clear 4K Video and Digital Audio to an ...: To send digital audio and Ultra High Definition video to a 4K-ready HDMI or DisplayPort television, projector or monitor, connect the corresponding port to the display using an HDMI or DP cable (such as Tripp Lite's P569-Series HDMI or P580-Series DP cables, sold separately). The DisplayPort and HDMI ports support UHD video resolutions up to 4096 x 2160 (4K x 2K) at 30 Hz with 4:4:4 chroma subsampling for top-level PC gaming or using
- Extends or Mirrors High-Definition Video Across All 3 Ext...: By connecting the detachable USB-C cable to a source that supports Single-Stream Transport (SST) or Multi-Stream Transport (MST), you may connect three monitors simultaneously. You can display the same image on all three monitors (SST), extend the desktop across them (MST), or combine them into one large monitor in video wall mode (MST). Maximum resolutions are 1920 x 1080 (@ 60 Hz) in SST mode and 1280 x 720 (@ 60 Hz) in MST mode.
- 3 USB 3.0 and 2 USB 2.0 Ports Connect Keyboards, Thumb Dr...: Three USB 3.0 ports accept flash drives, mice, keyboards, printers and other USB peripherals, transferring data back and forth at speeds up to 5 Gbps. One is also BC 1.2-compliant, delivering up to 1.5A of fast-charging power to mobile devices. Two other ports are USB 2.0.
