EchoMaster - Third Brake Light Back-Up Camera for Select 2014-2019 Chevrolet Silverado and GMC Sierra Trucks - Black

Model: PCAM-CHMSL2-GM14
SKU: 6397073
This item is no longer available in new condition. See similar items below
  • Key Specs
    • Field of View: 90 degrees
    • G-Sensor: false
    • Compatibility: 2014-2018 Chevrolet Silverado, 2019 Chevrolet Silverado Classic, 2015-2019 Chevrolet Silverado HD, 2014-2018 GMC Sierra, 2015-2019 GMC Sierra HD
    • Camera Mounting Location: Brake light
    • Vehicle Camera Type: Back-up
    • Professional Installation Recommended: true
  • General
    • Brand: EchoMaster
    • Model Number: PCAM-CHMSL2-GM14
    • Product Name: Third Brake Light Back-Up Camera for Select 2014-2019 Chevrolet Silverado and GMC Sierra Trucks
    • Color: Black
    • Vehicle Camera Type: Back-up
    • Professional Installation Recommended: true
  • Recording & Playback
    • Field of View: 90 degrees
    • G-Sensor: false
    • Image Sensor Type: CMOS (CCD and CMOS are the two main technologies used in image sensors. CCD, the older of the two types, turns analog light signals into digital pixels. This conversion happens without distortion, resulting in high-quality images. Newer CMOS sensors use transistors at each pixel to move electrical charges. CMOS sensors are typically less expensive, but also require more light to create distortion-free images.)
    • Camera Power Source: Vehicle battery
    • Expandable Memory Compatibility: None
    • Recording Feature: false
  • Compatibility
    • Compatibility: 2014-2018 Chevrolet Silverado, 2019 Chevrolet Silverado Classic, 2015-2019 Chevrolet Silverado HD, 2014-2018 GMC Sierra, 2015-2019 GMC Sierra HD
  • Features
    • Lane Guidance: false
    • Integrated Microphone: false
    • Night Vision: false
  • Display
    • Screen Included: false
  • Mounting
    • Camera Mounting Location: Brake light
    • Mount Included: true
    • Mount Type: Vehicle specific, Screws
  • Input
    • Number Of Auxiliary Inputs: 0
    • Number of USB Port(s): 0
  • Dimensions
    • Product Height: 19.5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Product Width: 4.75 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Depth: 4.75 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
    • Product Weight: 1.9 pounds (The out of box weight of the item.)
  • Warranty
    • Warranty - Parts: 3 years
    • Warranty - Labor: None
  • Other
    • UPC: 609098831123

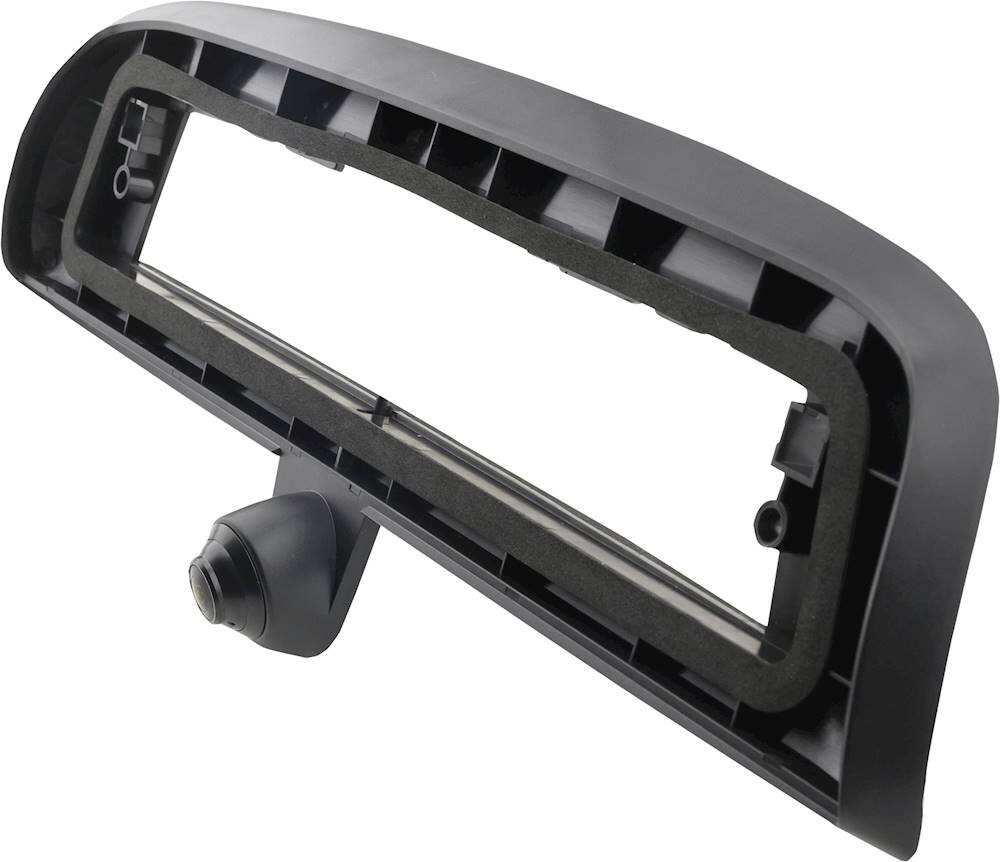

Get a close-up view of your truck bed and blind spots while driving with this Third Brake Light Back-Up Camera for Select 2014-2019 Chevrolet Silverado and GMC Sierra Trucks by EchoMaster. The PCAM-CHMSL2-GM14 adds three viewing angles to your vehicle including a 90° rear view and 95° left and right views that automatically activate when using your turn signals. This durable cargo camera also features an ultra-low LUX video sensor for use day or night.

  • Compatible with select Chevrolet and GMC trucks: Including 2014-2018 Silverado, 2019 Silverado Classic, 2015-2019 Silverado HD, 2014-2018 Sierra, and 2015-2019 Sierra HD models equipped with a monitor and standard video input for a customized fit.

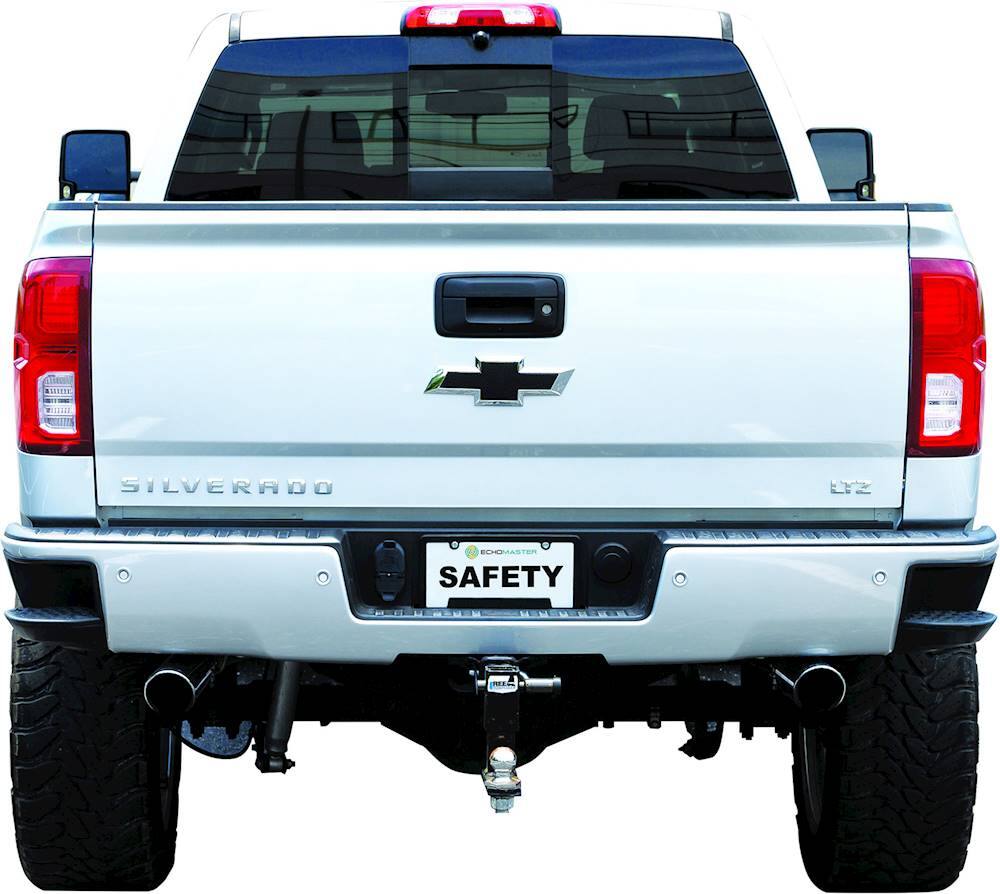

  • Third brake light mount design: Allows you to view your truck’s bed to make hauling safer and easier.
  • 95° right, 95° left, and 90° rear viewing angles: Increases your range of vision so you can clearly see what is behind your vehicle including left and right blind spots when using turn signals.
  • IP67 rated water- and debris-resistant design: Enables all-weather use.
  • Operates at 0.3 LUX: Offers additional visibility for drivers to see what's behind them even in low-light conditions.
  • 1/3" CMOS image sensor: Ensures crisp, clear images.
  • Three-year warranty: To protect you against defects in materials and workmanship.
Whats Included
  • EchoMaster Third Brake Light Back-Up Camera for Select 2014-2019 Chevrolet Silverado and GMC Sierra Trucks
  • Mounting bracket
  • 17.5' extension cable
  • Camera adjustment tool
  • Installation guide

Q: Will this camera work with the 8-inch HD display? And, can I switch between this 3rd brake light camera and the existing tailgate camera? Truck is a 2019 Chevrolet Silverado 3500 HD. Thanks for your help.

A: This is a universal style camera designed to be used with aftermarket radios. To use it with your factory screen you would need an integration module. You can call our tech support team at 727-592-5991 for further assistance.
