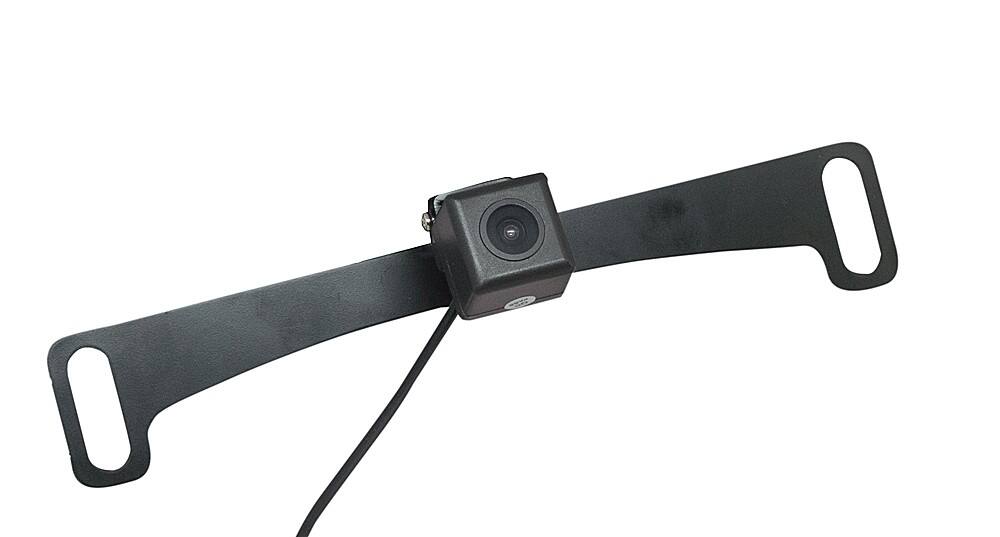

EchoMaster - Universal License Plate Back-Up Camera with Dynamic Parking Lines - Black
- Key Specs
- Field of View: 170 degrees
- G-Sensor: true
- Compatibility: Universal
- Camera Mounting Location: License plate
- Vehicle Camera Type: Back-up
- Professional Installation Recommended: true
- General
- Brand: EchoMaster
- Model Number: PCAM-DPLLP-N
- Product Name: Universal License Plate Back-Up Camera with Dynamic Parking Lines
- Color: Black
- Vehicle Camera Type: Back-up
- Professional Installation Recommended: true
- Recording & Playback
- Field of View: 170 degrees
- G-Sensor: true
- Image Sensor Type: CMOS (CCD and CMOS are the two main technologies used in image sensors. CCD, the older of the two types, turns analog light signals into digital pixels. This conversion happens without distortion, resulting in high-quality images. Newer CMOS sensors use transistors at each pixel to move electrical charges. CMOS sensors are typically less expensive, but also require more light to create distortion-free images.)
- Camera Power Source: Vehicle battery
- Expandable Memory Compatibility: None
- Recording Feature: false
- Compatibility
- Compatibility: Universal
- Features
- Lane Guidance: true
- Integrated Microphone: false
- Display
- Screen Included: false
- Mounting
- Camera Mounting Location: License plate
- Mount Included: true
- Mount Type: Screws
- Input
- Number Of Auxiliary Inputs: 0
- Number of USB Port(s): 0
- Dimensions
- Product Height: 1.5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 3.5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 5.5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 0.3 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: None
- Other
- UPC: 609098827911
Simplify reversing with this Universal License Plate Back-Up Camera with Dynamic Parking Lines by EchoMaster. The PCAM-DPLLP-N features built-in motion sensors that detect vehicle movement up to 50’ away and provides dynamic guidelines on your vehicle’s factory or aftermarket display that move as you move to give a clear understanding of the trajectory of your car before you reverse. This universal back-up camera includes a bracket that mounts behind the rear license plate, making it easy to add a camera without having to drill additional holes in your vehicle’s exterior.
- Universal license plate mount design: Add a back-up camera to any vehicle with a factory or aftermarket radio display.
- Built-in motion sensors: Detect vehicles in blind spots up to 50’ (15m) away.
- Dynamic parking lines: Show the path of your vehicle as it moves so you can avoid and correct potential accidents before they occur.
- 170° rear viewing angle: Eliminates blind spots.
- Operates at 0.5 LUX: Offers additional visibility for drivers to see what's behind them even in low-light conditions.
- 1/3" CMOS image sensor: Ensures crisp, clear images.
- IP67-rated water-resistant and debris-proof camera: Provides trouble-free operations in all weather conditions and prevents the elements from penetrating the camera and distorting your screen.
- Three-year warranty: To protect you against defects in materials and workmanship.
- Universal license plate mount design: Add a back-up camera to any vehicle with a factory or aftermarket radio display.
- Built-in motion sensors: Detect vehicles in blind spots up to 50’ (15m) away.
- Dynamic parking lines: Show the path of your vehicle as it moves so you can avoid and correct potential accidents before they occur.
- 170° rear viewing angle: Eliminates blind spots.
- Operates at 0.5 LUX: Offers additional visibility for drivers to see what's behind them even in low-light conditions.
- 1/3" CMOS image sensor: Ensures crisp, clear images.
- IP67-rated water-resistant and debris-proof camera: Provides trouble-free operations in all weather conditions and prevents the elements from penetrating the camera and distorting your screen.
- Three-year warranty: To protect you against defects in materials and workmanship.
Whats Included
- EchoMaster Universal License Plate Back-Up Camera with Dynamic Parking Lines
- Butterfly bracket with mounting hardware
- License plate bracket
- Power connection harness
- RCA video extension cable
- User manual
- EchoMaster Universal License Plate Back-Up Camera with Dynamic Parking Lines
- Butterfly bracket with mounting hardware
- License plate bracket
- Power connection harness
- RCA video extension cable
- User manual
Q: What is the field of view for this backup camera?
A: This backup camera has a 170-degree field of view.
Q: Does this camera come with a warranty?
A: Yes, this camera is backed by a three-year warranty for peace of mind.
Q: Does this backup camera have dynamic parking lines?
A: Yes, this camera features dynamic parking lines to help guide you while reversing.
Q: What type of image sensor does this camera use?
A: This camera uses a 1/3" CMOS image sensor for clear images.
Q: How is this backup camera powered?
A: This backup camera is powered by the vehicle's battery.
Q: does this camera have night vision?
A: This camera does not have IR LEDs for added night viewing but will work well even for nighttime backing provided the reverse lights in the vehicle provide adequate illumination behind the vehicle.
Q: Where is the image ddisplayed?
A: You would need to connect this to an aftermarket radio that has a reverse camera input option.
A: Possibly. It depends on which kit you bought the first time. If the camera with the previous kit had a yellow RCA on the end of the cable, then yes. If it connected directly to the mirror with a proprietary cable, then no.
