Electro-Harmonix - 8-Step Program Analog Expression/CV Sequencer
FREE shipping to
About This Item
- General
- Brand: Electro-Harmonix
- Model Number: 8STEP
- Product Name: 8-Step Program Analog Expression/CV Sequencer
- Dimensions
- Product Width: 8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Height: 3.25 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 6.5 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 2.32 pounds (The out of box weight of the item.)
- Features
- Instrument Compatibility: Guitar
- Effect Type(s): None
- Power Source: Plug-in
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: None
- Other
- UPC: 683274011363

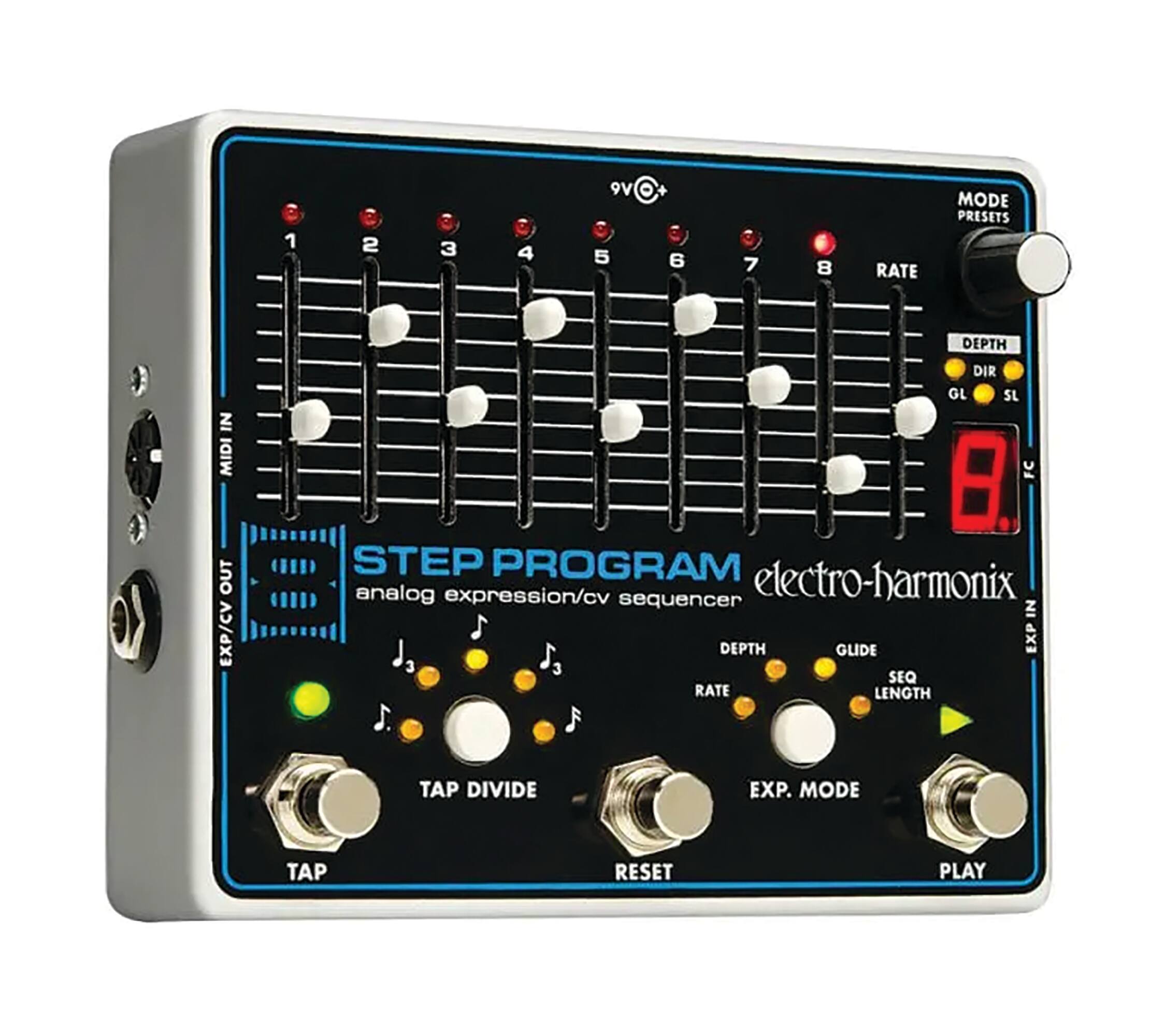

The EHX 8-Step Program Analog Expression/CV Sequencer connects to another device and delivers sequencer control over parameters that respond to expression pedals or CV generators like oscillators, filters, delay parameters, you name it. Set your tempo with the Rate slider or Tap Tempo footswitch, or sync to a drum machine or DAW via MIDI clock. Six Tap Tempo Divide modes provide rhythmic diversity. This thing is a tweaker's delight! You can add the optional 8 Step Program Foot Controller expands that to 100 presets! NOTE: Compatible expression inputs must accept a voltage source as the controlling signal. The expression input should also allow for an expression pedal TRS plug with the following connections: Sleeve = Heel, Ring = Toe, Tip = Wiper. The expression voltage present on the Ring of the TRS plug sets the maximum range of the controlling signal; this Ring voltage must be between 2VDC and 9VDC. Features: · Four sequence direction modes: Forward, Reverse, Bounce and Random · Rotary encoder gives you control over glide rate, direction, sequencer length and depth · Save, store and recall 10 presets. The optional 8 Step Program Foot Controller expands that to 100 presets! · Power adapter included
- Legendary Sound Innovation: Electro-Harmonix (EHX) is a pioneering music brand celebrated for its groundbreaking guitar and bass effects pedals that have shaped the sound of modern music for decades. Known for their creativity, durability, and unmistakable tone, EHX pedals—like the Big Muff, Memory Man, and POG—are trusted by musicians worldwide for delivering bold, expressive sound across every genre.
- Legendary Sound Innovation: Electro-Harmonix (EHX) is a pioneering music brand celebrated for its groundbreaking guitar and bass effects pedals that have shaped the sound of modern music for decades. Known for their creativity, durability, and unmistakable tone, EHX pedals—like the Big Muff, Memory Man, and POG—are trusted by musicians worldwide for delivering bold, expressive sound across every genre.
