Electrolux - Vanguard 1250 Sq Ft 24000 BTU Smart Ductless Mini Split Air Conditioner and Heat System 25000 BTU Heater with Remote - White
Reviews coming soon
Related Item
Reviews coming soon
Specifications
- Recommended Room Size1250 square feetBTU Cooling Rating24000 british thermal unitsNumber of Cool Settings1Number of Fan Speeds3Airflow Rate676 cubic feet per minuteRemote ControlYes
- Key Specs
- Recommended Room Size: 1250 square feet (The recommended area size in which the product is designed to operate and produce optimal results, such as the desired heating or cooling. Generally, running a unit too big or too small for the space will result in ineffective operation and wasted energy.)
- BTU Cooling Rating: 24000 british thermal units (The amount of BTUs (British Thermal Units) per hour the unit uses to cool the air, also known as cooling capacity. For best results, the capacity of the unit should be based on the size of the area it is intended to cool. For example, a 5,000 BTU capacity works optimally for a 150 square foot room. In general, an oversized unit will not effectively remove humidity, and an undersized unit will not cool the space efficiently.)
- Number of Cool Settings: 1
- Number of Fan Speeds: 3
- Airflow Rate: 676 cubic feet per minute
- Remote Control: true
- Integrated Heater: true
- Sleep Mode: true (Enabling this mode sets the unit to first reach the desired temperature, then gradually increase the temperature over a period of time until it reaches a new set temperature, typically several degrees higher than the initial cool setting. This mode helps save energy while keeping the room comfortable.)
- Timer: true
- Auto Shut-Off: false (Feature automatically turns off the product.)
- Energy Efficiency Ratio (EER2): 12 (The ratio of output BTUs (British Thermal Units) to input electrical energy (watts) at a given operating point. Generally, the higher the number, the more efficient the unit. Though higher efficiency units are typically more expensive upfront, they may offset the price in energy costs over time. EER2 is an updated version effective January 1, 2023 based on Department of Energy (DOE) mandated HVAC energy efficiency standard calculations.)
- Seasonal Energy Efficiency Ratio (SEER2): 23 (This rating is generally used to measure a central air conditioner's and mini-split air conditioner's energy efficiency and will not be found on window or room air conditioners. SEER measures the ratio of output BTUs (British Thermal Units) to input electrical energy (watts) over the course of an entire cooling season. Generally, the higher the SEER rating, the more energy efficient the equipment is. SEER2 is an updated version effective January 1, 2023 based on Department of Energy (DOE) mandated HVAC energy efficiency standard calculations.)
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Amazon Alexa, Google Home (Compatible with or able to be connected to other smart devices or applications.)
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Air Conditioner Type: Split
- General
- Brand: Electrolux
- Model Number: SAC24SHV22-1
- Product Name: Vanguard 1250 Sq Ft 24000 BTU Smart Ductless Mini Split Air Conditioner and Heat System 25000 BTU Heater with Remote
- Color: White
- Air Conditioner Type: Split
- Dimensions
- Indoor Unit Dimensions: 8.75"L x 43.25"W x 13.13"H
- Outdoor Unit Dimensions: 16.83"L x 38.5"W x 31.83"H
- Cord Length: 25 inches
- BTU Rating
- Recommended Room Size: 1250 square feet (The recommended area size in which the product is designed to operate and produce optimal results, such as the desired heating or cooling. Generally, running a unit too big or too small for the space will result in ineffective operation and wasted energy.)
- BTU Cooling Rating: 24000 british thermal units (The amount of BTUs (British Thermal Units) per hour the unit uses to cool the air, also known as cooling capacity. For best results, the capacity of the unit should be based on the size of the area it is intended to cool. For example, a 5,000 BTU capacity works optimally for a 150 square foot room. In general, an oversized unit will not effectively remove humidity, and an undersized unit will not cool the space efficiently.)
- BTU Heat Rating: 25000 british thermal units (The number of BTUs (British Thermal Units) per hour the unit produces to heat the air, also known as heating capacity. For best results, the capacity of the unit should be based on the size of the area it is intended to heat. The recommended capacity depends on several factors such as climate and level of insulation, but generally ranges from 30-60 BTUs per square foot.)
- Features
- Number of Cool Settings: 1
- Number of Fan Speeds: 3
- Airflow Rate: 676 cubic feet per minute
- Maximum Noise Level: 50 decibels adjusted
- Minimum Noise Level: 34 decibels adjusted
- Remote Control: true
- Control Type: Button
- Integrated Heater: true
- Filter Indicator Light(s): false
- Filter Type: Washable
- Sleep Mode: true (Enabling this mode sets the unit to first reach the desired temperature, then gradually increase the temperature over a period of time until it reaches a new set temperature, typically several degrees higher than the initial cool setting. This mode helps save energy while keeping the room comfortable.)
- Timer: true
- Auto Shut-Off: false (Feature automatically turns off the product.)
- Number of Indoor Units: 1
- Number of Outdoor Units: 1
- Power
- Energy Efficiency Ratio (EER2): 12 (The ratio of output BTUs (British Thermal Units) to input electrical energy (watts) at a given operating point. Generally, the higher the number, the more efficient the unit. Though higher efficiency units are typically more expensive upfront, they may offset the price in energy costs over time. EER2 is an updated version effective January 1, 2023 based on Department of Energy (DOE) mandated HVAC energy efficiency standard calculations.)
- Voltage Requirement: 230
- Seasonal Energy Efficiency Ratio (SEER2): 23 (This rating is generally used to measure a central air conditioner's and mini-split air conditioner's energy efficiency and will not be found on window or room air conditioners. SEER measures the ratio of output BTUs (British Thermal Units) to input electrical energy (watts) over the course of an entire cooling season. Generally, the higher the SEER rating, the more energy efficient the equipment is. SEER2 is an updated version effective January 1, 2023 based on Department of Energy (DOE) mandated HVAC energy efficiency standard calculations.)
- Amperage: 19 amperes (Strength of electrical current.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Compatibility
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Amazon Alexa, Google Home (Compatible with or able to be connected to other smart devices or applications.)
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Included
- Number of Remotes Included: 1
- Unit Placement
- Indoor Unit1 Placement: Wall mount
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 0 years
- Other
- UPC: 860015602794
The Electrolux Vanguard SAC24SHV22-1 is a 230V 24,000 BTU single-zone ductless inverter mini split air conditioner & heat pump built for spaces up to 1,250 sq ft. PERFORMANCE YOU CAN TRUST: Heating capacity of 1,900 BTU with verified cold-climate operation in temps as low as -13°F (-25°C), and cooling from 5°F to 131°F. Quiet-running rotary inverter compressor, R32 refrigerant, single-zone ductless mini-split ac system. OUTSTANDING EFFICIENCY: 23 SEER2, EER2 of 13, and HSPF of 10. Energy Star certified and AHRI certified. R32 refrigerant carries lower global warming potential than R410A. QUIET & VERSATILE: Indoor noise as low as 34 dB(A) & 8 modes - Auto, Cool, Heat, Dry, Fan-Only, Turbo, Sleep & Eco. BUILT TO LAST: Includes 25 ft pre-charged mini split line set, mini split wall mounting bracket, and top-access washable dust filter.
- 24,000 BTU Cooling | 25,000 BTU Heating: The Electrolux Vanguard delivers 18,600 BTU at 5°F & 14,000 BTU at 17°F – temperatures where most competing units shut down. Cools & heats spaces up to 1,250 sq ft. with a quiet-running rotary inverter compressor.
- 23 SEER2: While most 24,000 BTU mini split ac/heating systems rely on older, less efficient designs, the Vanguard runs at 23 SEER2 - drawing measurably less power for the same output all season. R32 refrigerant (44.8 oz charge, lower GWP than R410A).
- Outlasts the Competition: Refrigerant leak detector, chassis heater, fire-rated electrical box, & modular PCB protect against rust, leaks, & early failures. High-temp self-clean sterilizes the coil automatically - no mold buildup or service call required.
- Low-Noise Operation with 8 Comfort Modes: This split unit ac delivers powerful, low-noise 34 dB(A) operation designed for large open spaces. Full ac and heater combo unit with 8 modes: Auto, Cool, Heat, Dry, Fan-Only, Turbo, Sleep, Eco.
- Fast, Clean & Easy Install: Ships with 25 ft pre-charged line set, wall mounting bracket, outdoor pad, washable filter & all hardware. No refrigerant tank needed on site. Compatible with standard line set cover kits. Professional Installation Required
- Smart Control From Anywhere: Control temperature, modes & schedules with your smartphone. Smart home support for hands-free voice control. Built-in self-diagnosis flags issues before they become problems & filter change alerts keep air quality at its best.

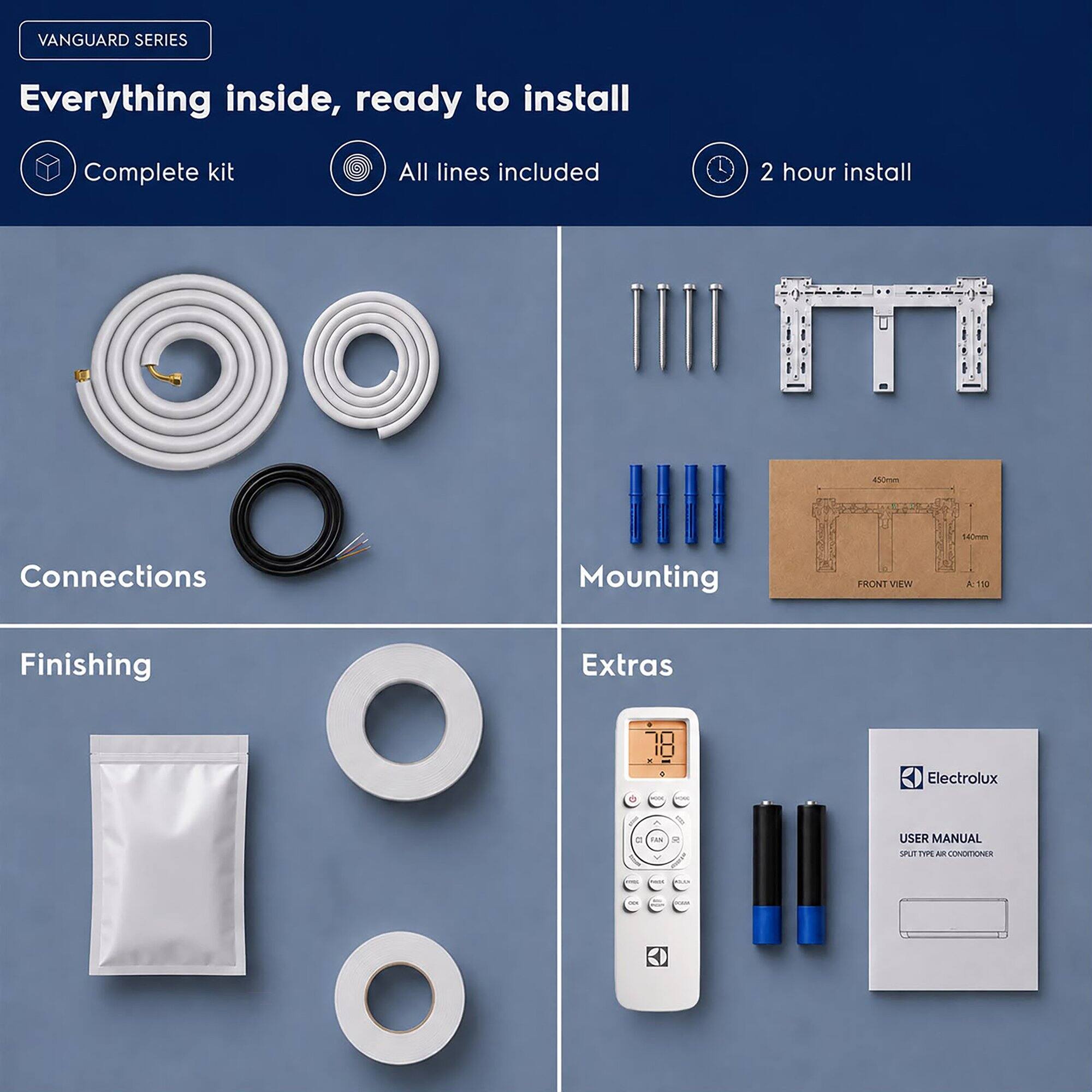

Whats Included

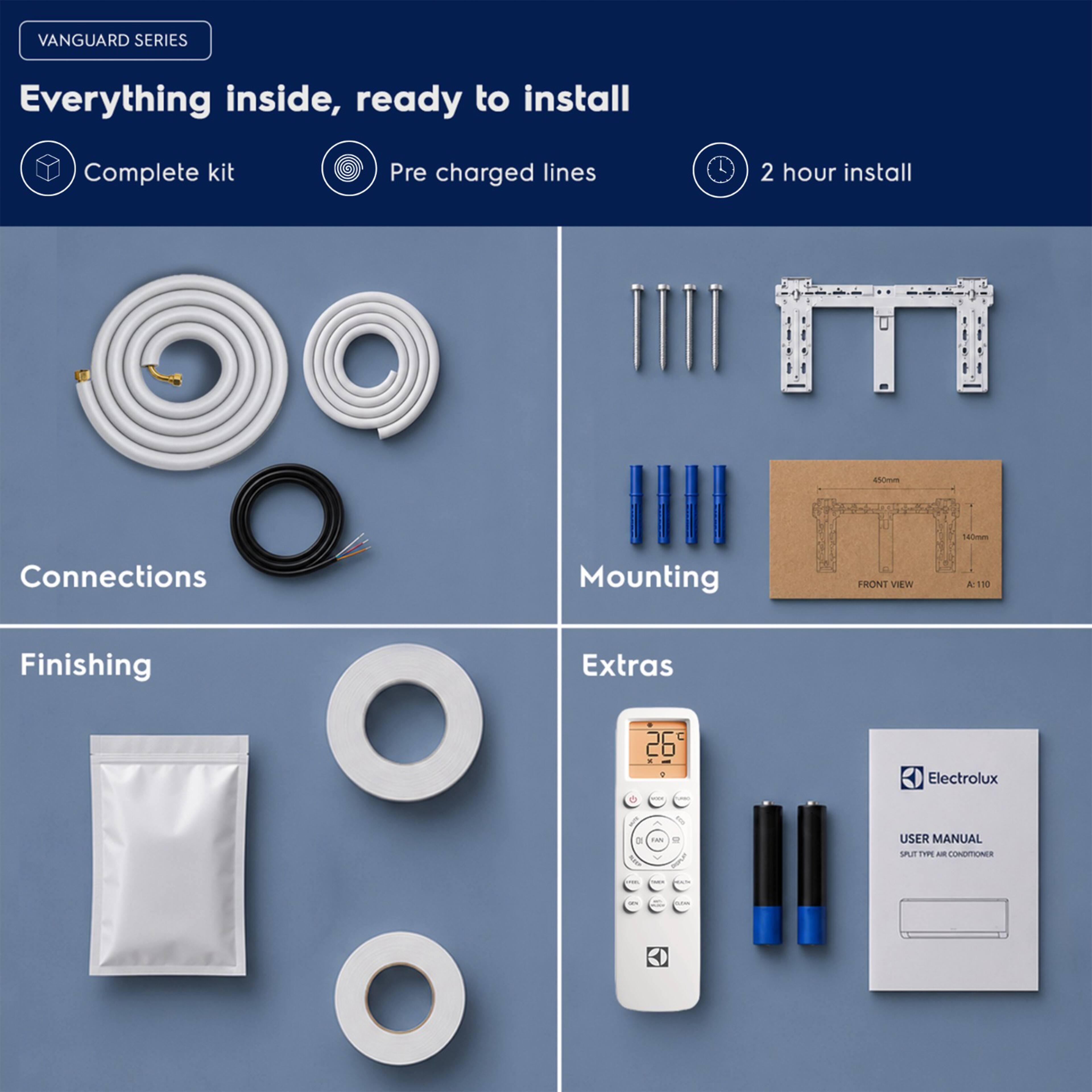

- Indoor Unit, Outdoor Unit, Mounting Plate, Refrigerant Piping, Drainage Piping, Insulation Tape, Remote, Batteries
Product Manuals
Documents
- Energy_Guide_PDF
