Emporia - EV Charger / Hardwire / J1772 - Black
Model: EMEVSE1-B-H-J
SKU: 6578766
This item is no longer available in new condition. See similar items below
- General
- Brand: Emporia
- Model Number: EMEVSE1-B-H-J
- Product Name: EV Charger / Hardwire / J1772
- Color: Black
- Power
- Electric Vehicle Charging Level: Level 2 (Level 1 chargers connect to a standard 120V outlet but may take nearly a day to charge a vehicle. Level 2 chargers connect to a dedicated 240V outlet and charge most vehicles within a few hours. Level 3 chargers require a specialized charger and are typically found in public, fast charging stations. Charging requirements vary by vehicle.)
- Input Wiring Type: Hardwired
- Charging Cable Length: 24 feet
- Surge Protection: True
- Connectivity
- Connector Type(s): SAE J1722 (Type 1) (Type of interface connection found on the device.)
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Compatibility
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Google Assistant, Amazon Alexa (Compatible with or able to be connected to other smart devices or applications.)
- Features
- Overload Protection: true (Features intended to protect the product from damage and overheating caused by overload.)
- Number of Vehicles Charged Simultaneously: 1
- Display Type: LED
- Mount Type: Wall
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Certifications and Standards: UL-2594
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Environmental
- Indoor or Outdoor Use: Indoor, Outdoor
- NEMA Enclosure Rating: Type 4
- Dimensions
- Product Height: 3.39 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 9.05 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 12.6 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 18 pounds (The out of box weight of the item.)
- Other
- UPC: 850019360240

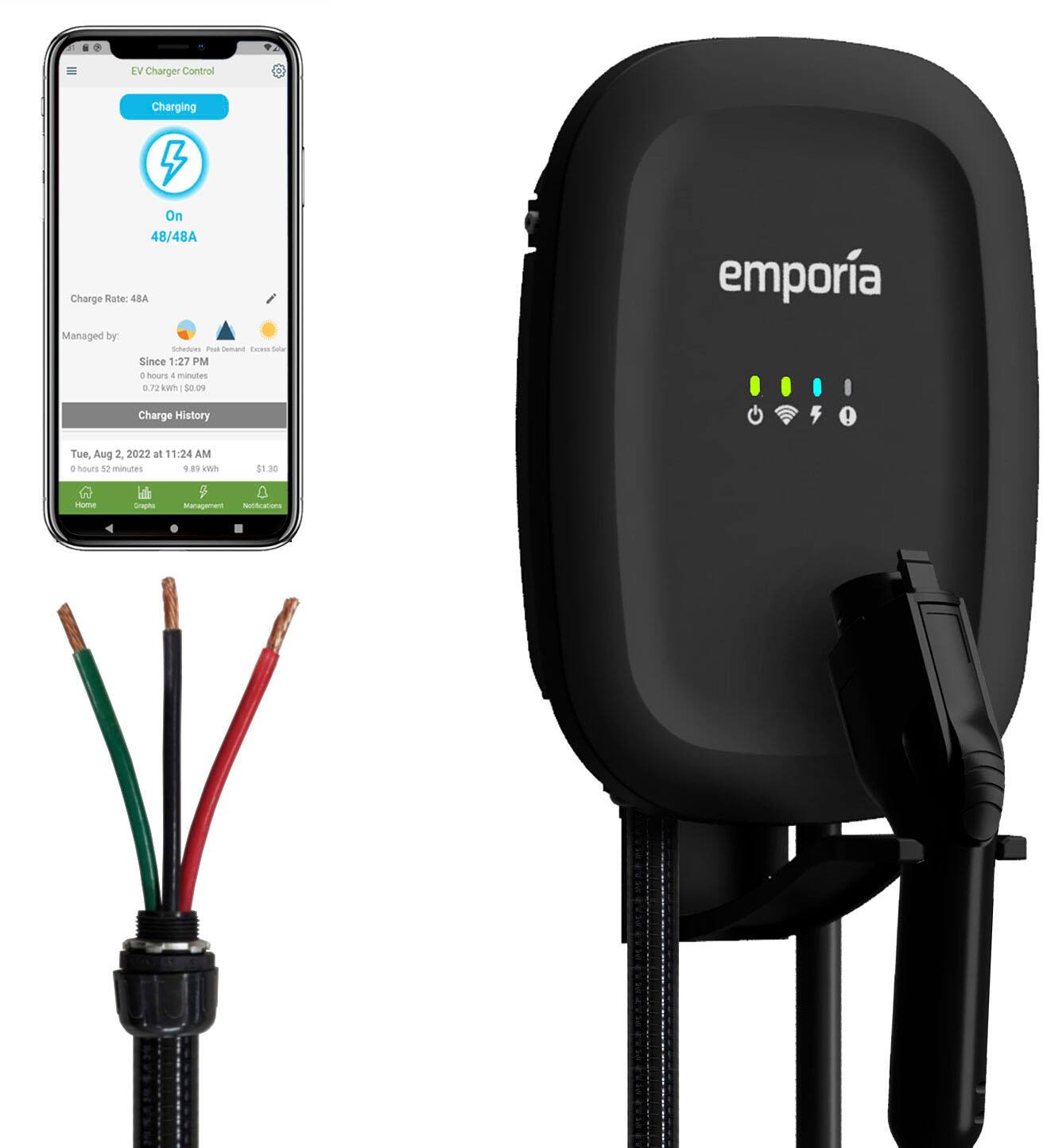

The Emporia EV Charging Station is a Level 2 electric vehicle charger that charges any EV up to 48 amps with hardwired installation. It comes with a 24’ cable (from charger to tip of gun) with an SAE J1772 connector so it works with all electric cars. Its IP66 enclosure is made to withstand the elements outdoors.
- UL AND ENERGY STAR CERTIFIED LEVEL 2 EV CHARGER: DEFAULT CHARGE RATE is 48A. WiFi Internet connection is required to raise or lower charge rate. Pair with an Emporia Vue Smart Home Energy Monitor to automatically charge only with excess solar power and curb charging during peak demand.
- UL LISTED WITH YOUR SAFETY IN MIND: Manufactured to meet the safety criteria defined by: NEC 625, SAE J1772 or J3400, UL 817, UL 991, UL 2231, UL 2251, and UL 2594. INSTALLS INDOORS OR OUTDOORS. Your charger will be safe from the elements with a rugged watertight NEMA Type 4 enclosure. Check with your state and local company to see if there are incentives and rebates in your area. PROTECTED BY A 3-YEAR WARRANTY when installed in North America per the instructions in the installation guide.
- Preconfigured for hardwired installation: 9.6kW (240V/40A) / 10kW (208V/48A) / 8.3kW (208V/40A) up to 48A Hardwired Installation with 36" hardwire whip. Requires a dedicated breaker at 60A+ for a 48A charge. A professional electrician is recommended.
- COMPATIBLE WITH ANY EV: The charger comes with a SAE J1772 connector (adapter required for Tesla EVs) and a 24' cable with integrated cable management.
- REAL-TIME ENERGY DATA: Requires a 2.4GHz Wifi connection with internet to monitor energy use and charging sessions with iPhone / Android / Web Browser app. Schedule charging with app. Easily manage the parameters to handle variable utility rate charges.
- UL AND ENERGY STAR CERTIFIED LEVEL 2 EV CHARGER: DEFAULT CHARGE RATE is 48A. WiFi Internet connection is required to raise or lower charge rate. Pair with an Emporia Vue Smart Home Energy Monitor to automatically charge only with excess solar power and curb charging during peak demand.
- UL LISTED WITH YOUR SAFETY IN MIND: Manufactured to meet the safety criteria defined by: NEC 625, SAE J1772 or J3400, UL 817, UL 991, UL 2231, UL 2251, and UL 2594. INSTALLS INDOORS OR OUTDOORS. Your charger will be safe from the elements with a rugged watertight NEMA Type 4 enclosure. Check with your state and local company to see if there are incentives and rebates in your area. PROTECTED BY A 3-YEAR WARRANTY when installed in North America per the instructions in the installation guide.
- Preconfigured for hardwired installation: 9.6kW (240V/40A) / 10kW (208V/48A) / 8.3kW (208V/40A) up to 48A Hardwired Installation with 36" hardwire whip. Requires a dedicated breaker at 60A+ for a 48A charge. A professional electrician is recommended.
- COMPATIBLE WITH ANY EV: The charger comes with a SAE J1772 connector (adapter required for Tesla EVs) and a 24' cable with integrated cable management.
- REAL-TIME ENERGY DATA: Requires a 2.4GHz Wifi connection with internet to monitor energy use and charging sessions with iPhone / Android / Web Browser app. Schedule charging with app. Easily manage the parameters to handle variable utility rate charges.
Q: What is the length of the charging cable?
A: The charging cable is 24 feet long.
Q: Is the EV charger compatible with Google Assistant?
A: This EV charger is compatible with Google Assistant.
Q: Does the EV charger have surge protection?
A: This EV charger does offer surge protection.
Q: What type of display does the EV charger have?
A: The EV charger uses an LED display.
Q: Can the EV charger be used indoors or outdoors?
A: This EV charger is suitable for both indoor and outdoor use.
Q: How many vehicles can the EV charger charge simultaneously?
A: This EV charger can only charge one vehicle at a time.
Q: What size breaker do I need ?
A: 60A to get 11.5kW of charging power.
