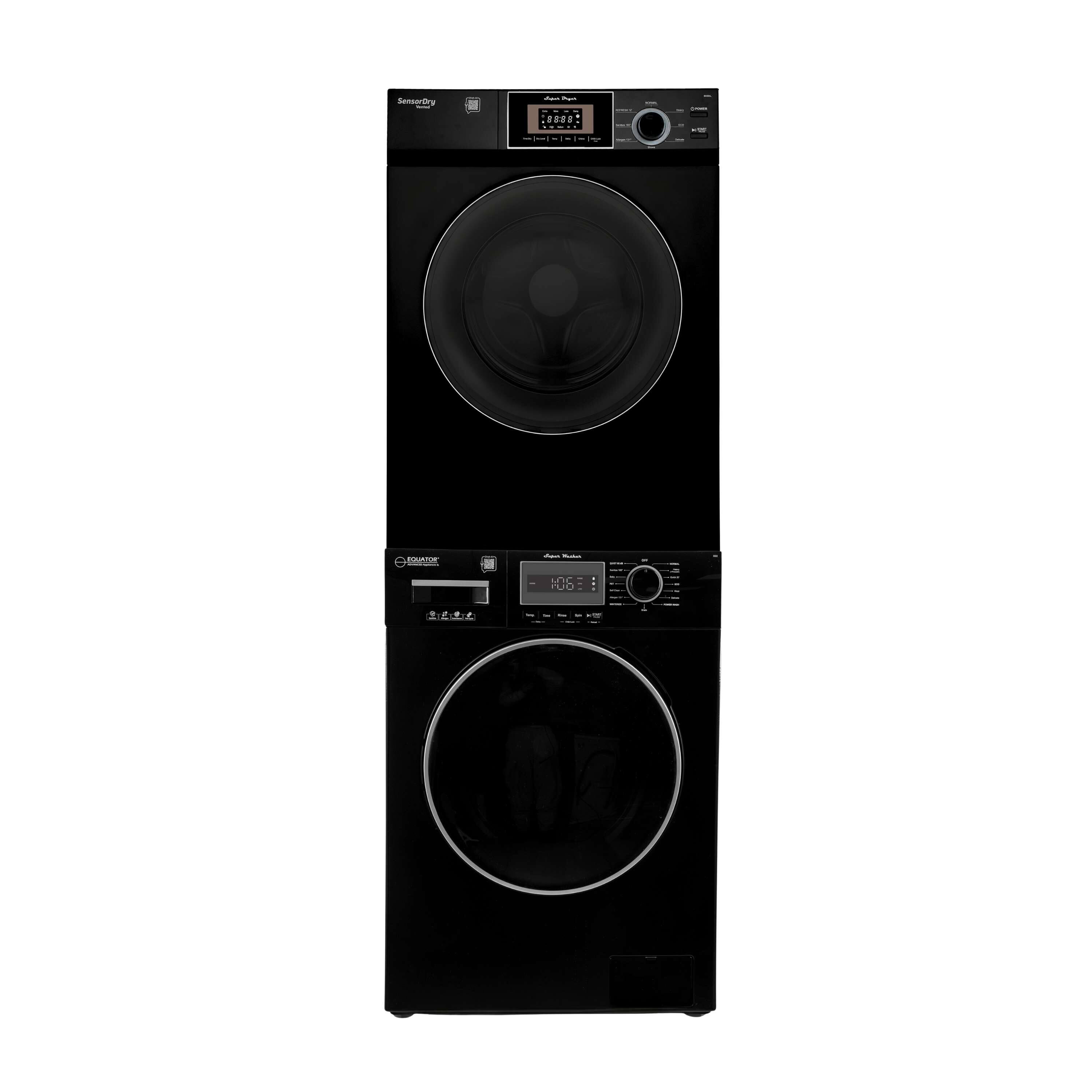

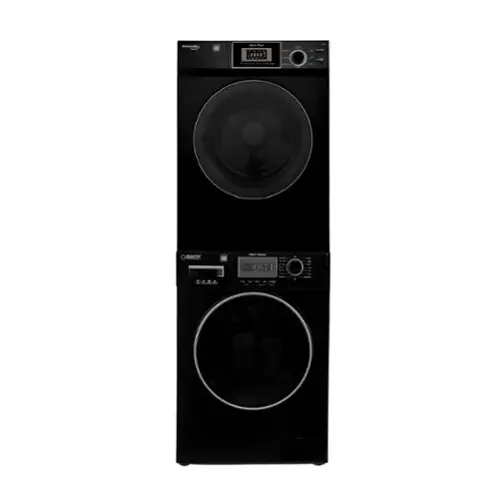

Equator - COMPACT STACKABLE LAUNDRY Washer EW 822 1.57cf + Dryer ED 866 DL 3.1cf 110V - Black
Related Item
Specifications
- Color FinishBlackProduct Height67 inchesProduct Width23.6 inchesProduct Depth22 inchesHigh-EfficiencyYesWasher/Dryer Combo TypeStacked units
- Key Specs
- Color Finish: Black
- Product Height: 67 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23.6 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 22 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- High-Efficiency: true (Washers with this label feature technology meant to use less water. High Efficiency (HE) washers may also be larger in capacity. Using High Efficiency (HE) detergent in these washers is highly recommended as they are designed to be quick-dispersing and operate in low water conditions by producing less suds, requiring less detergent. Not using the recommended detergent can lead to additional rinse cycles and increased water usage.)
- Washer/Dryer Combo Type: Stacked units
- Washer Load Type: Front load
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: Equator
- Model Number: EW 822 + ED 866 DL B
- Product Name: Equator COMPACT STACKABLE LAUNDRY Washer EW 822 1.57cf + Dryer ED 866 DL 3.1cf 110V
- Color: Black
- Color Finish: Black
- Commercial Merchandise: false (Commercial Merchandise refers to major appliances that are officially tested, certified, and labeled for commercial or industrial us, such as those used in restaurants or professional facilities. These products must comply with strict DOE performance standards. Misusing this label or omitting required energy disclosures may result in federal penalties.)
- Dimensions
- Product Height: 67 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23.6 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 22 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Height To Control Panel Top: 66.5 inches (Measurement from the bottom of the product to its top, including the control panel.)
- Dryer Depth With Door Open: 38.5 inches (Measurement from the back of the product to its front, with door fully open.)
- Product Weight: 198 pounds (The out of box weight of the item.)
- Capacity
- Washer Capacity: 1.57 cubic feet
- Dryer Capacity: 3.1 cubic feet
- Performance
- High-Efficiency: true (Washers with this label feature technology meant to use less water. High Efficiency (HE) washers may also be larger in capacity. Using High Efficiency (HE) detergent in these washers is highly recommended as they are designed to be quick-dispersing and operate in low water conditions by producing less suds, requiring less detergent. Not using the recommended detergent can lead to additional rinse cycles and increased water usage.)
- Vibration Reduction: true (Additional features, such as sensors that adjust spin speeds or weights that counter unbalanced loads, help to minimize vibration for smoother, quieter operation.)
- Maximum Spin Speed: 1200 revolutions per minute (This is the maximum spin speed of the tub in the final cycle. Higher revolutions per minute (RPM) will remove the water out of the clothes more quickly and effectively which can reduce drying time.)
- Features
- Automatic Temperature Control: true (This feature regulates hot and cold temperatures of the water or air within the appliance in order to keep them in the optimal range for each cycle.)
- Child Lock: true (Setting that allows appliance to be temporarily locked to prevent use.)
- Delay Start: true (Allows you to program the appliance to automatically run at a later time. This feature helps you coordinate with your household’s water needs, noise preferences, and more. Additionally, operating your appliance during off-peak hours may reduce energy costs.)
- End-Of-Cycle Signal: true (An audible alert and/or visual indicator that notifies you when a pre-selected cycle is complete.)
- Time-Remaining Display: true
- Bleach Dispenser: true
- Fabric Softener Dispenser: true
- Pre-Wash Detergent Dispenser: true
- Second Rinse: true
- Dryer Heating Source: Electric
- Sensor Dry: true (Feature that automatically senses the load's moisture level and adjusts the drying cycle time as needed.)
- Dryer Interior Light: true
- Design
- Washer/Dryer Combo Type: Stacked units
- Washer Load Type: Front load
- Exhaust Vent Location: Rear
- 4-Way Venting: true (The appliance has four possible vent locations (right, left, front, or rear), which allows for placement versatility.)

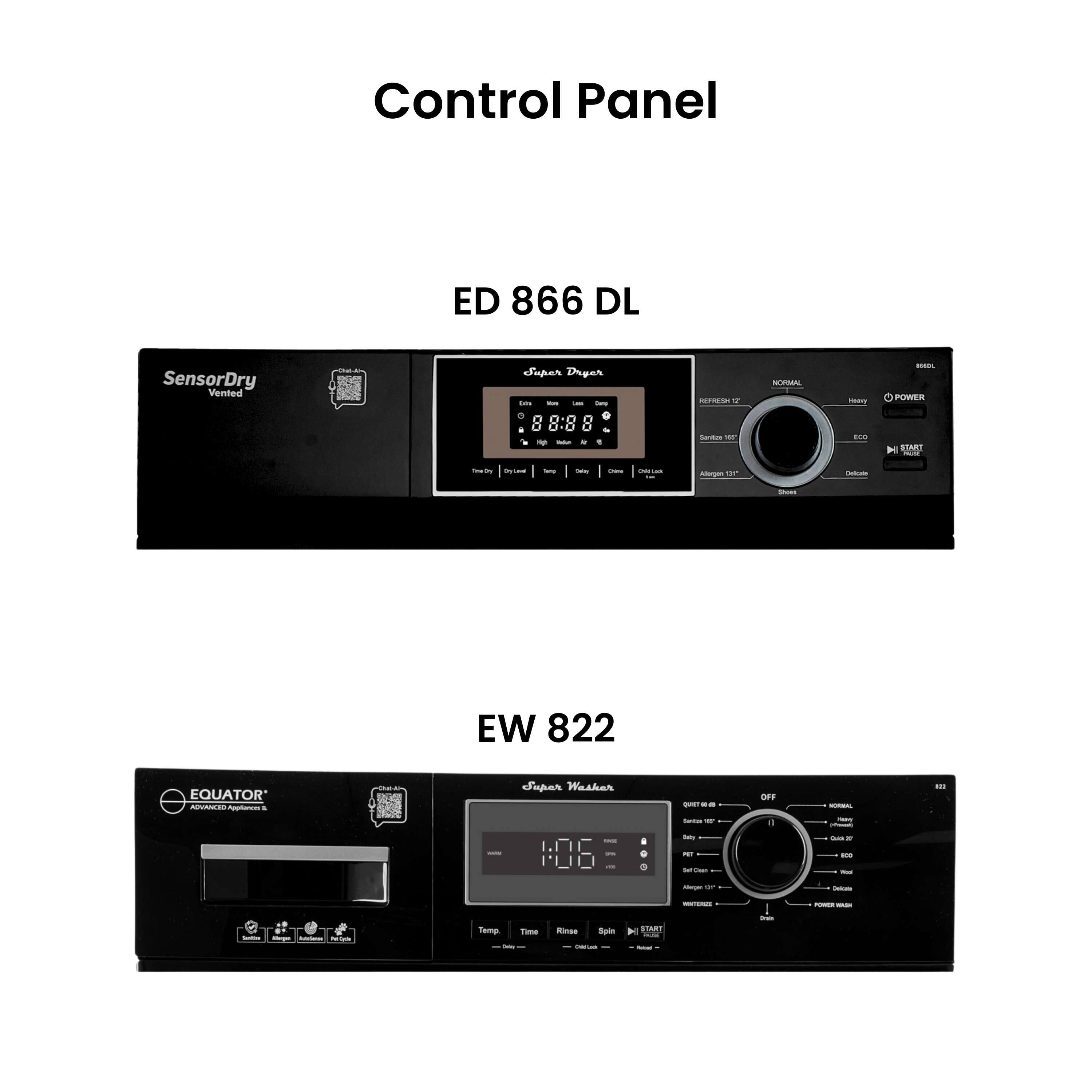

- Control Type: Touchpad, Touchscreen
- Display Type: LED
- Washer Tub/Drum Material: Stainless steel
- Dryer Drum Material: Stainless steel
- Dryer Door Style: Reversible
- Washer Window: true
- Dryer Window: true
- Cycle
- Number of Wash/Rinse Cycles: 12
- Wash/Rinse Cycles: Normal, Heavy (+Prewash), Quick 20', ECO, Wool, Delicate, Power Wash, Allergen 131°, Self Clean, PET, Baby, Sanitize 165°, Quiet 60 dB
- Number Of Drying Cycles: 8
- Drying Cycles: Normal, Heavy, Eco, Delicate, Shoes, Allergen 131°, Sanitize 165°, Refresh 12' (Dryers typically have multiple pre-programmed drying cycles to accommodate various fabrics and materials. These often include Normal/Regular, Permanent Press/Wrinkle Reduction, Heavy Duty, and Delicate/Gentle.)
- Options and Programs: Winterize, Refresh, Custom Dry Time, 4 Memory Programs, Self- Clean, Drain Spin Only, Add-a -Sock, Delay Start, Pause
- Number of Wash Temperatures: 3
- Number of Rinse Temperatures: 3
- Number of Drying Temperatures: 7
- Temperature Settings: Four dry levels (Extra, More, Less, Damp) , Three heat levels (High, Medium, Air)
- Number of Spin Speeds: 3
- Soil Levels: Heavy (Washers with the option to select the soil level will employ different wash cycles to optimally clean the respective load. Most have three options: light, normal, or heavy.)
- Included
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Fill Hoses Included: true
- Drain Hose Included: true
- Electrical
- Estimated Annual Electricity Use (Washer): 96 kilowatt hours (Predicted amount of electricity needed to operate the washing machine under average conditions for one year.)
- Estimated Annual Operating Cost (Washer): 7 United States dollars (Predicted cost of operating the washine machine under average conditions for one year.)
- Amperage: 15 amperes (Strength of electrical current.)
- Washer Voltage: 110 volts
- Dryer Voltage: 110 volts
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- ADA Compliant: true (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Consortium for Energy Efficiency (CEE) Rating: Not Available
- Product Safety Certifications and Standard(s): ETL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- NSF Listed: true (Meets the National Sanitation Foundation's standards for public health protection.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Connectivity
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 747037990439
Experience a new level of laundry innovation in any-sized space with the Equator EW 822 1.57 cu. ft. Super Washer and the ED 866 DL 3.1 cu. ft. Vented Digital Dryer. This versatile stackable set is designed to fit compact interiors like apartments, RVs, and tiny homes, with the washer measuring 33.5 x 23.5 x 21.85 inches and the dryer measuring 33.5 x 23.6 x 22 inches. For streamlined installation, the Direct Line feature allows the washer to plug directly into the back of the dryer, using advanced electronics to prevent breaker tripping while running both units simultaneously. The EW 822 washer offers 15 custom cycles, including specialized Sanitize 165°F, Allergen 131°F, PET, Baby, and Quiet 60 dB options, alongside efficient features like an automatic water level sensor that weighs clothing, a reload function, and a 24-hour delay start. The accompanying ED 866 DL dryer features Sensor Dry technology, a reversible door, and unique programs such as a shoe cycle, a 12-minute refresh, and multiple heat levels. Both units are built for durability and safety, featuring stainless steel drums, electronic LED control panels, and child-lock security.
- EW 822 + ED 866 DL: Flexible Design & Intelligent Setup: With flexible placement, this laundry set allows units to be stacked to save vertical space or installed side-by-side. The Direct Line system simplifies setup by allowing you to insert the washer plug into a socket at the back of the dryer, utilizing advanced electronics to prevent breaker tripping. Additionally, the washer features an angled 45° door handle to reduce bending and adjustable leveling legs for stability.
- Specialized Wash & Dry Cycles for Versatile Fabric Care: Clean with precision using 15 wash programs, including a dedicated Pet Cycle to remove hair, odors, and dander. Advanced health features include a Sanitize cycle that heats water to 165°F to kill germs and an Allergen cycle at 131°F designed specifically to eliminate dust mites. For quick maintenance of clothes, the dryer offers a 12-minute Refresh cycle and an Automatic Wrinkle Guard.
- Intuitive Touch Control & Customized Programs: Easily monitor progress via the LED display and electronic control panel. The washer and dryer set offers full flexibility with adjustable settings for temperature, time, rinse, and spin speed, alongside a 24-hour Delay Start. You can utilize the Reload function to add clothes mid-cycle or use the Add-a-Sock option for smaller items.
- Advanced Performance & Maintenance: Sensor Dry technology automatically detects moisture levels for energy efficiency, while the Automatic Water Level sensor weighs clothes to use the exact amount of water needed. Maintenance is simplified with a Self-Clean drum option, a Clean Lint Filter reminder, and built-in diagnostics with 9 error codes to reduce service downtime. The washer even includes a Winterize cycle to prepare the machine for storage in just 2 minutes.
- Quiet Operation & Safety Protections: Operating at a Quiet 60 dB, this set is ideal for apartments, RVs, or families working different shifts. Both units feature durable, pearl-design Stainless Steel Drums for longevity. Safety is a priority with a Child Lock to secure cycles and a built-in surge protector and voltage stabilizer to protect the appliance from electrical fluctuations.
- EW 822 + ED 866 DL: Flexible Design & Intelligent Setup: With flexible placement, this laundry set allows units to be stacked to save vertical space or installed side-by-side. The Direct Line system simplifies setup by allowing you to insert the washer plug into a socket at the back of the dryer, utilizing advanced electronics to prevent breaker tripping. Additionally, the washer features an angled 45° door handle to reduce bending and adjustable leveling legs for stability.
- Specialized Wash & Dry Cycles for Versatile Fabric Care: Clean with precision using 15 wash programs, including a dedicated Pet Cycle to remove hair, odors, and dander. Advanced health features include a Sanitize cycle that heats water to 165°F to kill germs and an Allergen cycle at 131°F designed specifically to eliminate dust mites. For quick maintenance of clothes, the dryer offers a 12-minute Refresh cycle and an Automatic Wrinkle Guard.
- Intuitive Touch Control & Customized Programs: Easily monitor progress via the LED display and electronic control panel. The washer and dryer set offers full flexibility with adjustable settings for temperature, time, rinse, and spin speed, alongside a 24-hour Delay Start. You can utilize the Reload function to add clothes mid-cycle or use the Add-a-Sock option for smaller items.
- Advanced Performance & Maintenance: Sensor Dry technology automatically detects moisture levels for energy efficiency, while the Automatic Water Level sensor weighs clothes to use the exact amount of water needed. Maintenance is simplified with a Self-Clean drum option, a Clean Lint Filter reminder, and built-in diagnostics with 9 error codes to reduce service downtime. The washer even includes a Winterize cycle to prepare the machine for storage in just 2 minutes.
- Quiet Operation & Safety Protections: Operating at a Quiet 60 dB, this set is ideal for apartments, RVs, or families working different shifts. Both units feature durable, pearl-design Stainless Steel Drums for longevity. Safety is a priority with a Child Lock to secure cycles and a built-in surge protector and voltage stabilizer to protect the appliance from electrical fluctuations.
- EW 822 + ED 866 DL: Flexible Design & Intelligent Setup: With flexible placement, this laundry set allows units to be stacked to save vertical space or installed side-by-side. The Direct Line system simplifies setup by allowing you to insert the washer plug into a socket at the back of the dryer, utilizing advanced electronics to prevent breaker tripping. Additionally, the washer features an angled 45° door handle to reduce bending and adjustable leveling legs for stability.
- Specialized Wash & Dry Cycles for Versatile Fabric Care: Clean with precision using 15 wash programs, including a dedicated Pet Cycle to remove hair, odors, and dander. Advanced health features include a Sanitize cycle that heats water to 165°F to kill germs and an Allergen cycle at 131°F designed specifically to eliminate dust mites. For quick maintenance of clothes, the dryer offers a 12-minute Refresh cycle and an Automatic Wrinkle Guard.
- Intuitive Touch Control & Customized Programs: Easily monitor progress via the LED display and electronic control panel. The washer and dryer set offers full flexibility with adjustable settings for temperature, time, rinse, and spin speed, alongside a 24-hour Delay Start. You can utilize the Reload function to add clothes mid-cycle or use the Add-a-Sock option for smaller items.
- Advanced Performance & Maintenance: Sensor Dry technology automatically detects moisture levels for energy efficiency, while the Automatic Water Level sensor weighs clothes to use the exact amount of water needed. Maintenance is simplified with a Self-Clean drum option, a Clean Lint Filter reminder, and built-in diagnostics with 9 error codes to reduce service downtime. The washer even includes a Winterize cycle to prepare the machine for storage in just 2 minutes.
- Quiet Operation & Safety Protections: Operating at a Quiet 60 dB, this set is ideal for apartments, RVs, or families working different shifts. Both units feature durable, pearl-design Stainless Steel Drums for longevity. Safety is a priority with a Child Lock to secure cycles and a built-in surge protector and voltage stabilizer to protect the appliance from electrical fluctuations.
Whats Included
- 2
- 2
- 2
Product Manuals
Disclaimers
- Power Cords Included
- Power Cords Included
- Power Cords Included
