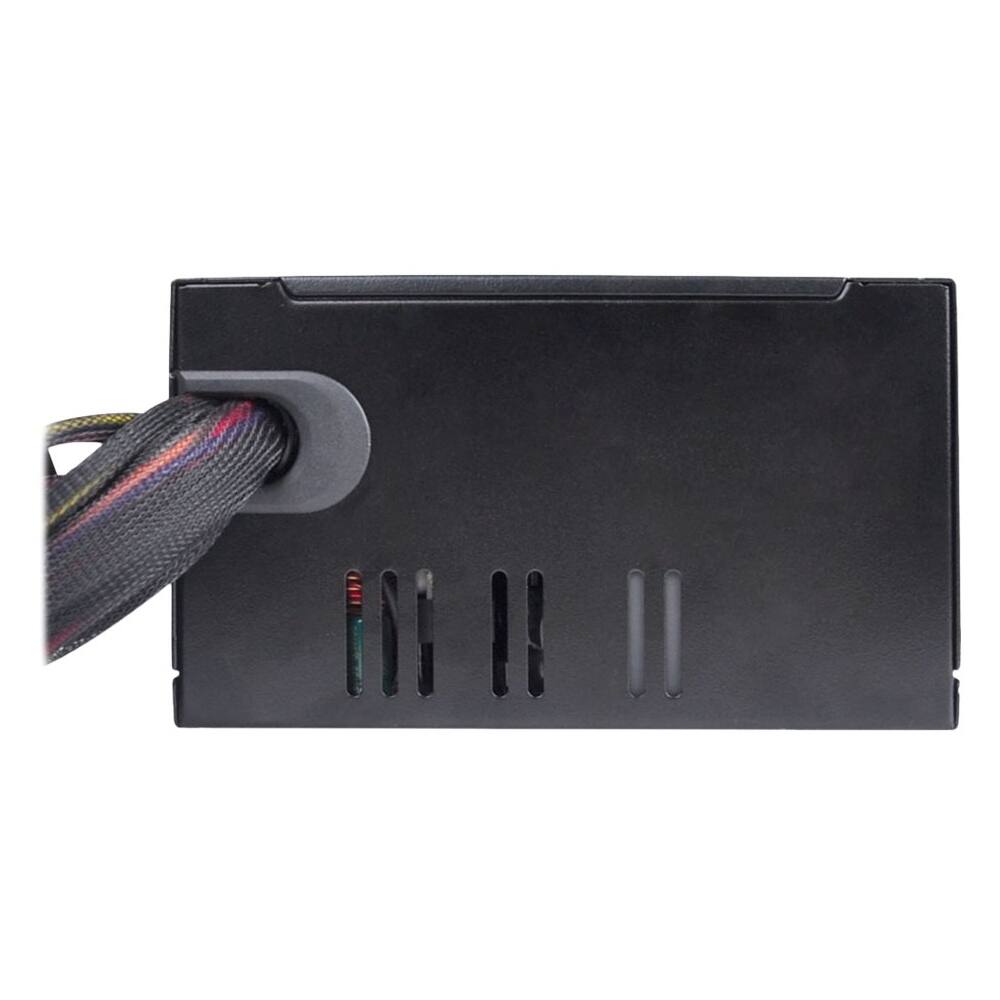

product image
EVGA

EVGA - 600W ATX12V Power Supply - Black

Model: 100-B1-0600-KR
SKU: 6204514
This item is no longer available in new condition. See similar items below
  • Key Specs
    • Wattage: 600 watts (Measurement of electrical power.)
    • Modular: Non-modular
    • Energy Efficiency: 80 PLUS Bronze (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
    • ATX Connector: 24 Pin (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
    • PCIe Connector: 2x 8pin (6+2) (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
    • Peripheral Connector: 3 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
    • SATA Connector: 6x (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
    • Product Length: 139.7 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
  • General
    • Brand: EVGA
    • Model Number: 100-B1-0600-KR
    • Product Name: 600W ATX12V Power Supply
    • Color: Black
  • Power
    • Wattage: 600 watts (Measurement of electrical power.)
    • Modular: Non-modular
    • Energy Efficiency: 80 PLUS Bronze (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
    • Specification Compliance: ATX12V / EPS12V
    • Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
    • Cord Length: 3.9 feet
  • Connectivity
    • ATX Connector: 24 Pin (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
    • Floppy Connector: true (The configuration of the connector as it connects a computer power supply unit to a floppy disk drive.)
    • PCIe Connector: 2x 8pin (6+2) (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
    • Peripheral Connector: 3 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
    • SATA Connector: 6x (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
  • Dimensions
    • Product Height: 83.82 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Product Width: 149.86 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Length: 139.7 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
    • Product Weight: 70.5 ounces (The out of box weight of the item.)
  • Cooling
    • Cooling Fan Type: Other
  • Other
    • UPC: 843368025601

Build an efficient desktop computer on a budget with this 600W EVGA power supply. It runs at over 80 percent efficiency under typical loads, and its high amperage, single-rail design provides maximum power and efficiency. This EVGA power supply comes with a 120mm fan and multiple heavy-duty protections for quiet, safe operation.

PC Gaming Buying Guide

  • 600W power supply: Delivers the power needed to run your PC.
  • AC 100-240V input: With input 50-60Hz frequency for wide-ranging use.
  • ATX12V compliance: Meets industry standards.
  • Maximum safety to your critical system components: Provides overheat, overcurrent, overvoltage, overpower, undervoltage and short-circuit protection.
  • 80 PLUS Bronze Certification: Delivers 85% energy efficiency at real world load conditions.
  • Single 12V rail: For optimal performance.
Whats Included
  • EVGA 600W ATX12V Power Supply
