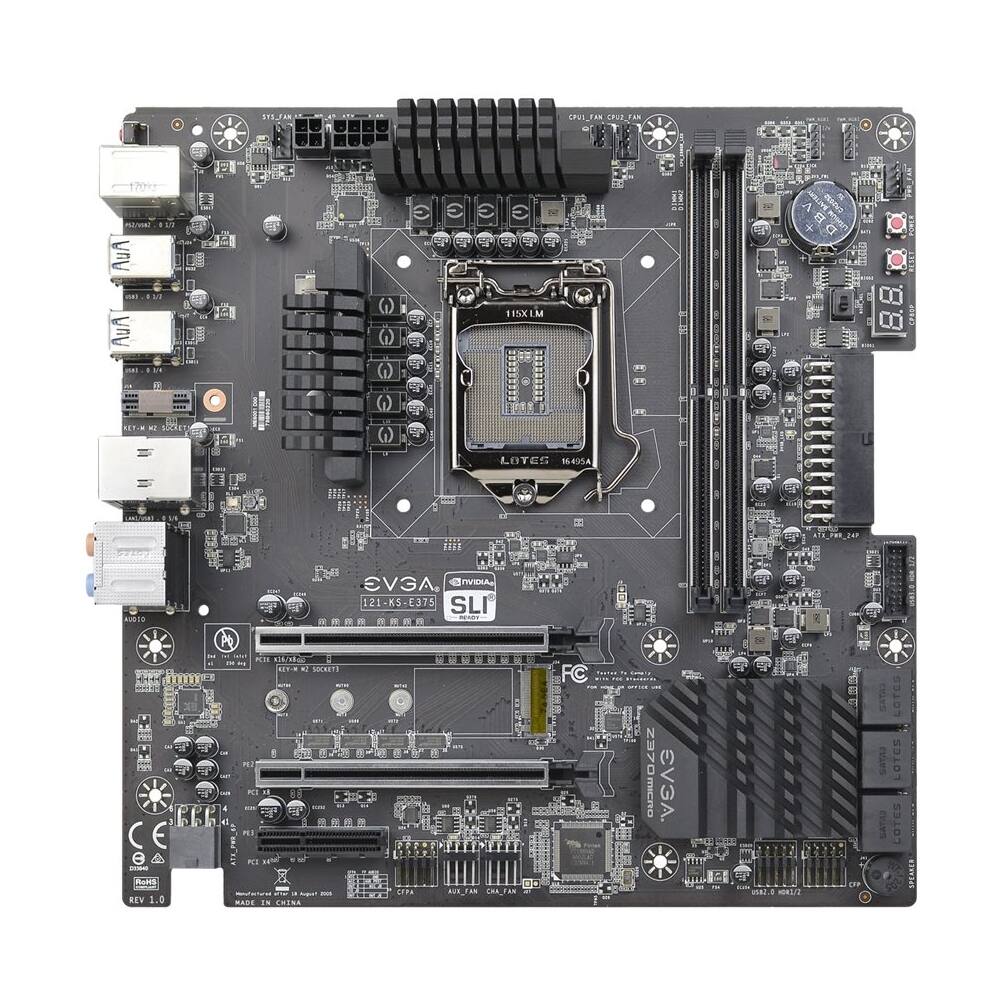

EVGA - Z370 Micro (Socket LGA1151) USB 3.0 Intel Motherboard
Model: 121-KS-E375-KR
SKU: 6224901
This item is no longer available in new condition. See similar items below
- Key Specs
- Chipset: Intel Z370
- Form Factor: microATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1151 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Number Of Memory Slots: 2
- Maximum Memory Supported: 32 gigabytes
- General
- Brand: EVGA
- Model Number: 121-KS-E375-KR
- Product Name: Z370 Micro (Socket LGA1151) USB 3.0 Intel Motherboard
- Compatibility
- Chipset: Intel Z370
- Form Factor: microATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1151 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: Intel Core i5, Intel Core i3, Intel Core i7
- Connectivity
- Power Connector: 24-pin main power connector, 8-pin ATX12V connector, 6-pin PCI Express power connector (The configuration of the connector as it connects the motherboard to a power supply unit.)
- Slot
- Number Of Memory Slots: 2
- Dimensions
- Product Length: 9.6 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 9.6 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Memory
- Maximum Memory Supported: 32 gigabytes
- Memory Slot Type: 288-pin DIMM
- Other
- UPC: 843368049874
Build your own blazing fast computer with this EVGA motherboard. It supports Intel's eighth-generation chips for fast processing power, and it lets you overclock efficiently thanks to its digital VRM and external clock generator. This EVGA motherboard provides a platform for installing up to 32GB of DDR4 RAM so you can multitask.
- Supports Intel® processors: Including Core™ i5, Core™ i3 and Core™ i7 in an LGA 1151 socket.
- 4133MHz (OC) system speed: With an Intel® Z370 chipset for fast computing.
- NVIDIA 2-way SLI graphics support: Provides ultrarealistic image detail when gaming.
- Two 288-pin DDR4 SDRAM DIMM sockets: Support up to 32GB of system memory.
- Supports Realtek 8-channel audio: For an excellent sonic performance.
- Peripheral interfaces: Include 1 PS/2 (mouse/keyboard), 2 USB 2.0, 6 USB 3.0, 1 LAN (Gigabit Ethernet), 1 SPDIF out, 1 audio line-out (rear)/line-in, 1 audio line-out (center/subwoofer), 1 microphone, 1 audio line-out (side surround), and more.
- Expansion capabilities: Include 2 PCI Express 3.0 x16 and 1 PCI Express 3.0 x4.
Whats Included
- 2 x Serial ATA cable
- EVGA Z370 Micro
- External antenna, I/O back plate, WiFi-802.11ac Module
- Software
