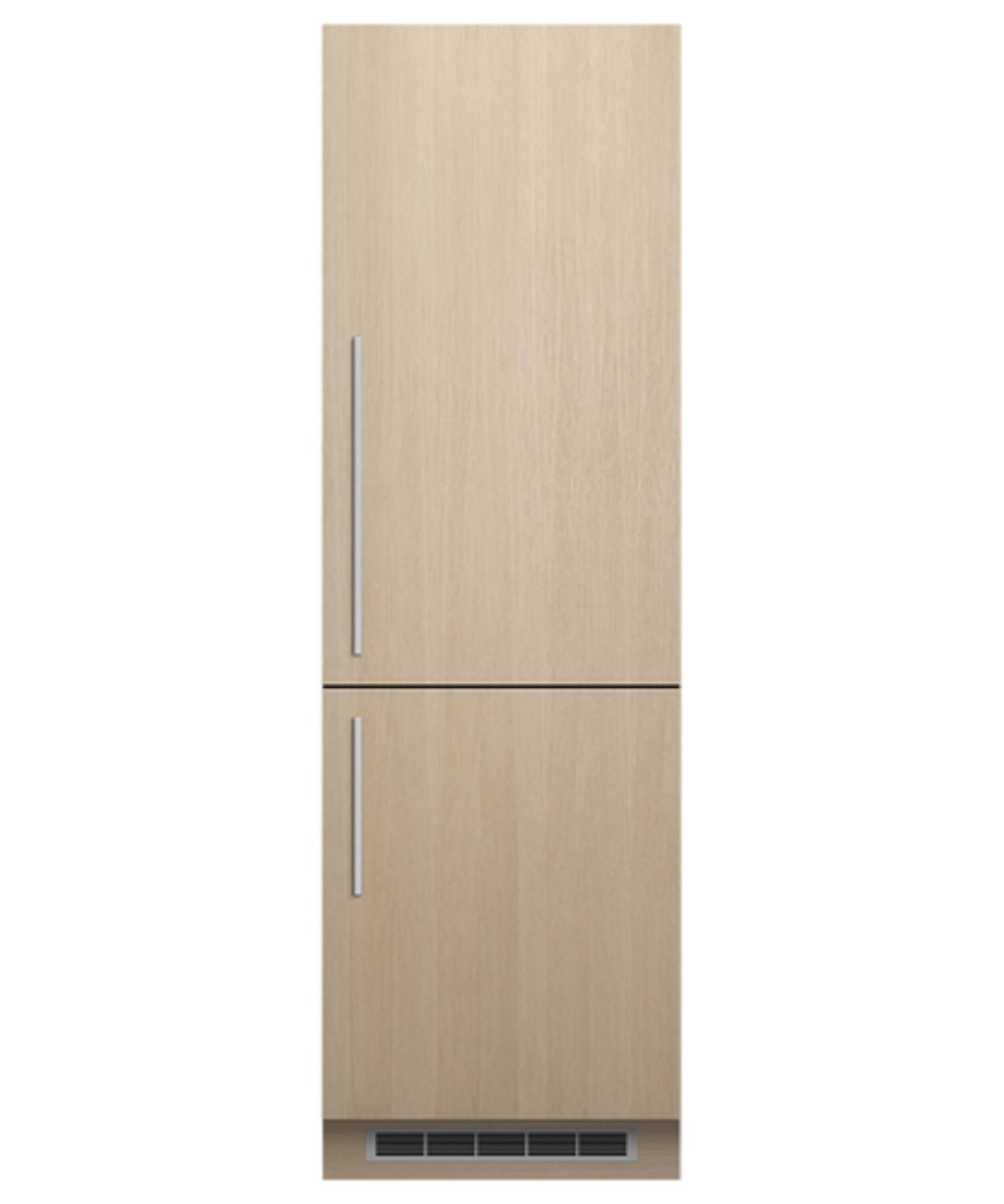

Fisher & Paykel - 24 in. Wide Integrated 9.5 Cu. Ft. Smart Bottom Mount Refrigerator - Custom Panel Ready
Specifications
- Product Height69 3/4 inchesProduct Width21 11/16 inchesHeight To Top Of Door Hinge68 inchesTotal Capacity9.5 cubic feetRefrigerator StyleBottom FreezerLighting TypeLED
- Key Specs
- Product Height: 69 3/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 21 11/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Height To Top Of Door Hinge: 68 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Total Capacity: 9.5 cubic feet
- Refrigerator Style: Bottom Freezer
- Lighting Type: LED
- Ice Maker: No
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: Fisher & Paykel
- Model Number: RB2470BRV2
- Product Name: 24 in. Wide Integrated 9.5 Cu. Ft. Smart Bottom Mount Refrigerator
- Color: Custom Panel Ready
- Dimensions
- Product Height: 69 3/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 21 11/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 11/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Height To Top Of Door Hinge: 68 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Standardized Width: 24 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Counter Depth: true (The product case installs flush with the depth of standard kitchen counters to provide a built-in appearance.)
- Product Weight: 179 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 70 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 24 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 23 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Total Capacity: 9.5 cubic feet
- Refrigerator Capacity: 6.4 cubic feet (Total amount of space within the refrigerator compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Freezer Capacity: 3.1 cubic feet (Total amount of space within the freezer compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Features
- Configuration: Built-in (The size, arrangement, and physical configuration of the product.)
- Panel Ready: true (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Refrigerator Style: Bottom Freezer
- Defrost Type: Frost free (Ice build-up can reduce the appliance’s cooling capacity, making it work harder and consume more energy. Defrosting is necessary to maintain its efficiency and each type has its own advantages depending on user needs and preferences. Manual defrost appliances require unplugging to melt ice naturally, but offer more space, lower energy consumption, and lower cost without the internal heating element. Frost-free appliances regulate temperature to prevent ice build-up automatically. Automatic defrost systems use a timer to circulate heat and prevent ice accumulation, while adaptive defrost systems use sensors to determine the optimal times for heat circulation.)
- Reversible Door Hinge: false
- Hinge Setting: Fixed right
- Lighting Type: LED
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Ice & Water
- Ice Maker: No
- Ice and Water Dispenser: None
- Storage
- Number of External Doors/Drawers: 2
- Number of Refrigerator Shelves: 3
- Refrigerator Shelf Style: Removable
- Humidity-Controlled Crisper: true
- Refrigerator Shelf Material: Glass
- Freezer Info
- Freezer Compartment: true
- Filter Info
- Water Filtration: false
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Consortium for Energy Efficiency (CEE) Rating: Not Available
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Compatibility
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 822843270217
Perfect for smaller kitchens or multi-residential spaces, this compact refrigerator integrates seamlessly behind your cabinetry. It offers generous storage, a Variable Temperature Zone for precise food care, and Wi-Fi connectivity for helpful alerts via the SmartHQ app.
- Seamless integration: This 9.5 Cu. Ft. compact refrigerator is designed to sit flush within standard joinery, with a panel-ready front for a cohesive kitchen finish. Sized to suit a 24" cavity, it’s an ideal choice for multi-residential developments or any space where seamless integration matters.
- Clever Energy: With highly efficient vacuum insulation reducing heat transfer, this fridge uses only the energy it needs while keeping your food fresher for longer.
- Simple, universal fit: Installation is fast and flexible, with a reversible hinge and a design that suits common cabinetry systems, including European modular kitchens.
- Variable temperature drawer: The Variable Temperature Zone drawer lets you adjust settings to suit different food types. Choose from Fruit & Veg, Beverage, or Meat & Seafood modes to help keep food fresher for longer.
- Activesmart foodcare: ActiveSmart™ Foodcare learns how you live and adjusts airflow, temperature and humidity inside the refrigerator to create a stable environment that helps keep food fresher for longer.
- Fast freezing: Fast Freeze rapidly drops the freezer temperature to –11°F for up to 12 hours to help lock in the texture, taste, and nutrients of fresh food. The frost-free design also means you’ll never need to manually defrost the freezer compartment.
- Design quality: The premium design includes a backlit LED light panel, strong glass shelving that is removable, and quality hinges designed for everyday use.
Product Manuals
Compare similar products
Perfect for smaller kitchens or multi-residential spaces, this compact refrigerator integrates seamlessly behind your cabinetry. It offers generous storage, a Variable Temperature Zone for precise food care, and Wi-Fi connectivity for helpful alerts via the SmartHQ app.
(Panel Not Included)This Two-piece set panel-ready fridge is shipped via dedicated logistics with professional handling to protect the unit during transit, with delivery arrangements coordinated to accommodate your schedule and the unit delivered to your residence entrance for convenient receipt. Designed with a built-in panel-ready style, this refrigerator seamlessly integrates with your kitchen cabinetry to create a unified, customized look suitable for modern kitchens. It features precise temperature and humidity control, maintaining a consistent temperature between 36°F to 46°F and 7°F to -11°F to keep contents optimally chilled, while the bottom drawer offers adjustable humidity control for specialized storage of frozen items. The variable-speed compressor adjusts cooling power based on demand, ensuring efficient performance with quiet operation at just 38 dB, making it ideal for open-plan living spaces. For optimal performance, we recommend allowing the fridge to stand upright for 24–48 hours before plugging it in after delivery to ensure that all internal components settle properly and the appliance functions as expected.
