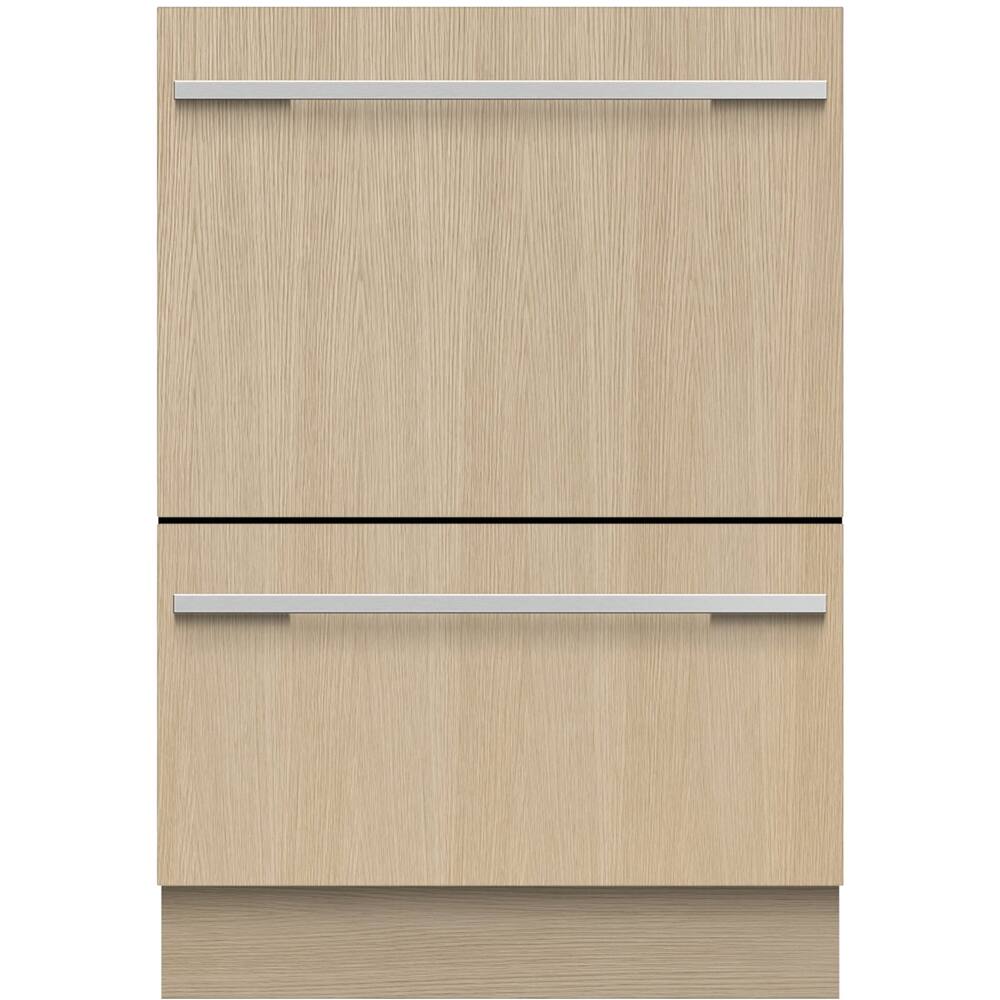

Fisher & Paykel - 24" Top Control Built-In Dishwasher - Custom Panel Ready
Delivery to
Need-haul away?
- We’ll haul away your old item and make sure it’s properly and safely recycled.
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
Related Item
Specifications
- Color FinishCustomProduct Height34 inchesProduct Width23 1/2 inchesProduct Depth22 1/2 inchesOperating Sound Level44 decibels adjustedNumber Of Racks2
- Key Specs
- Color Finish: Custom
- Product Height: 34 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 1/2 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 22 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Operating Sound Level: 44 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Number Of Racks: 2
- Tub Finish: Plastic (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Place Setting Capacity: 14 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- General
- Brand: Fisher & Paykel
- Model Number: DD24DHTI9 N
- Product Name: 24" Top Control Built-In Dishwasher
- Color: Custom Panel Ready
- Color Finish: Custom
- Dimensions
- Product Height: 34 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 1/2 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 22 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 121 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 36 3/8 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 23 3/5 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 22 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Drying Method: Heated drying (Appliances that use heat to dry the dishes will include a heating element or minerals which transform moisture into heat. A fan or vent then circulates the hot dry air throughout the tub during the drying cycle. This may reduce drying time and the risk of water spots. Appliances that use minerals to produce heat are considered more energy efficient than those that include a heating element. Appliances that use condensation drying are considered more energy efficient than those that use heated drying. Instead, high temperature water is produced during the final rinse cycle which warms the interior and eventually condensates and drains out of the machine.)
- Operating Sound Level: 44 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Delay Start: true (Allows you to program the appliance to automatically run at a later time. This feature helps you coordinate with your household’s water needs, noise preferences, and more. Additionally, operating your appliance during off-peak hours may reduce energy costs.)
- End-Of-Cycle Signal: true (An audible alert and/or visual indicator that notifies you when a pre-selected cycle is complete.)
- Cycle Specifications
- Number of Cycles: 15 (Standard dishwashers have at least 3 cycles, each with different water pressure, speed, and temperature settings designed for particular loads.)
- Options and Programs: Half load, delicate wash, quick wash, normal, rinse, eco wash, heavy wash, sanitary, fast, extra dry
- NSF-Certified Sanitization Cycle: false (Meets the National Sanitation Foundation (NSF) standards for performance and cleaning effectiveness. When operated on the sanitizing cycle, an NSF-Certified dishwasher reaches a final rinse temperature of 150⁰ Fahrenheit and achieves a minimum 99.999% percent reduction of bacteria.)
- Water Consumption Per Cycle: 3.6 gallons (Estimated amount of water used during a standard wash cycle. Most standard-size dishwashers today use an average of 3-6 gallons.)
- Rack Features
- Number Of Racks: 2
- Rack Material: Other
- Design
- Panel Ready: true (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Dishwasher Type: Built-in dishwashers
- Tub Finish: Plastic (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Control Type: Touchpad
- Control Location: Top control
- Handle Type: Bar handle
- Place Setting Capacity: 14 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- Electrical Specification
- Estimated Annual Electricity Use: 286 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 36 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Consortium for Energy Efficiency (CEE) Rating: CEE Not Qualified
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Other
- UPC: 822843812165
Update your kitchen with this Fisher & Paykel DishDrawer integrated dishwasher. The built-in water softener reduces minerals for spot-free glasses, and the double-drawer design blends with cabinets for a sleek look. Delayed start, knock-to-pause functionality and 15 program settings make this Fisher & Paykel DishDrawer integrated dishwasher convenient to use.
- Simple setting navigation: Electronic controls allow ease of use.
- Flexible loading options: Folding tines, foldable cup racks, knife clip and multipurpose clip.
- 12-hour delay-start: Lets you set the dishwasher to start running while you're working, sleeping or running errands.
- Accommodates up to 14 place settings: Generous interior space means more clean dishes, fewer loads.
- Uses less than 3.9 gal. per cycle: To minimize water use.
- Free delivery on appliance orders $399 and up: Dishwashers require special installation, which is not included with delivery. Call 1-888-BEST BUY (1-888-237-8289) to find out more and to purchase installation.
- Required parts sold separately: Find essential parts for installation in the accessories section on this page.
- Need more information?: See what's included with home delivery and installation.
- Simple setting navigation: Electronic controls allow ease of use.
- Flexible loading options: Folding tines, foldable cup racks, knife clip and multipurpose clip.
- 12-hour delay-start: Lets you set the dishwasher to start running while you're working, sleeping or running errands.
- Accommodates up to 14 place settings: Generous interior space means more clean dishes, fewer loads.
- Uses less than 3.9 gal. per cycle: To minimize water use.
- Free delivery on appliance orders $399 and up: Dishwashers require special installation, which is not included with delivery. Call 1-888-BEST BUY (1-888-237-8289) to find out more and to purchase installation.
- Required parts sold separately: Find essential parts for installation in the accessories section on this page.
- Need more information?: See what's included with home delivery and installation.
Whats Included
- Fisher & Paykel Double DishDrawer DD24DHTI9_N
- 2 x cutlery basket
- Fisher & Paykel Double DishDrawer DD24DHTI9_N
- 2 x cutlery basket
Product Manuals
Documents
- Energy_Guide_PDF
- Energy_Guide_PDF
Q: What is the purpose of the built-in water softener, and how does it enhance the dishwashing process?
A: The built-in water softener in Fisher & Paykel DishDrawer integrated dishwashers reduces the concentration of minerals like calcium and magnesium in hard water. By softening the water, it prevents glassware from becoming cloudy and dishes from developing spots or a white film, ensuring spot-free and sparkling clean results.
A: The handle type of this Fisher & Paykel dishwasher is a bar handle. It contributes to the overall design by providing a sleek and modern look, while also being easy to grip and use. The bar handle blends seamlessly with the dishwasher's cabinetry, creating a cohesive and stylish appearance.
Q: What are the dimensions of this dishwasher, and how do they compare to standard-sized dishwashers?
A: The dimensions of the Fisher & Paykel 24" Top Control Built-In Dishwasher are 34 inches in height, 23 1/2 inches in width, and 22 1/2 inches in depth. Compared to standard-sized dishwashers, which typically measure around 24 inches in width, this dishwasher is slightly wider. However, it is of a similar height and depth.
Q: How does the touchpad control type affect the user experience, and what are its advantages?
A: The touchpad control type offers a sleek and modern design, enhancing the overall user experience. It allows for easy selection of wash programs and options with just a touch, providing a user-friendly interface. Additionally, the touchpad controls are highly responsive and precise, ensuring accurate input and control over the dishwasher's functions.
A: This Fisher & Paykel dishwasher requires a voltage of 120 volts for its operation. A standard 120-volt electrical outlet is needed to power this dishwasher.
A: The Fisher & Paykel 24" Top Control Built-In Dishwasher features a custom panel-ready design, allowing you to match the color finish to your kitchen cabinets for a seamless and integrated look. This flexibility makes it suitable for complementing various kitchen styles, from modern and minimalist to traditional and rustic.
A: The custom panel-ready feature of the Fisher & Paykel 24" Top Control Built-In Dishwasher allows users to customize the appearance of their dishwasher by adding a custom panel that matches their kitchen cabinets. This enhances kitchen design flexibility by enabling a seamless integration of the dishwasher into the overall kitchen design, creating a cohesive and aesthetically pleasing look.
A: Yes, this dishwasher provides an end-of-cycle signal. It uses audible beeps to notify the user when the dishes are clean.
