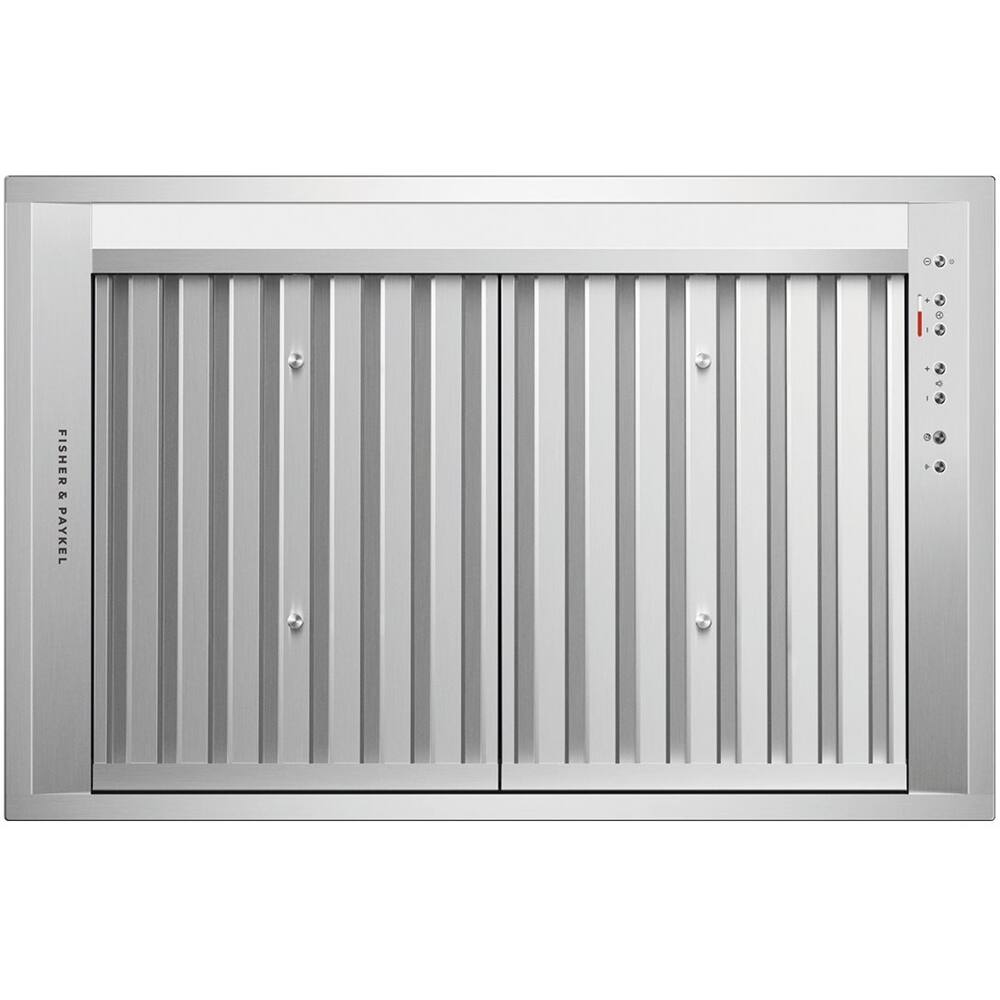

Fisher & Paykel - 29 inches - Externally Vented - Range Hood Insert - Stainless Steel/Aluminum
Fisher & Paykel - 29 inches - Externally Vented - Range Hood Insert - Stainless Steel/Aluminum
Related Item
Specifications
- Color FinishStainless steelProduct Height16 1/4 inchesProduct Width28 3/4 inchesProduct Depth18 9/10 inchesVent TypeDuctedVent StyleExternal
- Key Specs
- Color Finish: Stainless steel
- Product Height: 16 1/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 28 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18 9/10 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Fisher & Paykel
- Model Number: HPB3019-6
- Product Name: 29" Externally Vented Range Hood
- Color: Stainless Steel/Aluminum
- Color Finish: Stainless steel
- Dimensions
- Product Height: 16 1/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 42 inches
- Product Width: 28 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18 9/10 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 29 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 46.3 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Width: 27 3/4 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 17 15/16 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Insert
- Number of Fan Speeds: 5
- Filter Info
- Filter Material: Stainless steel
- Dishwasher-Safe Filter: true
- Electrical
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Other
- UPC: 822843501083
Complete a kitchen remodel with this 30-inch Fisher & Paykel integrated range hood insert. Its 19-inch depth and 600-cfm blower keep your cooking area smelling fresh.
- 600 cfm exhaust capacity: Quickly pull smoke and cooking odors out of the air.
- 5 fan-speed settings: Allow you to adjust ventilation to meet your needs.
- Stainless steel/aluminum finish: Offers a sleek, stylish look.
- Designed to fit standard 8" round ductwork: For ease of installation.
- 600 cfm exhaust capacity: Quickly pull smoke and cooking odors out of the air.
- 5 fan-speed settings: Allow you to adjust ventilation to meet your needs.
- Stainless steel/aluminum finish: Offers a sleek, stylish look.
- Designed to fit standard 8" round ductwork: For ease of installation.
Whats Included
- Fisher & Paykel 29" Externally Vented Range Hood
- Fisher & Paykel 29" Externally Vented Range Hood
Product Manuals
A: Fisher & Paykel offers a 2-year warranty for parts and labor for this range hood. Refer to the separate service and warranty book provided with the range hood for complete details and contact information for servicing.
Q: Are there any notable safety features or certifications associated with this range hood?
A: Yes, this range hood has notable safety features and certifications. It complies with IC RSS-102 radiation exposure limits and meets the requirements of Part 15 of FCC Rules. Additionally, it adheres to the safety standards set by Innovation, Science, and Economic Development Canada.
A: The Fisher & Paykel 29" Externally Vented Range Hood is designed for external venting only. While the product description mentions a recirculation kit with carbon filters, it is not included and must be purchased separately. For effective performance, the manufacturer recommends ducting the air outside to avoid potential fire hazards.
A: To keep the range hood in optimal condition, it is recommended to: - Clean all surfaces with a mild liquid detergent and a soft cloth. Avoid corrosive chemicals, abrasive cleaning products, citrus-based cleaners, hard brushes, and steel wool. - Clean the filters at least once a month with a mild liquid detergent and hot water, or in the dishwasher (place them upright). - Replace the filters after cleaning and drying.
A: The recommended minimum height for installing the Fisher & Paykel 29" Externally Vented Range Hood above the cooktop to ensure optimal performance is 42 inches. This information is specified in the product specifications section of the provided context.
Q: Does this range hood come with any additional accessories or attachments for enhanced functionality?
A: Yes, this range hood comes with several accessories and attachments for enhanced functionality. It includes a remote control kit with a remote control and a wireless receiver, allowing for convenient operation of the range hood from a distance. Additionally, it comes with a duct adapter that includes 5/16" (8mm) T20 drive screws for easy installation.
Q: What is the maximum air exhaust capacity of this range hood in cubic feet per minute (CFM)?
A: The maximum air exhaust capacity of the Fisher & Paykel 29" Externally Vented Range Hood is 600 cubic feet per minute (CFM). This information is found in the product features section of the provided context.
Q: What are the precise dimensions of the cut-out required for seamless installation?
A: The required cut-out dimensions for seamless installation of the Fisher & Paykel 29" Externally Vented Range Hood are 27 3/4 inches in width and 17 15/16 inches in depth.
