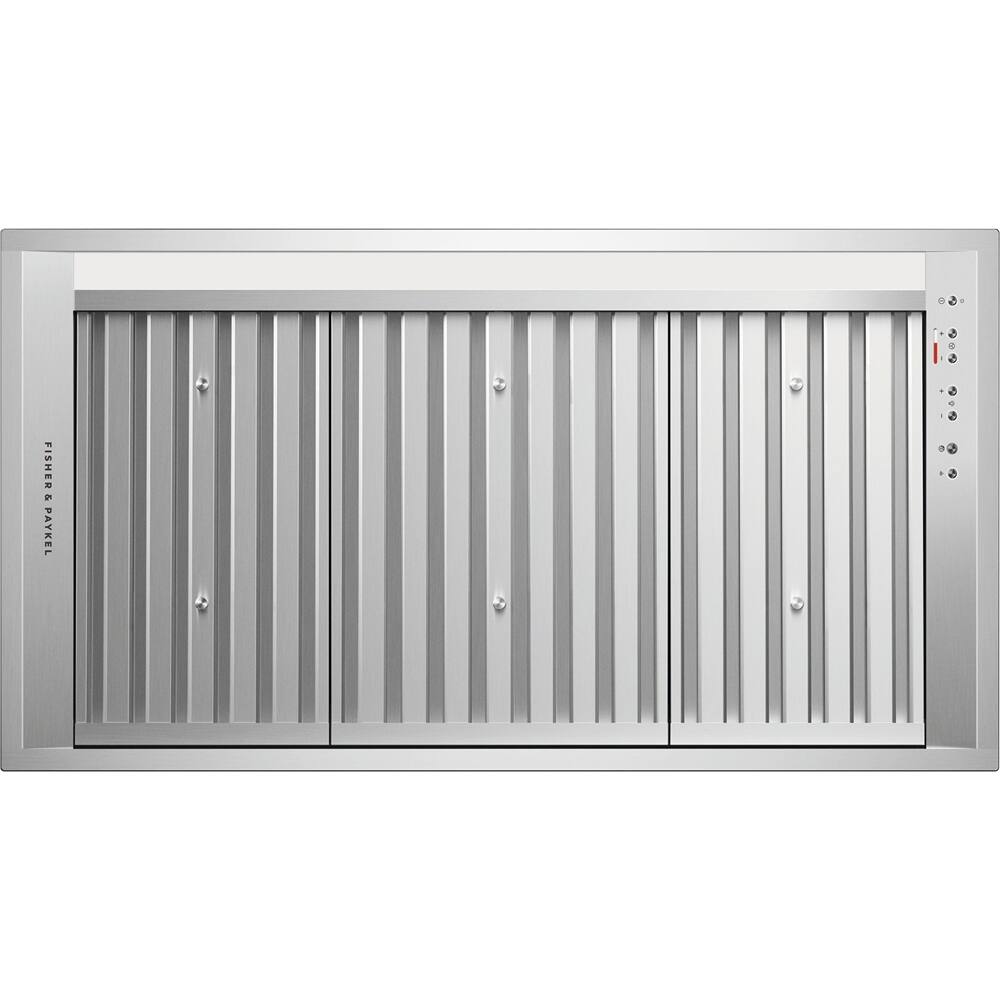

Fisher & Paykel - 35 inches - Externally Vented - Range Hood Insert - Stainless Steel/Aluminum
- Key Specs
- Color Finish: Stainless steel
- Product Height: 16 1/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 34 5/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18 9/10 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Fisher & Paykel
- Model Number: HPB3619-6
- Product Name: 35" Externally Vented Range Hood
- Color: Stainless Steel/Aluminum
- Color Finish: Stainless steel
- Dimensions
- Product Height: 16 1/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 42 inches
- Product Width: 34 5/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18 9/10 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 35 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 50.7 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Width: 33 5/8 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 10 1/16 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Insert
- Number of Fan Speeds: 5
- Control Type: Touch pad
- Filter Info
- Filter Material: Stainless steel
- Dishwasher-Safe Filter: true
- Electrical
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Other
- UPC: 822843500970
Get rid of excess steam with this 36-inch Fisher & Paykel integrated range hood insert. Its 19-inch depth and 600-cfm blower keep your kitchen smelling fresh.
- 600 cfm exhaust capacity: Quickly pull smoke and cooking odors out of the air.
- 5 fan-speed settings: Allow you to adjust ventilation to meet your needs.
- Stainless steel/aluminum finish: Offers a sleek, stylish look.
- Designed to fit standard 8" round ductwork: For ease of installation.
- 600 cfm exhaust capacity: Quickly pull smoke and cooking odors out of the air.
- 5 fan-speed settings: Allow you to adjust ventilation to meet your needs.
- Stainless steel/aluminum finish: Offers a sleek, stylish look.
- Designed to fit standard 8" round ductwork: For ease of installation.
Whats Included
- Fisher & Paykel 35" Externally Vented Range Hood
- Fisher & Paykel 35" Externally Vented Range Hood
Product Manuals
Q: What size of ductwork do I need for installation?
A: The range hood is designed to fit standard 8" round ductwork for ease of installation. However, if you have a different size ductwork, you may need to purchase an adapter to connect the range hood to your ductwork.
Q: What material is the filter made of?
A: The filter of the Fisher & Paykel 35" Externally Vented Range Hood is made of stainless steel. This information can be found in the section "Vent Type: Ducted, Control Type: Touch pad, Minimum Installation Height Above Cooktop: 42 inches, Cut-Out Depth: 10 1/16 inches, Filter Material: Stainless steel, Color: Stainless Steel/Aluminum, Vent Style: External, Manufacturer's Warranty - Parts: 2 years, Number of Fan Speeds: 5, Color Category: Silver, Product Weight: 50".
Q: What color is the range hood?
A: The range hood is available in two colors: Stainless Steel and Aluminum. The "Color Category" of the range hood is Silver. The color finish of the range hood is Stainless Steel.
Q: What type of controls does it have?
A: The Fisher & Paykel 35" Externally Vented Range Hood features push-button controls for power, fan speed, and light. It also has a Clean filter reminder button and a Battery indicator.
Q: What voltage does it require?
A: The Fisher & Paykel 35" Externally Vented Range Hood operates on a voltage of 120 volts. This information is found in the product specifications section of the provided context.
Q: How high above the cooktop should it be installed?
A: The minimum installation height above the cooktop for the Fisher & Paykel 35" Externally Vented Range Hood is 42 inches. For optimal performance, consult the cooktop installation and user guide for specific height recommendations.
A: This Fisher & Paykel range hood is ducted. The product specifications state "Vent Type: Ducted".
Q: What are the dimensions of the cutout needed for installation?
A: The cutout dimensions for installation are: - Cut-Out Width: 33 5/8 inches - Cut-Out Depth: 10 1/16 inches
