Fosi Audio - BT20A MAX Bluetooth Stereo Power Amplifier (2 x 300W at 4 Ohms) - Black
Reviews coming soon
Specifications
- Continuous Watts x Channel @ Ohms180W x 2 @ 4 OhmsNumber of Channels2Audio Only InputsUnbalanced RCA, Unbalanced RCANetwork Connector(s)No network connectors
- Key Specs
- Continuous Watts x Channel @ Ohms: 180W x 2 @ 4 Ohms
- Number of Channels: 2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Audio Only Inputs: Unbalanced RCA, Unbalanced RCA
- Network Connector(s): No network connectors
- General
- Brand: Fosi Audio
- Model Number: BT20A MAX-48V
- Product Name: BT20A MAX Bluetooth Stereo Power Amplifier (2 x 300W at 4 Ohms)
- Color: Black
- Audio
- Continuous Watts x Channel @ Ohms: 180W x 2 @ 4 Ohms
- Number of Channels: 2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Amplifier Type: Integrated amplifiers
- Inputs
- Audio Only Inputs: Unbalanced RCA, Unbalanced RCA
- Video Only Inputs: No video only inputs (The number and type of video signal only inputs the product has.)
- Network Connector(s): No network connectors
- Line-Level Inputs: true (Also referred to as low-level inputs. Enables the amplifier to receive a sound signal from another device via RCA cables.)
- Outputs
- Speaker Connection Type: Banana Jack/Screw Terminals
- Video Only Outputs: No video only outputs (The number and type of video signal only outputs the product has.)
- Dimensions
- Product Height: 1.72 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 5.91 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 5.51 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 2.01 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Other
- UPC: 6976136961222

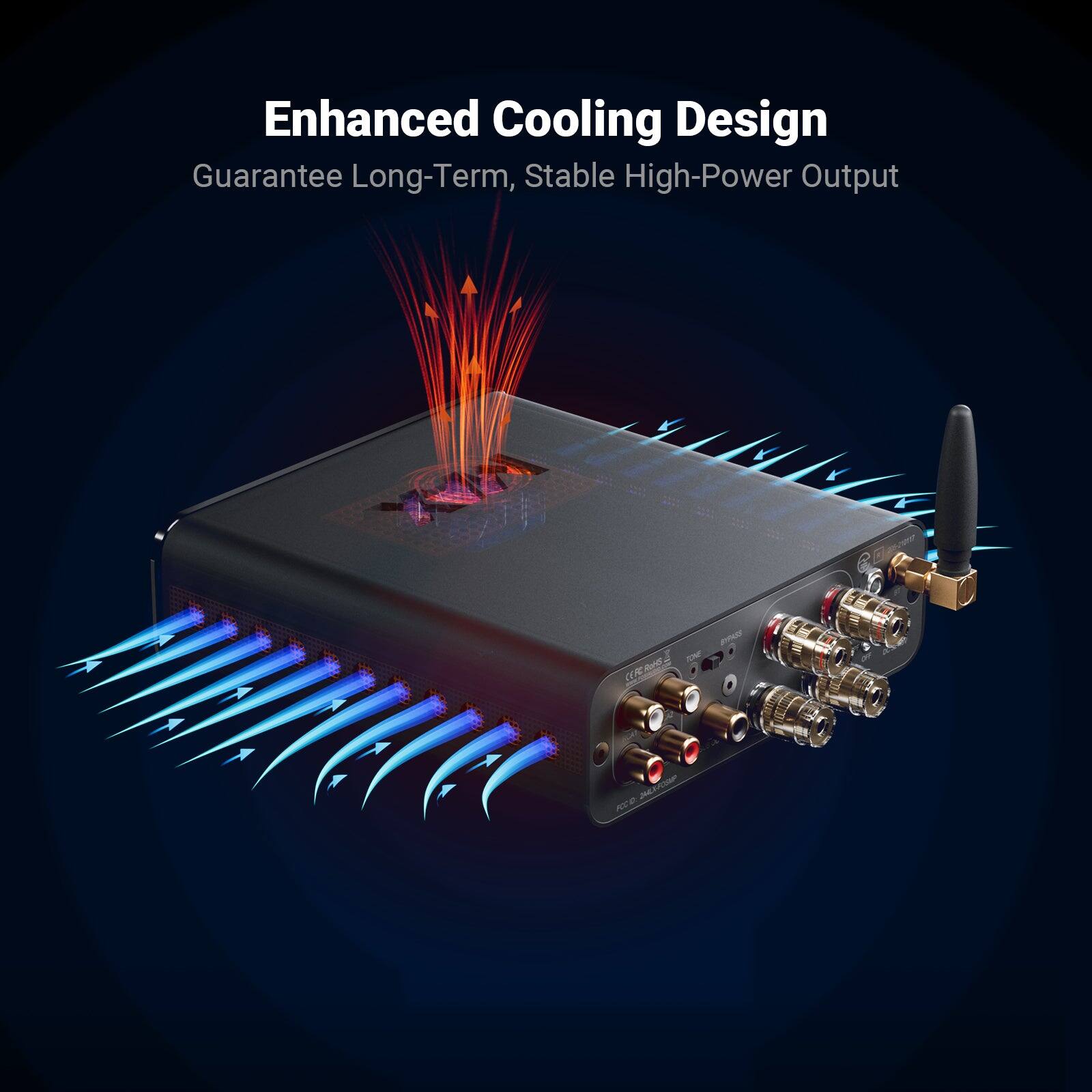

The BT20A MAX is a compact 2.1-channel Bluetooth stereo amplifier designed for desktop and home audio systems. Powered by the TI TPA3255 Class-D amplifier chip with PFFB technology, it delivers up to 300W × 2 peak power and 180W × 2 RMS output at 4 ohms for clean, dynamic sound performance. It features Bluetooth 6.0 with support for LDAC, aptX HD, aptX Adaptive, and aptX Lossless for high-resolution wireless audio streaming. Dual RCA inputs, passive speaker outputs, and an active subwoofer output with selectable high-pass filter provide flexible connectivity for 2.1 speaker setups. The BT20A MAX also includes bass and treble controls, a remote control, and an upgraded cooling system for stable high-power operation in a compact aluminum chassis.

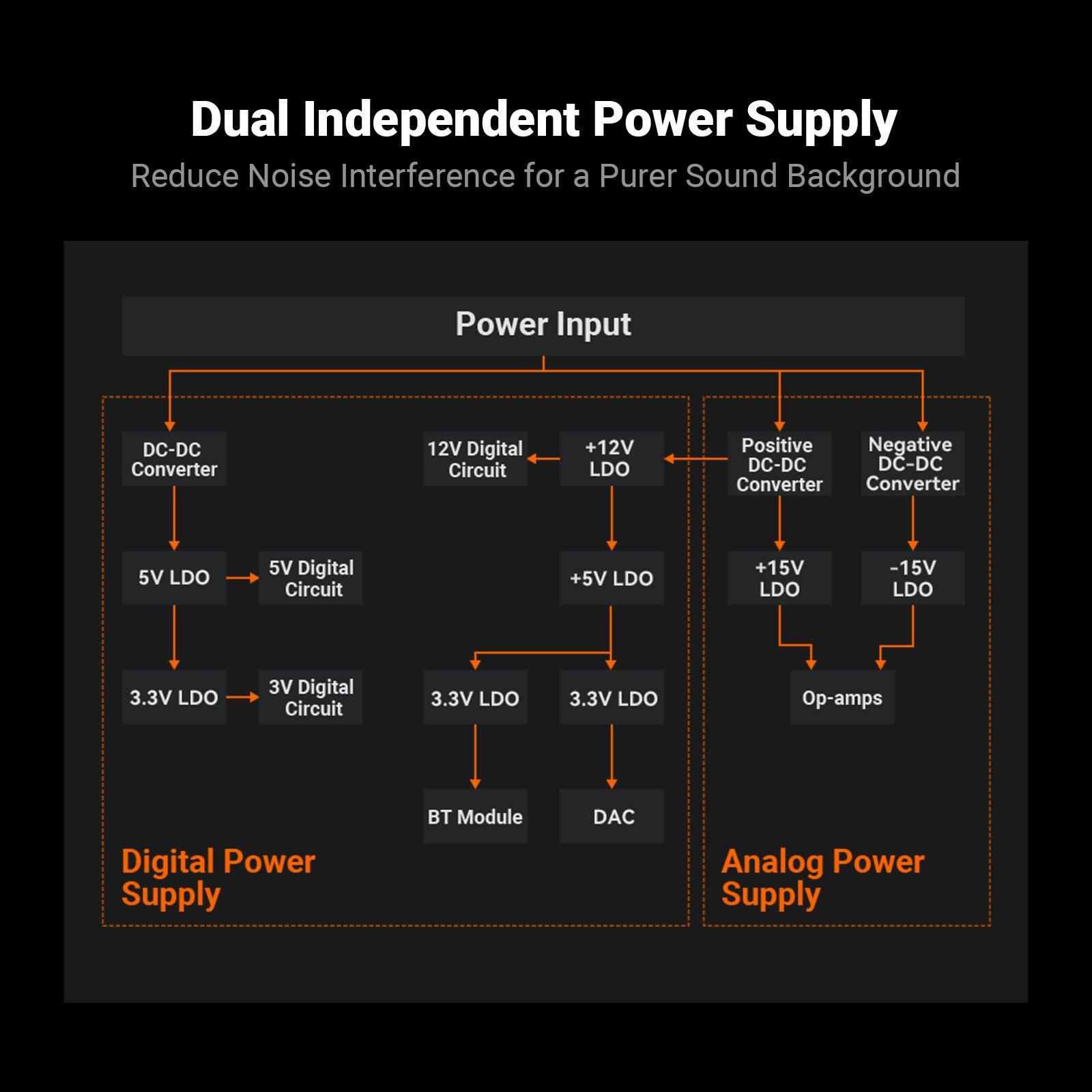

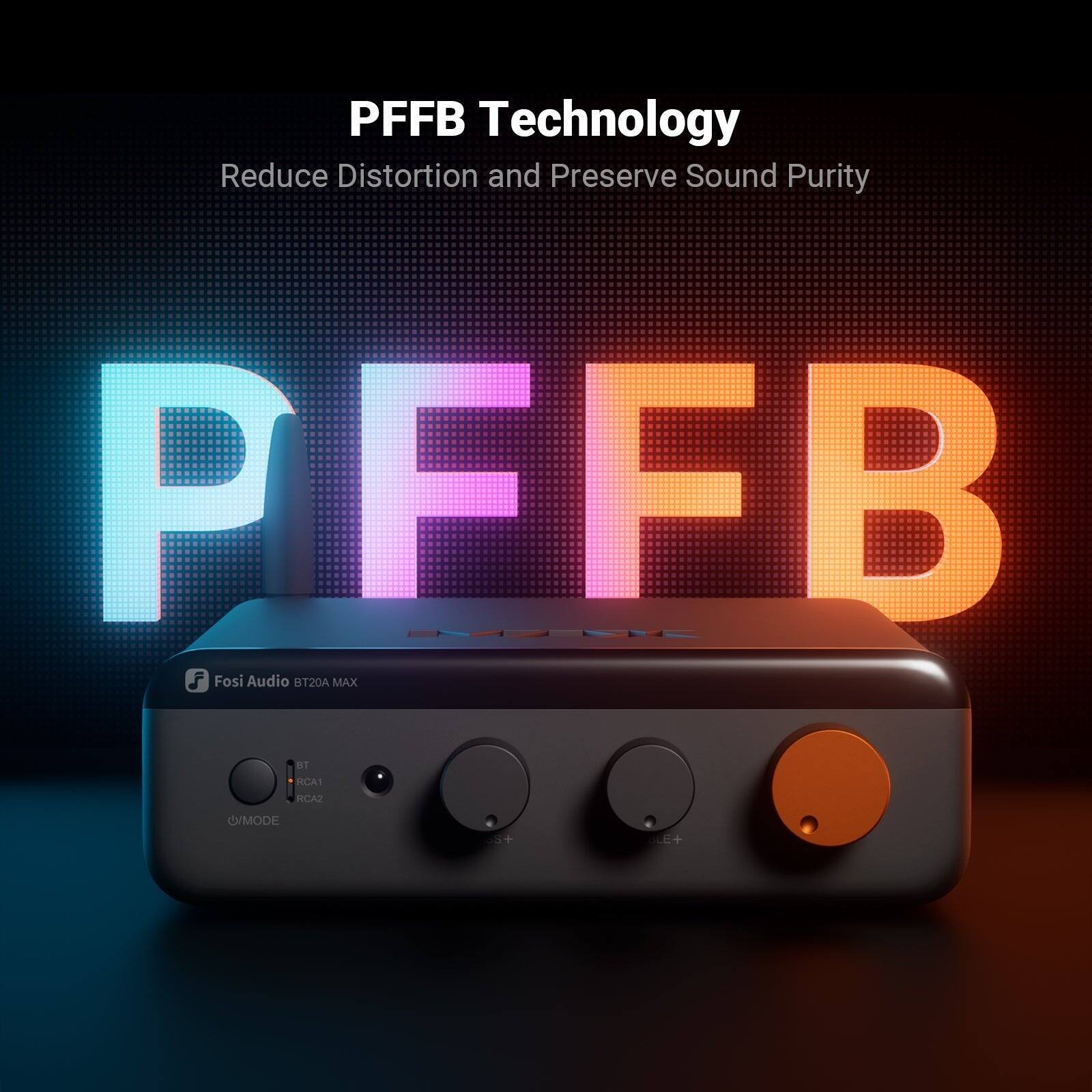

- High-Fidelity Sound: Featuring advanced PFFB technology and dual independent power supplies, the BT20A MAX delivers ultra-low distortion (≤0.003%) and a high SNR of ≥112dB for clean, detailed audio reproduction. Powered by the TI TPA3255 amplifier chip and professionally tuned for balanced, natural sound, it brings powerful performance to desktop and home audio systems.

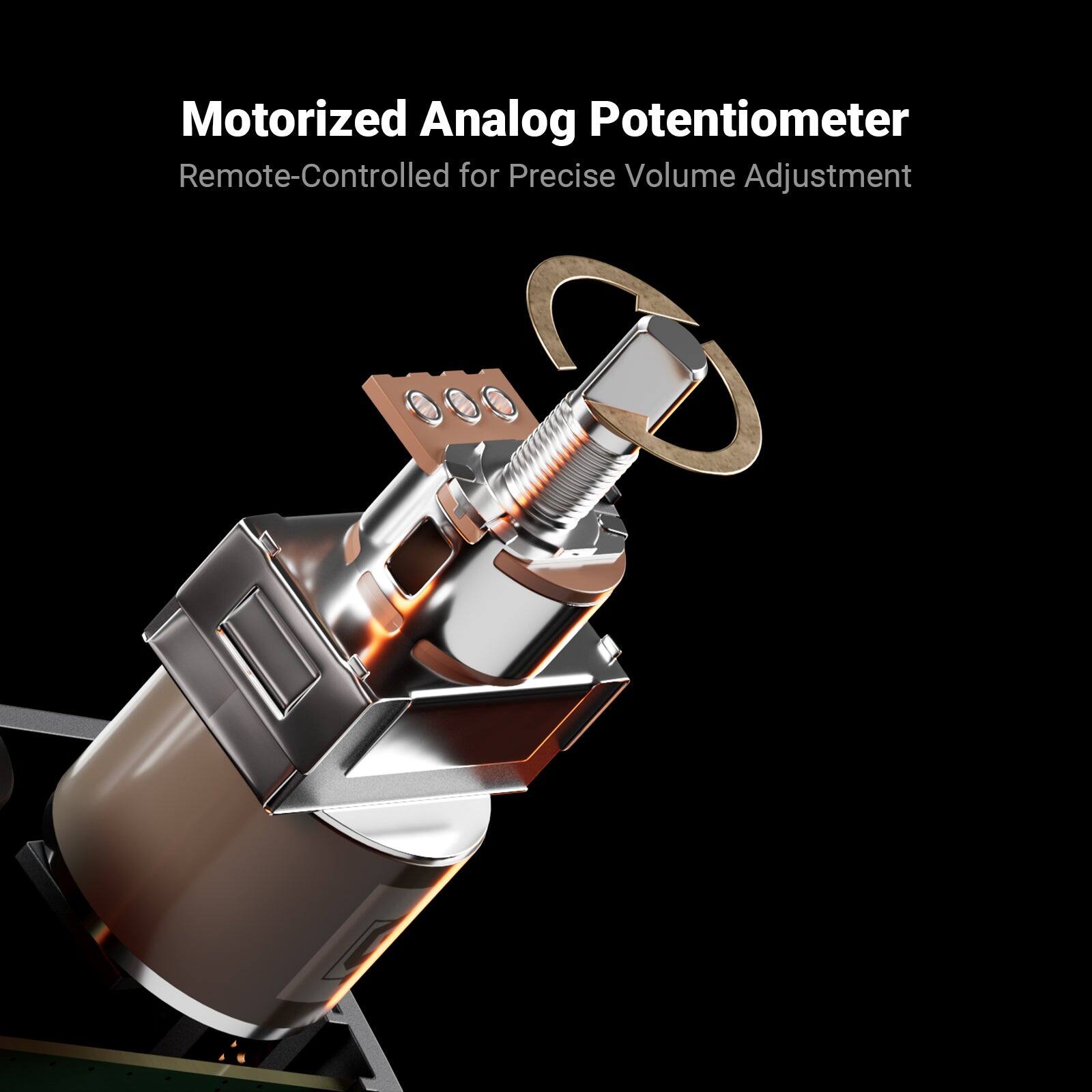

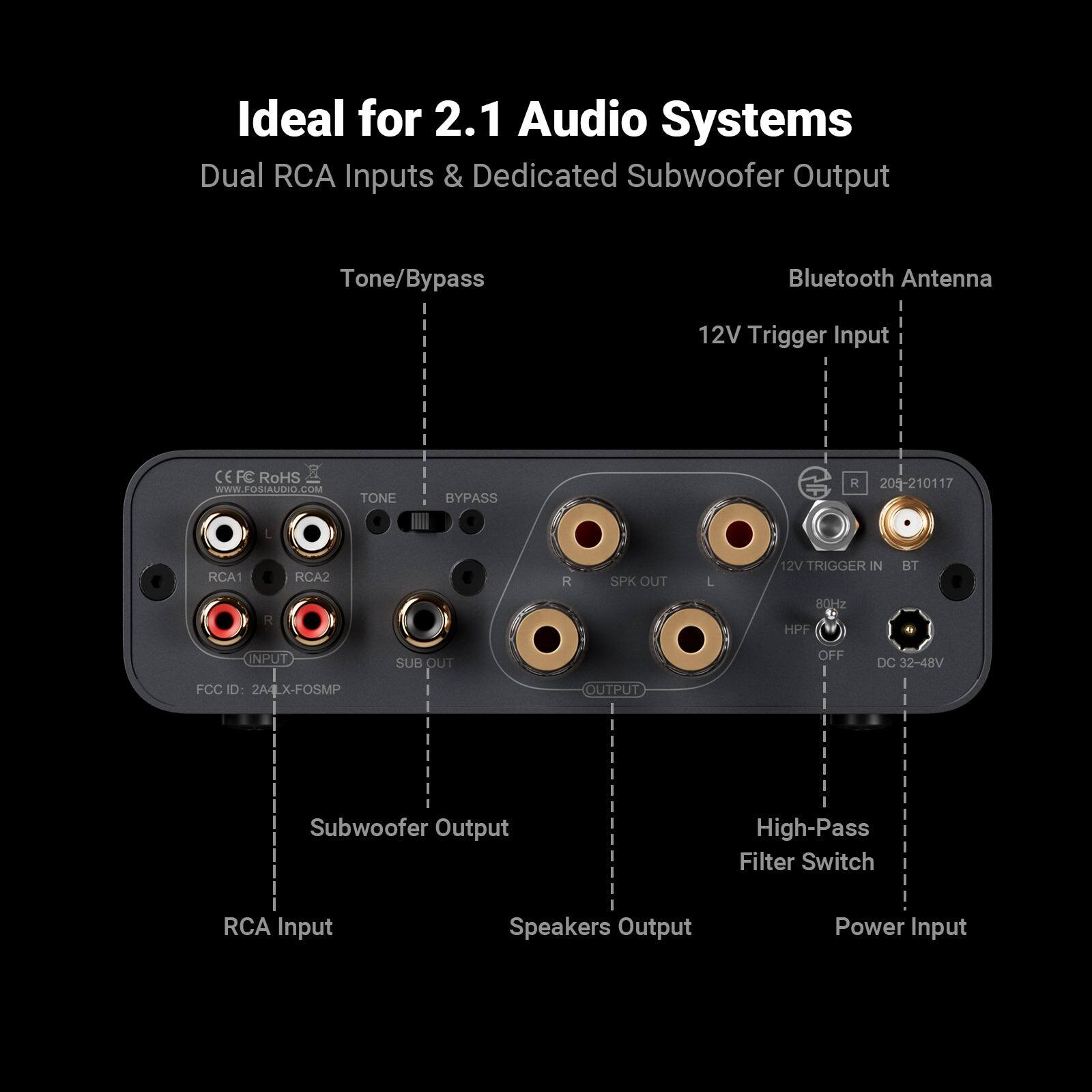

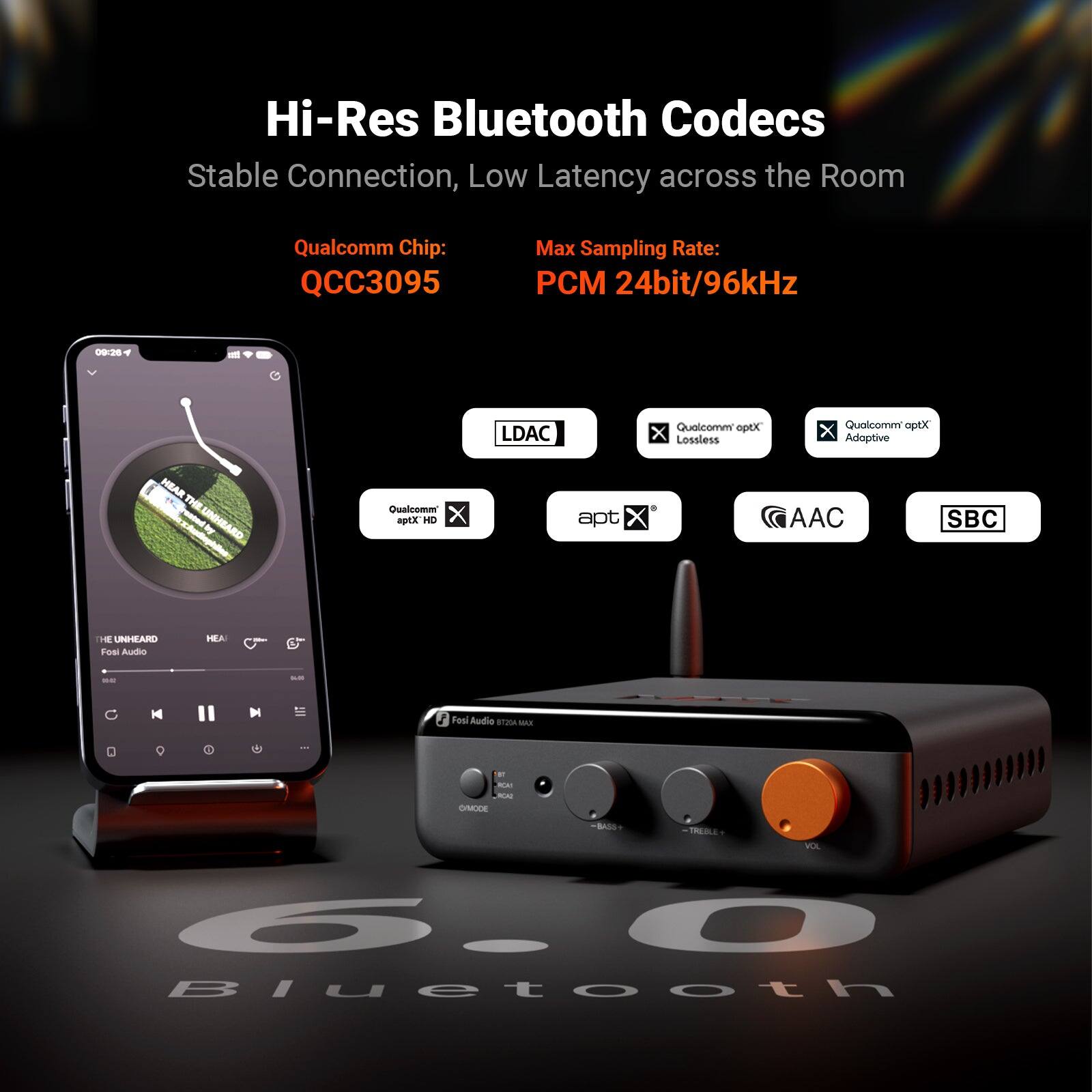

- Hi-Res Bluetooth & Flexible Connectivity: Equipped with Qualcomm Chip QCC3095, Bluetooth 6.0 with support for LDAC/aptX Lossless/aptX HD/aptX Adaptive/aptX/SBC/AAC codecs, max sampling rate PCM 24bit/96kHz. Delivering a stable, low-latency connection.Featuring dual RCA inputs, dedicated subwoofer output, and the motorized analog potentiometer allows precise adjustments via the included remote control, perfect for building a 2.1 amplifier home audio system.

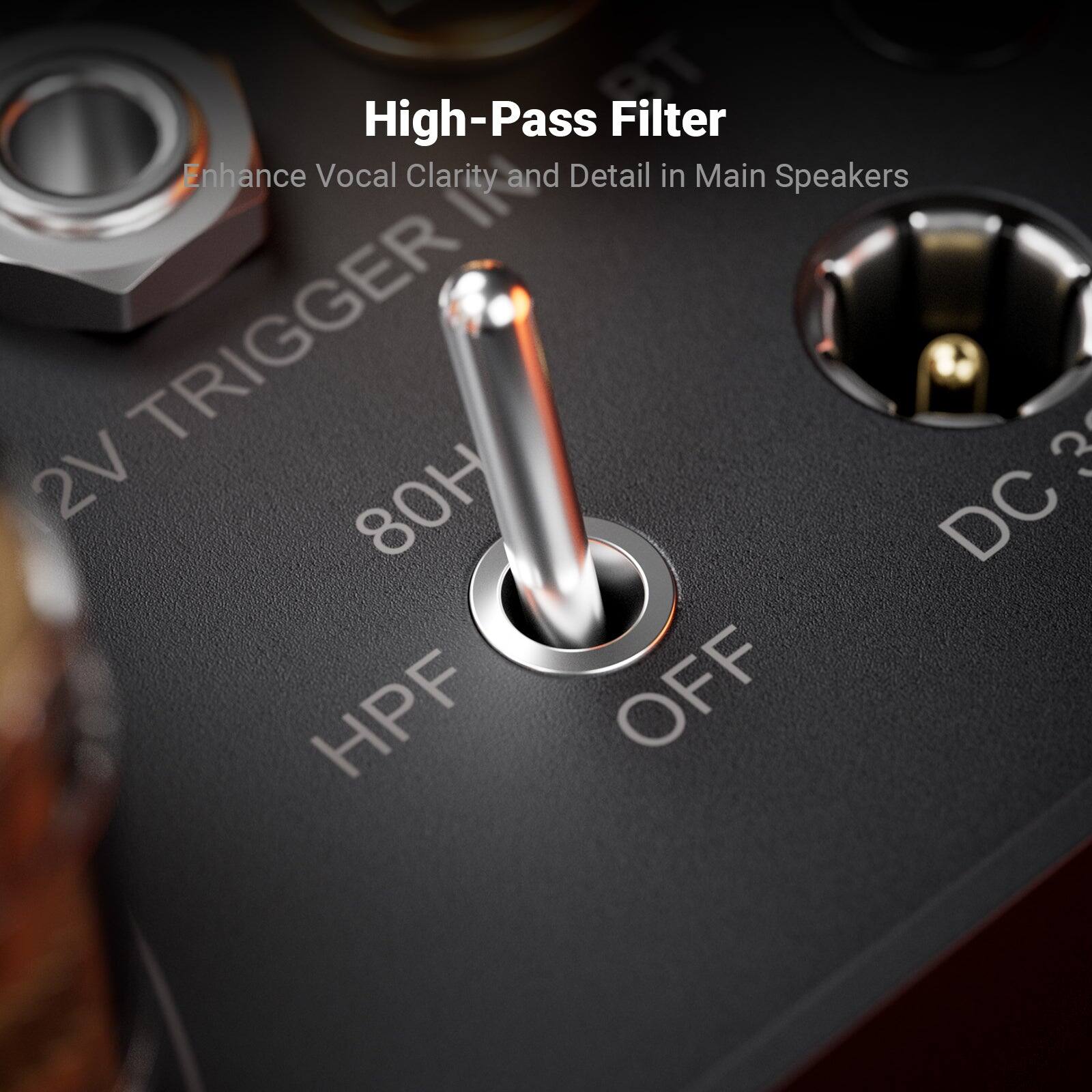

- Customizable Audio Control: Fine-tune your listening experience with adjustable bass and treble controls, plus an EQ bypass mode that preserves the original audio signal. The built-in 12V trigger enables seamless power synchronization with compatible devices, while the selectable high-pass filter improves vocal clarity and overall speaker performance in 2.1-channel systems.

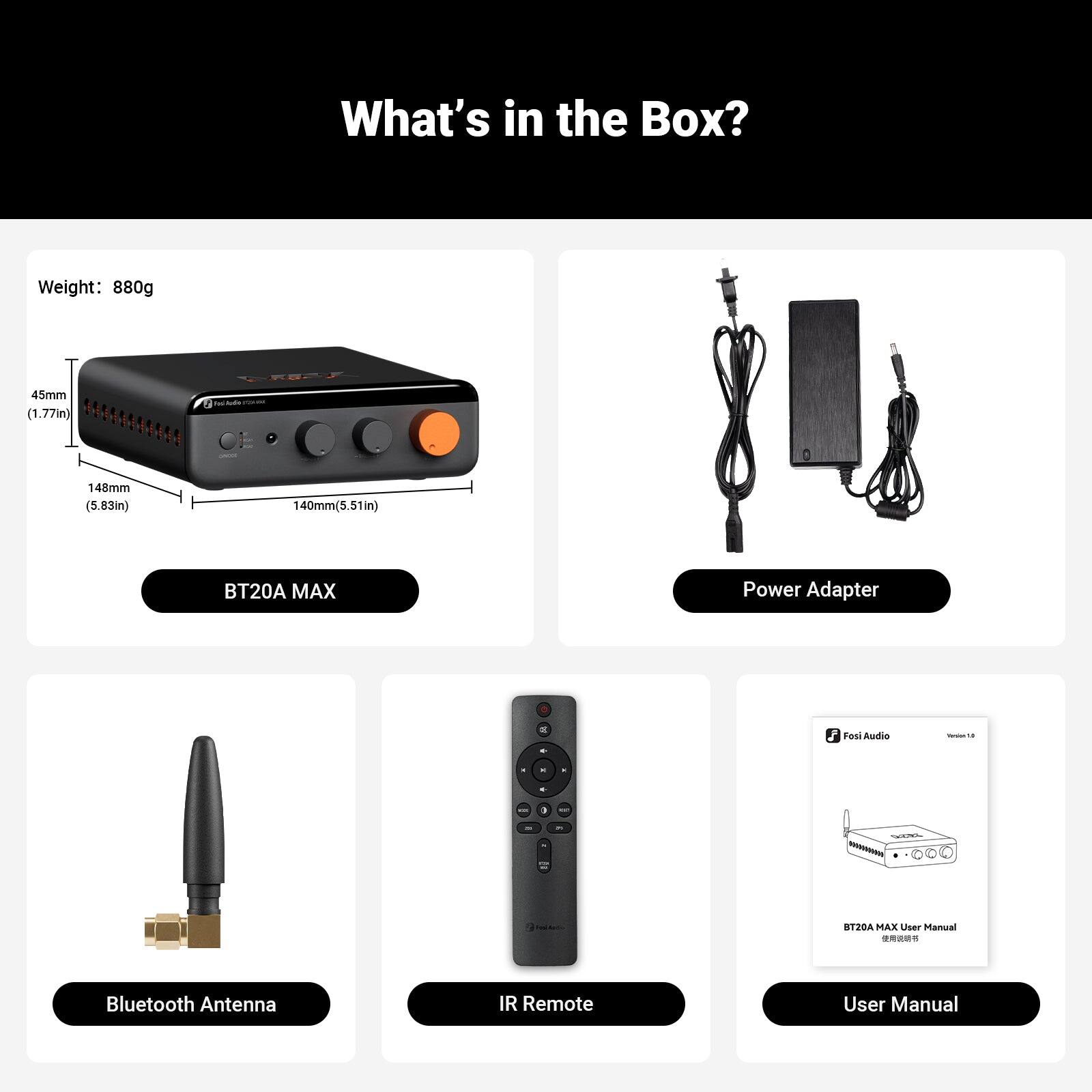

Whats Included
- 1 x BT20A Max Power Amplifier
- 1 x Bluetooth Antenna
- 1 x 48V5A Power Adapter
- 1 x IR Remote
- 1 x User's Manual
