FOTILE - 30 inches - Externally Vented - Range Hood Insert - Stainless Steel
FREE shipping to
Related Item
Specifications
- Color FinishBlackProduct Height24.82 inchesProduct Width35.13 inchesProduct Depth13.63 inchesExhaust Vent LocationTopVent TypeDucted
- Key Specs
- Color Finish: Black
- Product Height: 24.82 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35.13 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 13.63 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: FOTILE
- Model Number: BIG3610
- Product Name: FOTILE 36" 1200 CFM Insert Range Hood with Auto Height Adjusting in Stainless Steel
- Color: Stainless Steel
- Color Finish: Black
- Dimensions
- Product Height: 24.82 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 30 inches
- Product Width: 35.13 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 13.63 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 101.4 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Round Duct Diameter: 6 inches
- Features
- Exhaust Vent Location: Top
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Insert
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Number of Fan Speeds: 3
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Touchscreen
- Display Type: None
- Delay Shut-Off: true (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Damper Included: false
- Integrated Light(s): true
- Number of Lights: 2
- Bulb Type Required: LED
- Bulb(s) Included: true
- Maximum Bulb Wattage: 3 watts
- Performance
- Maximum Air Flow Capacity: 642 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 244 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Maximum Operating Sound Level: 8.5 sones (The perceived intensity of the operating sound produced by the product at its highest setting. The higher the sone rating, the louder the noise level.)
- Minimum Operating Sound Level: 3 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)
- Filter Info
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Electrical Specification
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): CSA Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Warranty
- Warranty - Parts: 5 years
- Warranty - Labor: 2 years
- Other
- UPC: 850043475187

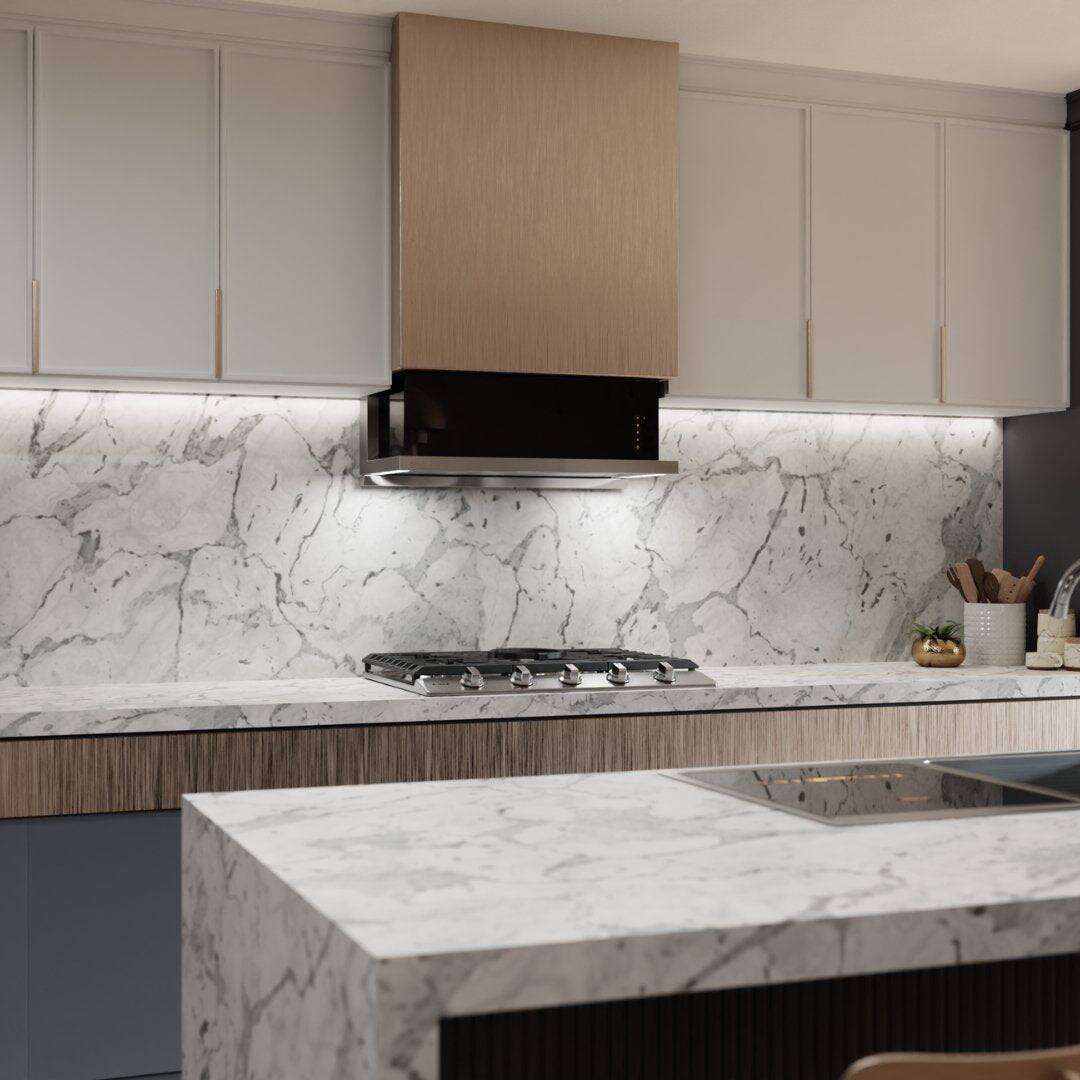

For modern kitchens, the 36-inch insert range hood features automatic height adjustment and motion-activated controls for hands-free operation. The sleek stainless steel finish and downward-facing LED lights enhance visibility and add a touch of sophistication to your cooking space. This range hood model is engineered with a permanent magnet synchronous motor (PMSM), which is renowned for its reliability and efficiency compared to asynchronous DC motors. It allows the range hood to operate quietly while providing optimal exhaust power over three different speed settings. FOTILE’s BIG3610 also has a sync function to integrate seamlessly with your FOTLE gas cooktop, so its operations provide a better cooking experience. This range hood keeps your kitchen fresh and free of unwanted cooking smells, even when you’re cooking up a family dinner. It also has a large-capacity oil cup that collects grease effectively and is easy to clean, helping maintain the insert range hood’s performance and longevity. With its combination of advanced technology, user-friendly features, and stylish design, the FOTILE BIG3610 is an excellent choice for anyone looking to upgrade their kitchen with a high-performance range hood product that blends into the aesthetics of a contemporary home. Elegance In Motion: PMSM (Permanent Magnet Synchronous Motor): Our range hood features a PMSM that efficiently operates at a maximum equivalent CFM of 1200, ensuring superior ventilation while maintaining a quiet ambiance with noise levels as low as 34 dB. Auto Height Adjust & Motion Activation: Enhance your cooking with auto-adjusting range hoods that modify height automatically for optimal fume extraction and activate with just a wave. Sync Function with Select Cooktops: Synchronize our range hood with your gas cooktop for a streamlined cooking process. This feature ensures easy operation, enhances efficiency, and reduces the need for manual controls, making your culinary endeavors smoother. Large Capacity Oil Cup: The range hood’s large oil cup effectively captures more grease, extending the time between cleanings. This practical design element simplifies maintenance and keeps your cooking space pristine. Sturdy Glide Rail: Our glide rail is engineered for durability, supporting smooth and reliable operation through over 50,000 uses. This robust design ensures at least 13 years of consistent performance if you use it 10 times a day. Versatile Installation: The insert range hood BIG3610 offers a built-in, concealed look when not in use, maintaining the clean lines of your kitchen's design.
- Elegance In Motion: PMSM (Permanent Magnet Synchronous Motor): Our range hood features a PMSM that efficiently operates at a maximum equivalent CFM of 1200, ensuring superior ventilation while maintaining a quiet ambiance with noise levels as low as 34 dB.
