Frigidaire

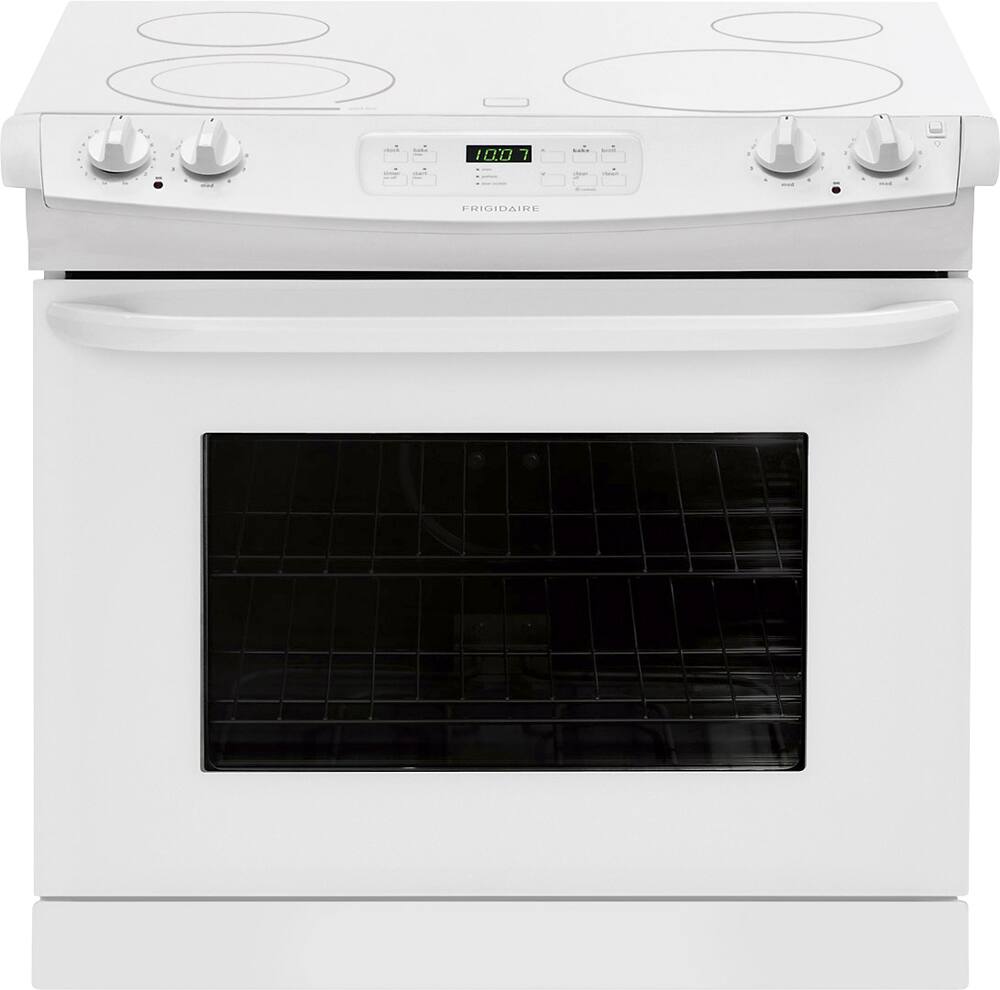

Frigidaire - 4.6 Cu. Ft. Self-Cleaning Drop-In Electric Range - White

Model: FFED3025PW
SKU: 7618522
This item is no longer available in new condition. See similar items below
  • Key Specs
    • Color Finish: White
    • Product Height: 26.5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Depth: 28.32 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
    • Range Type: Drop-In (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
    • Oven Cleaning Method: Self-High Heat Cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
    • Single/Double Oven: Single Oven
    • Cooktop Surface Type: Smoothtop (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
    • Number of Elements: 4
    • Induction: false (Induction cooktops use magnetic currents to heat compatible cookware directly instead of warming the cooktop itself, which can allow for faster and more efficient cooking. There is also an added safety benefit because the surface begins to cool when cookware is removed.)
  • General
    • Brand: Frigidaire
    • Model Number: FFED3025PW
    • Product Name: 4.6 Cu. Ft. Self-Cleaning Drop-In Electric Range
    • Color: White
    • Color Finish: White
  • Dimensions
    • Product Height: 26.5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Depth: 28.32 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
    • Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
    • Product Weight: 185 pounds (The out of box weight of the item.)
  • Cut-Out Dimensions
    • Cut-Out Height: 29 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
    • Cut-Out Width: 29.9 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
    • Cut-Out Depth: 21.75 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
  • Capacity
    • Oven Capacity: 4.6 cubic feet (Standard ovens typically have capacities of about 5 cubic feet, while wall ovens typically have about 3 cubic feet of space.)
  • Features
    • Range Type: Drop-In (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
    • Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
    • Range Power Source: Electric
    • Hot Surface Indicator(s): true (Visual indicators turn on when the cooktop surface is hot and remain on until it is cooled, acting as a convenient safety reminder.)
    • Control Type: Digital
    • Oven Control Location: Front panel
    • Clock Display: true
    • Oven Light: true
  • Functions
    • Sabbath Mode: false (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
    • Hidden Bake Element: false (This feature provides more space within the cooking cavity and allows for cleaning without navigating around an exposed heating element.)
  • Oven Features
    • Oven Cleaning Method: Self-High Heat Cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
    • Single/Double Oven: Single Oven
    • Broiler Location: Oven
    • Oven Window: true
  • Cooktop Features
    • Cooktop Surface Type: Smoothtop (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
    • Cooktop Surface Material: Ceramic, Glass
    • Number of Elements: 4
    • Specialty Element(s): Extra-large 12", SpaceWise expandable 6"/9"
    • Induction: false (Induction cooktops use magnetic currents to heat compatible cookware directly instead of warming the cooktop itself, which can allow for faster and more efficient cooking. There is also an added safety benefit because the surface begins to cool when cookware is removed.)
  • Electrical
    • Amperage: 49.1 amperes (Strength of electrical current.)
    • Voltage: 240 volts (Amount of power needed to support an electrical current.)
  • Certifications Listings & Approvals
    • ADA Compliant: true (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
  • Other
    • UPC: 012505800467

Frigidaire range: Come home to a tasty meal thanks to this range's delay-bake function, which lets you preset the oven to cook dishes while you're out and about. The SpaceWise expandable element accommodates pans of various sizes for flexibility.

Range, Cooktop and Wall Oven Buying Guide

  • 4 cooktop elements: Provide between 1200W and 3000W of power to meet a variety of cooking requirements.
  • Accommodate cookware of various sizes: Extra-large 12" element fits your pasta pot or other large item, and the SpaceWise 6"/9" expandable element is ideal for a variety of pans.
  • Prepare your favorite dishes with consistent results: Even Baking technology helps ensure thorough heating.
  • Cook meats and more to your liking: Vari-Broil with low and high settings helps ensure your dish is prepared to suit your preferences.
  • Come home to a hot meal: Delay-bake allows simple preset operation, so you can cook food while you're out working or running errands. Timed-cook options lets you set the oven to operate for a desired period of time.
  • Cooking messes wipe away with ease: Ceramic-glass cooktop lets you quickly remove splatters and spills.
  • Self-cleaning oven: Eliminates the need to scrub by doing the cleaning for you with just a touch. Power Clean removes tough soils, and delay-clean, quick clean and 2- and 3-hour cycles enable you to schedule cleaning when it's most convenient.
  • Prepare a meal for a group: The 4.6 cu. ft. oven capacity provides plenty of space to make a main dish and sides all at once.
  • Easily access cooking food: Two oven racks with handles make it easy to remove dishes from the oven and can be placed in up to 5 positions to accommodate cookware of various sizes.
  • Keep your home and family safe: Auto shutoff turns the oven off after 12 hours, and a lockout function helps prevent unsupervised operation. Hot-surface indicator light lets you know when an element is too hot to touch.
  • Quickly choose the right settings: Ready-Select controls make operation easy. A clock and kitchen timer help you coordinate cooking times with ease.
Whats Included
  • 4.6 Cu. Ft. Self-Cleaning Drop-In Electric Range
  • Electric cord is not included
  • Owner's manual

Q: What are the measurements of this range?

A: The range is 26.5 inches high, 30 inches wide and 28.3 inches deep.

Q: Do you install? If so what is the charge? Do you remove the old range?

A: undefined

Q: Do you have the schematics on this?

A: Hello Desperate! In order to further assist you with locating any available schematics for the range FFED3025PW, we would recommend contacting us directly. Hopefully this information is helpful. –Thanks!-
