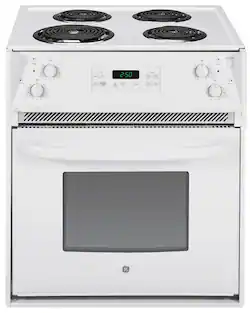

GE - 3.0 Cu. Ft. Self-Cleaning Drop-In Electric Range - White on White
- Key Specs
- Color Finish: White
- Product Height: 28 7/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 27 1/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 27 3/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth Without Handle: 24 3/16 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 27 3/16 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Range Type: Drop-In (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Oven Cleaning Method: Self-High Heat Cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Single/Double Oven: Single Oven
- Cooktop Surface Type: Coil (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Number of Elements: 4
- Induction: false (Induction cooktops use magnetic currents to heat compatible cookware directly instead of warming the cooktop itself, which can allow for faster and more efficient cooking. There is also an added safety benefit because the surface begins to cool when cookware is removed.)
- General
- Brand: GE
- Model Number: JM250DFWW
- Product Name: 3.0 Cu. Ft. Self-Cleaning Drop-In Electric Range
- Color: White on White
- Color Finish: White
- Dimensions
- Product Height: 28 7/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 27 1/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 27 3/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 27 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Depth Without Handle: 24 3/16 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 27 3/16 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Product Weight: 104 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 28 1/2 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 27 1/8 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Oven Capacity: 3 cubic feet (Standard ovens typically have capacities of about 5 cubic feet, while wall ovens typically have about 3 cubic feet of space.)
- Features
- Range Type: Drop-In (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Range Power Source: Electric
- Hot Surface Indicator(s): true (Visual indicators turn on when the cooktop surface is hot and remain on until it is cooled, acting as a convenient safety reminder.)
- Control Type: Touch
- Oven Control Location: Front panel
- Clock Display: false
- Oven Light: true
- Power-On Indicator Light(s): true
- Functions
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Oven Features
- Oven Cleaning Method: Self-High Heat Cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Single/Double Oven: Single Oven
- Drawer Type: None (Many ranges have a drawer located beneath the oven. In some models, this drawer functions as a broiler for high-heat cooking and browning. Other models have warming drawers to keep prepared foods warm until serving. If the drawer has no cooking function, it serves as convenient storage for pans and baking sheets.)
- Broiler Location: Other
- Number of Oven Racks: 2
- Number of Oven Rack Positions: 4
- Oven Window: true
- Cooktop Features
- Cooktop Surface Type: Coil (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Cooktop Surface Material: Porcelain
- Number of Elements: 4
- Specialty Element(s): Power Boil, warming zone
- Induction: false (Induction cooktops use magnetic currents to heat compatible cookware directly instead of warming the cooktop itself, which can allow for faster and more efficient cooking. There is also an added safety benefit because the surface begins to cool when cookware is removed.)
- Electrical Specification
- Amperage: 40 amperes (Strength of electrical current.)
- Voltage: 240 volts (Amount of power needed to support an electrical current.)
- Included
- Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Certifications Listings & Approvals
- ADA Compliant: true (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Other
- UPC: 084691254270
Easily prepare a meal with this GE JM250DFWW drop-in electric range that features a 3.0 cu. ft. oven capacity and 4 burners that allow you to cook multiple dishes at once. The electronic touchpad controls enable simple operation.
- Self-clean oven: Cleans the oven cavity without the need for scrubbing
- Coil heating elements: Provide even heat and easy cleanup
- Chrome drip bowls: Contain spills and remove for easy cleaning
- Electronic clock and timer: Help cooks coordinate meal preparation and cooking
- Self-clean oven: Cleans the oven cavity without the need for scrubbing
- Coil heating elements: Provide even heat and easy cleanup
- Chrome drip bowls: Contain spills and remove for easy cleaning
- Electronic clock and timer: Help cooks coordinate meal preparation and cooking
Whats Included
- GE 3.0 Cu. Ft. Self-Cleaning Drop-In Electric Range
- Owner's manual
- GE 3.0 Cu. Ft. Self-Cleaning Drop-In Electric Range
- Owner's manual
Q: I need to replace a 27" drop in electric range, GE #JM750R2 What do you recommend?
A: Hello and thank you for looking at our model. The new Spacemaker 27" drop-in ranges will require 2 3/8" be removed from the base panel if replacing an old 27" standard or continuous clean model. Hope this helps you out. Geoff@GEA
A: Hello there - It's difficult to compare this model and your current model without the full model number. The model number of your drop-in range can be located in several different places: behind the front door (on the front frame); under the left front surface unit (electric coil only); centered or on the right side, under the cooktop (life-up styles); on the left leg behind the drawer or kick panel; on the front frame, inside the drawer. Once you locate that, please connect with us directly via email on our website or by calling 1-800-626-2005 Monday through Friday 8 a.m. to 8 p.m. ET or 8 a.m. to 7 p.m. ET on Saturdays (we're closed on Sunday) and we will be happy to answer any questions you may have. We look forward to speaking with you! Best, Kelsey@GEA
Q: Would this model replace my GE JMS27001HA?
A: Hi - While this is the closest potential replacement we offer today, you will likely need to make adjustments to your cabinet opening for proper installation. We would encourage you to measure your existing opening to determine what specific changes might be necessary. Thank you for your interest in a new GE drop-in style range. Vikki@GEA
A: Hey there, and thank you for your interest in this drop-in electric range. We certainly understand if this range is the best fit for you, and are glad to advise it has not been discontinued at this time. Production on this model has been recently ongoing; if if is not currently available in your area we do regret any inconvenience that causes, but it should only be a temporary issue. If you check with dealers in your area you may be able to ask about local availability, and if you have further inquiries or need assistance you are always welcome to reach out to us here or over social media - we're glad to help! All the best -Sarah@GEA
Q: is this stove available with a glass top cooking surface?
A: Hello- We appreciate your interest in our 27" Self-Cleaning Drop-In Electric Range. We don't have this model with a radiant range, but we do have a 30" Drop-In model. https://www.bestbuy.com/site/ge-4-4-cu-ft-self-cleaning-drop-in-electric-range-white/2394111.p?skuId=2394111 If you have any additional questions, please let us know. We are here to help! Joyce@GEA
Q: how is the stove anchored ?
A: Hi there, and thanks for reaching out to us about this electric range. We understand how important the range being anchored and secure is, and are happy to advise. Anti-tip screws secure the range to the countertop. If those cannot be used in your particular situation, an anti-tip support can be mounted to the rear wall of the space the range is being installed in. A certain amount of countertop thickness (1 ½” minimum) is required to support the range and accommodate the ¾” anti-tip screw. Braces may need to be installed between the underside of the countertop and the cabinet to reach the necessary level of thickness for support. Further details are available in the installation instructions. We hope this information is helpful, and are happy to assist further if needed. All the best! -Sarah@GEA
A: Hey there, and thanks for your interest in this drop-in range! You must use a single-phase, 120/208 VAC or 120/240 VAC, 60 Hertz electrical system. The unit needs to be supplied with the correct voltage and frequency and connected to an individual, properly grounded, 40 amp minimum branch circuit protected by a circuit breaker or time delay fuse. The Amp rating at both 208V and 240V is 40. We would always recommend having the wiring and hookup of your appliance connected only by a qualified electrician. We hope this is enough information for your electrical needs, but if you have any other questions or concerns we are always happy to help over social media. Wishing you the best! -Sarah@GEA
Q: Would this be the correct replacement (same size) for GE JDC27GP3BG?
A: Hey there, and thanks so much for your interest in this drop-in electric range! We understand how important getting the right size is, and are happy to assist. After reviewing your older model, it looks like you have a 30" range. This model is a 27". If 30" is what you're looking for, we can advise we have a 30" electric range under model number JD630DFBB. Please note that does appear to have different overall dimensions than your old unit, so we would recommend checking the installation instructions to see if adjustments would need to be made to your space in order to install, or if another model would be better. Those are available on our GE website if you search for the model number. If you need further information, we are always happy to help over social media as well. Best wishes! -Sarah@GEA
