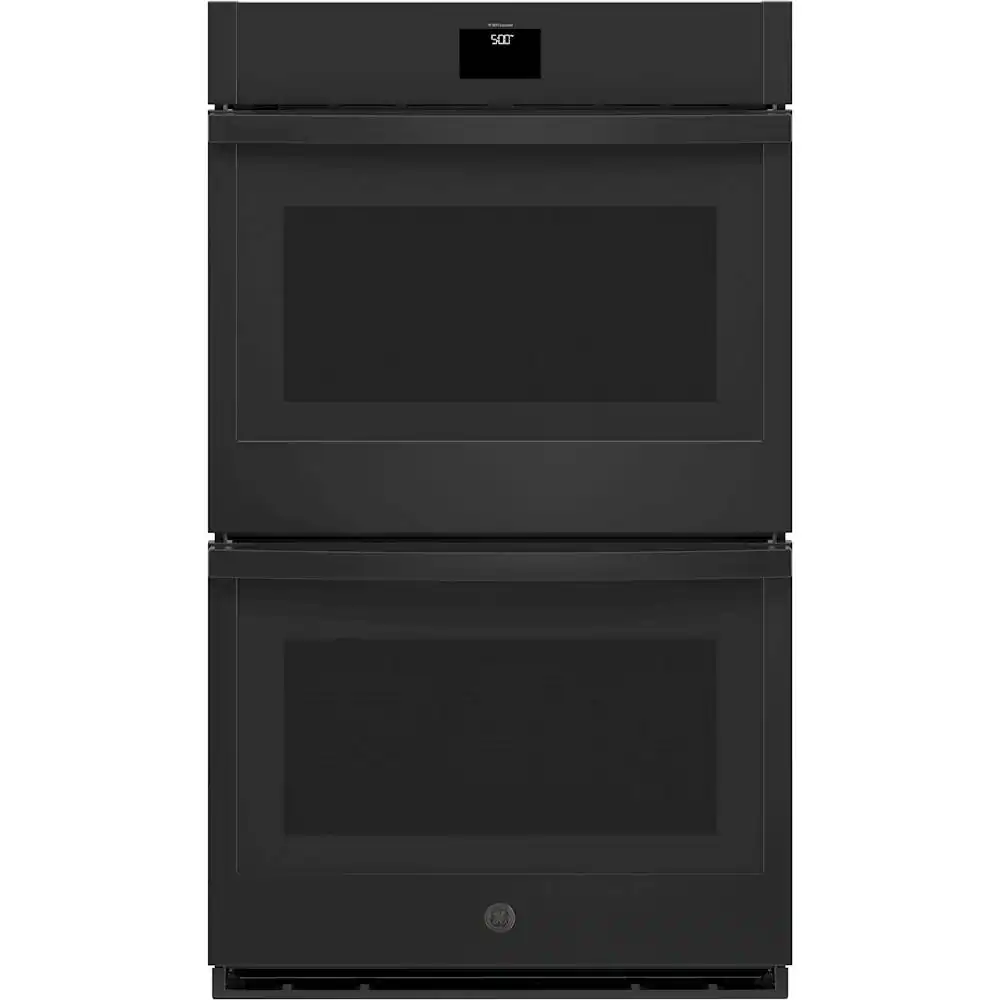

GE - 30" Built-In Double Electric Convection Wall Oven - Black
Model: JTD5000DNBB
SKU: 6337347
This item is no longer available in new condition. See similar items below
- Key Specs
- Color Finish: Black
- Product Height: 53 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 26 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Oven 1 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 2 Convection: false (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Amazon Alexa, Google Assistant, Nest (Compatible with or able to be connected to other smart devices or applications.)
- General
- Brand: GE
- Model Number: JTD5000DNBB
- Product Name: 30" Built-In Double Electric Convection Wall Oven
- Color: Black
- Color Finish: Black
- Dimensions
- Product Height: 53 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 26 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 237 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 51 13/16 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 28 1/2 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 23 1/2 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Oven 1 Capacity: 5 cubic feet
- Oven 2 Capacity: 5 cubic feet
- Features
- Oven Type: Double wall oven
- Oven Power Source: Electric
- Fingerprint Resistant: false
- Auto Shut-Off: true (Feature automatically turns off the product.)
- Oven Light: true
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Functions
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Delay Clean Option: true
- Hidden Bake Element: true (This feature provides more space within the cooking cavity and allows for cleaning without navigating around an exposed heating element.)
- Variable Broil: true (This feature allows you to change the temperature of the broil function, which provides more versatility and control when preparing your favorite foods.)
- Timer: true
- Oven 1 Specification
- Oven 1 Location: Upper
- Oven 1 Interior Height: 17 3/8 inches
- Oven 1 Interior Width: 25 inches
- Oven 1 Interior Depth: 20 1/4 inches
- Oven 1 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 1 Convection Type: True Convection (Convection adds a fan system to the two heating elements for continuous air motion and efficient cooking. True convection adds a third heating element to the fan system, for even more uniform heating.)
- Oven 1 Window: true
- Oven 1 Cleaning Method: Self-Steam Cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Oven 2 Specification
- Oven 2 Location: Lower
- Oven 2 Interior Height: 17 3/8 inches
- Oven 2 Interior Width: 25 inches
- Oven 2 Interior Depth: 20 1/4 inches
- Oven 2 Convection: false (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 2 Window: true
- Oven 2 Cleaning Method: Self-Steam Cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Electrical Specification
- Amperage At 208 Volts: true
- Amperage At 240 Volts: true
- Kilowatt Rating At 208 Volts: true
- Kilowatt Rating At 240 Volts: true
- Certifications Listings & Approvals
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Chemical Disclosures: For more information about chemicals in this product, including PFAS chemicals, visit: https://www.geappliances.com/chemical-reports. Para obtener más información sobre los productos químicos de este producto, incluidos los productos químicos PFAS, visite: https://www.geappliances.com/chemical-reports.” (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 1 Year
- Warranty - Labor: 1 Year
- Compatibility
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Amazon Alexa, Google Assistant, Nest (Compatible with or able to be connected to other smart devices or applications.)
- Other
- UPC: 084691842620
Cook a meal for a whole family with this GE 30" built-in convection double wall oven. Each oven provides 5 cu. ft. capacity with true European convection to prepare your large dishes in optimal conditions. Use hidden backlit LCD controls to simply operate the oven. The bright display shows the clock when not in use and illuminates controls when you're ready to cook.
- True European Convection: Achieve faster and more even results with a convection fan and third heating element that circulates air for more efficient cooking
- Anywhere control with remote notifications: Save time by conveniently preheating and monitoring your oven from anywhere using the SmartHQ App (Select features require WiFi Connection)
- Remote Temperature Probe: Know exactly when your dish has reached the perfect internal temperature with temperature readings that you can view using the SmartHQ App
- Self-Clean with optional Steam Clean: Cleaning the oven interior has never been easier, with two cleaning options to fit your lifestyle
- Never-scrub, heavy-duty smooth glide roller racks: Easily remove even the heaviest dishes with a roller rack that’s engineered to glide seamlessly out of the oven
- Never scrub, heavy-duty racks: Say goodbye to scrubbing thanks to never scrub heavy-duty racks, engineered to withstand a self clean cycle
- Hidden backlit LCD control: Easy to use display that illuminates controls when you’re ready to cook
- 10-pass hidden bake element: Even baking and quick cleanup are assured, with 10-pass element that heats a large cooking area and is hidden for an easy-to-wipe surface
- 8-pass broil element: Get full broil coverage and even browning from edge to edge
- Fit Guarantee: Replacing a similar wall oven from GE Appliances or another brand? GE wall ovens are guaranteed for an exact fit or GE Appliances will pay up to $300 toward modifications
- True European Convection: Achieve faster and more even results with a convection fan and third heating element that circulates air for more efficient cooking
- Anywhere control with remote notifications: Save time by conveniently preheating and monitoring your oven from anywhere using the SmartHQ App (Select features require WiFi Connection)
- Remote Temperature Probe: Know exactly when your dish has reached the perfect internal temperature with temperature readings that you can view using the SmartHQ App
- Self-Clean with optional Steam Clean: Cleaning the oven interior has never been easier, with two cleaning options to fit your lifestyle
- Never-scrub, heavy-duty smooth glide roller racks: Easily remove even the heaviest dishes with a roller rack that’s engineered to glide seamlessly out of the oven
- Never scrub, heavy-duty racks: Say goodbye to scrubbing thanks to never scrub heavy-duty racks, engineered to withstand a self clean cycle
- Hidden backlit LCD control: Easy to use display that illuminates controls when you’re ready to cook
- 10-pass hidden bake element: Even baking and quick cleanup are assured, with 10-pass element that heats a large cooking area and is hidden for an easy-to-wipe surface
- 8-pass broil element: Get full broil coverage and even browning from edge to edge
- Fit Guarantee: Replacing a similar wall oven from GE Appliances or another brand? GE wall ovens are guaranteed for an exact fit or GE Appliances will pay up to $300 toward modifications
Whats Included
- GE 30" Built-In Double Electric Convection Wall Oven
- Owner's manual
- GE 30" Built-In Double Electric Convection Wall Oven
- Owner's manual
A: This works for me – F97 TRY IT! Turn the lower oven on to “self-cleaning” mode and run for a few minutes- 5 or so. If you think you may forget you have the oven on, then be certain to remove the racks, because you really are not supposed to leave the racks in for a full self-cleaning cycle. A few minutes is fine and that’s all you need is but a few minutes running in self-cleaning mode Doing this has always worked to eliminate the F97 error code from my GE double oven. The F97 code pops up on my GE oven about every year and a half to two years. This is an easy no cost fix so definitely worth you trying! I am not the one that came up with this fix, I found it a few years ago after doing a deep dive on the internet for the F97 code. The person that posted it said something along the lines of “Pray to Jesus that what you are going to do will work. Then turn on the lower self cleaning mode and let it run a couple of minutes. Should fix the error code. Then thank Jesus!” Well it has always worked for me!
Q: I have seen several wall ovens that steam clean. Where does the water for the steam come from?
A: According to the oven manual, you pour one cup of water into bottom of oven
A: Thank you for connecting with us. If the width and height match your cutout, the larger depth will make this range stick out further from your countertop than your previous unit. We hope this information helps, and if you have additional questions, please know that you can always reach out to us. Best regards – Matthew@GEA
Q: Is this in the profile series?
A: No this oven is not in the Profile series.
Q: Does this oven have self cleaning racks.
A: Hello there - great question! Yes, this wall oven has one Self-Clean Roller Rack and three Self-Clean Heavy-Duty Flat Oven Racks. More information about the oven racks can be found on pages 11 and 12 of the owner's manual (linked on our website). We hope this helps! Let us know if you have any other questions - we're glad to assist. Be well, Kelsey@GEA
