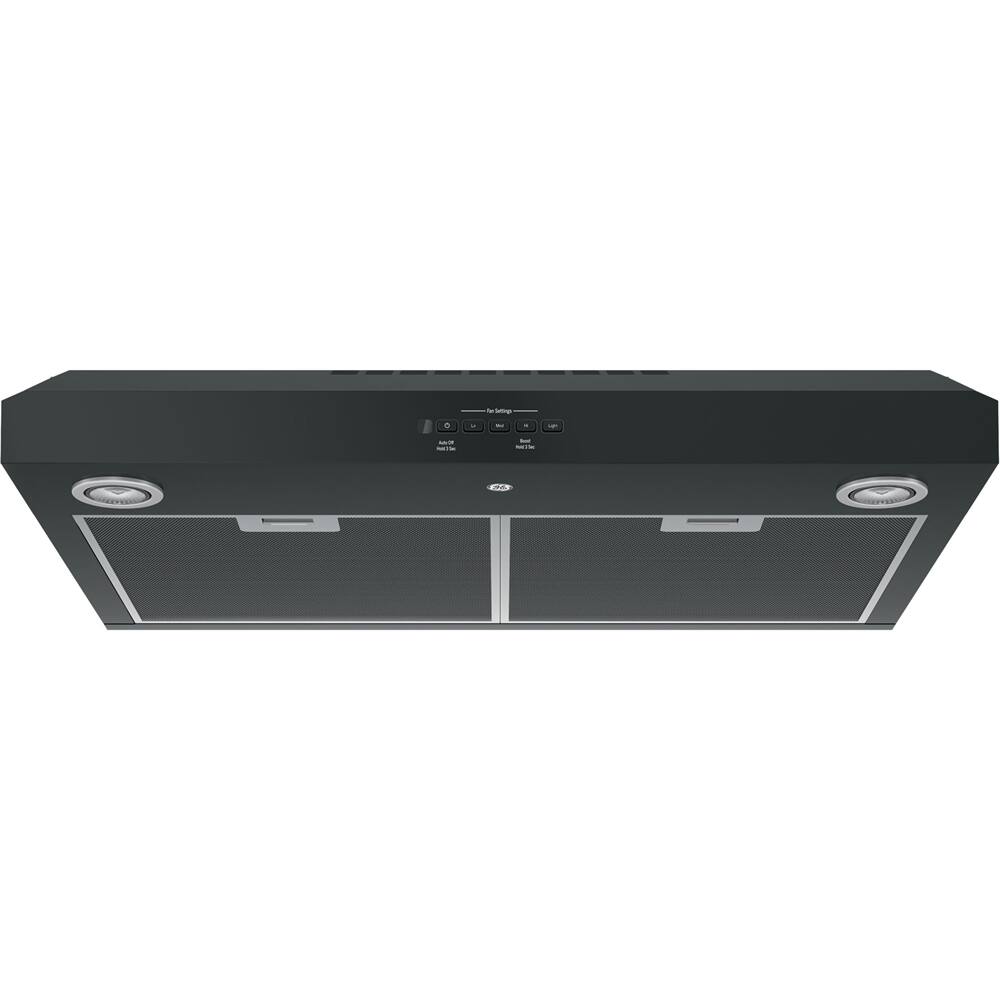

GE - 30 inches - Convertible - Under cabinet Range Hood - Black on Black

Name: GE - 30 inches - Convertible - Under cabinet Range Hood - Black on Black
Brand: GE
SKU: 5578608
Rating: 4 (178 reviews)

Model: JVX5300DJBB

SKU: 5578608

This item is no longer available in new condition. See similar items below

Key Specs
- Color Finish: Black
- Product Height: 5 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 20 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted, Ductless
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
General
- Brand: GE
- Model Number: JVX5300DJBB
- Product Name: 30" Convertible Range Hood
- Color: Black on Black
- Color Finish: Black
Dimensions
- Product Height: 5 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 24 inches
- Product Width: 29 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 20 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 19 pounds (The out of box weight of the item.)
Features
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted, Ductless
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Under cabinet
- Number of Fan Speeds: 3
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Button
- Delay Shut-Off: true (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: false
- Remote Control: true
- Integrated Light(s): true
- Number of Lights: 2
- Number of Light Levels: 2
- Bulb Type Required: Halogen
- Bulb(s) Included: true
Performance
- Maximum Air Flow Capacity: 310 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 60 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Maximum Operating Sound Level: 5.5 sones (The perceived intensity of the operating sound produced by the product at its highest setting. The higher the sone rating, the louder the noise level.)
- Minimum Operating Sound Level: 1 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)
Filter Info
- Filter Material: Other
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Number of Filters: 1
Electrical Specification
- Amperage: 2.5 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
Warranty
- Warranty - Parts: 1 Year
- Warranty - Labor: 1 Year
Other
- UPC: 084691814825

Install this 30-inch GE ventilation system in under 10 minutes to add light to any cooktop. The four-speed fan removes odors, moisture, grease and smoke, while electronic controls are backlit and easy to read. This GE ventilation system can be set to turn off automatically after 15 minutes to conserve energy.

Easy installation: 10 minutes or less by one person.
Four-speed with boost, 310 CFM venting system: Removes smoke, grease, odors and moisture.
Electronic backlit controls: Add a sophisticated look with this up-front, easy-to-use display.
Dual halogen lighting with nightlight: Enjoy better visibility with a brightly lit cooktop and surrounding surface.
Auto-off: Set the vent hood to automatically shut off after 15 minutes.
Convertible venting options: Select recirculating or external venting.
Vertical and rear exhaust: Exhausts from the top or rear of the hood.
Appearance (Fully enclosed bottom): Enjoy a sleek appearance from every angle.
Optional remote control: Control your ventilation lighting and fan speed from anywhere in the kitchen.
Easy installation: 10 minutes or less by one person.
Four-speed with boost, 310 CFM venting system: Removes smoke, grease, odors and moisture.
Electronic backlit controls: Add a sophisticated look with this up-front, easy-to-use display.
Dual halogen lighting with nightlight: Enjoy better visibility with a brightly lit cooktop and surrounding surface.
Auto-off: Set the vent hood to automatically shut off after 15 minutes.
Convertible venting options: Select recirculating or external venting.
Vertical and rear exhaust: Exhausts from the top or rear of the hood.
Appearance (Fully enclosed bottom): Enjoy a sleek appearance from every angle.
Optional remote control: Control your ventilation lighting and fan speed from anywhere in the kitchen.

Whats Included

GE 30" Convertible Range Hood
Owner's Manual
GE 30" Convertible Range Hood
Owner's Manual

Product Manuals

Q: Does this come with filters or do they need purchased separately?

A: This product comes with a filter.

Q: is the optional charcoal filter available at Best Buy? If not where? Is the optional filter permanent or is this an ongoing maintenance thing?

A: Hi - Thanks for considering GE Model JVX5300EJES! If the hood is not vented outdoors, JXCF55 Charcoal Filter is required for recirculating installation and can be purchased online at www.geapplianceparts.com. This disposable charcoal filter helps remove smoke and odors. It is recommended that the charcoal filter be replaced every 6-12 months or if it is noticeably dirty or discolored. Here's the link to the Use and Care Manual: https://products.geappliances.com/MarketingObjectRetrieval/Dispatcher?RequestType=PDF&Name=49-80783-7.pdf - Keep in touch at GEAppliances.com for all your appliance needs! Sue

Q: How deep an upper cabinet will this fit? Our cabinets are 14" from wall to front instead of the typical 12" deep. Will this work for us with the front vent located where it is? It will be venting inside, not externally.

A: Hi djts - This hood is designed for 12” cabinets and the Cabinet Spacer (JXS50SS sold separately) can be used when installing it in a 15” deep cabinet. For a 14" deep cabinet, this hood can be mounted forward without using the JXS50SS, but there will just be a 2” gap in the back. If this is done, you will want to protect the underside of the cabinet in the back. That can be as simple as a flat sheet of steel attached in that space. We hope this is helpful. Thanks for choosing GE. Keep in touch! SUEatGEA

Q: Is this ventless?

A: Hi there, this is a really good question. This vent hood is convertible, meaning that it can be installed to be externally vented to the outside or recirculating. When installed to recirculate, the unit circulates the air through a grease filter then through a charcoal filter to remove odors. The filtered air is then discharge back into the room. Thanks so much for checking and for considering GE Appliances! -Mikayla@GEA

Q: On the JVX5300DJWW there are five control buttons for low to high, light, etc. What is the purpose of the dark spot to the left of them?

A: Hi John, That small black spot is the sensor for the optional remote control for your vent hood. If you are looking to purchase a remote control, you can do so by calling our Parts Team at 1-877-959-8688. We hope that this helped! Thanks so much for your question.

Q: How loud is this hood?

A: I've found the hoods fan to be fairly quiet. It has 3 speeds, and all but high are quite good. No rattles or other annoying sounds. in the fan body. I put a thin foam sealer tape around the exhaust ducting where it mates to the unit so there is no metal to metal contact there to rattle.

Q: What is the weight of this vent hood GE - 30" Convertible Range Hood - Stainless steel?

A: The item weighs 19 pounds

Q: I currently have a GE hood fan with power access on lefty side. Does this model have that? If not does GE carry any ductless hoods with leftside power access?

A: Hello Hawkfan55 - Thank you for reaching out about our under the cabinet hoods. We are happy to help. This model calls for the electrical access hole to be just to the right of center, when looking at the cabinets. This location is uniform for all of our under the cabinet hoods. We apologize for the inconvenience. Please let us know if you need any further help searching for a hood. - John

Customers are saying

Customers are impressed with how quiet the 30" Convertible Range Hood is, with many saying it's quieter than their previous hoods. They also appreciate its user-friendly design, stylish appearance, and bright lighting. Installation is considered easy, and the three fan speeds provide powerful ventilation.

This summary was generated by AI based on customer reviews.

Customer Images

The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.

Rated 3 out of 5 stars
Does the job
Had to buy thos model as it's the only one i could find that matched my appliances. Slate. The price was right so i bit. Installation was a breeze. The brackets fit onto the cabinets and the unit lined up perfectly. At 19 lbs, you may want a second set of hands. The wiring was simple, and had plenty of room to do the work. Baffle is included as is mounting hardware. Adapter for verticle vent is also included, i needed rear exhaust so i cannot say how well that works but it's definitely sturdy. The plastic block plate that you need to swap in to make it exhaust instead of recirculate is a weird fit when unit is already hung, so either do the swap prior to installation or just drop the shroud surrounding the fan and put it in then. It has tabs that it must be locked in or it is going to wobble and bleed air. The grease screens fit securely, and they supposedly can be machine washed, I'm not sure how confident i would be with the plastic tabs not breaking. The unit itself isn't exactly flimsy, but is subject to the vibrations caused by the fan. The lights definitely wiggle on the boost setting. Hopefully this won't affect bulb life. The lighting is halogen bulbs, so it gives a warm lighting effect. The bulbs have high and low setting. Both get darned hot. I would prefer a white LED both for light output and heat diminishing, but have not researched into what that would take at this point. The fan itself has 4 settings. Low, medium, high, and boost. I measured the noise with a phone app from about 2 feet away, basically where i stand to cook and they are as follows: Low-38 decibels. Medium-45 decibels. High-56 decibels. Boost-59 decibels. The suction power of the fan is superior to the 20 year old broan unit it's replacing. It definitely reduces smoke and cooking smells, so it is working well in that regard. As others have mentioned, the fan is positioned to the left side, so suction is focused there. Pros: •simple assembly •inexpensive •it works well Cons. •pretty loud •hot halogen lights In conclusion, I'm happy with the unit itself, but if i ever redo the kitchen, i will be upgrading to a different type of hood fan.
This review is from GE - 30 inches - Convertible - Under cabinet Range Hood - Slate
Posted 3 years ago by DougFunny
Rated 4 out of 5 stars
Not perfect but works well
Spot welds along the top edges result in shallow but large indentations in the steel. That's only really noticeable when the light reflects off it, but it seems like a problem that shouldn't be there at all. See photo. The whole thing came with the standard plastic film to protect the metal. What was unexpected was the marks it left on the metal (see photo). That took a lot of cleaner and elbow grease to get rid of. Fan on left side works OK. I'm have it installed about 23" over the cook top, so it vents well from all the burners. I can see if you have it mounted a lot closer to the cooktop, you might have problems venting from the right side burners. As others mentioned, the halogen lights get hot. Not sure why anyone still uses those instead of LEDs these days. But that is what is in the description, so can't fault it for that. However, they don't light the cook top evenly - back burners are where I need more light, but they have much less than the front ones. Overall seems a little over priced considering welding and cleanup issues, plus it doesn't include charcoal filters
This review is from GE - 30 inches - Convertible - Under cabinet Range Hood - Stainless Steel
Posted 5 years ago by James
Rated 1 out of 5 stars
Well the lights work
We have it installed as a ventless over a range. Even when it’s on high it doesn’t suction any air into the filters. As a matter of fact, it feels like the fan is blowing down not drawing air up. See the flame being blown when held up to the fan and the smoke not going up just staying around the napkin when held down by the cooktop. All recommendations for distance were followed. It’s worse when you put in the charcoal filter. Don’t waste your money, we’ll be buying a different one. The lights work well.
This review is from GE - 30 inches - Convertible - Under cabinet Range Hood - Stainless Steel
Posted 2 years ago by Golfmomma1
