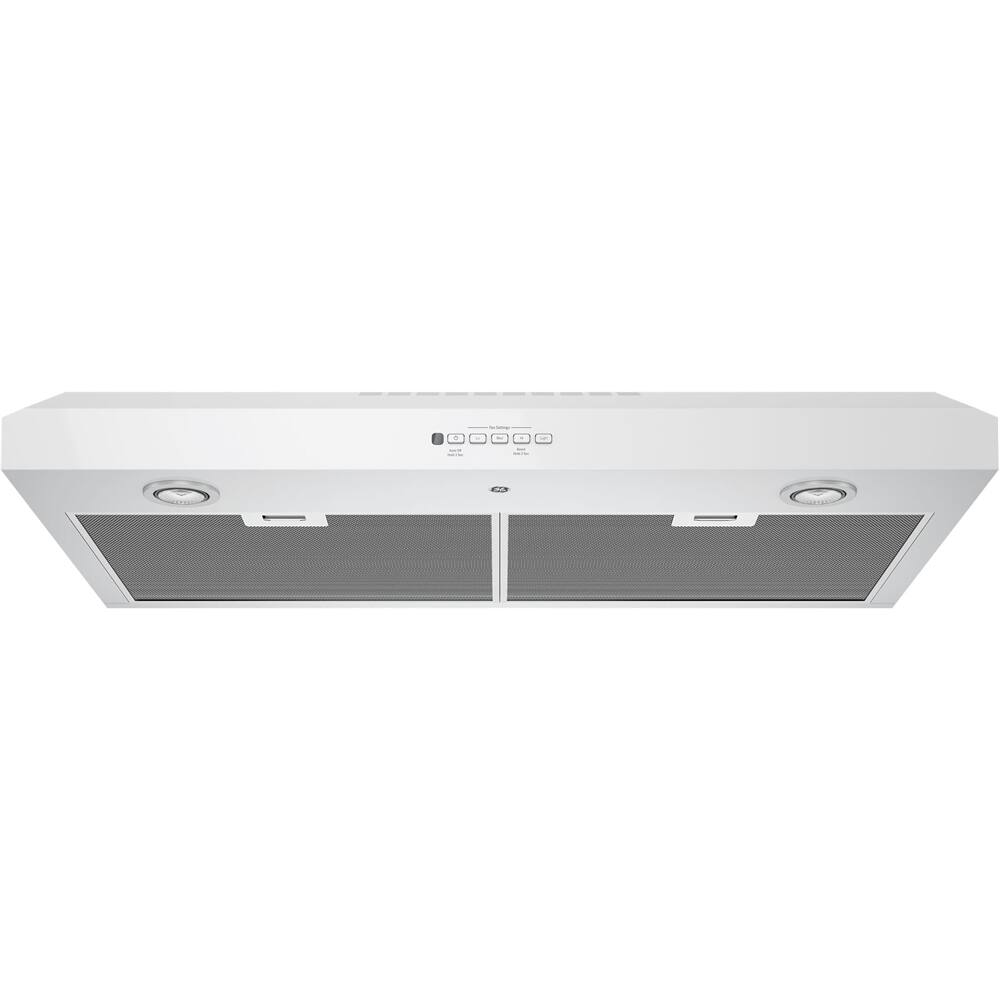

GE - 36 inches - Convertible - Under cabinet Range Hood - White on White
- Key Specs
- Color Finish: White
- Product Height: 5 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 20 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted, Ductless
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: GE
- Model Number: JVX5360DJWW
- Product Name: 36" Convertible Range Hood
- Color: White on White
- Color Finish: White
- Dimensions
- Product Height: 5 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 24 inches
- Product Width: 35 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 20 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 20.9 pounds (The out of box weight of the item.)
- Features
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted, Ductless
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Under cabinet
- Number of Fan Speeds: 4
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Button
- Delay Shut-Off: true (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: false
- Remote Control: false
- Damper Included: true
- Integrated Light(s): true
- Number of Lights: 2
- Number of Light Levels: 2
- Bulb Type Required: Halogen
- Bulb(s) Included: true
- Performance
- Maximum Air Flow Capacity: 310 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 60 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Maximum Operating Sound Level: 5.5 sones (The perceived intensity of the operating sound produced by the product at its highest setting. The higher the sone rating, the louder the noise level.)
- Minimum Operating Sound Level: 1 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)
- Filter Info
- Filter Material: Other
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Number of Filters: 2
- Electrical Specification
- Amperage: 2.5 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 084691816942
Clear the air for a cleaner kitchen with this 36-inch GE under-the-cabinet hood. This ventilation system effectively removes moisture, grease and smoke, and it installs in minutes. The dual halogen lights provide extra illumination during delicate cooking tasks, while the auto-shutoff function on this GE under-the-cabinet hood helps conserve energy.
- Easy installation: Ten minutes or less by one person.
- Four-speed with boost, 310-CFM venting system: Removes smoke, grease, odors and moisture.
- Electronic backlit controls: Add a sophisticated look with this up-front, easy-to-use display.
- Dual halogen lighting with nightlight: Enjoy better visibility with a brightly lit cooktop and surrounding surface.
- Auto-off: Set the vent hood to automatically shut off after 15 minutes.
- Convertible venting options: Select recirculating or external venting.
- Vertical and rear exhaust: Exhausts from the top or rear of the hood.
- Appearance (Fully enclosed bottom): Enjoy a sleek appearance from every angle.
- Optional remote control: Control your ventilation lighting and fan speed from anywhere in the kitchen.
- Easy installation: Ten minutes or less by one person.
- Four-speed with boost, 310-CFM venting system: Removes smoke, grease, odors and moisture.
- Electronic backlit controls: Add a sophisticated look with this up-front, easy-to-use display.
- Dual halogen lighting with nightlight: Enjoy better visibility with a brightly lit cooktop and surrounding surface.
- Auto-off: Set the vent hood to automatically shut off after 15 minutes.
- Convertible venting options: Select recirculating or external venting.
- Vertical and rear exhaust: Exhausts from the top or rear of the hood.
- Appearance (Fully enclosed bottom): Enjoy a sleek appearance from every angle.
- Optional remote control: Control your ventilation lighting and fan speed from anywhere in the kitchen.
Whats Included
- GE 36" Convertible Range Hood
- Owner's Manual
- GE 36" Convertible Range Hood
- Owner's Manual
Q: What is a convertible rangehood and what is a downdraft.
A: This range hood is designed to sit underneath the cabinet and the downdraft vents away smells.
Q: How loud is it? Sones? Decibels?
A: I just got this hood and I’m unsure of the decibels but it is relatively quiet compared to any that I’ve had in the past. Very satisfied with it and the look of it also.
A: The dimensions of the product are as follows: 20 x 5.5 x 35.875 inches.
Q: Is this vent hardwired or plug in? If hardwired can it be converted to plug in?
A: Thank you for asking and this model is hardwired. This is explained in the installs supplied with this hood. You will need to check with local electrical codes about using a plug in power cord. Hope this helps. Geoff@GEA
A: Hi, All great questions! We thank you for your interest and we'd be happy to help. We found that this hood is designed to fit 12" deep cabinets. This model will need to be hard wired and should be done by a qualified technician. Hope this helps! -Sylvia@GEA
A: Hi - Thanks for considering GE Model JVX5360SJSS! We cannot guarantee the stainless finish will match your LG Model # LFXC22526. Our appliances with fingerprint resistant stainless offers a clear coat that allows the shine of the stainless to show through. Some manufacturers use a matte coating, resulting in a dull finish. We suggest checking with LG. Also, GE appliances with fingerprint resistant stainless will match GE appliances with non-fingerprint resistant stainless. Keep in touch at GEAppliances.com. Sue
A: Hi Sarah - This hood can be vented vertically through upper cabinets then downward or horizontally through an outside wall then downward. Ductwork is not included. To maximize the ventilation performance of the vent system, minimize the duct run length and number of transitions and elbows. We suggest to view the Installation Instructions for complete details (Page 14): https://products.geappliances.com/MarketingObjectRetrieval/Dispatcher?RequestType=PDF&Name=49-80783-4.pdf - Thanks for choosing GE! Sue
Q: I'm looking for a ductless range hood. do you have anything like that?
A: We can confirm that this range hood can be installed as recirculating, which does not require ventilation/ducting. For more information see the Installation Instructions starting on page 9 of the Owner’s Manual which can be viewed at the bottom of the Features tab on the product page of the Best Buy website.
