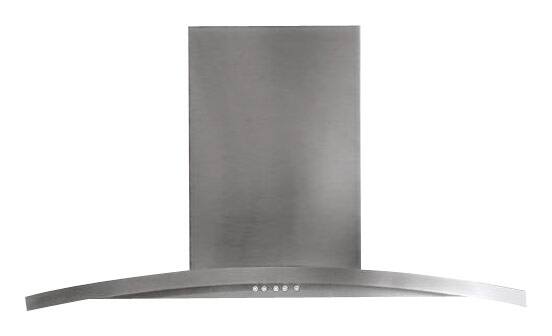

GE Profile - 36 inches - Convertible - Wall Range Hood - Stainless Steel
- Key Specs
- Color Finish: Stainless steel
- Product Height: 3 1/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted, Ductless
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: GE Profile
- Model Number: PV976NSS
- Product Name: Designer 36" Convertible Range Hood
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 3 1/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 24 inches
- Product Width: 35 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 68 pounds (The out of box weight of the item.)
- Features
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted, Ductless
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Wall
- Number of Fan Speeds: 4
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Button
- Delay Shut-Off: false (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: false
- Remote Control: false
- Damper Included: true
- Integrated Light(s): true
- Number of Lights: 2
- Number of Light Levels: 3
- Bulb Type Required: LED
- Bulb(s) Included: true
- Performance
- Maximum Air Flow Capacity: 450 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 210 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Maximum Operating Sound Level: 7 sones (The perceived intensity of the operating sound produced by the product at its highest setting. The higher the sone rating, the louder the noise level.)
- Minimum Operating Sound Level: 1.5 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)
- Filter Info
- Filter Material: Stainless steel
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Electrical
- Amperage: 4.1 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Warranty
- Warranty - Parts: 1 year limited
- Warranty - Labor: 1 year limited
- Other
- UPC: 084691174752
This range hood features a 400 cfm exhaust system and a 4-speed fan to eliminate smoke and cooking odors from your kitchen. The removable grease filter is dishwasher-safe for easy cleaning.
- 450-CFM venting system: Helps effectively remove smoke, grease, odors and moisture
- Push-button controls: Are easy to see and easy to use
- Variable speed fan control: Helps draw smoke, grease, odors and moisture out of the kitchen air
- Vertical exhaust: Exhausts from the top of the hood
- LED cooktop lights: Illuminates the cooking surface
- Night light: Soft light at night
- Dishwasher safe filter: Filters grease and is dishwasher-safe
Whats Included
- GE Profile Designer 36" Convertible Range Hood
- Owner's Manual
Q: How do you clean the filter on this exhaust Hood?
A: undefined
A: Thanks for your interest in this beautiful range hood. This specific model must be vented through the top of the microwave and into the ceiling. We’re sorry for any inconvenience this may cause. Please let us know if you have any additional questions. -Gina@GEA
Q: What is the diameter of the actual exhaust tube?
A: Hello. Thanks for reaching out! The diameter is 8 inches. We hope this helps, and should you have any additional questions, please reach out to us!- Kianna@GEA
A: Hello. We apologize, we do not offer remote blower fans for our models. -Chris
Q: What are the dimensions (depth and width) of the stack?
A: Hi G - The height of the supplied duct cover is adjustable: 7'11" to 10'2". See Quick Specs at the following link: https://products.geappliances.com/MarketingObjectRetrieval/Dispatcher?RequestType=PDF&Name=220971_pv976n_r2.pdf - You can also view the Installation Guide online: https://products.geappliances.com/MarketingObjectRetrieval/Dispatcher?RequestType=PDF&Name=49-80549-4.pdf - Keep in touch! Sue
