Gearmo - 2-Port USB 3.2 Gen 1 Hub with 1 Gigabit Ethernet Port & 1 DB9 Serial Port - FTDI Chipset - Surface & DIN-Rail Mountable - Black
Gearmo - 2-Port USB 3.2 Gen 1 Hub with 1 Gigabit Ethernet Port & 1 DB9 Serial Port - FTDI Chipset - Surface & DIN-Rail Mountable - Black
Related Item
Specifications
- Number of USB Port(s)4
- Key Specs
- Number of USB Port(s): 4
- General
- Brand: Gearmo
- Model Number: GM-HU32ES
- Product Name: 2-Port USB 3.2 Gen 1 Hub with 1 Gigabit Ethernet Port & 1 DB9 Serial Port - FTDI Chipset - Surface & DIN-Rail Mountable
- Color: Black
- Features
- Hub Type: USB hubs (The type of connection, such as Ethernet or USB, used to connect peripheral devices to the hub for shared access.)
- Ports
- Number of USB Port(s): 4
- Port Type(s): USB (USB 2.0 connects external drives, gaming controllers, smartphones, MP3 players and other accessories.USB 3.0 transfers data faster than USB 2.0, but only when used with USB 3.0 devices.USB Type-C provides fast speeds and versatile power, featuring connectors with identical ends that plug in upside down or right side up. Adapters allow for video as well as backward compatibility.Thunderbolt provides ultra-high bandwidth for fast data transfer between devices featuring a Thunderbolt or MiniDisplayPort connection.HDMI allows you to connect a projector or display HD media on your HDTV or monitor.Media card slots allow you to transfer photos from your digital camera or camcorder.)
- Dimensions
- Product Height: 1.04 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 5.54 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 2.71 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 0.64 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 045079163836
The GM-HU32ES is a rugged, high-speed 2-Port USB 3.2 Gen 1 hub that goes beyond simple expansion. Along with two SuperSpeed USB-A ports delivering up to 5Gbps, it integrates a DB9 RS-232 serial port and a Gigabit Ethernet port for maximum versatility. Built with a durable metal chassis, this hub is ready for industrial-style setups with included wall, surface, and DIN-rail mounting options. Power input options include both a DC barrel adapter and a 3-pin terminal block, while each port is safeguarded with 15kV ESD surge protection. With wide 9–48V DC input, per-port power up to 2A, and plug-and-play support across Windows and macOS, the GM-HU32ES is a compact yet powerful hub designed to keep your essential devices connected and protected.
- Expand your connections: Instantly upgrade your workspace with up to 5Gbps data transfer via various port types - great for specialized setups and legacy hardware.
- Smart port layout: Features 4 downstream ports including 2 USB Type-A ports, 1 Serial RS-232 DB9 Port, and 1 RJ-45 Ethernet Port 10/100/1000, plus a USB Type-B host port.

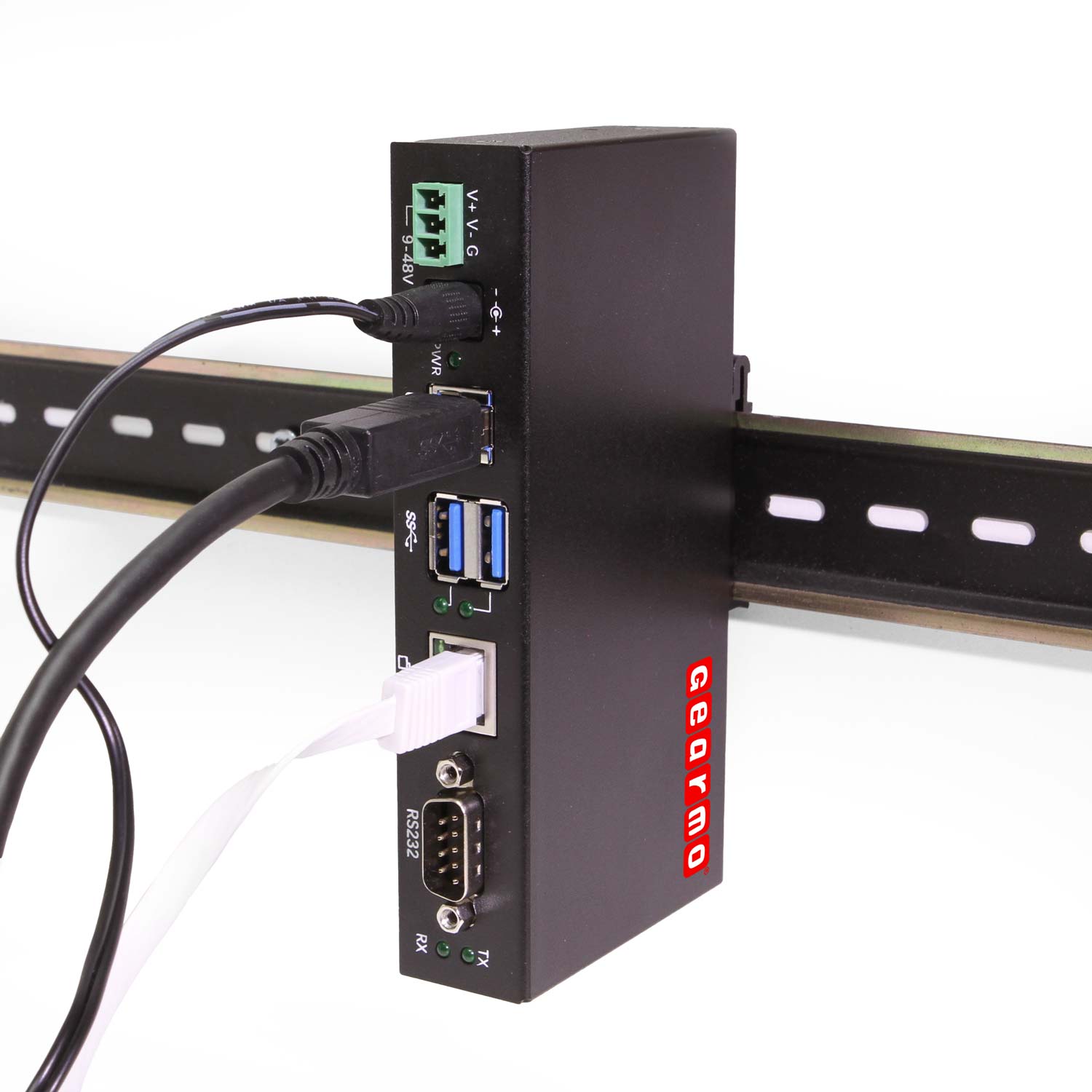

- Flexible mounting options: Rugged metal enclosure is ready for secure installation on a desktop, wall, or DIN rail with included hardware for easy integration into your setup.

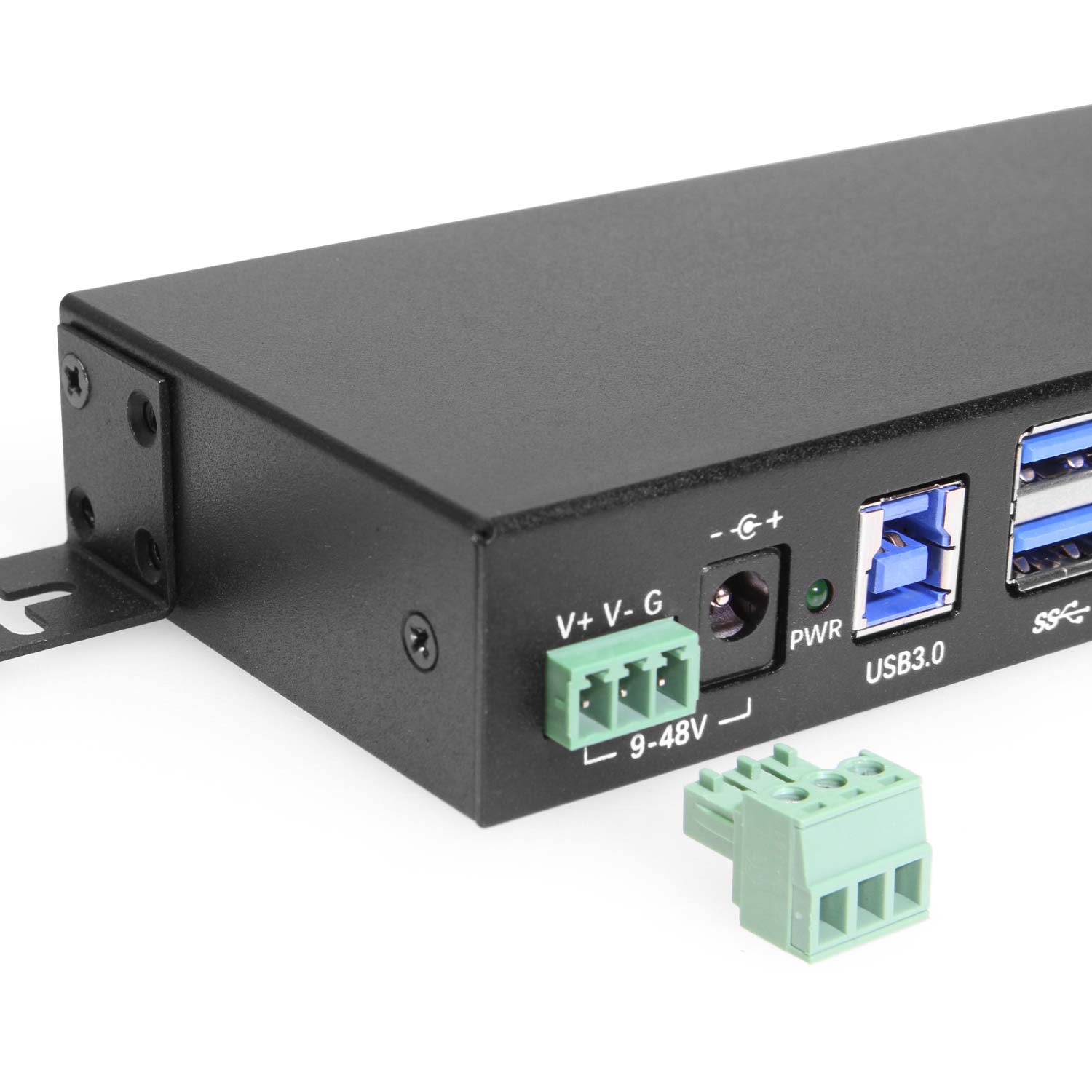

- Power and device protection: Accepts wide 9-48V DC input via barrel jack or 3-pin terminal block, and includes 15kV ESD protection to keep your devices safe and uninterrupted.
- Broad OS compatibility: Works seamlessly with Windows 7 through Windows 11 and macOS.
- Expand your connections: Instantly upgrade your workspace with up to 5Gbps data transfer via various port types - great for specialized setups and legacy hardware.
- Smart port layout: Features 4 downstream ports including 2 USB Type-A ports, 1 Serial RS-232 DB9 Port, and 1 RJ-45 Ethernet Port 10/100/1000, plus a USB Type-B host port.
- Flexible mounting options: Rugged metal enclosure is ready for secure installation on a desktop, wall, or DIN rail with included hardware for easy integration into your setup.
- Power and device protection: Accepts wide 9-48V DC input via barrel jack or 3-pin terminal block, and includes 15kV ESD protection to keep your devices safe and uninterrupted.
- Broad OS compatibility: Works seamlessly with Windows 7 through Windows 11 and macOS.
Whats Included

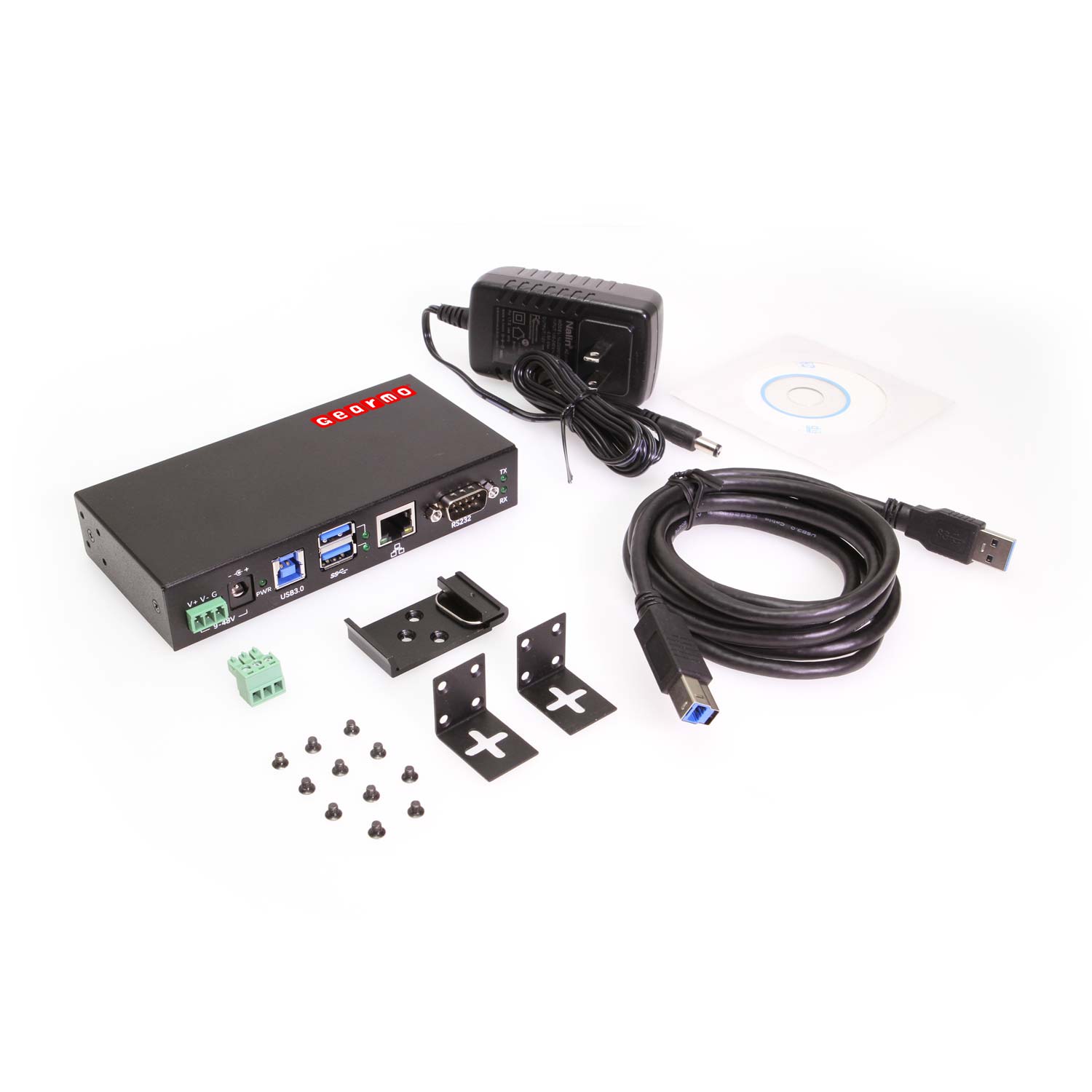

- Hub, Power Adapter, 3-Pin Terminal Block, 6.6ft USB 3.2 Gen 1 Type-A to B Cable, Mounting Kit, Screws, Driver CD, User Manual
- Hub, Power Adapter, 3-Pin Terminal Block, 6.6ft USB 3.2 Gen 1 Type-A to B Cable, Mounting Kit, Screws, Driver CD, User Manual
