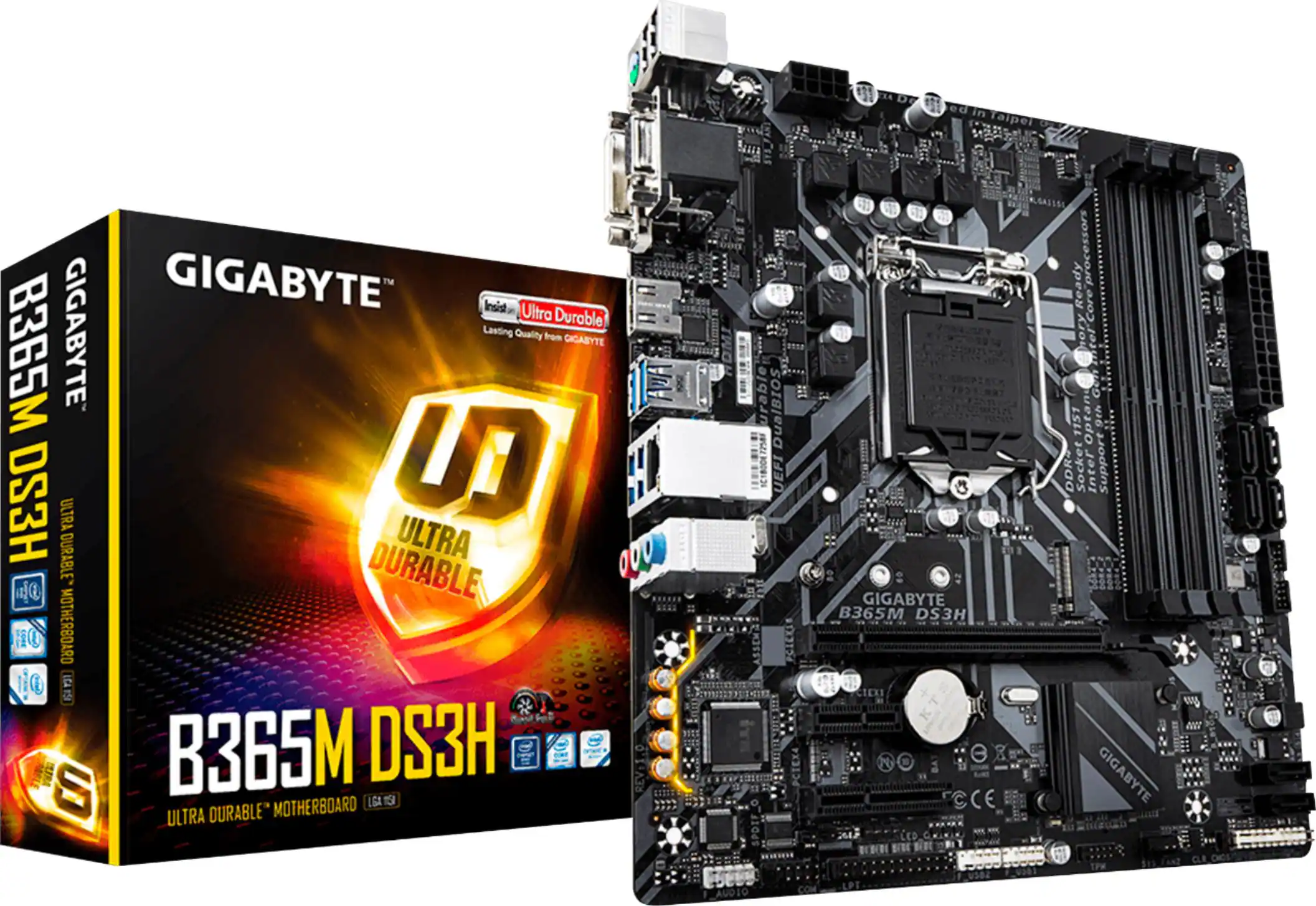

GIGABYTE - B365M DS3H (Socket LGA1151) USB 3.1 Gen 1 Intel Motherboard
- Key Specs
- Chipset: Intel B365
- Form Factor: microATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1151 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 64 gigabytes
- General
- Brand: GIGABYTE
- Model Number: B365M DS3H
- Product Name: B365M DS3H (Socket LGA1151) USB 3.1 Gen 1 Intel Motherboard
- Compatibility
- Chipset: Intel B365
- Form Factor: microATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1151 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: Intel Pentium, Intel Celeron, Intel Core i5, Intel Core i3, Intel Core i7
- Connectivity
- Power Connector: 24-pin main power connector, 8-pin ATX12V connector (The configuration of the connector as it connects the motherboard to a power supply unit.)
- Slot
- Number Of Memory Slots: 4
- Dimensions
- Product Length: 8.1 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 8.9 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Memory
- Maximum Memory Supported: 64 gigabytes
- Memory Slot Type: 288-pin DIMM
- Other
- UPC: 889523017203
Build a personalized computer with this microATX GIGABYTE motherboard. The CPU socket holds select Intel Core processors for fast performance, and the four DIMM slots support up to 64GB of RAM for smooth multitasking. This GIGABYTE motherboard contains one PCI Express x16 slot for a dedicated graphics card, while the HDMI and DVI-D ports accommodate high-definition displays.
- Supports Intel® processors: Including Pentium®, Celeron®, Core™ i5, Core™ i3, Core™ i7 and Core™ i9 in an LGA 1151 socket.
- Up to 2666MHz system speed: With an Intel® B365 chipset for efficient operation.
- Four 288-pin DDR4 SDRAM DIMM sockets: Support up to 64GB of system memory.
- Supports Realtek 8-channel audio: For an excellent sonic performance.
- Peripheral interfaces: Include 1 LAN (Gigabit Ethernet), 4 USB 3.1 Gen 1, 1 audio line-in, 1 audio line-out, 1 microphone, 2 USB 2.0, 1 PS/2 (mouse/keyboard), 1 DVI-D, 1 HDMI, and more.
- Expansion capabilities: Include 1 PCI Express 3.0 x16, 1 PCI Express 3.0 x4 and 1 PCI Express 3.0 x1.
- Supports Intel® processors: Including Pentium®, Celeron®, Core™ i5, Core™ i3, Core™ i7 and Core™ i9 in an LGA 1151 socket.
- Up to 2666MHz system speed: With an Intel® B365 chipset for efficient operation.
- Four 288-pin DDR4 SDRAM DIMM sockets: Support up to 64GB of system memory.
- Supports Realtek 8-channel audio: For an excellent sonic performance.
- Peripheral interfaces: Include 1 LAN (Gigabit Ethernet), 4 USB 3.1 Gen 1, 1 audio line-in, 1 audio line-out, 1 microphone, 2 USB 2.0, 1 PS/2 (mouse/keyboard), 1 DVI-D, 1 HDMI, and more.
- Expansion capabilities: Include 1 PCI Express 3.0 x16, 1 PCI Express 3.0 x4 and 1 PCI Express 3.0 x1.
Whats Included
- Gigabyte B365M DS3H
- Software
- Gigabyte B365M DS3H
- Software
Product Manuals
Q: Is it works for a intek i5 4440 socket lga1150?
A: No, this is a socket 1151 board. Additionally this is for 8th and 9th gen Intel processors
Q: does the gigabyte b365m ds3h support socket intel i5-6500t
A: It’s made to support socket LGA 1151 which is only 8th/9th gen Intel CPUs. The i5-6500t is a 6th gen Intel.
A: Hi amaanah, Some intel CPUs dont have built in GPUs (use of the motherboard ports) You should check if your cpu has a built in gpu. If you have or plan on getting a dedicated GPU, you can plug the cable directly into there. Hope this helps! - John
Q: Does this have ARGB headers? 5v or 12v
A: undefined
Q: Does the GIGABYTE - B365M DS3H (Socket LGA1151) USB 3.1 Gen 1 Intel Motherboard take ddr3 or ddr4
A: DDR 4
Q: What are the dimensions on the motherboard?
A: undefined
Q: Will the Intel 9600K work with this?
A: Hello ElijahL, this cpu will work with this motherboard but this motherboard is not overclocking compatible as if you overclock, it will power throttle which will slow down your cpu quite a lot. You can spend the extra dollar on something else and get the 9600 (without the K).
