GIGABYTE - B850M AORUS ELITE WIFI6E ICE (Socket AM5) AMD B850M mATX DDR5 Wi-Fi6E Motherboard - White
Intel - Core Ultra 7 265K 20-Cores 20-Threads - 4.6GHz (5.5 GHz Turbo) Socket LGA 1851 Unlocked Desktop Processor - Multi$311.99$429.99
More Buying Options
Related Item
Specifications
- ChipsetAMD B850Form FactormicroATXProcessor SocketSocket AM5 (LGA 1718)Number of PCI-E Slots2Wireless Networking StandardWi-Fi 6ENumber Of Memory Slots4
- Key Specs
- Chipset: AMD B850
- Form Factor: microATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Number of PCI-E Slots: 2 (How many peripheral component interconnect express slots are available.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5
- General
- Brand: GIGABYTE
- Model Number: B850M AORUS ELITE WIFI6E ICE
- Product Name: GIGABYTE - B850M AORUS ELITE WIFI6E ICE (Socket AM5) AMD B850M mATX DDR5 Wi-Fi6E Motherboard
- Color: White
- Year of Release: 2025
- Compatibility
- Chipset: AMD B850
- Chipset Compatibility: AMD
- Form Factor: microATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: AMD Ryzen 9 9000 Series, AMD Ryzen 9 8000 Series, AMD Ryzen 9 7000 Series
- Slot
- Number of M.2 Slots: 2 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number of PCI-E Slots: 2 (How many peripheral component interconnect express slots are available.)
- Number Of PCI-E x16 Slots: 2
- Number Of Memory Slots: 4
- Connectivity
- Wireless Connectivity: Wi-Fi, Bluetooth (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Ports
- USB Ports: 1 x USB-C 3.2, 2 x USB-A 3.2 (The number and type of USB ports the product has.)
- Number of Audio Channels: 2, 4, 5.1, 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 244 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 244 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 51.2 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 0, RAID 1, RAID 5 (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: 5 years
- Warranty - Labor: 5 Years
- Other
- UPC: 889523046081
The B850M AORUS ELITE WIFI6E ICE supports AM5 Processors and features unparalleled performance. GIGABYTE B850 motherboards come with upgraded power design, high grade storage standards, and outstanding connectivity that enables you to optimize your performance.
- Warranty: 5-year Warranty
- Processor Compatibility: AMD Socket AM5: Supports AMD Ryzen 9000 / Ryzen 8000 / Ryzen 7000 Series Processors
- DDR5 Compatible: 4* DIMMs with XMP Memory Module Support
- Next Gen Connectivity: PCIe 5.0, 2x M.2 Slots, USB-C, Sensor Panel Link
- Sturdy Power Design: Twin 12+2+2 Phases Digital VRM Solution
Q: How many M.2 slots are available on this motherboard?
A: This motherboard has 2 M.2 slots.
Q: What is the warranty period for this motherboard?
A: This motherboard comes with a 5-year warranty.
Q: What type of memory does this motherboard support?
A: This motherboard supports DDR5 type memory.
Q: What is the maximum amount of memory supported by this motherboard?
A: The maximum memory supported is 256 gigabytes.
Q: Does this motherboard support AMD Ryzen processors?
A: Yes, this motherboard supports AMD Ryzen 9000 / Ryzen 8000 / Ryzen 7000 Series Processors.
A: undefined
Compare similar products
The B850M AORUS ELITE WIFI6E ICE supports AM5 Processors and features unparalleled performance. GIGABYTE B850 motherboards come with upgraded power design, high grade storage standards, and outstanding connectivity that enables you to optimize your performance.
The ASUS TUF GAMING B850M-PLUS WIFI7 W featuring 14+2+1 80A DrMOS power stages for robust performance. It’s ready for AMD Socket AM5, supports DDR5 memory, PCIe 5.0, three M.2 slots, Wi-Fi 7, Realtek 2.5Gb Ethernet, DisplayPort, HDMI™, rear USB 20Gbps Type-C® and front USB 10Gbps Type-C® support, BIOS FlashBack™, Aura Sync.
The B850M GAMING X WIFI6E supports AM5 Processors and features unparalleled performance. GIGABYTE B850 motherboards come with upgraded power design, high grade storage standards, and outstanding connectivity that enables you to optimize your performance.
The B850M EAGLE WF6E ICE supports AM5 Processors and features unparalleled performance. GIGABYTE B850 motherboards come with upgraded power design, high grade storage standards, and outstanding connectivity that enables you to optimize your performance.
Specs
Reviews
Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
Great Micro ATX Board
Gigabyte makes it extremely easy to build a PC again, even with this smaller motherboard in tight spaces. Looks fantastic and performs great as well.
Posted by Andrew
- Rated 5 out of 5 stars
Best motherboard!
Made my Pc much faster, and it looks amazing. Easy to install, and it just pops specially if you have an all white setup
Posted by Ricky
- Rated 5 out of 5 stars
Great for SFF builds-no issues-great BIOS

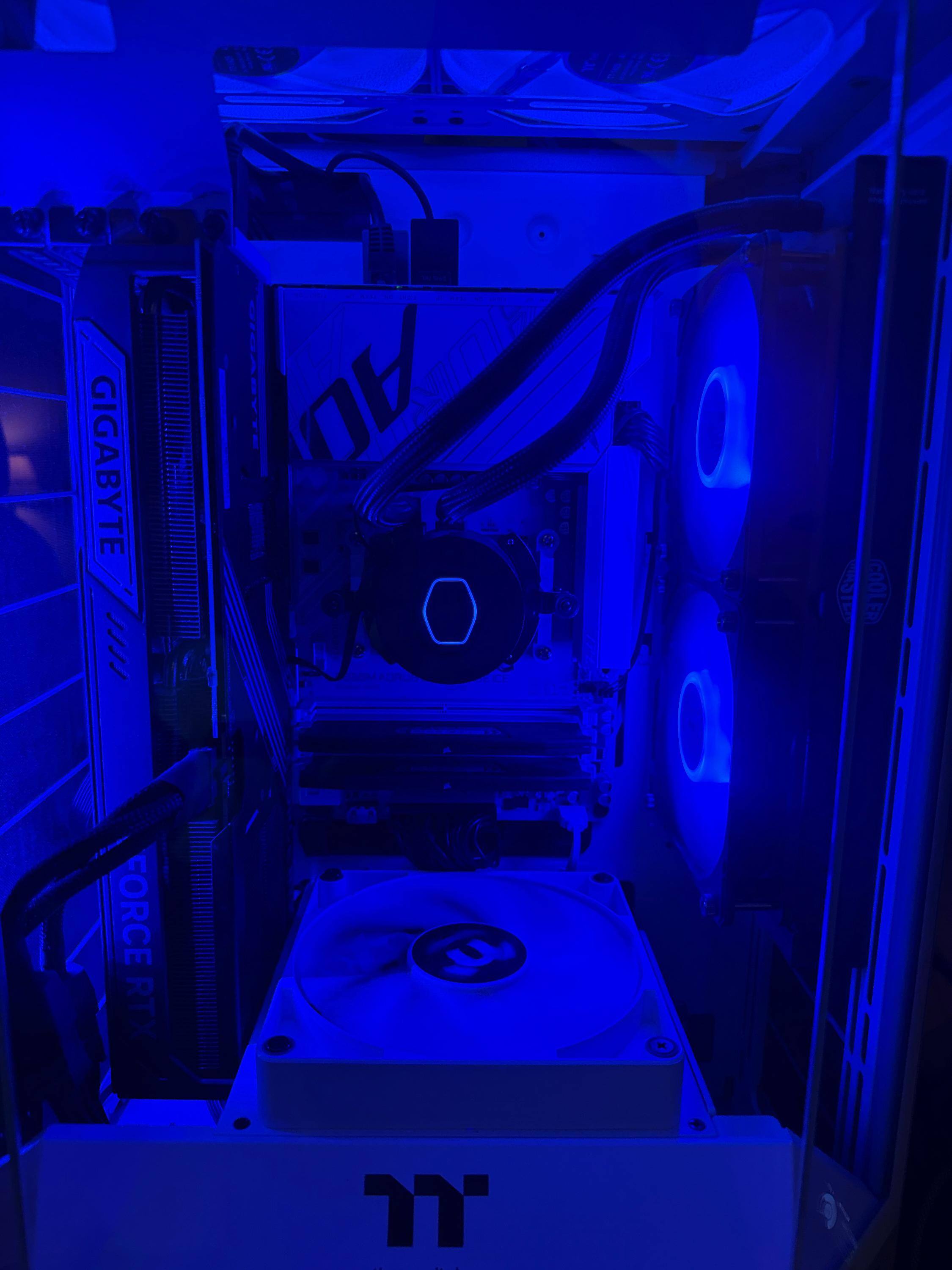

Handles a 5080 64GB 6000hz ram just fine with a 9700x and 2 4tb nvme just fine! Highly recommend if you’re building a small form factor and want 4 DIMM slots and your SFF case can fit it-get this one!
Posted by Maximus21jr
