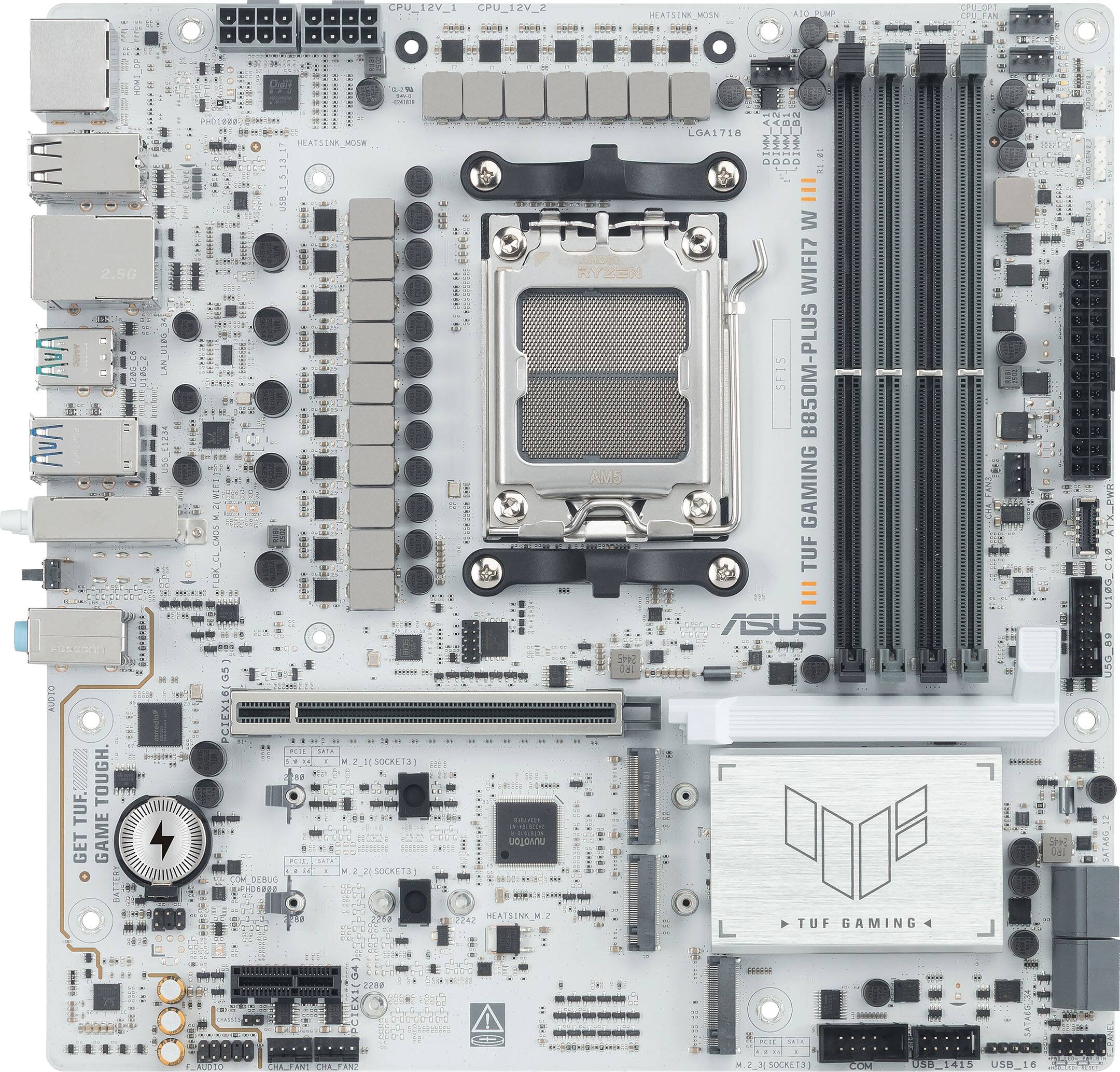

ASUS - TUF Gaming B850M-PLUS (Socket AM5) AMD B850 Micro-ATX Wi-Fi 7 BE Motherboard - White
Model: TUF Gaming B850M-PLUS WIFI7 W
SKU: 6643437
$259.99
or
Finance OptionsView your offers
Special OffersOn related products
Availability
Order now for pickup on Tue, Jan 27 at
Sold by
WD - BLACK SN850X 4TB Internal SSD PCIe Gen 4 x4 NVMe with Heatsink for PS5 and Desktops$1,149.99$1,415.99
More Buying Options
Related Item
SponsoredASUS - ROG STRIX B850-A GAMING WIFI (Socket AM5) AMD B850 ATX DDR5 Wi-Fi 7 Motherboard - White
$239.99
$289.99
Specifications
- ChipsetAMD B850Form FactormicroATXProcessor SocketSocket AM5 (LGA 1718)Number of PCI-E Slots3Wireless Networking StandardWi-Fi 7Number Of Memory Slots4
- Key Specs
- Chipset: AMD B850
- Form Factor: microATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Number of PCI-E Slots: 3 (How many peripheral component interconnect express slots are available.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5
- General
- Brand: ASUS
- Model Number: TUF Gaming B850M-PLUS WIFI7 W
- Product Name: TUF Gaming B850M-PLUS (Socket AM5) AMD B850 Micro-ATX Wi-Fi 7 BE Motherboard
- Color: White
- Year of Release: 2025
- Compatibility
- Chipset: AMD B850
- Chipset Compatibility: AMD
- Form Factor: microATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: AMD Ryzen 9 9000 Series, AMD Ryzen 7 9000 Series, AMD Ryzen 5 9000 Series, AMD Ryzen 9 8000 Series, AMD Ryzen 7 8000 Series, AMD Ryzen 5 8000 Series, AMD Ryzen 9 7000 Series, AMD Ryzen 7 7000 Series, AMD Ryzen 5 7000 Series
- Operating System Compatibility: Windows 11 Home, Windows 11 Pro, Linux
- Slot
- Number of M.2 Slots: 3 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number of PCI-E Slots: 3 (How many peripheral component interconnect express slots are available.)
- Number Of PCI-E x16 Slots: 2
- Number Of PCI-E x4 Slots: 0
- Number Of PCI-E x1 Slots: 1
- Number Of Memory Slots: 4
- Connectivity
- Power Connector: 1 x 24-pin Main Power connector, 2 x 8-pin +12V CPU Power connector (The configuration of the connector as it connects the motherboard to a power supply unit.)
- SATA Connector: 4 (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- Fan/Cooling System Connector: 6 (The configuration of the connector as it connects a computer component to a fan or cooling system.)
- Wireless Connectivity: Wi-Fi, Bluetooth (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: BE (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Ports

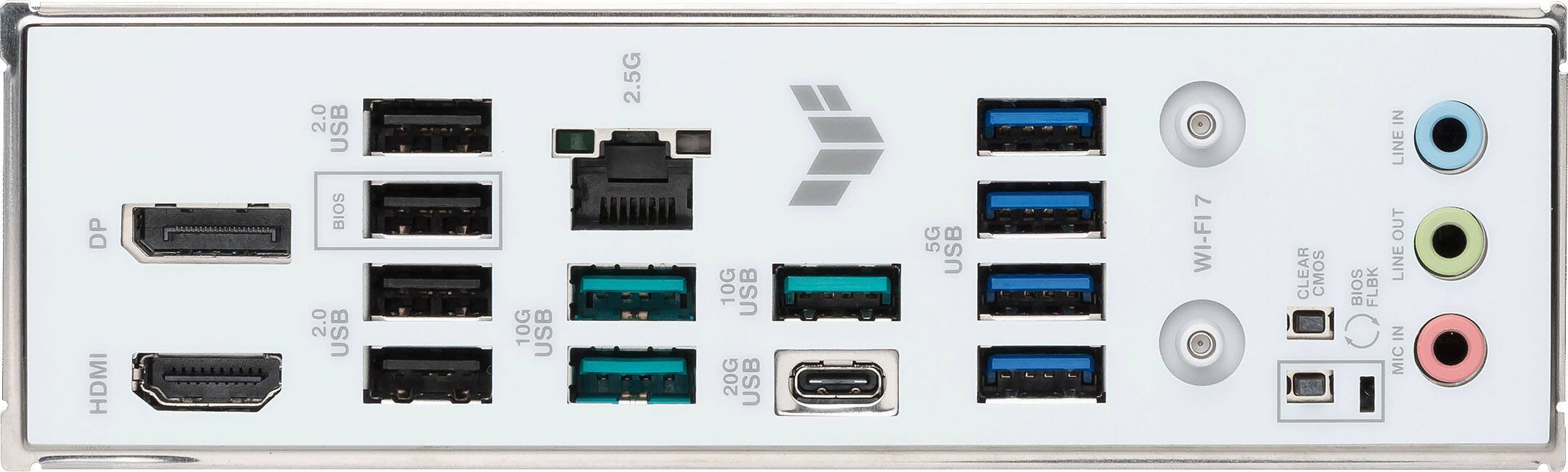

- USB Ports: 2 x USB-C 3.2, 8 x USB-A 3.2, 6 x USB-A 3.2 (The number and type of USB ports the product has.)
- Audio Ports: 3
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 244 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 244 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 41.28 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: Up to 8000+MT/s (OC) (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- Multi-GPU Support: None
- RAID Support: RAID 0, RAID 01 (RAID 0+1), RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 199291167452
The ASUS TUF GAMING B850M-PLUS WIFI7 W featuring 14+2+1 80A DrMOS power stages for robust performance. It’s ready for AMD Socket AM5, supports DDR5 memory, PCIe 5.0, three M.2 slots, Wi-Fi 7, Realtek 2.5Gb Ethernet, DisplayPort, HDMI™, rear USB 20Gbps Type-C® and front USB 10Gbps Type-C® support, BIOS FlashBack™, Aura Sync.
- Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- AMD AM5 Socket: Ready for AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
- Enhanced Power Solution: 14+2+1 80A DrMOS power stages, 8-layer white PCB, 8+8 pin ProCool power connectors, alloy chokes and durable capacitors for stable power delivery
- Latest M.2 Support: One onboard PCIe 5.0 M.2 slot and two PCIe 4.0 M.2 slots
- Ultrafast Connectivity: Wi-Fi 7, PCIe 5.0 x16 slot, Realtek 2.5Gb Ethernet, rear USB 20Gbps Type-C® port, front USB 10Gbps Type-C® connector
- Comprehensive Cooling: Enlarged VRM heatsink, M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- DIY Friendly Design: PCIe Slot Q-Release, new M.2 Q-Latch, Q-Antenna, Q-Dashboard, Q-LED, BIOS FlashBack™, Clear CMOS button and Pre-mounted I/O shield
- Unmatched Personalization: Three Addressable RGB Gen 2 headers, all configurable with ASUS-exclusive Aura Sync RGB lighting
- Renowned Software: ASUS DriverHub, ASUS AI Advisor, DTS Audio Processing
- Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- AMD AM5 Socket: Ready for AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
- Enhanced Power Solution: 14+2+1 80A DrMOS power stages, 8-layer white PCB, 8+8 pin ProCool power connectors, alloy chokes and durable capacitors for stable power delivery
- Latest M.2 Support: One onboard PCIe 5.0 M.2 slot and two PCIe 4.0 M.2 slots
- Ultrafast Connectivity: Wi-Fi 7, PCIe 5.0 x16 slot, Realtek 2.5Gb Ethernet, rear USB 20Gbps Type-C® port, front USB 10Gbps Type-C® connector
- Comprehensive Cooling: Enlarged VRM heatsink, M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- DIY Friendly Design: PCIe Slot Q-Release, new M.2 Q-Latch, Q-Antenna, Q-Dashboard, Q-LED, BIOS FlashBack™, Clear CMOS button and Pre-mounted I/O shield
- Unmatched Personalization: Three Addressable RGB Gen 2 headers, all configurable with ASUS-exclusive Aura Sync RGB lighting
- Renowned Software: ASUS DriverHub, ASUS AI Advisor, DTS Audio Processing

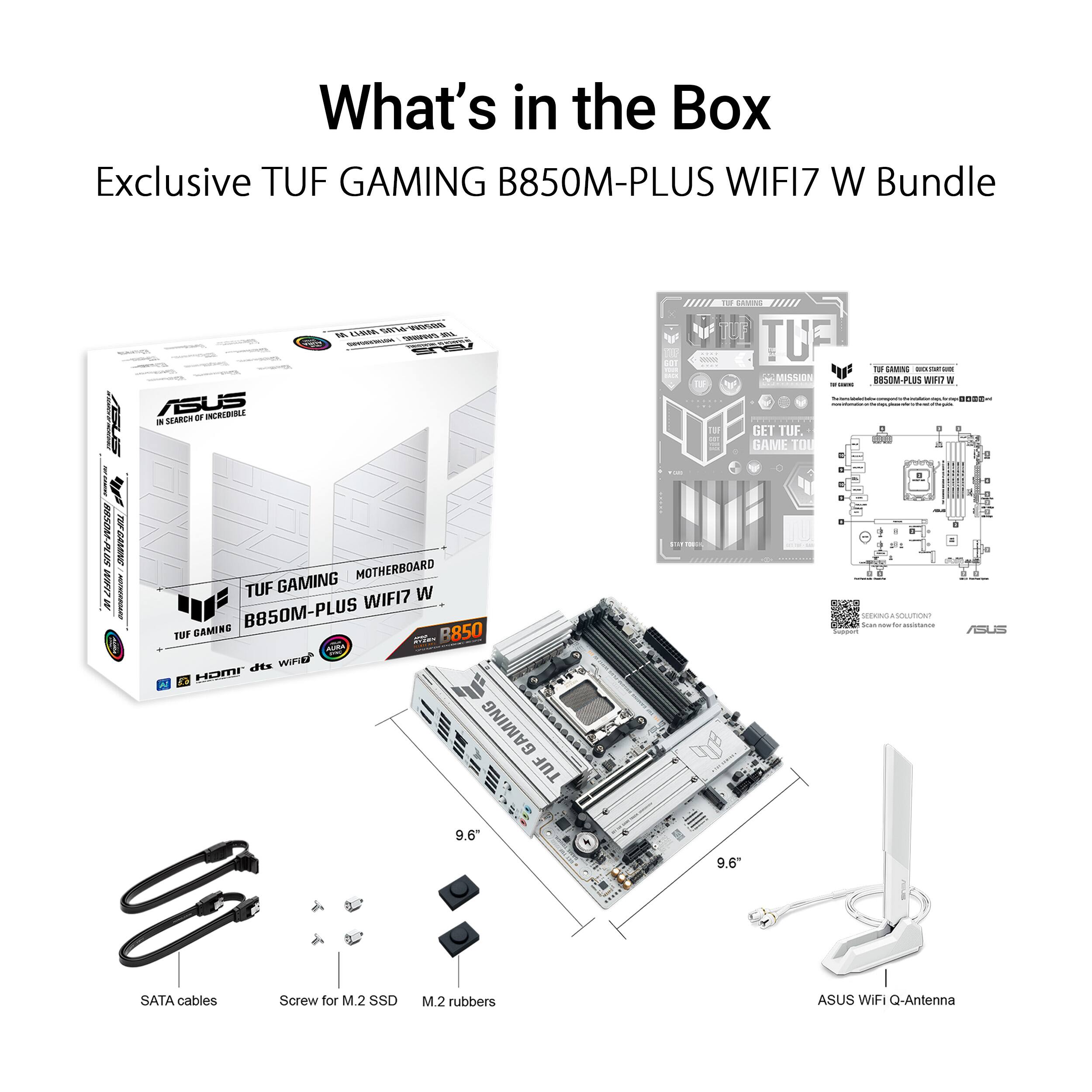

Whats Included
- TUF Gaming B850M-PLUS WIFI7 W Motherboard
- 2x SATA 6Gb/s Cables
- 1x ASUS Wi-Fi Q-Antenna
- 1x TUF GAMING Sticker
- 1x M.2 Rubber Package
- 1x Screw Package for M.2 SSD
- 1x Quick Start Guide
- TUF Gaming B850M-PLUS WIFI7 W Motherboard
- 2x SATA 6Gb/s Cables
- 1x ASUS Wi-Fi Q-Antenna
- 1x TUF GAMING Sticker
- 1x M.2 Rubber Package
- 1x Screw Package for M.2 SSD
- 1x Quick Start Guide
Sponsored
Compare similar products
ASUS - TUF Gaming B850M-PLUS (Socket AM5) AMD B850 Micro-ATX Wi-Fi 7 BE Motherboard - White
The ASUS TUF GAMING B850M-PLUS WIFI7 W featuring 14+2+1 80A DrMOS power stages for robust performance. It’s ready for AMD Socket AM5, supports DDR5 memory, PCIe 5.0, three M.2 slots, Wi-Fi 7, Realtek 2.5Gb Ethernet, DisplayPort, HDMI™, rear USB 20Gbps Type-C® and front USB 10Gbps Type-C® support, BIOS FlashBack™, Aura Sync.
4.8(4)
The B850M GAMING X WIFI6E supports AM5 Processors and features unparalleled performance. GIGABYTE B850 motherboards come with upgraded power design, high grade storage standards, and outstanding connectivity that enables you to optimize your performance.
GIGABYTE - B850M AORUS ELITE WIFI6E ICE (Socket AM5) AMD B850M mATX DDR5 Wi-Fi6E Motherboard - White
4.2(5)
The B850M AORUS ELITE WIFI6E ICE supports AM5 Processors and features unparalleled performance. GIGABYTE B850 motherboards come with upgraded power design, high grade storage standards, and outstanding connectivity that enables you to optimize your performance.
ASUS TUF GAMING B850M-PLUS WIFI takes all the essential elements of the latest AMD Ryzen processors and combines them with game-ready features and proven durability. Engineered with military-grade components; an upgraded power solution and a comprehensive cooling system; this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.
