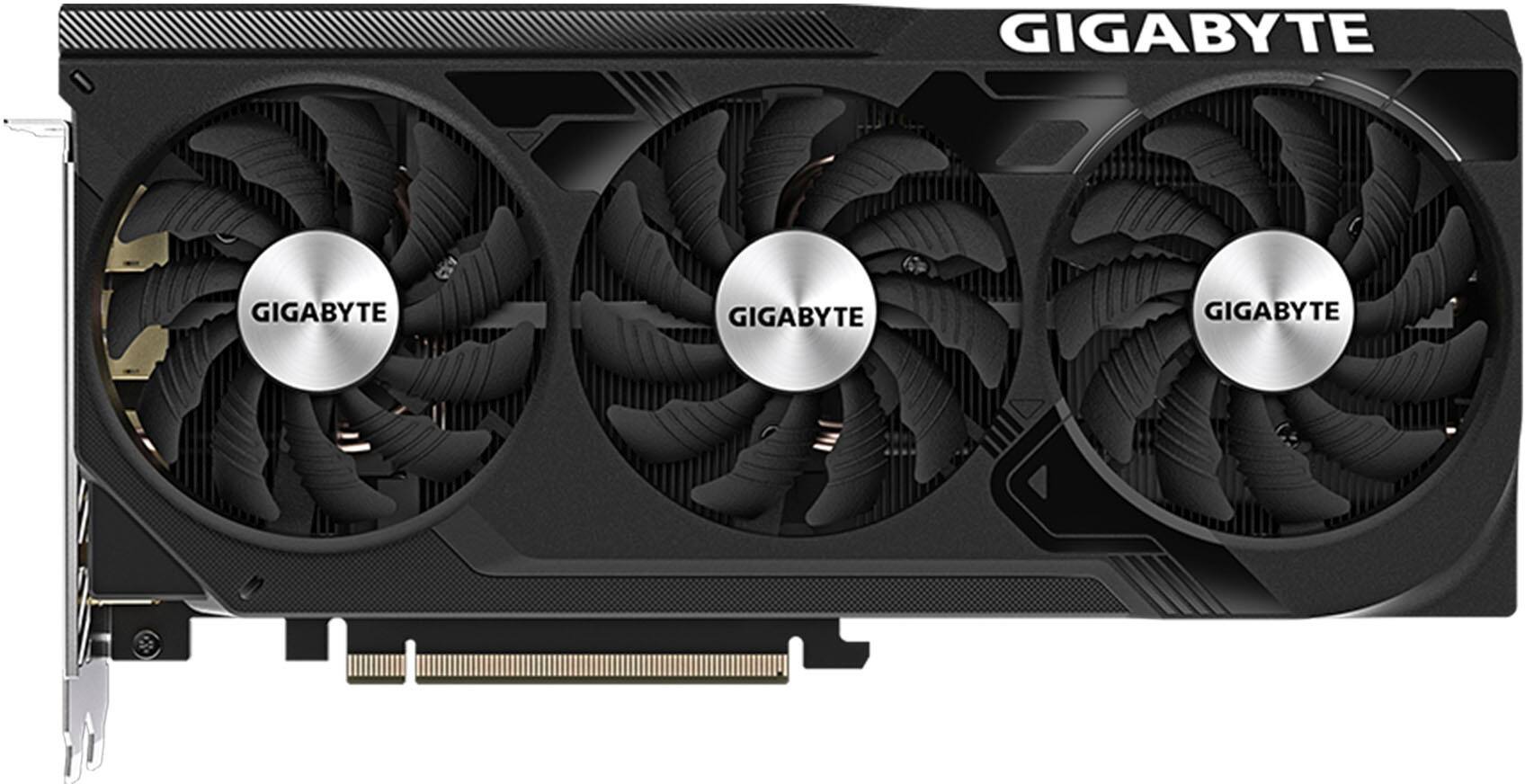

GIGABYTE - NVIDIA GeForce RTX 4070 WINDFORCE OC 12G GDDR6X PCI Express 4.0 Graphics Card - Black
- Key Specs
- GPU Base Clock Frequency: 1.92 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 2.49 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
- DisplayPort Ports: 3 x DisplayPort (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI (The number and type of HDMI outputs the product has.)
- Maximum Resolution: 8K (4320p) (The highest display resolution that the graphics card(s) can support.)
- Maximum Number of Displays Supported: 4
- Advanced Graphics Rendering Technique(s): DLSS 3 (Deep Learning Super Sampling), Ray tracing (Imaging technology designed to improve graphics rendering.)
- GPU Video Memory (RAM): 12 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR6X (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- Slot Size: 2.5-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- PCI Express Version: PCI Express 4.0
- Product Height: 50 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 126 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 261 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Graphics Processing Unit (GPU): NVIDIA GeForce RTX 4070 (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- General
- Brand: GIGABYTE
- Model Number: GV-N4070WF3OC-12GD
- Product Name: NVIDIA GeForce RTX 4070 WINDFORCE OC 12G GDDR6X PCI Express 4.0 Graphics Card
- Color: Black
- GPU Chipset Manufacturer: NVIDIA
- Graphics Processing Unit (GPU): NVIDIA GeForce RTX 4070 (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- Performance
- GPU Base Clock Frequency: 1.92 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 2.49 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
- Cooling System: Fan (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Connectivity
- DisplayPort Ports: 3 x DisplayPort (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI (The number and type of HDMI outputs the product has.)
- Thunderbolt Ports: 0 (The number and type of Thunderbolt ports the product has.)
- Power Connector: 8 pin *1 (The configuration of the connector as it connects the motherboard to a power supply unit.)
- Display
- Maximum Resolution: 8K (4320p) (The highest display resolution that the graphics card(s) can support.)
- Maximum Number of Displays Supported: 4
- Advanced Graphics Rendering Technique(s): DLSS 3 (Deep Learning Super Sampling), Ray tracing (Imaging technology designed to improve graphics rendering.)
- Memory
- GPU Video Memory (RAM): 12 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR6X (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- GPU Video Memory Base Clock Frequency (RAM): 12 gigahertz
- Compatibility
- Slot Size: 2.5-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- PCI Express Version: PCI Express 4.0
- Operating System Compatibility: Mac, Windows
- Features
- Multi-GPU Support: None
- Power
- Total Graphics Power: 200 watts
- Recommended Power Supply: 650 watts
- Dimensions
- Product Height: 50 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 126 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 261 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 2.05 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 889523037003
Ahead of its time, ahead of the game is the GIGABYTE GeForce RTX 4070 WINDFORCE OC 12G Graphics Cards. Powered by NVIDIA's new RTX architecture, the GIGABYTE GeForce RTX 4070 WINDFORCE OC 12G brings stunning visuals, amazingly fast frame rates, and AI acceleration to games and creative applications with its enhanced RT Cores and Tensor Cores, along with a staggering 12 GB of GDDR6X memory.
- Graphics Processing Unit (GPU)/Clock Speed: Powered by the NVIDIA GeForce RTX 4070 graphics processing unit (GPU)
- 12GB GDDR6X (192-bit): 12GB GDDR6X (192-bit) Video Memory
- Interface Compatibility: PCI Express 4.0
- API (Application Programming Interface) Support: DirectX 12 Ultimate, OpenGL 4.6 support
- HDMI and Display Port outputs: HDMI 2.1, DisplayPort 1.4
- Series: NVIDIA GeForce "Ada Lovelace" RTX 40-Series
- Graphics Processing Unit (GPU)/Clock Speed: Powered by the NVIDIA GeForce RTX 4070 graphics processing unit (GPU)
- 12GB GDDR6X (192-bit): 12GB GDDR6X (192-bit) Video Memory
- Interface Compatibility: PCI Express 4.0
- API (Application Programming Interface) Support: DirectX 12 Ultimate, OpenGL 4.6 support
- HDMI and Display Port outputs: HDMI 2.1, DisplayPort 1.4
- Series: NVIDIA GeForce "Ada Lovelace" RTX 40-Series
Whats Included
- NVIDIA GeForce RTX 4070 WINDFORCE OC 12G GDDR6X PCI Express 4.0 Graphics Card
- NVIDIA GeForce RTX 4070 WINDFORCE OC 12G GDDR6X PCI Express 4.0 Graphics Card
A: Hi Neo, The graphics card uses a standard 8pin power connector. You wont need a ATX 3.0 PSU to power this GPU. Hope this helps! - John
A: I just upgraded from a GTX 1070 and all the connections were exactly the same so you should be alright there. Be sure to do a clean install of the Nvidia Graphics Drivers when you get it up and running.
A: You shouldn’t have any problems with bottlenecking. The ryzen 7 5700g and Nvidia rtx 4070 shouldn’t have any compatibility problems.
Q: Does this include the Alan Wake II bundle?
A: I bought my card 11-6 and got my Alan Wake 2 code in an email the same day.
Q: My 3070 has a 12-pin connector. What do I need to make this 4070 with a 8-pin connector work?
A: Your power supply hasn't eight pin connector on it, you're 3070 that has a 12 pin has an adapter that goes from two eight pins to a 12 pin so all you would do is take that adapter off that you're using now on your 3070 and then just plug one of the eight pins into your new 4070 pretty self-explanatory
Q: Will this fit in the 40L omen desktop computer
A: I just finished installing this card in my Omen 40L. Plenty of space and PSU. I replaced the stock 3060 ti which also maxed out at 200 watts.
A: Yes, you are overthinking it. You probably solved it by now, but you can use any dedicated 8-pin connector for your GPU.
Q: Does the letters on gpu lights up?
A: No LEDs on this model of the card at all. (Ignore the bad cable management, I have a new Motherboard and CPU coming later this week)
